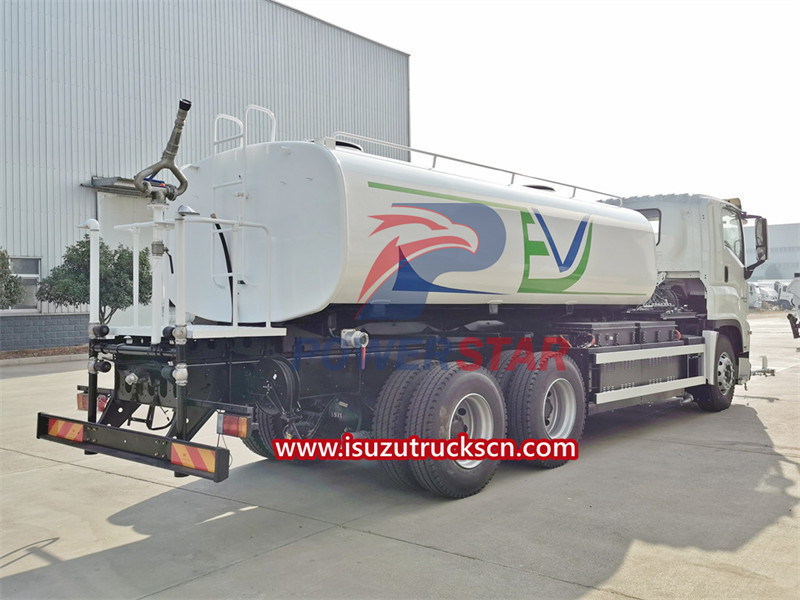

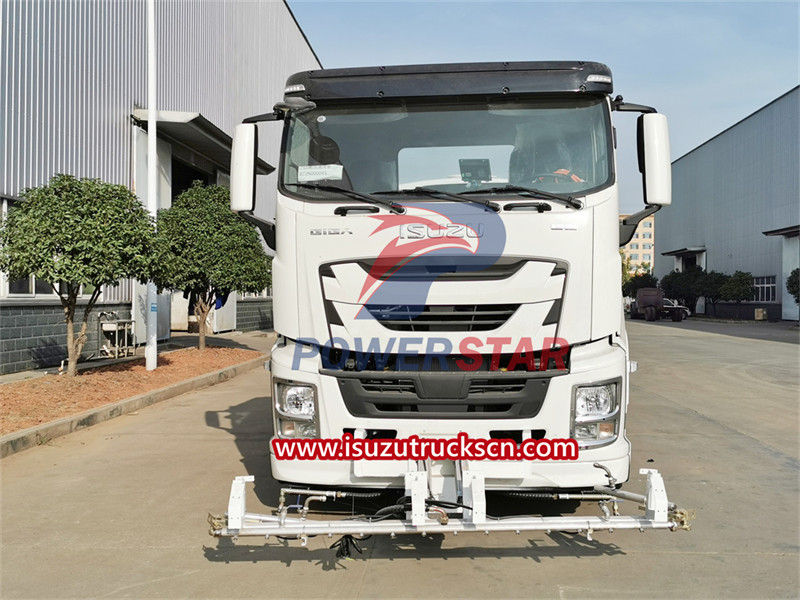

ISUZU water tank truck, also called ISUZU water bowser, is a vehicle specially used for urban road cleaning and greening watering. The traditional Isuzu water tank truck uses a fuel engine as the power source, but due to the limited resources of fuel and environmental pollution problems, the Isuzu electric water truck came into being. Isuzu electric water tank trucks use clean energy as their power source, which not only reduces environmental pollution but also improves energy utilization efficiency.
Work capacity:
15000 LTruck model:
PT5250GSSEVEngine power:
380 HPEngine type:
ElectricalAxle drive:
6×4Gear box:
NONRemarks:
ISUZU GIGA 10 wheeler electric chassis

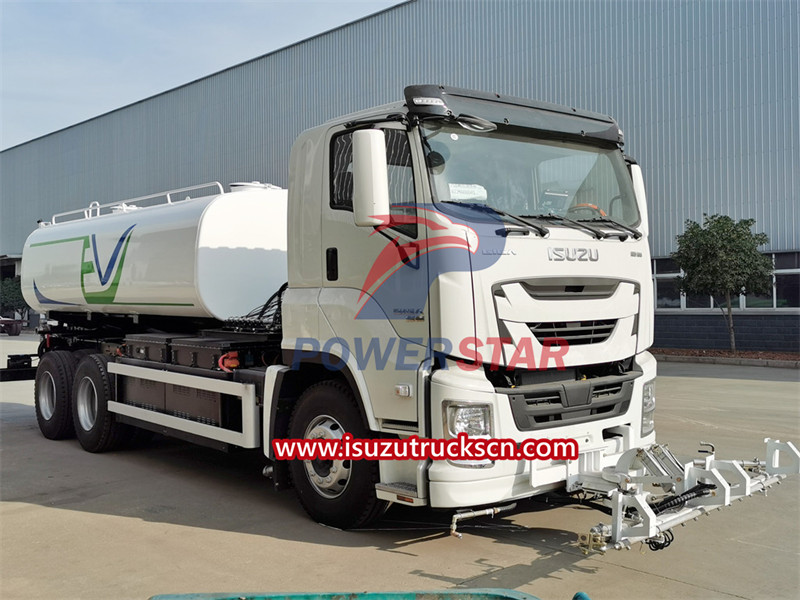

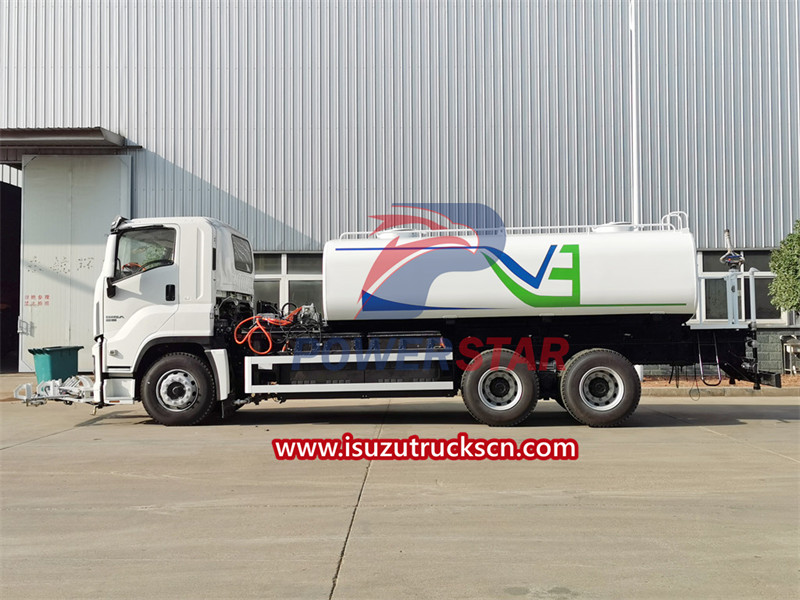

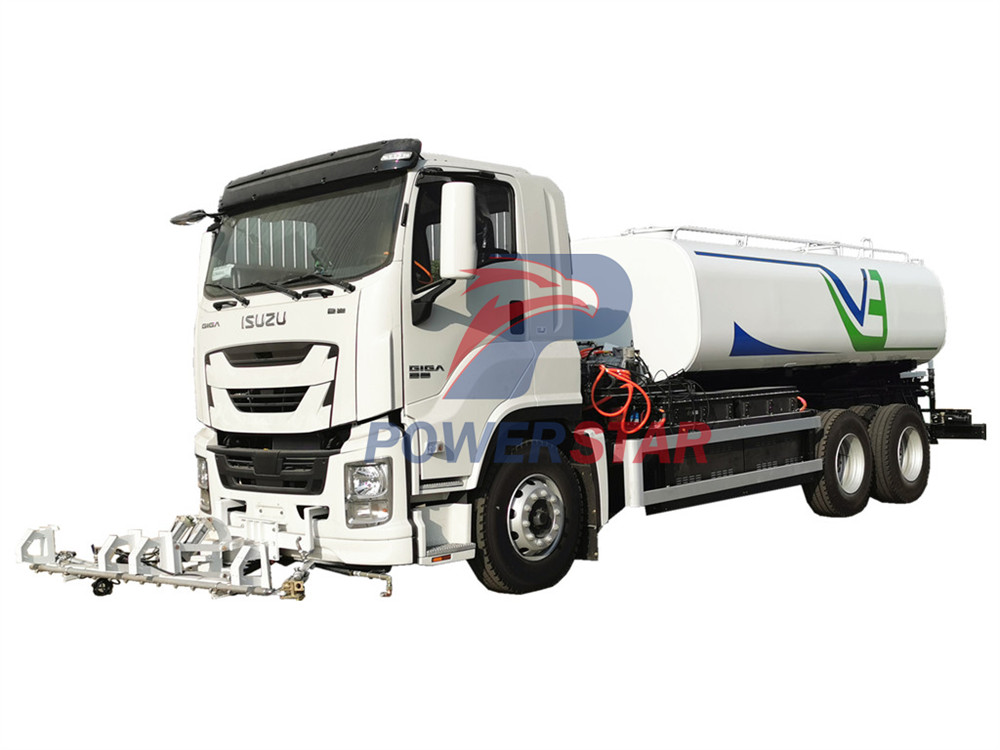

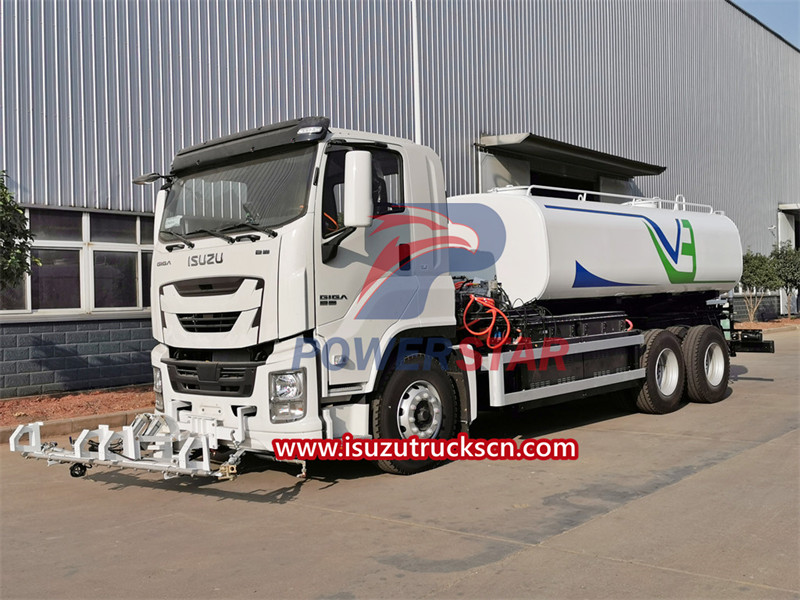

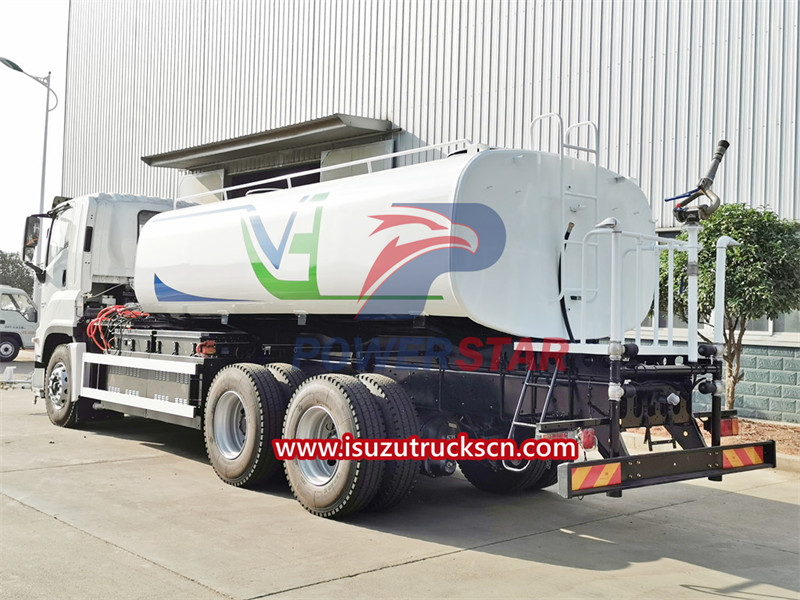

The Isuzu electric water truck is an innovative environmentally friendly equipment that combines traditional sprinkler trucks with advanced technology. This electric water tank truck adopts excellent ISUZU chassis and power system, and combines advanced electric technology and intelligent control systems to achieve more efficient and environmentally friendly watering operations.
Isuzu electric water trucks use all-electric drive, with zero emissions and low noise, which not only reduces environmental pollution, but also improves the comfort of the urban environment. Its powerful electric motor provides sufficient power to ensure the stable operation of the water truck under various road conditions. At the same time, the vehicle is also equipped with a high-performance battery pack to ensure long-term continuous operation capabilities.

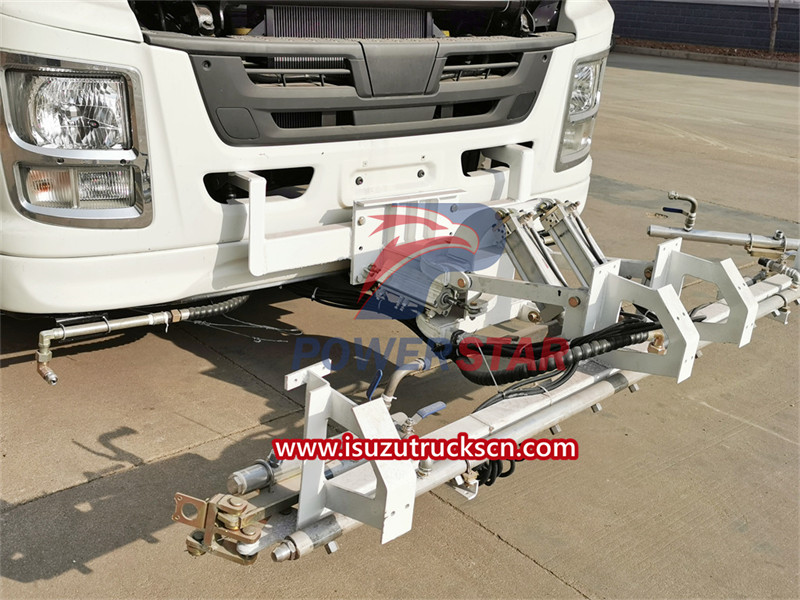

In terms of water sprinkling function, Isuzu electric water truck adopts advanced water pump system and nozzle design, which can achieve uniform and efficient water sprinkling effect. At the same time, the vehicle is also equipped with an intelligent control system that can adjust the amount and range of watering according to actual needs to achieve precise operations.
Product Specifications
|
Battery Specifications |
|
|
Maximum power of chassis motor |
180kw |
|
Rated voltage of battery pack |
499.2v |
|
Battery level |
229kwh |
|
Full load range |
430km |
|
Battery category |
Lithium iron phosphate battery |
|
Battery brand |
Yiwei power or Contemporary Amperex Technology Co. Ltd |
|
Recommended charging pile power |
120kw |
|
Charging time |
About 2 hours |
|
ISUZU Electrical Water Tank Truck Specifications |
|
|
Vehicle Model |
ISUZU5250GSSEV |
|
Chassis Brand |
Qingling ISUZU |
|
Dimension (LxWxH) mm |
9200×2500×3460 |
|
Approaching angle/ Departure angel (°) |
16/16 |
|
Overhang (front/rear) (mm) |
1320/2340 |
|
Wheel base (mm) |
4600+1370 |
|
Max. Driving speed (km/h) |
90 |
|
Front axle loading capacity (kg) |
7500 |
|
Rear axle loading capacity(kg) |
20000 |
|
Curb weight (kg) |
11200 |
|
Gross vehicle weight (kg) |
25000 |
|
Tire |
315/80R22.5 with one spare tire |
|
Water Tank Volume (m³) |
15m3(15,000 Liters) |
|
Sprinkler pump flow(m³/h) |
50 |
|
Sprinkling width(m) |
≥16 |
|
Flushing Width (m) |
≥24 |
|

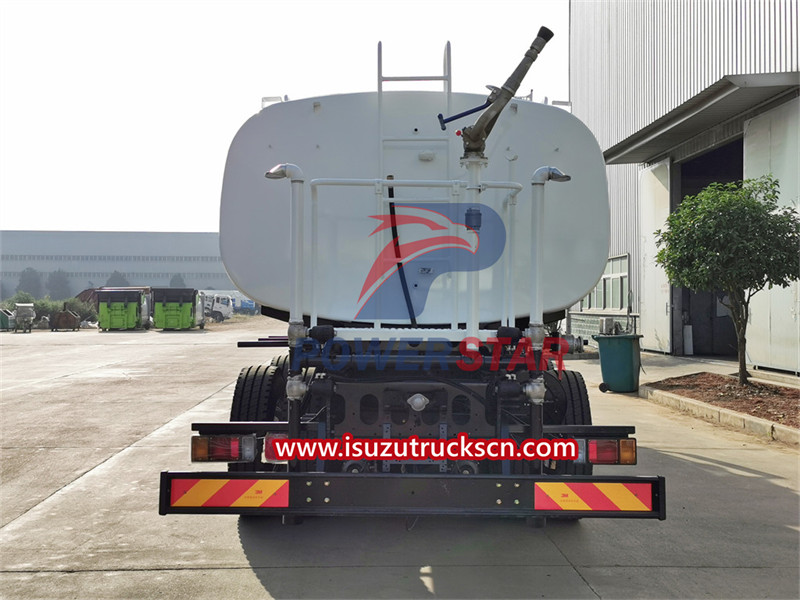

Rear high injection range (m) |
≥50 |
Product Features
Isuzu electric water trucks mainly use electricity or hydrogen fuel cells as the power source and have the following technical features:
1. Low pollution: Isuzu electric water trucks use clean energy, produce no exhaust emissions and noise pollution, and have no negative impact on the environment and residents' health.
2. High efficiency and energy saving: Isuzu electric water truck has high energy utilization efficiency. By optimizing the power system and reducing energy loss, it can maximize energy utilization efficiency and reduce energy consumption.
3. Intelligent control: The Isuzu electric water truck adopts an advanced intelligent control system, which can realize automatic control and monitoring of the vehicle and improve the safety and efficiency of operation.
4. Versatility: Isuzu electric water trucks can not only be used for road cleaning and greening watering, but can also be used for fire extinguishing, water transportation and other purposes, improving the vehicle's utilization rate and economic benefits.
Isuzu electric truck maintenance tips:
1. When driving through water, the water depth on the road should not exceed 30cm, and the vehicle speed should not exceed 10km/h. At the same time, pay attention to whether the instrument has an alarm, and drive carefully to ensure safety.
2. When the water on the road is >30cm, vehicles must change lanes or be suspended. Forced passage is strictly prohibited.
3. When not in use, Isuzu electric trucks should be placed in open areas as much as possible. It is strictly prohibited to park in low-lying areas, under trees, under high-voltage lines, fire sources and other dangerous road sections.
4. When cleaning Isuzu electric trucks, it is not recommended to use high-pressure water guns to clean the battery compartment. It is prohibited to flush the interior of the battery compartment and high and low-voltage components such as battery boxes with water to avoid adverse consequences when the battery system comes into contact with water.
5. During thunderstorms, charging must be carried out in an area with rain and lightning protection, and inspections of the charger and charging gun cables must be strengthened to ensure that the charger and charging gun cables are dry and free of water stains.
6. When charging the Isuzu electric truck, observe the charging gun and charging base. They must be kept dry and free of ablation. It is strictly forbidden to charge without leakage in rainy days.
