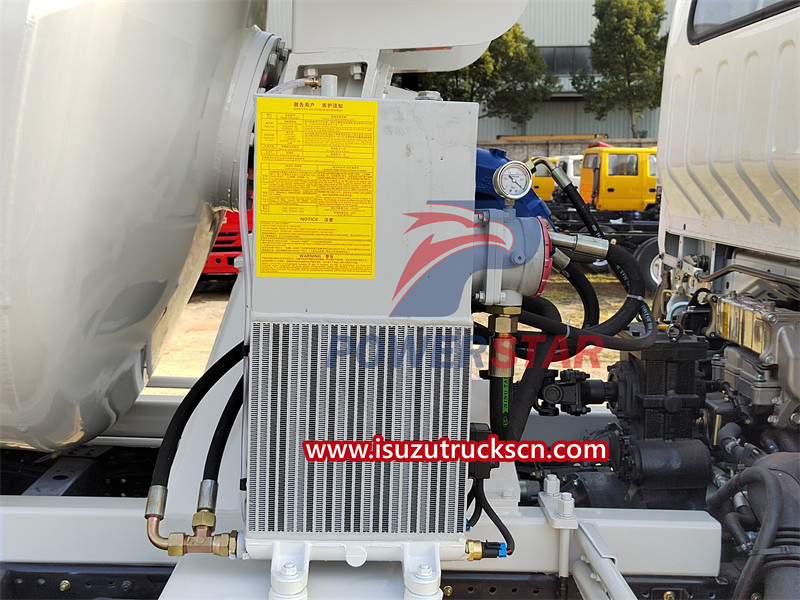

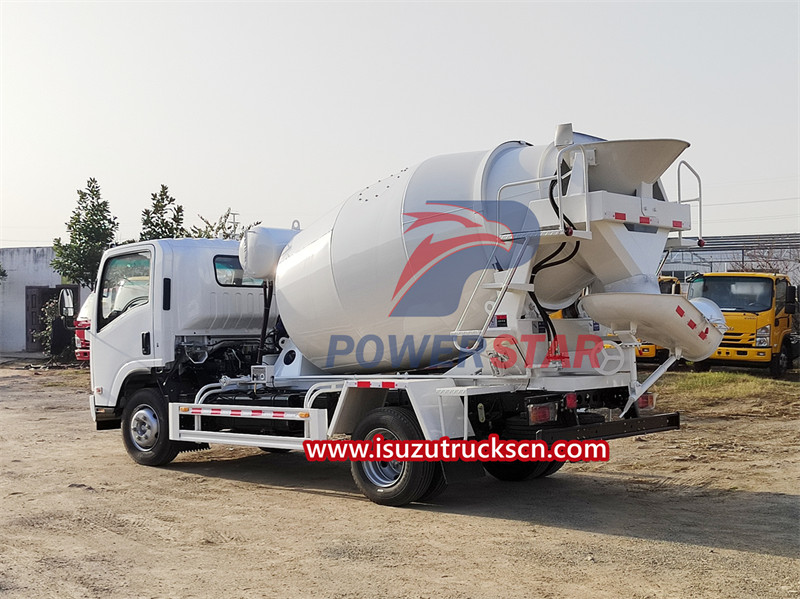

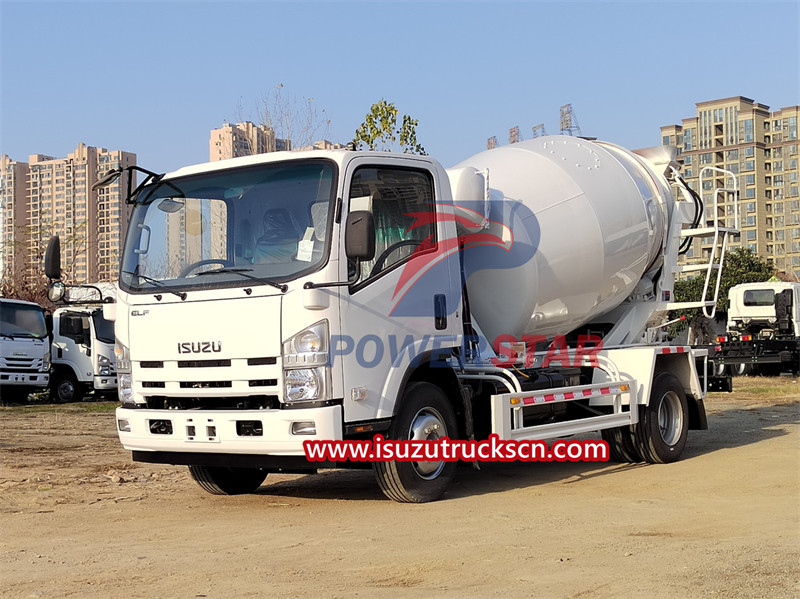

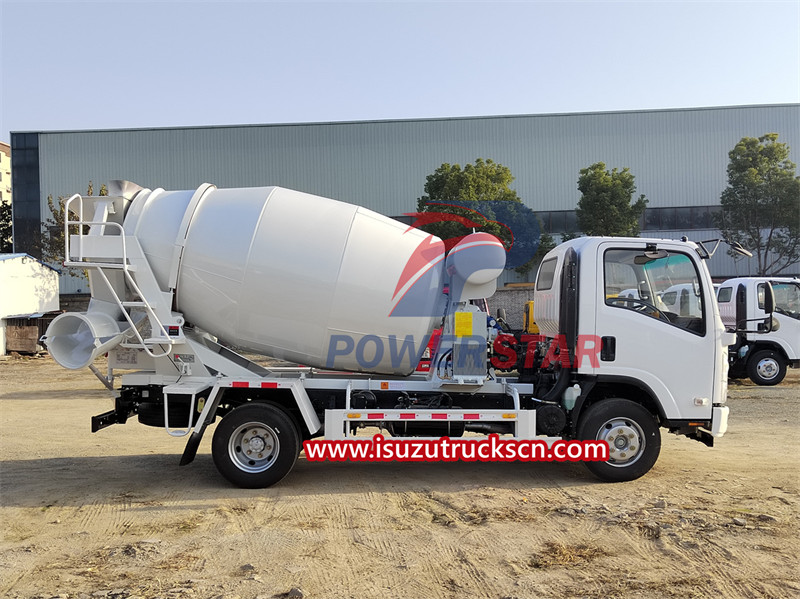

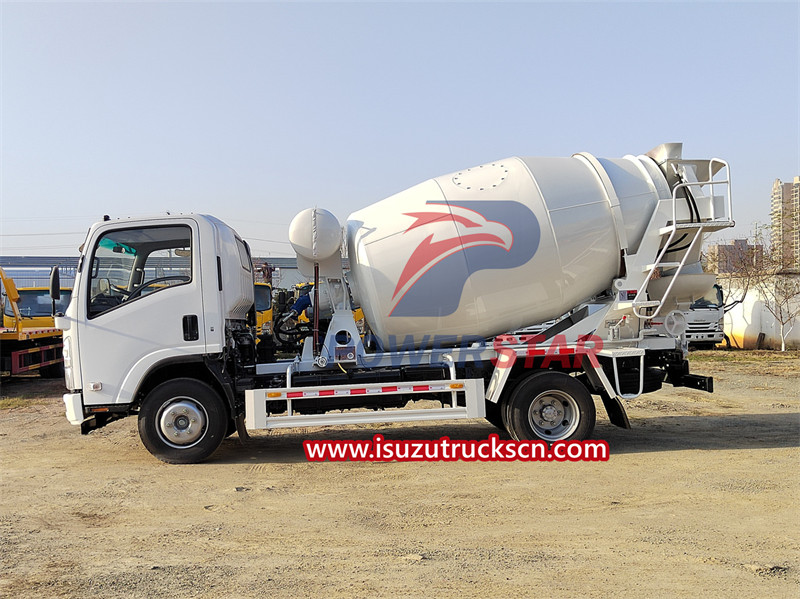

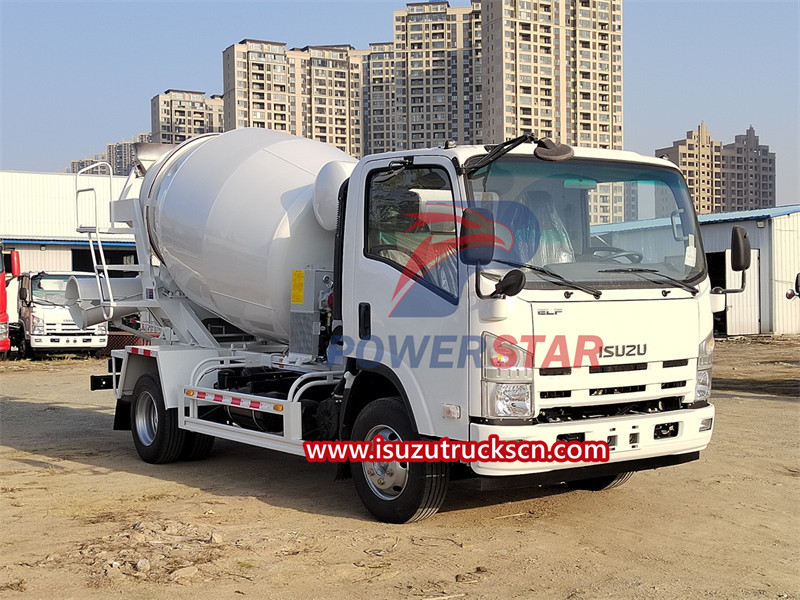

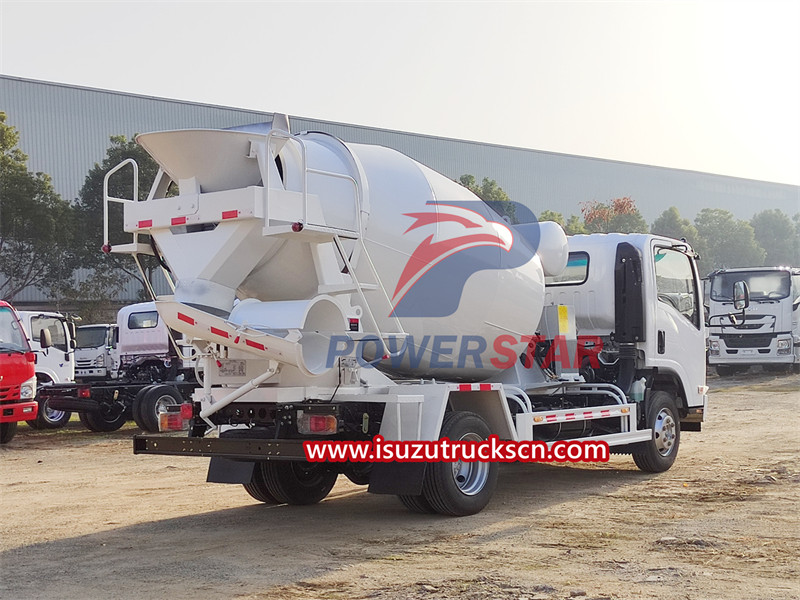

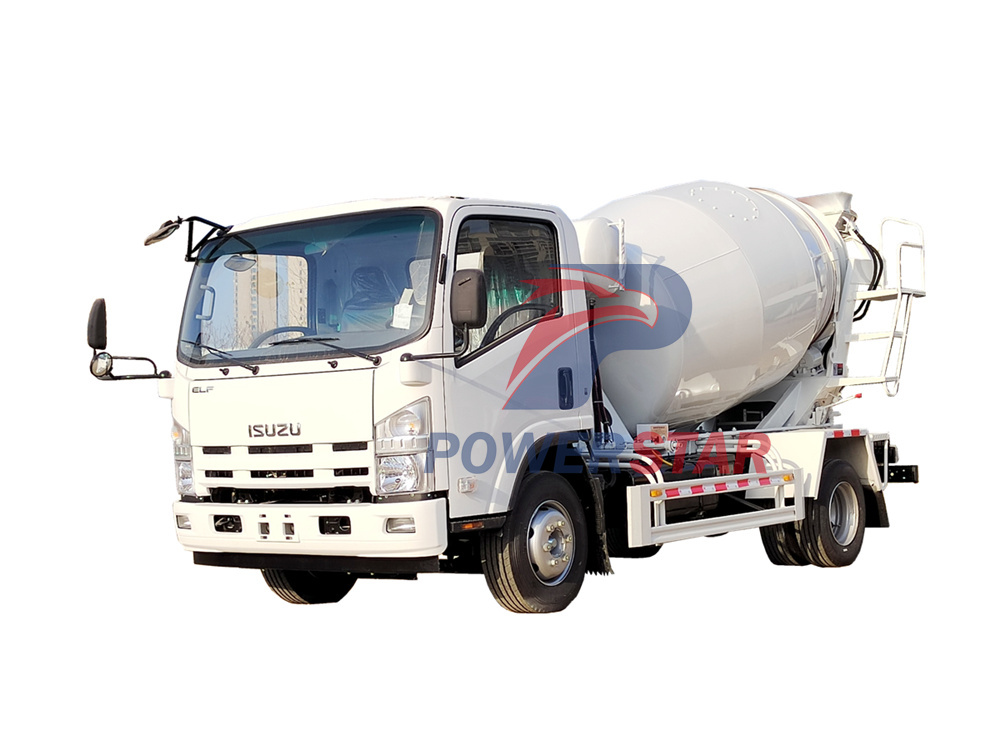

The ISUZU concrete mixer truck is modified on the ISUZU 700P medium-sized chassis. It is mainly used to transport concrete that meets homogeneous requirements. It is an ideal, modern, pollution-free concrete mixing and transportation equipment. ISUZU concrete mixer truck is mainly composed of automobile chassis, hydraulic drive system, water supply system, frame, mixing drum, control system, feeding system, discharging system and related accessories.
Work capacity:
4 CBMTruck model:
PT5070GJB4Engine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
MLD 6-speedRemarks:
ISUZU NPR chassis, mixer tanker is made of high quality material
ISUZU concrete mixer truck is a special vehicle that continuously and slowly mixes the transported concrete during transportation or on the construction site. It is also called ISUZU concrete mixer truck, ISUZU cement mixer, ISUZU transit mixer truck. ISUZU concrete mixer trucks are widely used in construction engineering, road construction, bridge construction, water conservancy projects and other fields. It can mix and transport various concrete ratios, such as ordinary concrete, crack-resistant concrete, high-strength concrete, etc. At the same time, it can also adapt to various transportation environments and working conditions, such as mountainous areas, cities, highways, etc.
The ISUZU concrete mixer trucks produced by POWERSTAR are available in two categories, medium-duty and heavy-duty, for users to choose from depending on the vehicle configuration. Among similar products, different truck chassis, reducers, hydraulic systems, and control systems can be selected according to user needs. We can also design and customize ISUZU concrete mixer trucks for users with special requirements.

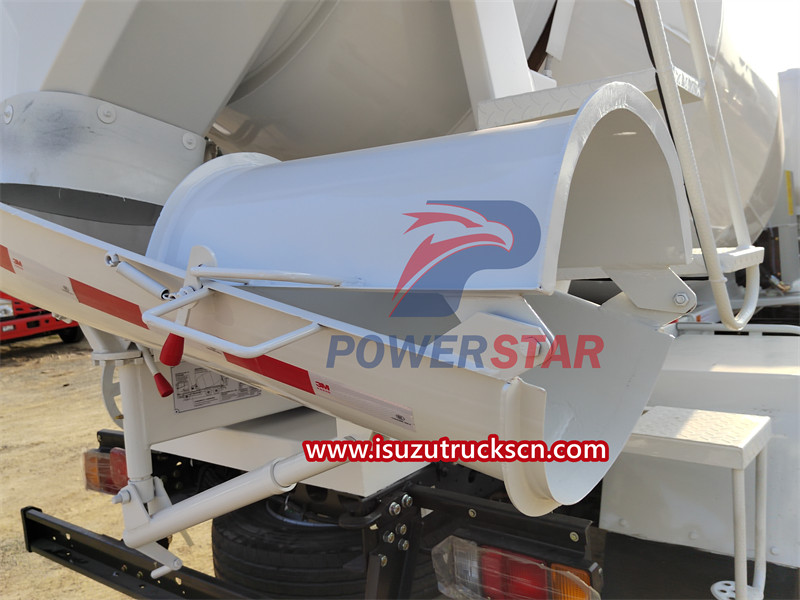

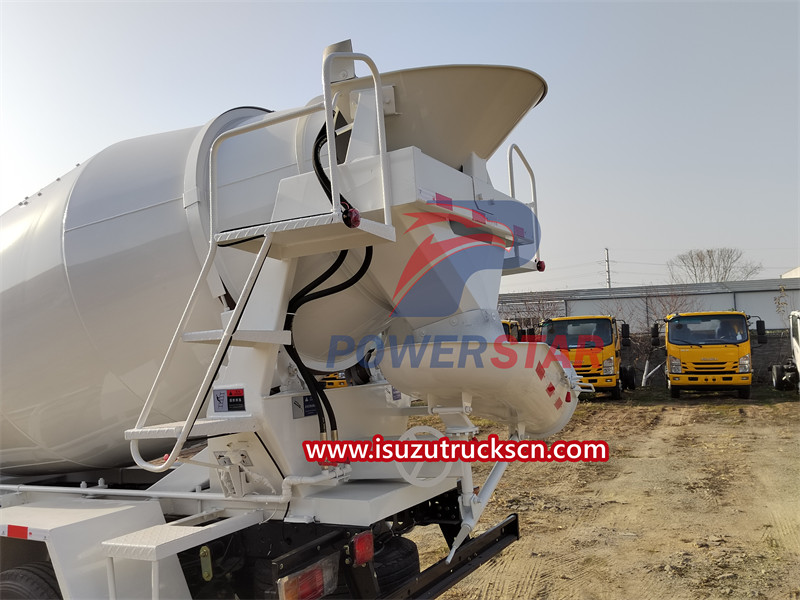

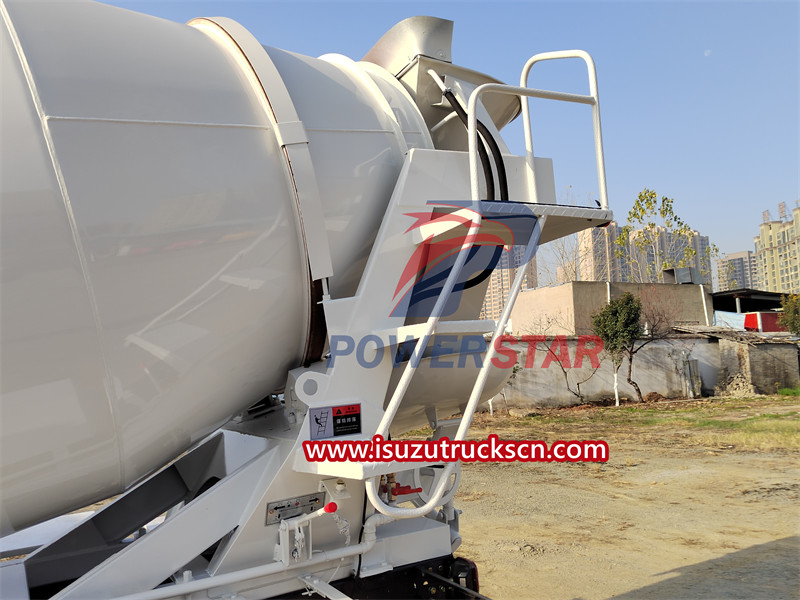

The mixing tank of the ISUZU mixer truck is made of high-quality wear-resistant steel plates. In order to automatically load and unload concrete, special-shaped spiral blades are welded to the inner wall. When the tank rotates forward, the concrete can fill the tank and will not solidify quickly due to constant stirring; when it rotates reversely, the commercial concrete will be automatically discharged from the discharge port.
Product Specifications
|
Product name |
ISUZU Concrete Mixer Truck |
|
|
Vehicle model |
PT5070GJB4 |
|
|
Chassis parameters |
Overall dimensions |
6800X2495X2960 |
|
Wheelbase |
3815mm |
|
|
Drive type |
4*2 |
|
|
Number of axles |
2 |
|
|
Tire specification |
235/75R17.5 |
|
|
Number of Tires |
6+1 |
|
|
Allowable passengers in cab |
3 |
|
|
Engine |
Engine brand |
ISUZU |
|
Model |
4HK1-TC51 |
|
|
Power |
190 HP |
|
|
Type of fuel |
Diesel |
|
|
Displacement |
5193 ml |
|
|
Rated speed |
2600 rpm |
|
|
Max. torque |
510N.m |
|
|
Emission standard |
EURO 5 |
|
|
Mixer Body |
Effective cubage:4 CBM |
|
|
Material: 16 Mn |
||
|
Equipment: Motor, hydraulic pump, gear box imported from Italy. |
||
|
Filling speed (M3/min) ≥ 2.8 |
||
|
Unloading speed (M3/min)≥ 1.2 |
||
|
Discharge reside rate ( %)≤ 0.5 |
||
|
Mixer drum rotation speed(rpm) 0~12 |
||
|

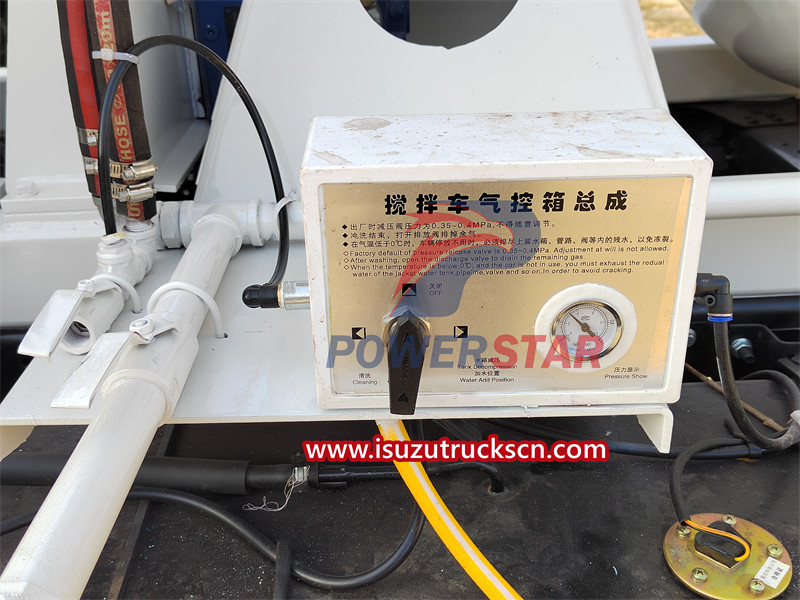

Water supply system Tank volume: 400L |
||
|
Air pressure water supply |
||
|

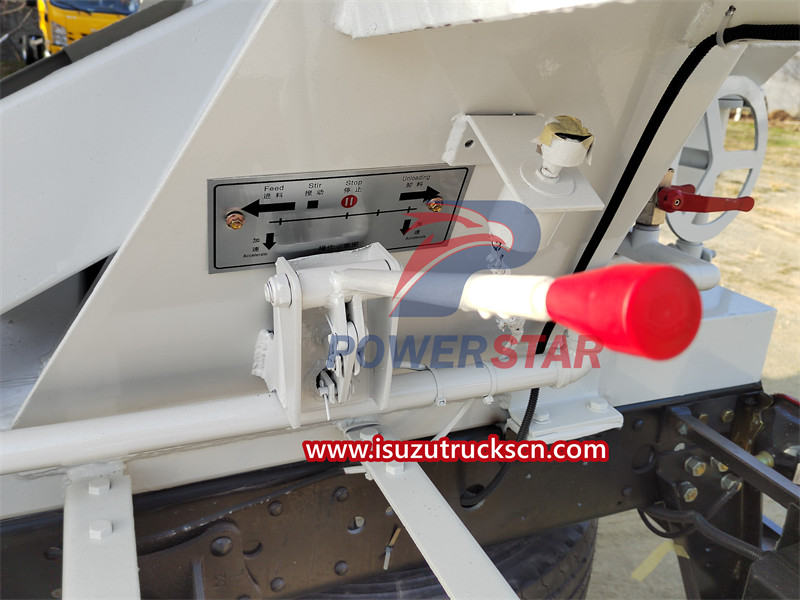

Operating system Model: linkage operation |
||
Features of ISUZU mixer trucks
1. Large capacity
The capacity of Isuzu concrete mixer is usually 4-12 cubic meters, and the maximum capacity can be up to 15 cubic meters. Its large capacity allows it to mix a large amount of concrete at one time, thereby reducing the time and workload of multiple mixings and improving work efficiency.
2. High degree of automation
Isuzu concrete mixer trucks have electronic control systems that can achieve automated control, thereby reducing manual operation time and error rates and improving production efficiency.
3. Good mixing effect
Isuzu concrete mixer trucks use special mixing devices to ensure the uniformity and quality of concrete, thereby improving the strength and durability of concrete.
4. Strong adaptability
Isuzu concrete mixer trucks can adapt to various complex transportation environments, such as mountainous areas, cities, highways, etc., and can also adapt to various concrete proportions and working conditions, thus improving the flexibility and application scope of the equipment.
5. Easy to operate
The operation of Isuzu concrete mixer trucks is relatively simple. Only one driver can complete mixing, transportation and dumping, thus reducing labor costs and management costs.
Application areas of ISUZU concrete mixer trucks
1. Application in construction engineering
In construction projects, ISUZU concrete mixer trucks are usually used to prepare concrete, such as buildings, bridges, tunnels, water conservancy projects, etc. After the mixer truck mixes cement, sand, stone and other raw materials, the concrete is transported to the construction site by dump truck, thereby eliminating the tedious process of manual mixing and reducing labor costs and time costs. In addition, the concrete mixer truck has high mixing efficiency and can fully mix the raw materials to ensure the quality of concrete.
2. Application in road construction
In road construction, ISUZU concrete mixer trucks can be used to prepare pavement cement concrete. The preparation of pavement cement concrete requires a large amount of raw materials and precise proportions, and the concrete mixer truck can mix the raw materials evenly to ensure the strength and durability of the concrete. In addition, concrete mixer trucks can also transport concrete directly to the road construction site, improving construction efficiency.
3. Application in bridge construction
In bridge construction, ISUZU concrete mixer trucks are usually used to prepare concrete for bridge piers, bridge decks and other parts. Bridges are one of the most complex structures in construction projects, which require very high strength and durability of concrete. The concrete mixer truck can mix the raw materials evenly, thereby ensuring the quality of the concrete and ensuring the safety and stability of the bridge.
4. Application in water conservancy projects
In water conservancy projects, ISUZU concrete mixer trucks are usually used to prepare concrete in dams, embankments and other projects. Water conservancy projects have very high requirements on the strength and durability of concrete, and concrete mixer trucks can mix the raw materials evenly, thereby ensuring the quality of the concrete. In addition, concrete mixer trucks can also transport concrete directly to the construction site, improving construction efficiency.
