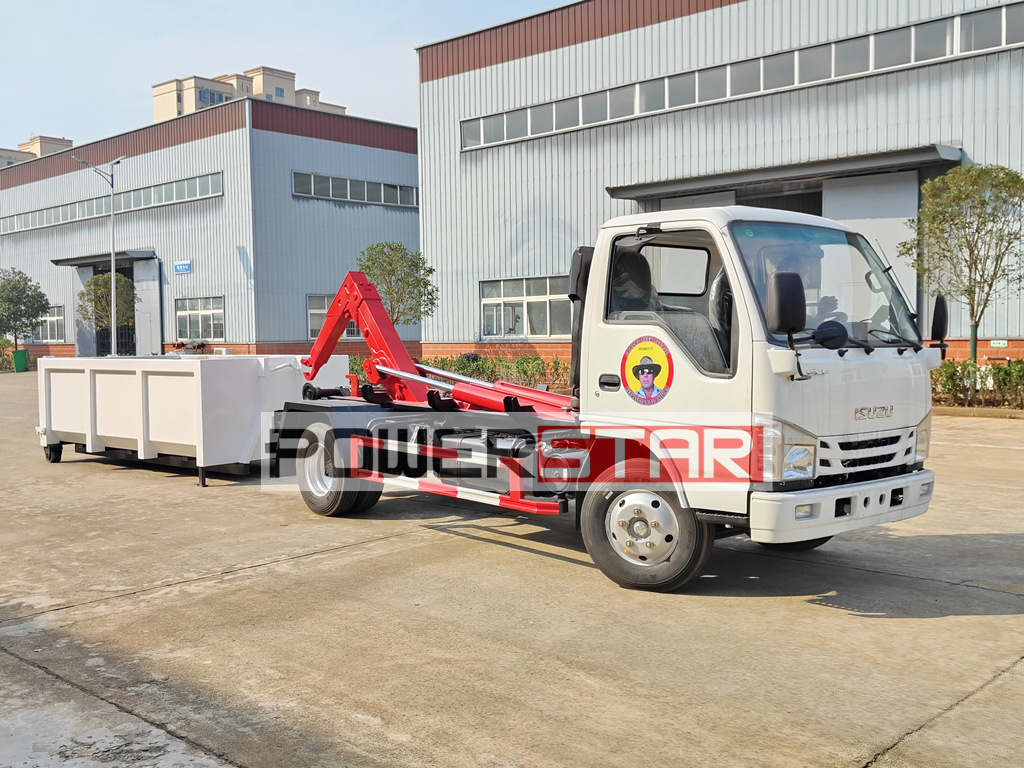

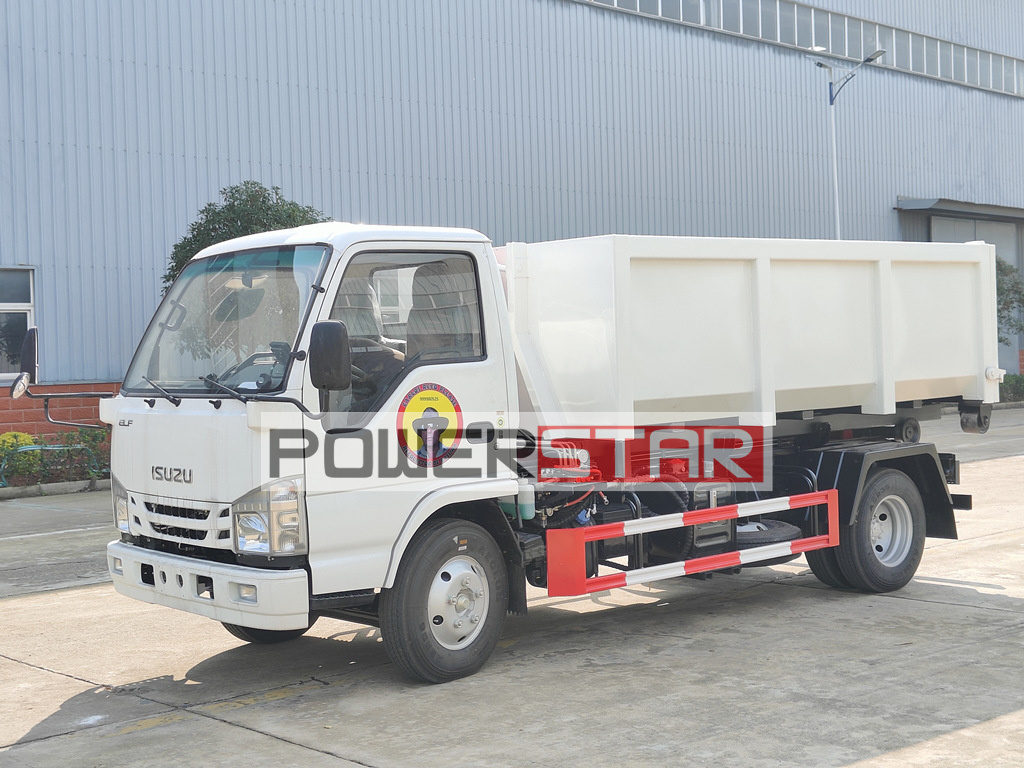

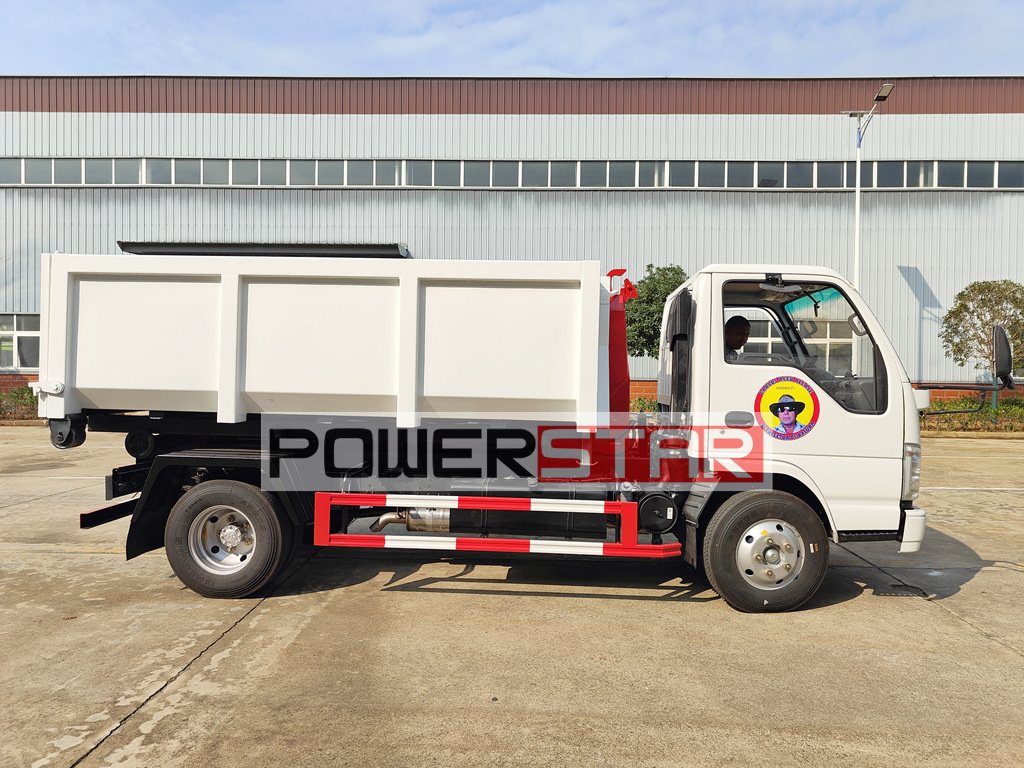

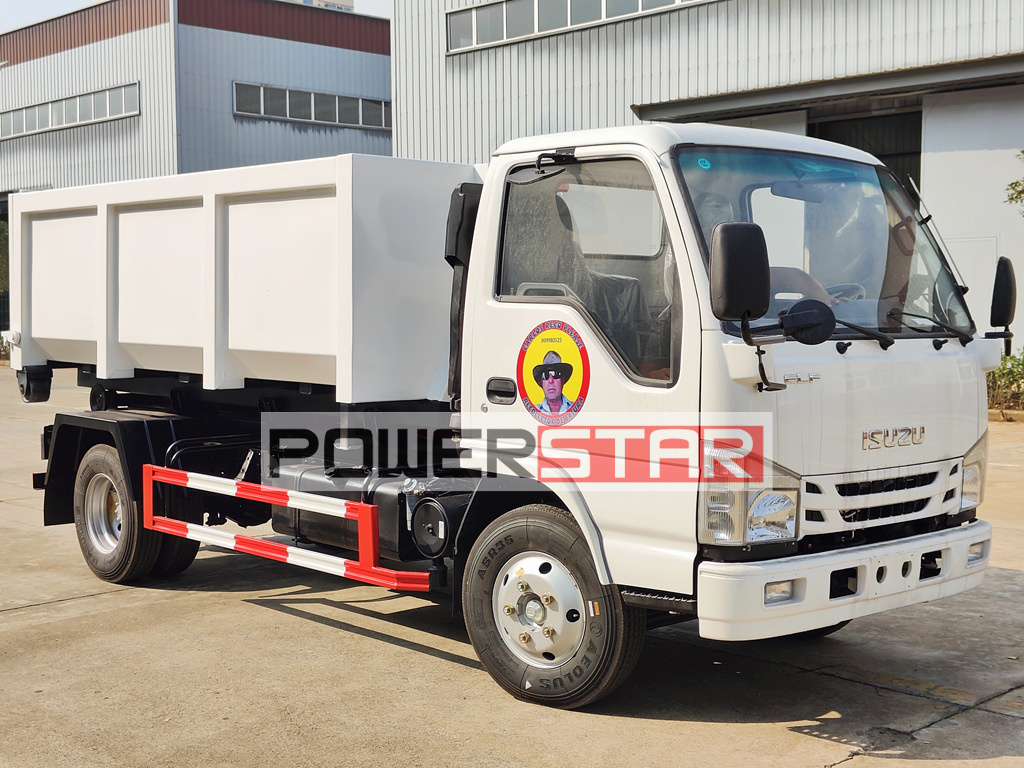

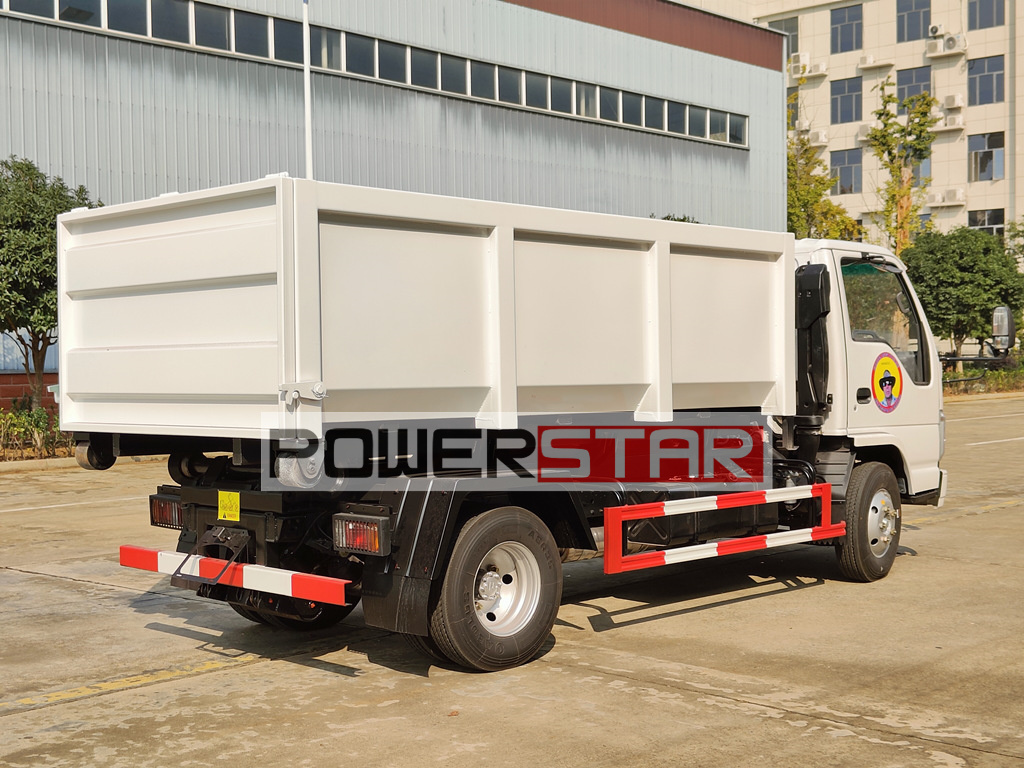

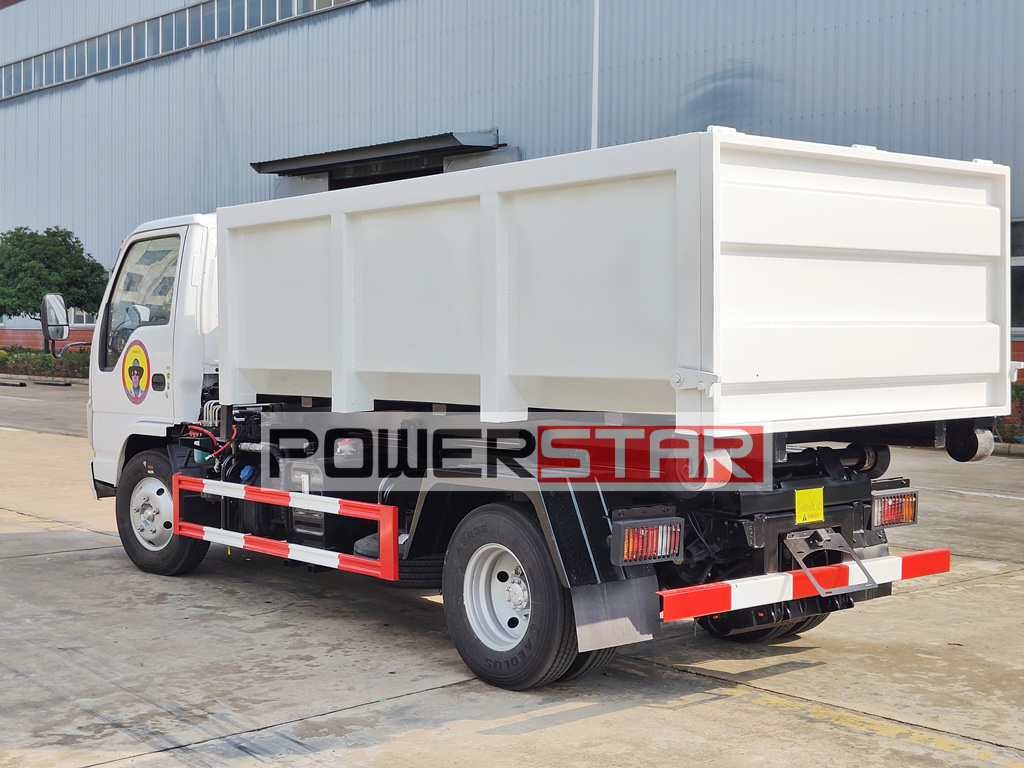

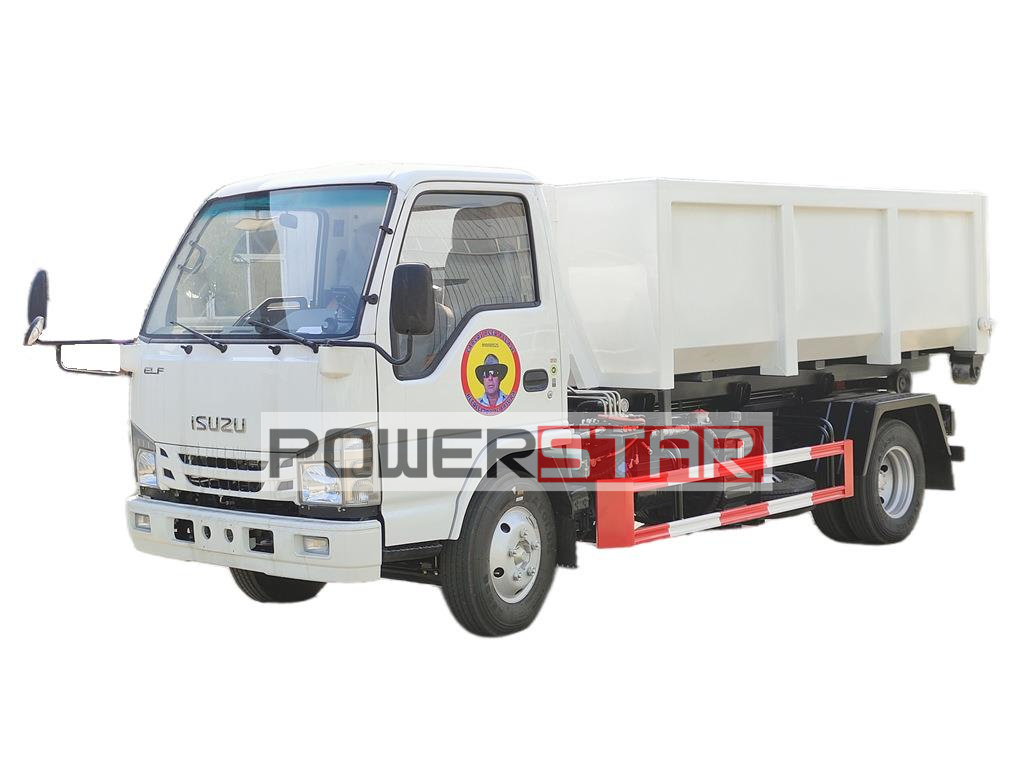

POWERSTAR produced hook arm garbage truck is a hooklift garbage truck produced based on the ISUZU brand chassis. Isuzu brand hook loader garbage trucks are also called unloadable garbage trucks, which are mainly composed of chassis and upper parts. The chassis of hook arm garbage trucks are usually purchased from the second category chassis products in the market announcement. The main suppliers include well-known automobile and truck manufacturers, such as ISUZU, HINO, Foton, JAC, DONGFENG, HOWO, SHACMAN, FAW, etc. Minimize operational and maintenance costs, maximize efficiency of your fleets — and benefit your business. The POWERSTAR Slider Series Hooklift is a body handling system mounted on a truck chassis that is capable of loading, unloading and dumping various bodies with a wider range of lengths with the use of a sliding jib.
Work capacity:
6CBMTruck model:
PT5070ZXXEngine power:
120HP/88kwEngine type:
Isuzu 4KH1CN6LBAxle drive:
4×2, LHDGear box:
Isuzu MSB 5 speed,manualRemarks:
Hook loader deviceIsuzu mini brand roll on roll off garbage truck is also called Isuzu hook loader truck, Isuzu hooklifts, Isuzu garbage collecting truck, Isuzu garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitation, large factories and mines, etc, especially apply to transport household waste in residential area. This truck can be equipped with many garbage containers, high effiency, economical.

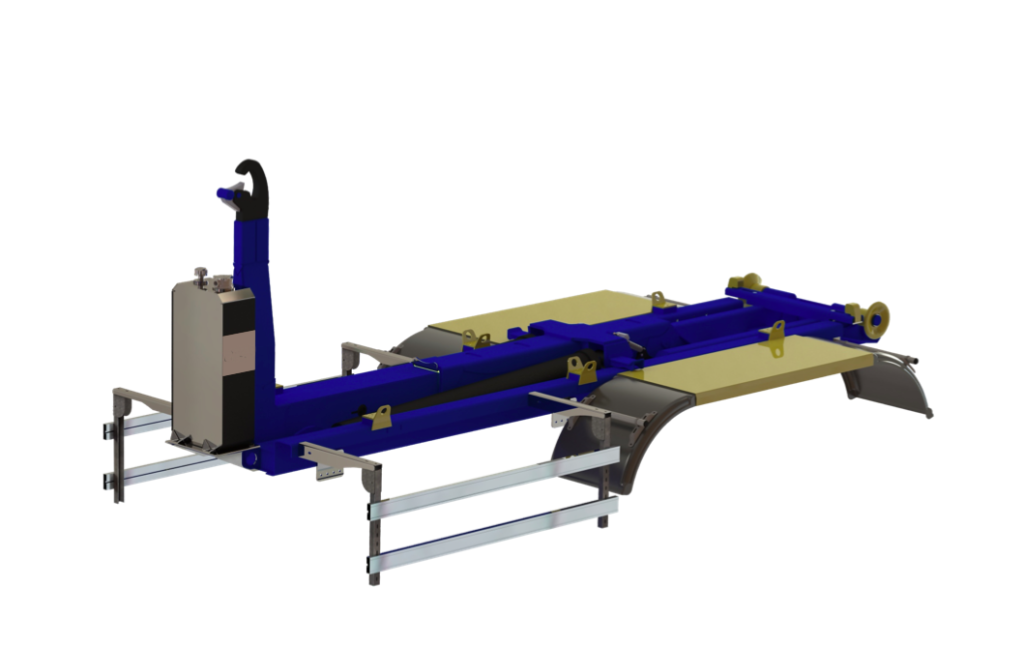

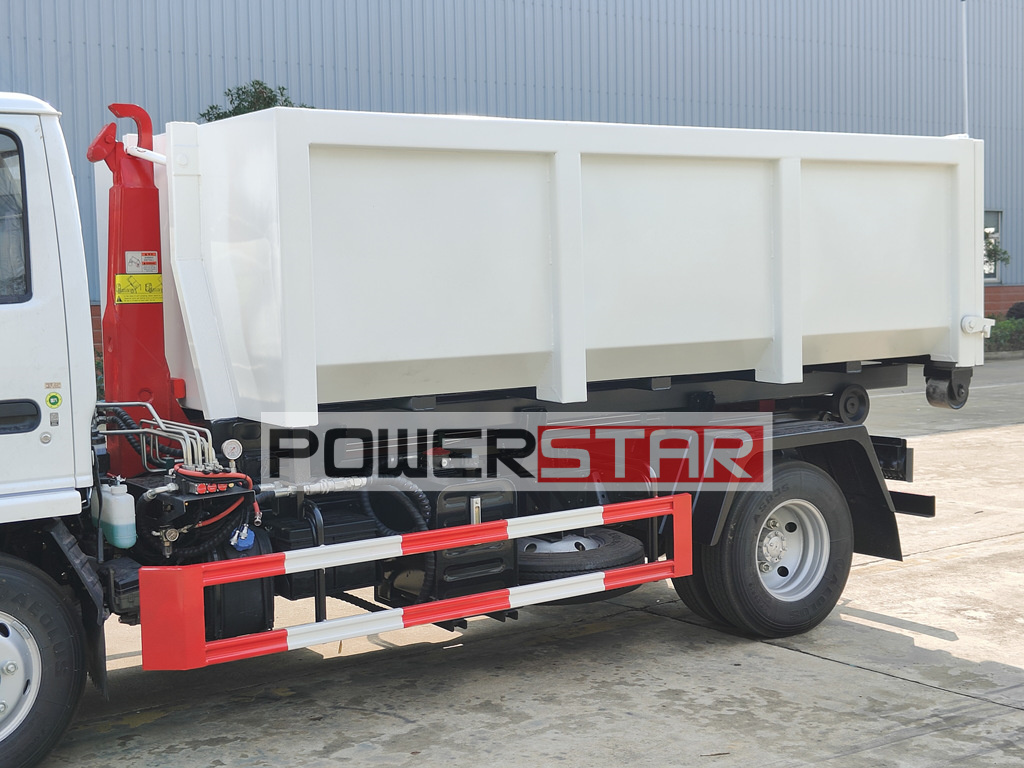

The upper part is the core of ISUZU hooklift garbage truck, which is mainly composed of the main cylinder of the pulling arm, the attached frame, the flip frame, the support leg (optional), the locking frame, the locking cylinder and the multi-way reversing valve. These parts work together to realize the functions of hooking up, lowering, and self-unloading and dumping the garbage compartment.
Pull arm main cylinder: used to drive the extension and rotation of the pulling arm to hook up or lower the garbage bins and customized compactor body.
Attached frame: a bridge connecting the chassis and the upper part, which plays a supporting and fixing role, usually very stronger.
Tilting frame: connected to the pulling arm, used to flip the garbage compartment for easy dumping of garbage.

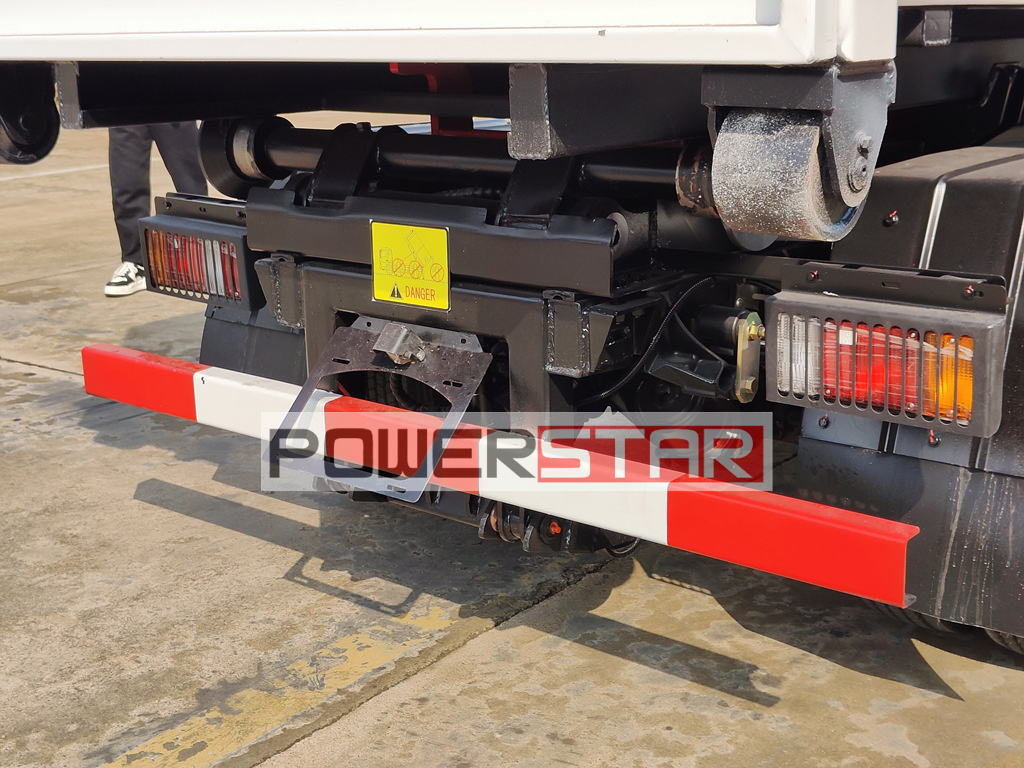

Support leg (optional): provides additional support when dumping garbage to ensure the stability of the vehicle, specially for heavy loading.
Locking frame and locking cylinder: used to lock the garbage compartment to prevent the garbage in the garbage compartment from spilling during transportation.
Isuzu hooklifts garbage truck Brief Introduction:
ISUZU Truck mounted hook loader is a common machine in the construction field. They are most often used to lift materials for construction projects, but due to their versatility, they can also be used for various other tasks. These types of loaders are equipped with a horizontal boom that is mounted on the rear of the vehicle and extends over the cab. The machinery is then able to lift materials by gripping them with chains or hooks at the end of its arm.
Isuzu 6CBM hooklifts garbage truck lifting equipment designed for movable containers. We offer a variety range of hook loaders for removable skips.
Hooklift is designed for loading and transporting the containers by moving the container and lifting onto the chassis of the vehicle thus completing the cycle of loading for secure moving. Mainly used for industrial and larger construction sites.
Our Isuzu hook loaders have an angular overturning feature enabling the discharge of the loads within containers.
| Chassis parameters |
||||
| Chassis model | QL5330GX | Chassis brand | ISUZU | |
| Overall dimensions | 9500*2500*3500mm | Wheel base | 4605+1300mm | |
| Front/rear wheel track | 1960/1860mm | Front/rear suspension | 1450/1250mm | |
| Approach/departure angle | 24/12° | Maximum speed | 90km/h | |
| Cab | Configuration | isuzu VC46 single air suspension cab, with air conditioner, allowable 3 passengers, with ABS, with air suspension seat | ||
| Color | white,other color is optional | |||
| Engine | Model | ISUZU 6UZ1-TCG40 or ISUZU 6UZ1-TCG51 | ||
| Emission | Euro 4 or Euro5 | |||
| Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine | |||
| Rated power | 350hp | |||
| Displacement | 9839ml | |||
| Max.torque | 1422N·m | |||
| Tire | Size | 11.00R20 Tire, With one spare tyre | ||
| Number | 10+1 nos | |||
| Front axle loading | 7tons | |||
| Rear axle loading | in total 18tons | |||
| Rated voltage | 24V,DC | |||
| Transmissions | FAST, 9 gears frowards and 1 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| LIFTING SYSTEM | ||||
| Dumper | All-metal,size L*W*H (5.7m*2.2m*1.9m), about 22 cubic meters | |||
| Sidewalls | Sheet carbon steel (thickness: 5 mm) | |||
| Bottom | Sheet carbon steel (thickness: 6 mm) | |||
| Discharge time | 40S-50S | |||
| Discharge system | lifting/dump type | |||
| Dump angle | 50 degree | |||
| Hydraulic system pressure | 30Mpa | |||
| Standard equipemnt | ITALY BRAND Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. Operation way: Manual and Wireless remote control operation. one 22m3 dumper box, |
|||
Isuzu 4x2 / 4x4 truck mounted hook loader Specifications & Design:
An ISUZU Hook-lift Vehicle Equipment is a versatile, heavy-duty truck that is designed to carry and dump heavy loads of waste materials, construction debris, or other types of heavy cargo. These vehicles are equipped with a hydraulic system that allows them to pick up containers, dumpsters, and other heavy items, making them an ideal choice for waste management, construction, and demolition projects.
The Isuzu truck mounted hook-lift system is essentially a hydraulic arm that is mounted on the back of the truck. The arm is controlled by the driver and can be extended to pick up containers or other heavy loads. Once the load is securely in place, the hydraulic arm lifts the load off the ground, allowing the truck to transport it to its intended destination.
One vehicle with multiple buckets: ISUZU hooklift garbage truck can be equipped with multiple garbage bins, realizing joint operation with garbage bins in multiple locations, greatly improving work efficiency.
Wide applicability: The Isuzu hook loader truck is widely used in various places such as municipal sanitation, property management, large factories and mines, and is used to collect and transport various garbage.

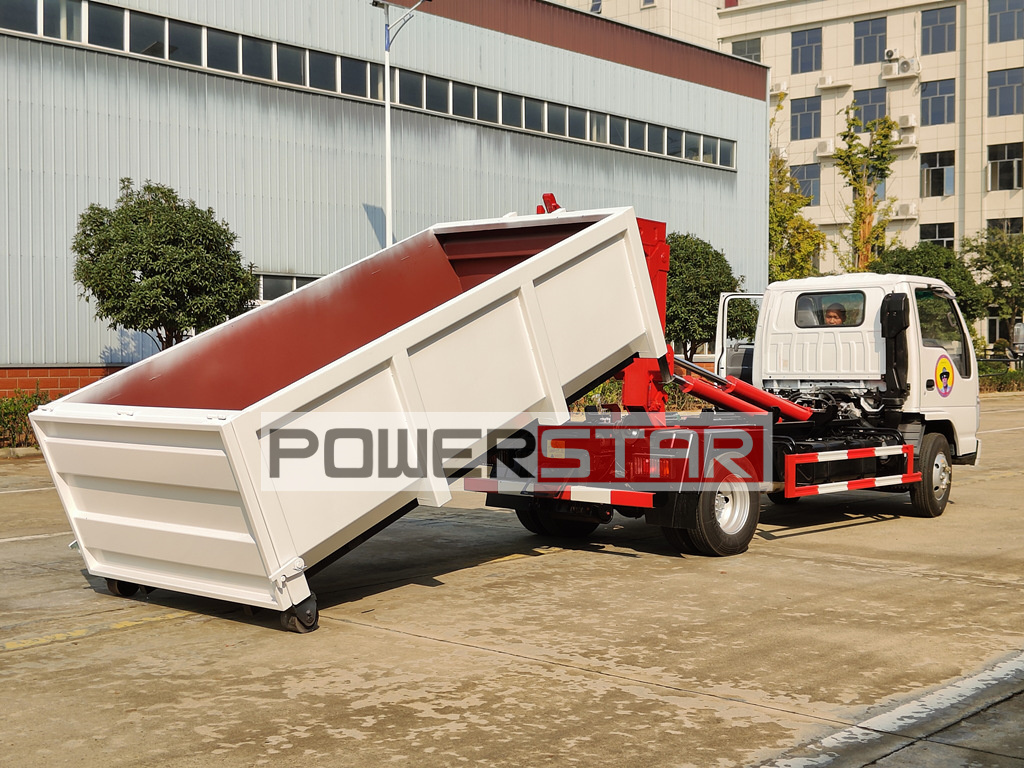

Self-unloading and dumping: The garbage bin can be lowered by hook and dumped by itself. The up and down working cycle time is short, which improves work efficiency.
Isuzu Roll off garbage truck Usage & Operation:

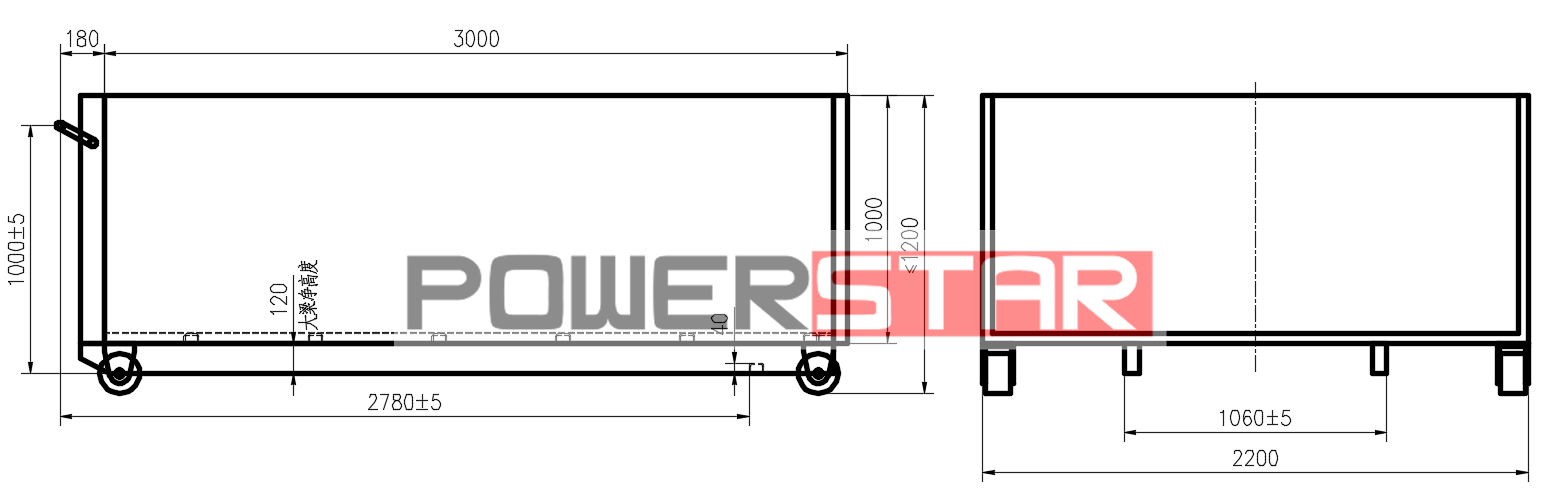

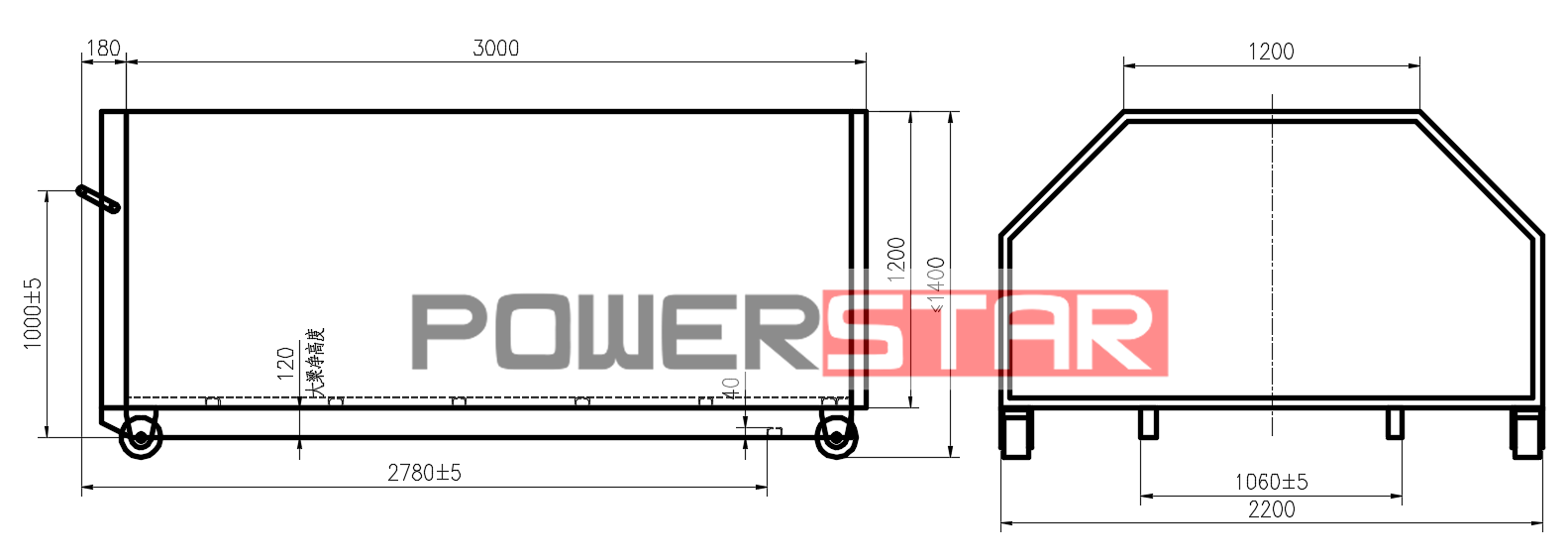

ISUZU truck mounted hook loader is an efficient, convenient and multifunctional garbage collection and transportation vehicle, which is widely used in garbage disposal in various places. Which can be equipped with multiple garbage bins, which are usually divided into boat-shaped buckets and square buckets. The rear cover of the garbage bin is a movable door that can be opened upwards and locked with a locking bolt to prevent garbage from being scattered on the road during garbage transportation. After the garbage bin is full of garbage, it can be transported to a transfer station or garbage disposal site by a small hook-arm truck for dumping.
The operating system of ISUZU roll off garbage truck is fully hydraulically operated, which is easy to use and simple to operate. The hook loader can be operated and controlled through the mobile operation panel in the cab and on the ground, and the driver can complete all operations of picking up and unloading boxes and dumping garbage in the cab.
