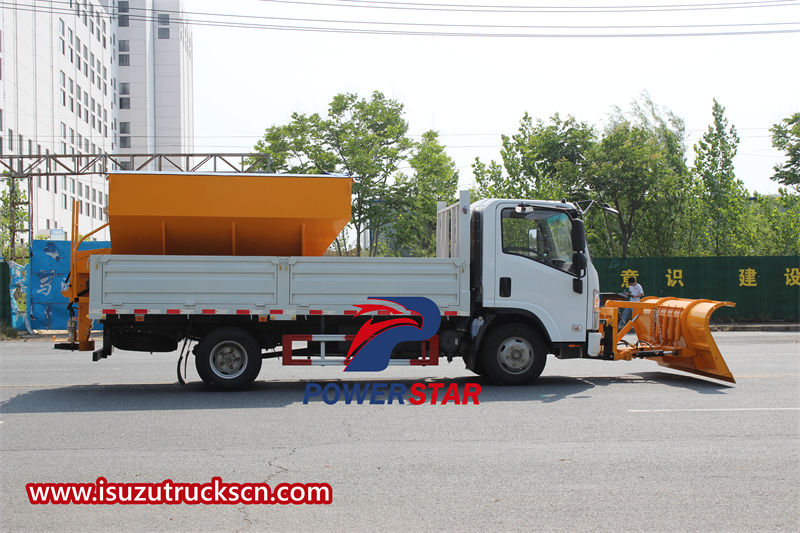

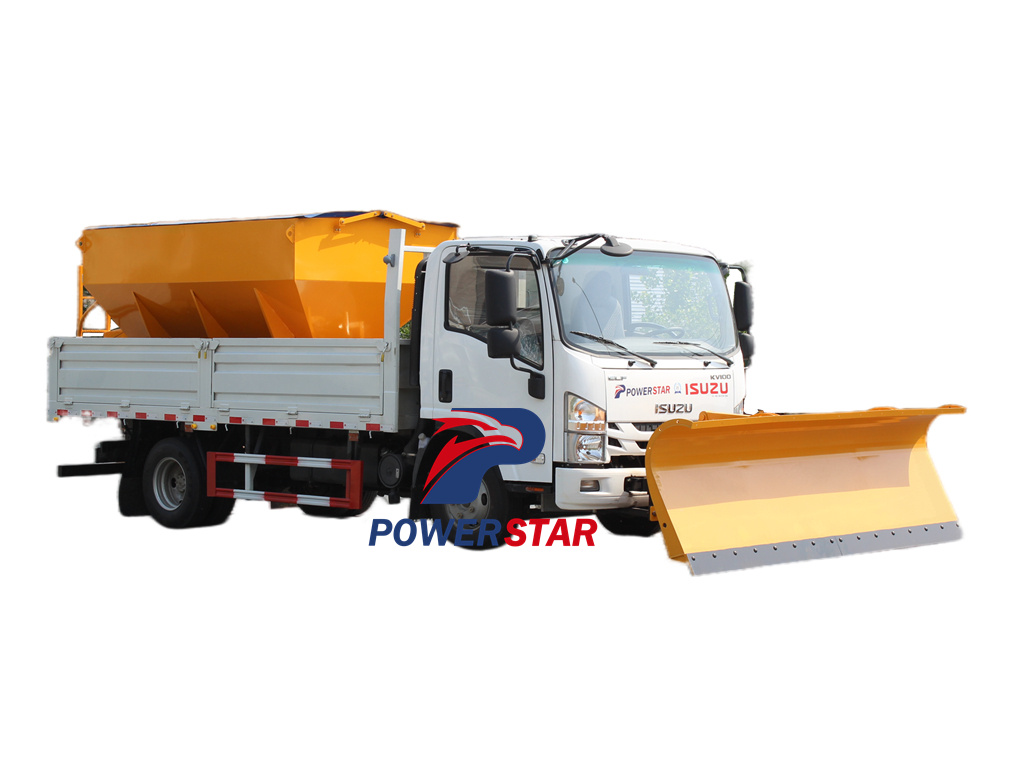

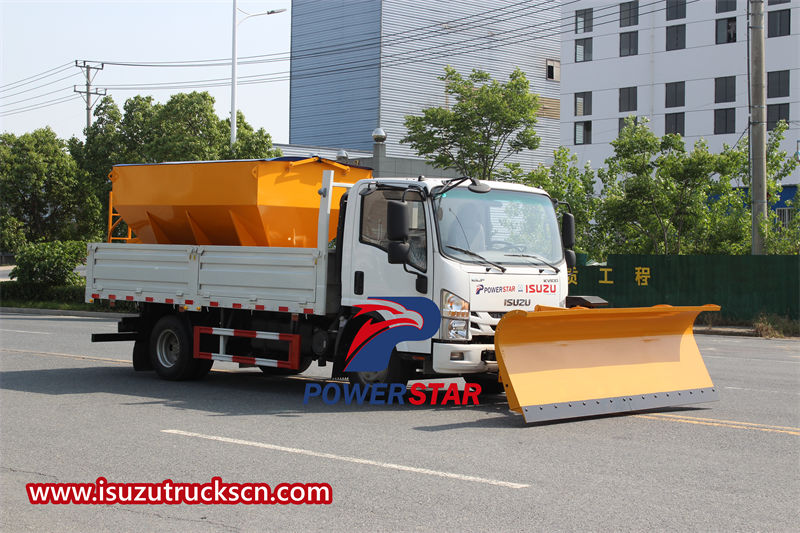

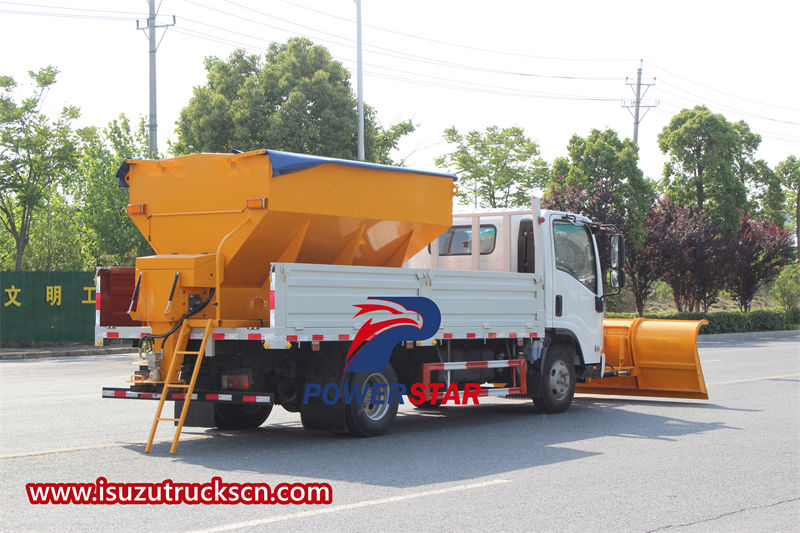

The Isuzu 700P snow removal truck is an efficient and multi-functional snow removal equipment, especially suitable for removing snow and ice on the road to ensure smooth roads and driving safety. The vehicle is built on the Isuzu 700P chassis, which is known for its excellent load-bearing capacity and stability. The equipped Isuzu engine has powerful power output and can easily cope with various complex road conditions and snow removal tasks.
Work capacity:
4 CBMTruck model:
PT5110TCXEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2Gear box:
MLD 6-speedRemarks:
4CBM salt spreander, adjustable hydraulic snow shovelIsuzu 700P snow removal truck is a special vehicle designed to address the problem of snow on roads. The vehicle uses the Isuzu 700P chassis, which has excellent load-bearing capacity and stability, ensuring that the vehicle operates stably and reliably under harsh road conditions.

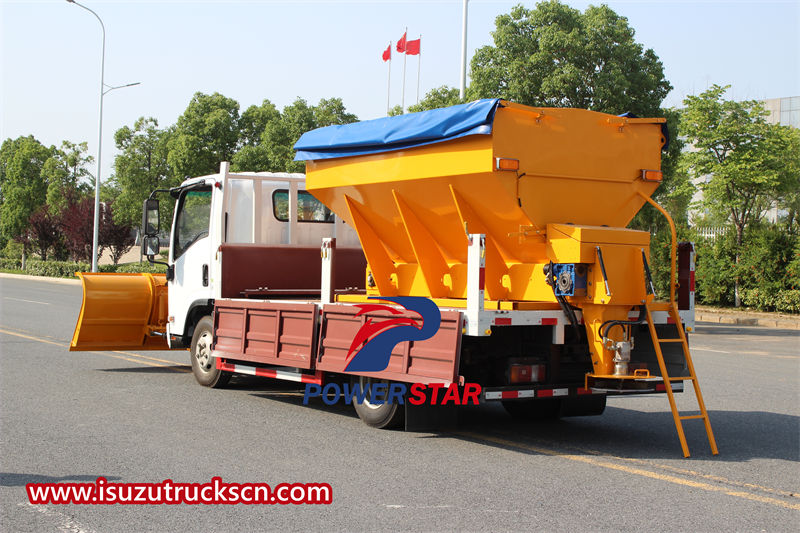

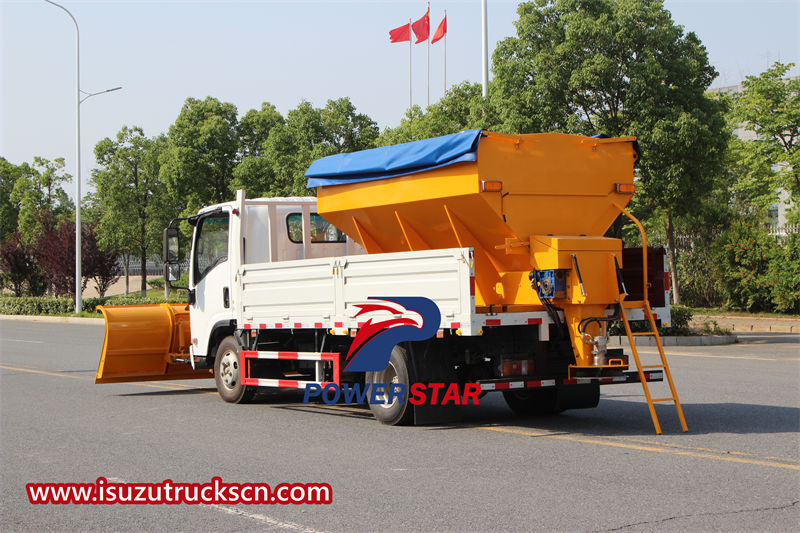

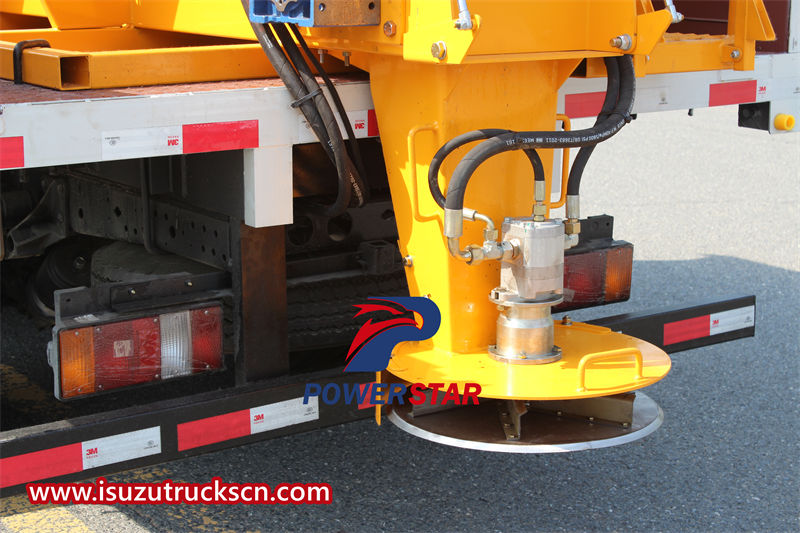

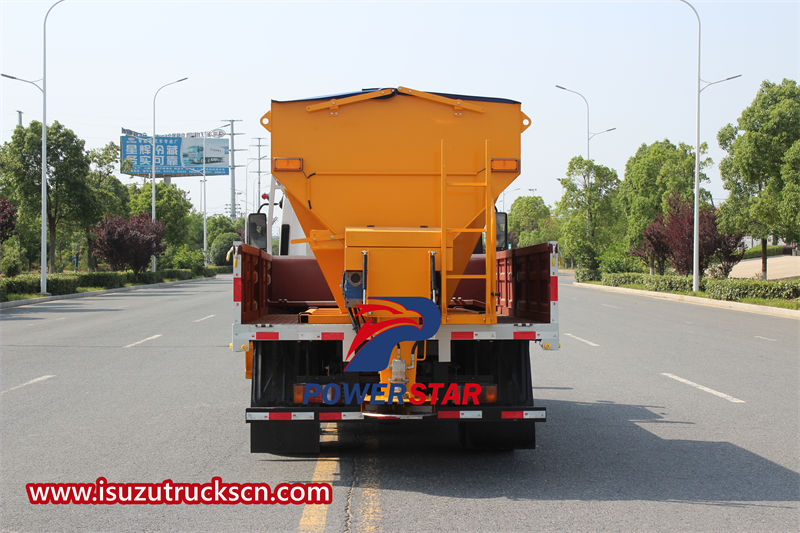

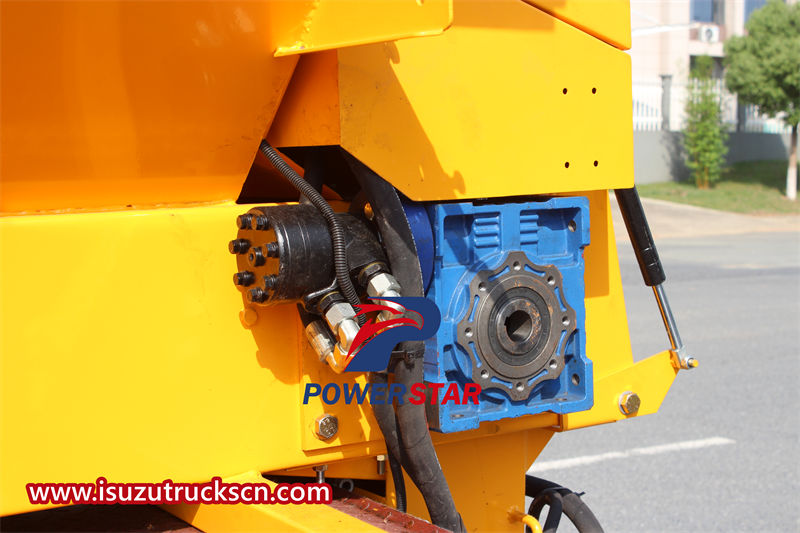

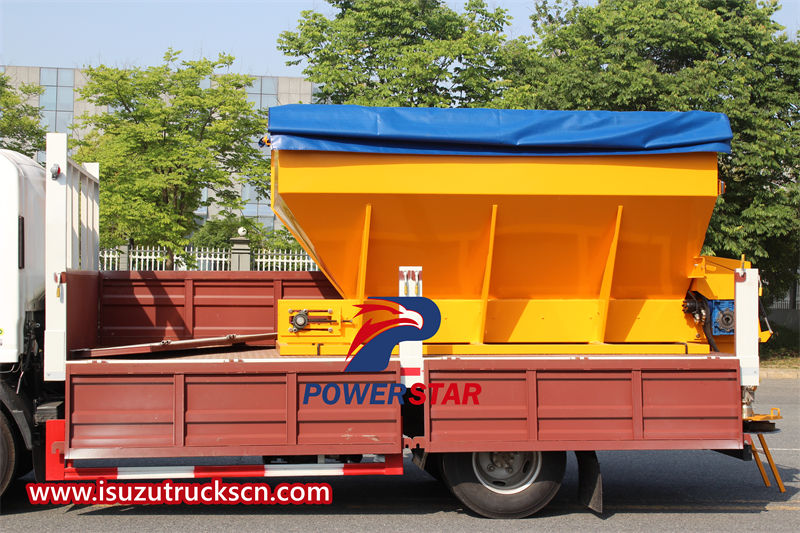

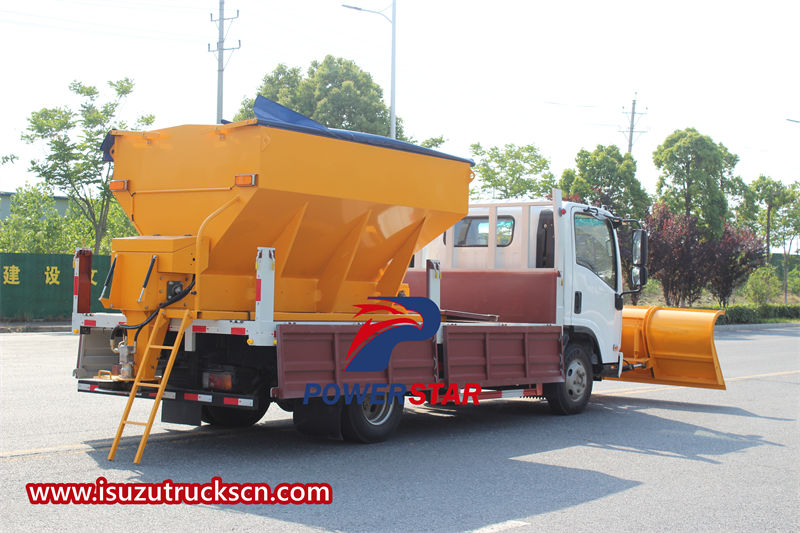

The core part of the snow removal truck is the spreading system. The 4CBM snow melting agent spreader equipped with the Isuzu salt spreader truck has large capacity and efficient spreading capacity. It can spread snow melting agent evenly and quickly, effectively clearing snow and ice on the road. The spreader's hopper capacity reaches 4 cubic meters, which can meet the needs of long-term and large-area snow removal.

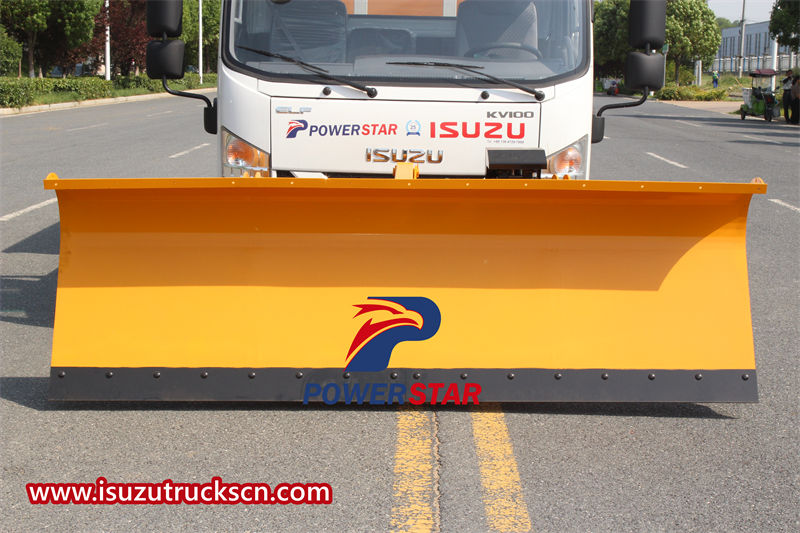

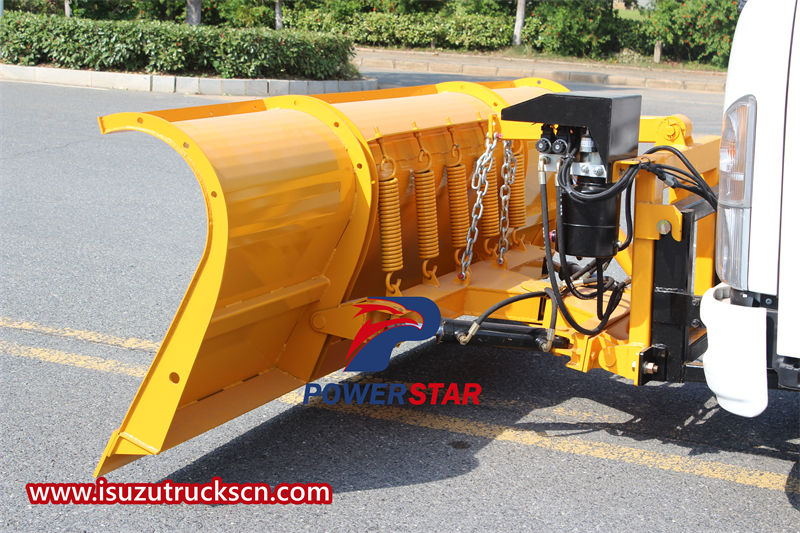

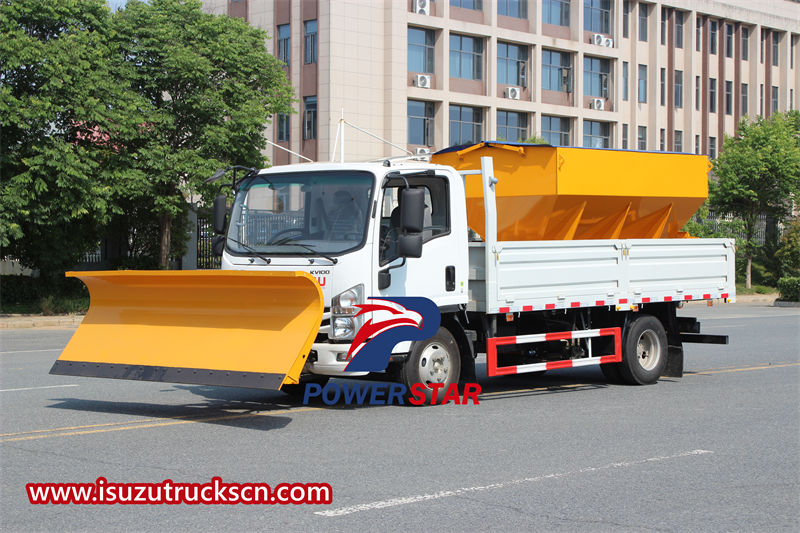

In addition, the Isuzu snow plow truck is equipped with a 3-meter-wide hydraulic snow removal shovel. This snow shovel is designed to clear snow quickly and efficiently. Its lightweight structure and 3-meter-wide blade make it suitable for use on a variety of roads and sites, such as city streets, parking lots, and sidewalks. It is easy to install and can be attached to Dongfeng Tianjin and other models. It is equipped with a flexible hydraulic system and operating controls to make operation more convenient. This snow shovel installs and removes quickly, providing reliable snow removal performance to keep roads clear and safe.
Product Specifications
|
Truck Parameter |
|||
|
Vehicle Model |
PT5110TXC |
||
|
Dimensions |
L(mm) |
10500 |
|
|
W(mm) |
3000 |
||
|
H(mm) |
3200 |
||
|
Chassis model |
QL1100AN |
||
|
Curb weight(kg) |
5850 |
||
|
Wheel base(MM) |
4175 |
||
|
Engine |
Engine model |
ISUZU 4HK1-TCG61 |
|
|
Engine power |
190HP |
||
|
Displacement |
5193 ml |
||
|
Type |
Four cylinders, inline, water-cooled, four stroke, turbocharged diesel engine |
||
|
Emission standard |
Europe 6 |
||
|
Axle |
Front |
4 Ton |
|
|
Rear |
7 Ton |
||
|
Tyer |
235/75R17.5, 6+1 pcs |
||
|
Max speed (km/h) |
90 |
||
|
Gearbox |
MLD 6 speed, 6F/1R |
||
|
Cabin |
ISUZU ELF (NPR) single cabin, 3 seats |
||
|
Fuel tanker |
100L |
||
|
Color |
optional |
||
|
Salt spreader |
|||
|
Medium |
Saltwater, salt, sand.other Solid snow melting agent |
||
|
Overall dimension |
3600*2200*1850 mm |
||
|
Tank Volume |
4m3 |
||
|
Spaying width |
2-12M |
||
|
Spraying capacity |
5-80g/m2 |
||
|
Snow shovel |
|||
|
Main parameter |
size |
3000*1500*900 mm |
|
|
weight |
900 kg |
||
|
working temperature |
-30 degree |
||
|
Working parameter |
Max removal thickness |
200mm |
|
|
Effective snow removal width (mm) |
2700~3000 mm |
||
|
Operating speed (km/h) |
15~30 Km/h |
||
|
Obstacle avoidance height (mm) |
180 |
||
|
Left and right deflection angle |
≥30° |
||
|
Shovel blade |
Material |
Q460NH |
|
|
Thickness |
16mm |
||
Product Advantages
1. Efficient snow removal capacity: The 4CBM snow melting agent spreader equipped on Isuzu snow removal trucks has large capacity and efficient spreading capacity. It can quickly and evenly spread snow melting agent and effectively remove snow and ice on the road. At the same time, the 3-meter-long hydraulic snow shovel can clear a wider snow area, greatly improving snow removal efficiency.
2. Easy to operate: The operations of the spreader and snow shovel are all completed in the cab. The driver can easily adjust parameters such as spreading volume and spreading speed through the control box, as well as control the lifting, turning and swinging of the snow shovel. This flexible operation allows the driver to easily handle a variety of complex snow removal tasks.
3. Stable and reliable: The Isuzu 700P chassis has excellent load-bearing capacity and stability, which can ensure that the vehicle remains stable during snow removal and reduces the failure rate. At the same time, the Isuzu engine used in the vehicle has strong power output and excellent fuel economy, which can meet the needs of long-term and high-intensity snow removal operations.
4. High maintenance convenience: The Isuzu snow plow truck adopts a modular design, and key components are easy to access and replace, allowing maintenance personnel to quickly locate problems and repair them.
5. Environmental protection and energy saving: Using environmentally friendly snow melting agent reduces environmental pollution. At the same time, the efficient snow removal capability also reduces noise, dust and other pollutants generated during the snow removal process. In addition, the Isuzu salt spreader truck has lower fuel consumption, helping to reduce operating costs.
6. Strong applicability: The Isuzu snowplow truck is suitable for snow removal operations under various road conditions and environments, including urban roads, highways, airport runways, etc. Its powerful functions and flexible operation make it an ideal snow removal equipment.
