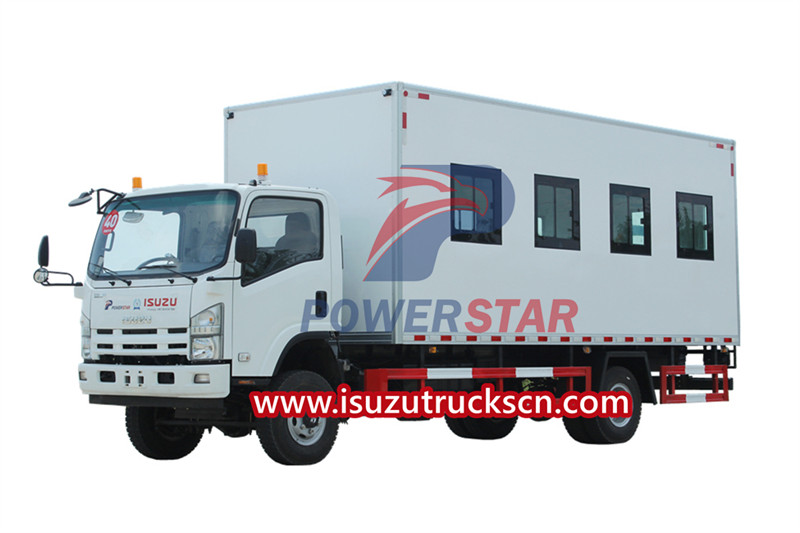

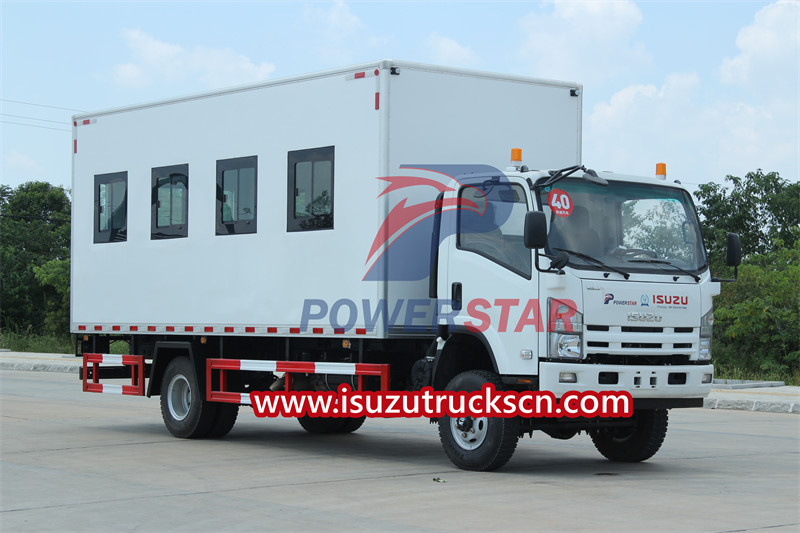

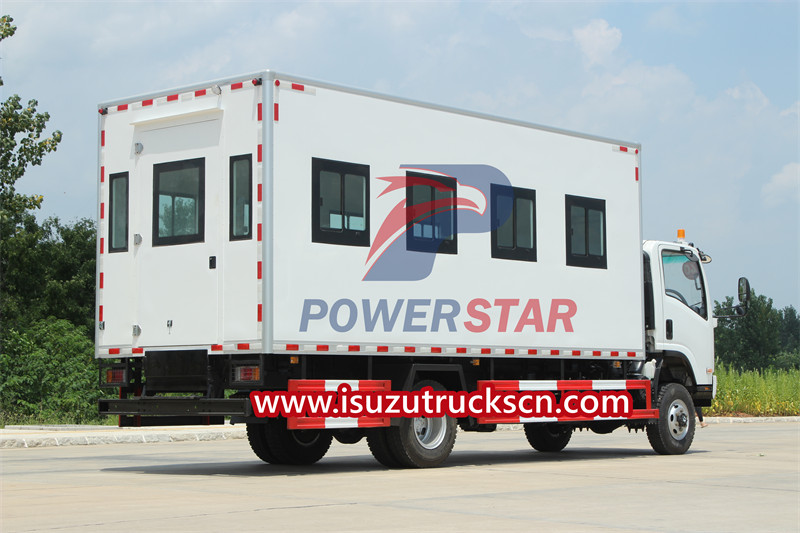

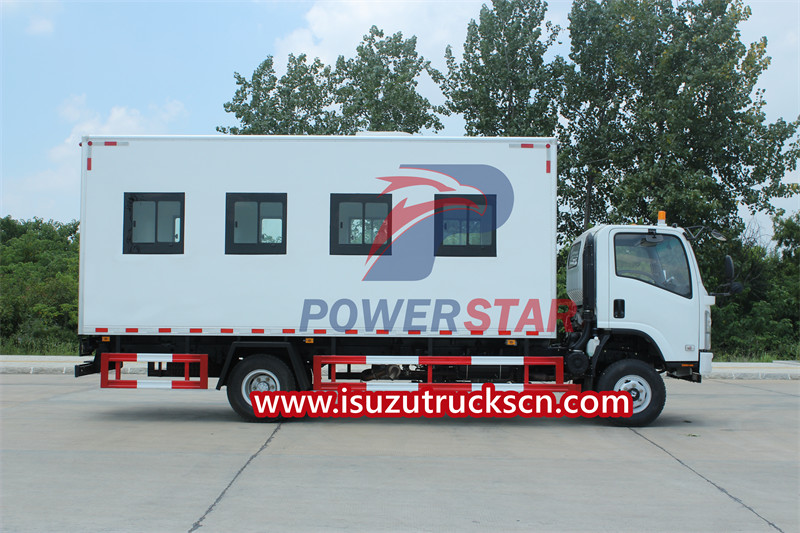

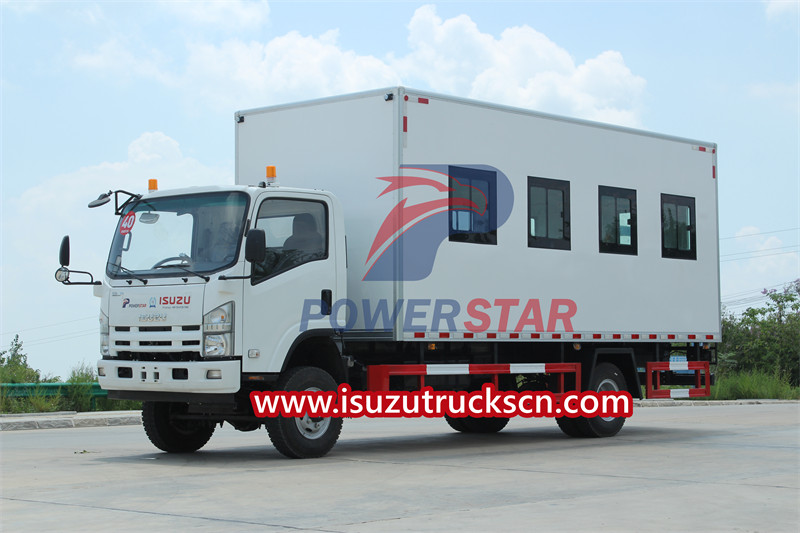

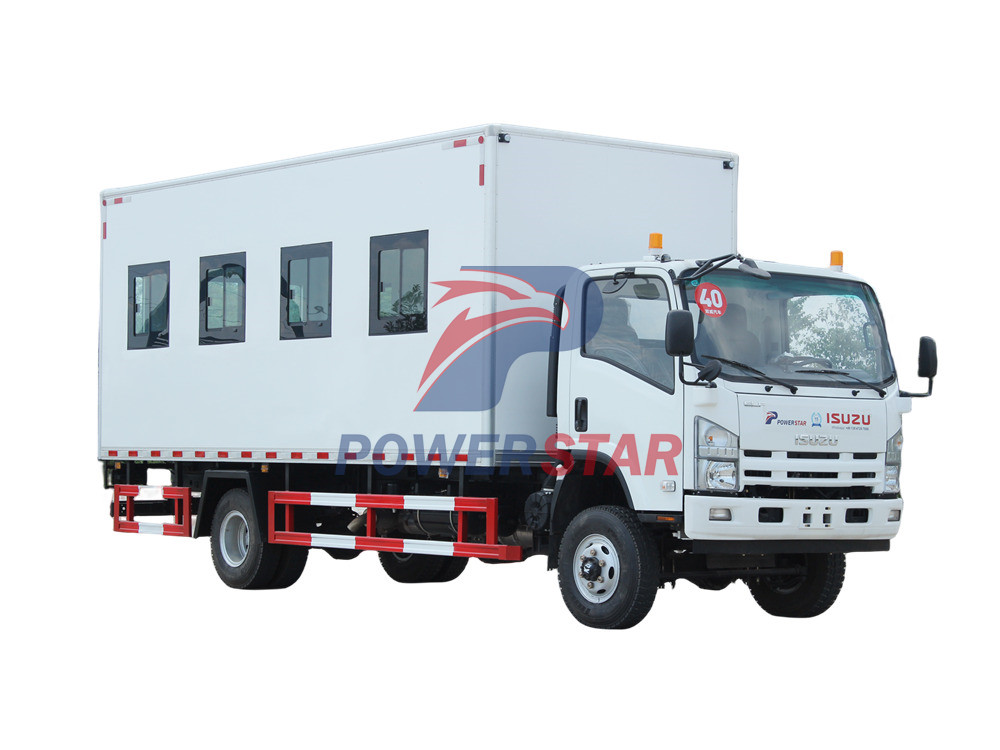

The ISUZU 4×4 Passenger Transporter is a four-wheel drive vehicle designed for a variety of terrains and driving conditions. It is characterized by strong off-road performance, a spacious and comfortable interior, advanced safety devices and versatile configuration options. These advantages make it ideal for travel, outdoor adventures, and other situations where a reliable ride is required.
Work capacity:
20 peopleTruck model:
PT5110GYSEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×4Gear box:
MLD 6-speed manualRemarks:
ISUZU 4WD chassis, large space van for 20 passengers
The ISUZU 4×4 passenger carrier truck is a four-wheel drive vehicle manufactured by POWERSTAR based on the ISUZU chassis. It is specially designed to provide occupants with a safe, comfortable and reliable ride experience in difficult terrain and harsh driving conditions. The structure and characteristics of ISUZU personnel carrier trucks are as follows:
• Powerful off-road performance: The ISUZU 4×4 passenger carrier truck has a reliable four-wheel drive system that can handle rough roads and harsh weather conditions. It is equipped with a powerful power system and excellent suspension system to ensure smooth driving and excellent handling performance.
• Spacious and comfortable interior space: The ISUZU 4×4 passenger carrier truck provides a spacious and comfortable interior space so that passengers can have a good riding experience during long journeys. The seating configuration and layout have been carefully designed to provide optimal comfort and legroom.
• Advanced safety features: ISUZU 4×4 personnel carrier truck is equipped with advanced safety technologies and equipment to ensure the safety of the occupants. It includes safety devices such as airbags, anti-lock braking systems (ABS), and rescue stretchers.

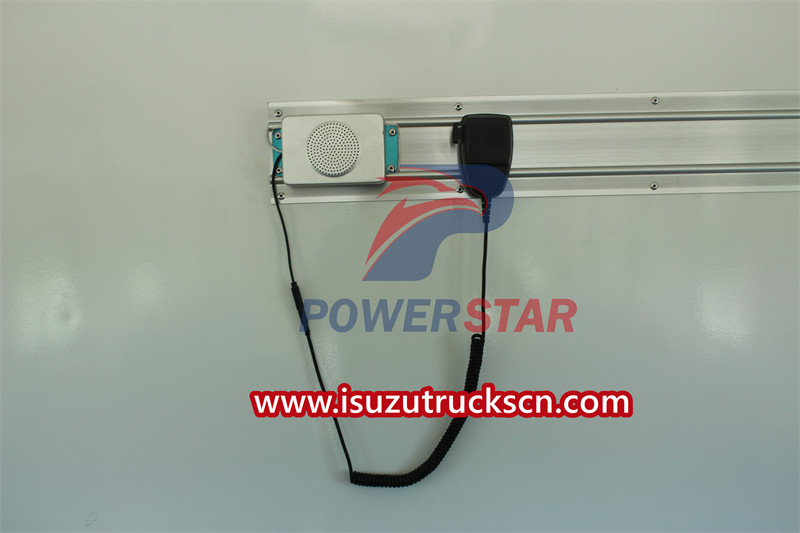

• Versatile configurations: The ISUZU 4×4 passenger carrier truck is available in a variety of configuration options to meet different uses and needs. These configurations include air conditioning systems, reversing radars, navigation systems, USB charging interfaces, walkie-talkies, etc.
Product Parameters
|
Vehicle specifications |
Chassis brand |
ISUZU |
|
Chassis model |
NPR |
|
|
Gross vehicle weight |
11000 kg |
|
|
Curb weight |
6000 kg |
|
|
Overall dimensions |
7960×2360×3680 mm |
|
|
Cabin |
ISUZU ELF single row |
|
|
Chassis |
Driving type |
4*4, left hand drive |
|
Wheel Base |
4475 mm |
|
|
Front axle loading capacity |
4ton |
|
|
Rear axle loading capacity |
7ton |
|
|
Tyre size |
235/75R17.5, with one spare tyre |
|
|
Tyre number |
6+1 nos |
|
|
Transmission |
MLD |
|
|
Engine |
Engine Model |
4HK1-TC51 |
|
Displacement |
5.2L |
|
|
Engine type |
4 cylinders, in-line, water-cooled, turbocharged |
|
|
Engine horse power |
190hp |
|
|
Fuel type |
Diesel |
|
|
Emission standard |
EURO 5 |
|
|
VAN BODY PARAMETERS |
||
|
Body size |
5200*2050*2050mm |
|
|
Material |
The outer box body is wrapped with aluminum alloy profiles, the inner corner of the box body is aluminum alloy profiles, and the top of the box body is made of integral glass fiber reinforced plastic. The thickness of the box body is 4mm |
|
|

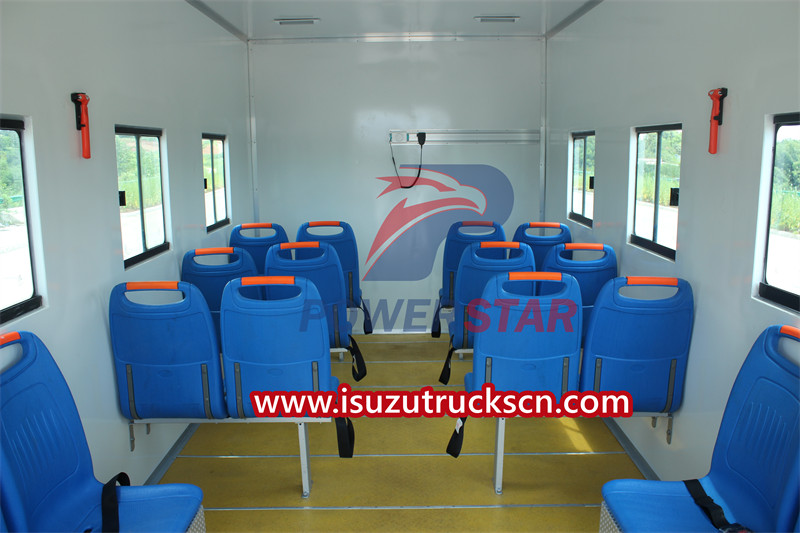

Passenger Seats |
20 seats,passage in the middle |
|
|

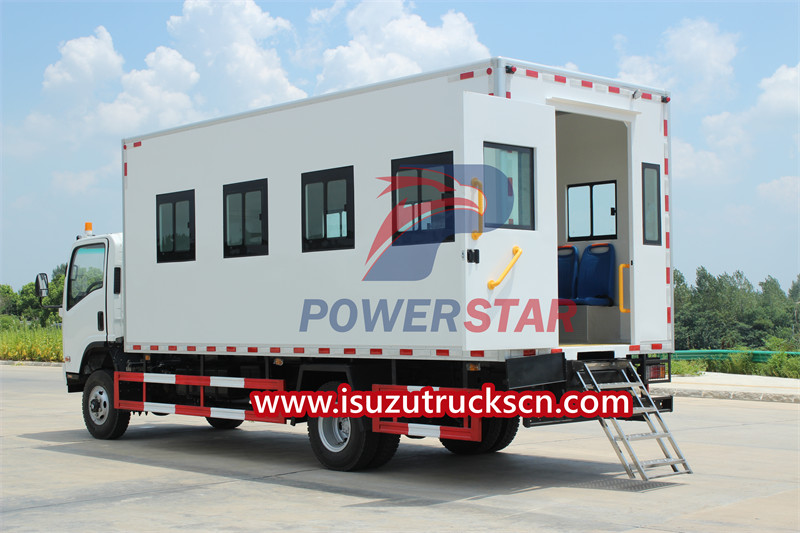

Passenger door |

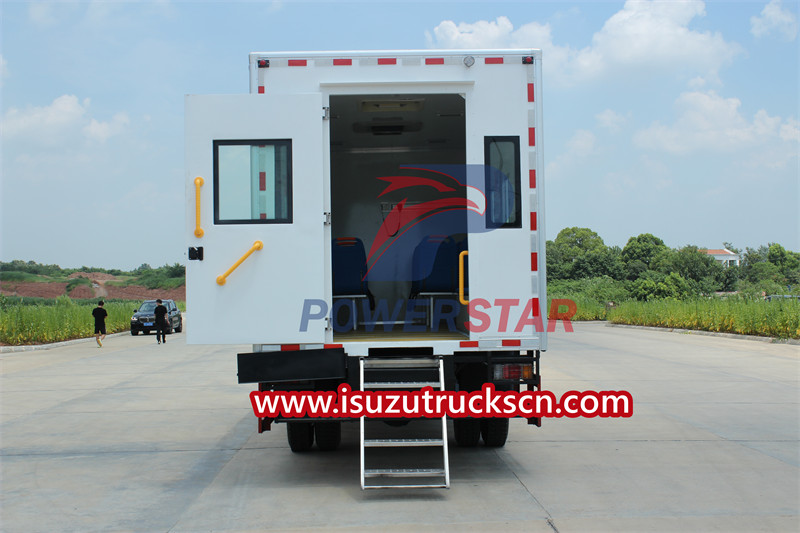

One door,on the rear side of truck |
|
|

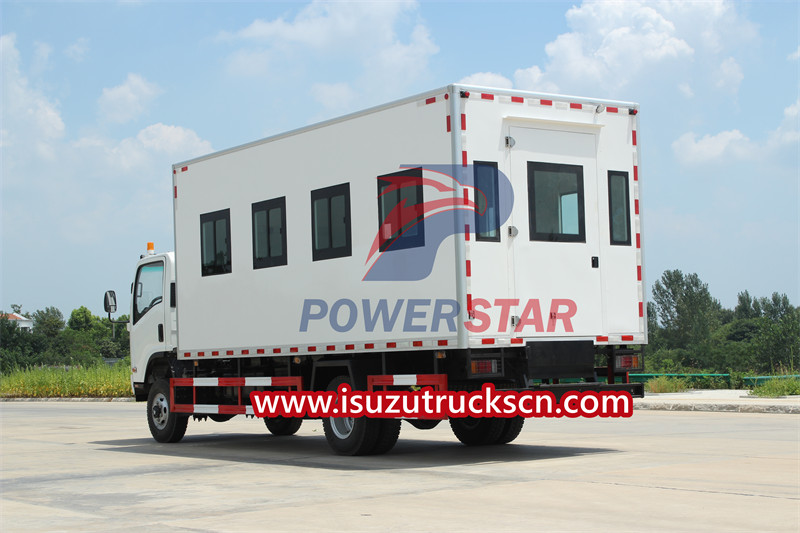

Emergency door |
one door, at the rear of truck |
|
|

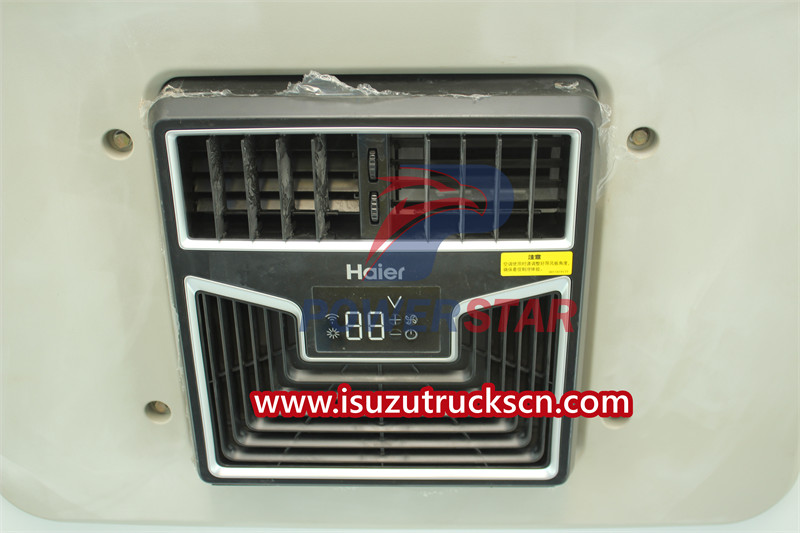

Air conditoner |
With A/C in the van body, exhaust fan on the top |
|
|
Windows |
Sliding bus tempered glass |
|
|
Light |
Ceiling lamp, side and rear lamps |
|
|
Fire extinguisher |
Dry-powerder,4kg ,1piece |
|
 |
 |
 |
 |
Product Applications
ISUZU 4×4 personnel carrier truck is a special vehicle designed for transporting passengers. It is mainly used in the following fields:
1. Construction site and mine transportation: ISUZU 4×4 passenger carrier trucks are often used at construction sites and mines to transport workers or miners from camps or parking points to the work site.
2. Travel and Tourism: In the travel and tourism industry, ISUZU 4×4 passenger carrier trucks are widely used to transport tourists to provide them with comfort and convenience during their journeys.
3. Military and Public Safety: Military and other public safety agencies often use ISUZU 4×4 passenger carrier trucks to transport troops and personnel for missions or emergency response.
Original factory ISUZU 4×4 FTR FVR military soldier carriers army off road trucks for sale,the Isuzu Military Soldier Carrier is a multi-faceted asset for modern armies, providing a means of rapidly deploying and protecting infantry forces while also contributing to offensive and defensive operations through its own firepower. Its combination of armor, mobility, and weapons systems makes it an indispensable tool in the modern battlefield.
Learn More
Good price ISUZU 700P 4×4 AWD troop carrier truck, custom-made ISUZU 4WD passenger carrier truck for sale.
Learn More
The ISUZU NPR 4×4 troop carrier is a truck specially designed for extreme off-road environments, with powerful off-road performance and unparalleled stability. The vehicle adopts a unique suspension system and powerful power output, allowing it to easily cope with various complex terrains and harsh environments.
Learn More
This is a Soldier carrier truck built on the Isuzu NPR chassis. With a 4x4 drive mode, the carrier truck is equipped with a 4HK1-TCG61 4-cylinder in-line diesel engine with a displacement of 5193ml, a rated power of 139kw/190hp, and a maximum speed of 110km/h, ensuring the maneuverability of the truck. The front axle of the chassis weighs 4 tons, the rear axle weighs 7 tons, and is equipped with 235/75R17.5 tires, a total of 6+1, with a standard load capacity and flexibility. The upper body measures 4668x2150x1250mm, made of a mixture of ordinary steel and wood, with a load capacity of 8000kg. The body is painted blue, equipped with a blue tarpaulin with windows and a rear door, and has foldable seats inside. This troop carrier combines the reliable performance of the Isuzu chassis with a customized military car body design, suitable for various military transportation and personnel dispatch tasks, and embodies the perfect combination of functionality and practicality.
Learn More
700P ELF 5 Ton Hydraulic Lifting Truck Mounted Crane,truck mounted crane /isuzu mobile truck crane,Truck Mounted Crane Truck Isuzu
Learn More
the ISUZU FVR 10cbm compactor garbage truck by the Yemeni government signifies its commitment to enhance the quality of life in Sana'a. With its efficient waste collection and compaction capabilities, this exclusive initiative will significantly contribute to a cleaner and healthier environment for the residents. The comprehensive maintenance plan and the promotion of responsible waste management practices further ensure the long-term success of this endeavor.
Learn More

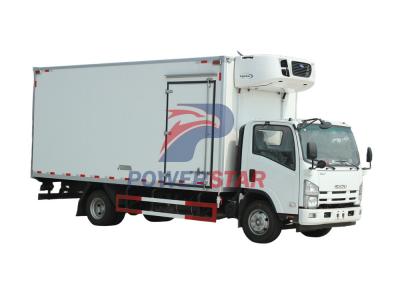

ISUZU 700P refrigerated truck is a special vehicle designed for food transportation and cold chain logistics. The truck is equipped with CARRIER SUPRA850+ independent refrigeration unit. The box body is made of high-strength, corrosion-resistant aluminum alloy material to ensure that the box body is lightweight and strong. The interior of the box is made of thermal insulation material to effectively isolate the external temperature and maintain low internal temperature.
Learn More

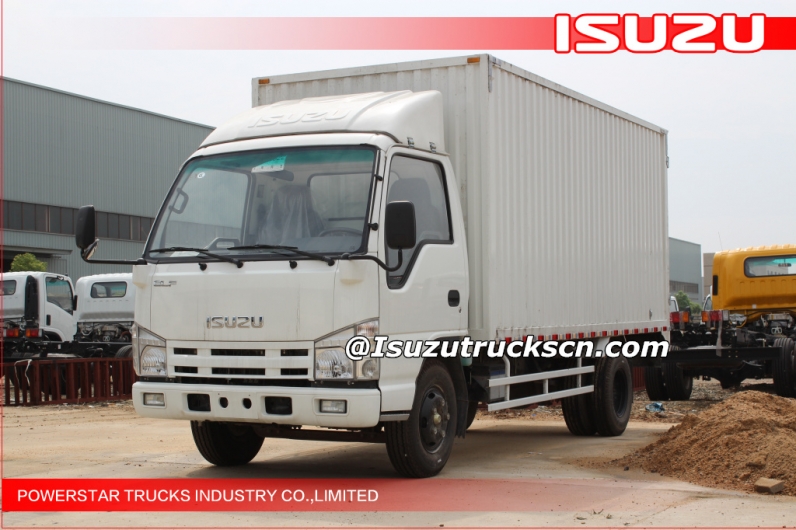

Isuzu van truck box truck,Isuzu 4X2 cargo van truck mini cargo truck,2015 New ELF city cargo truck with van body
