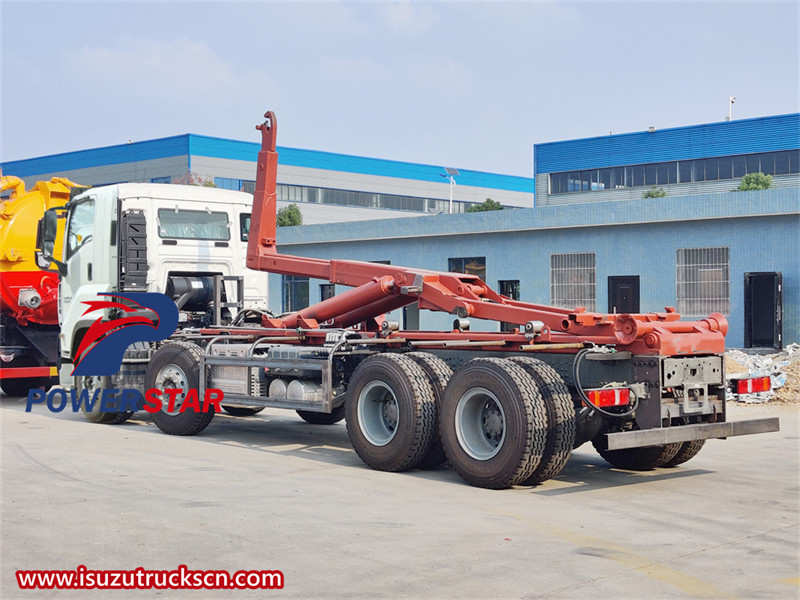

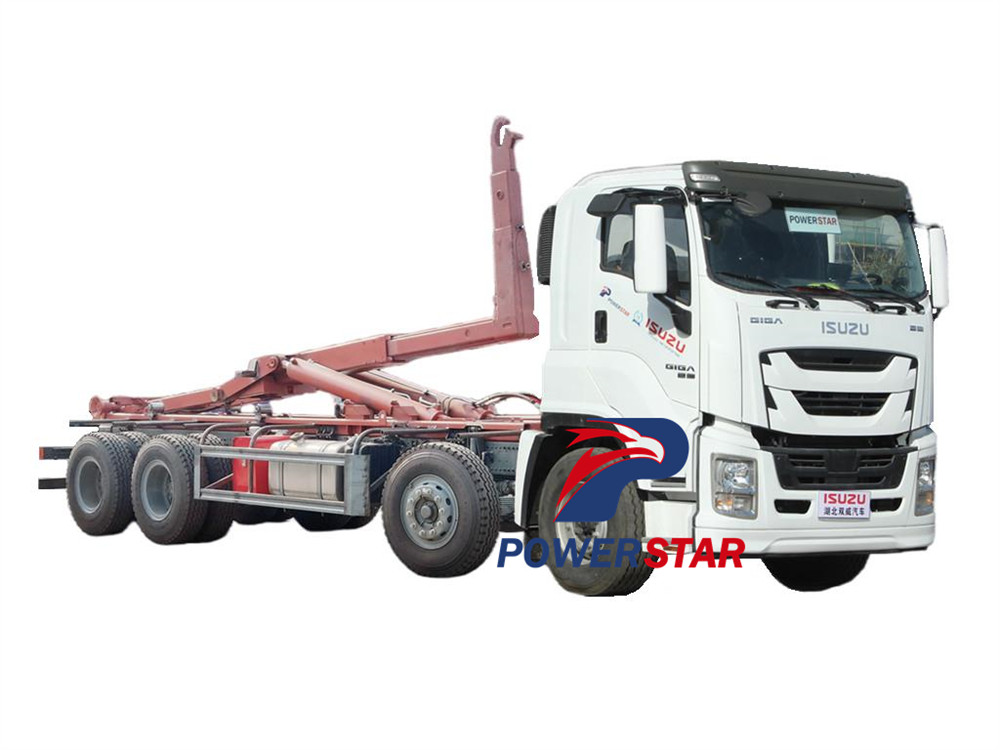

The Isuzu GIGA 8x4 hook-arm garbage truck is a powerful garbage collection truck that uses a hook-arm system to efficiently collect and transport garbage. This model uses the Isuzu GIGA series chassis, which has excellent stability and durability and is suitable for a variety of garbage disposal tasks. The hook-arm design allows for quick loading and unloading of garbage bins, improving operating efficiency. The vehicle combines technology with functionality to provide a reliable and efficient solution for the garbage disposal industry.
Work capacity:
30 tonsTruck model:
PT5310GWTEngine power:
420HPEngine type:
6WG1-TCG60Axle drive:
8x4,LHDGear box:
FAST 12-speedRemarks:
Isuzu GIGA 8x4 30 ton hook lift truck
The Isuzu 30 ton hook loader garbage truck also called Isuzu GIGA 8x4 hook lift bin garbage truck,Isuzu GIGA 30 tons hook lift truck,Isuzu GIGA detachable garbage truck,Isuzu GIGA 30 tons roll-off waste truck,Isuzu GIGA 8x4 hook-arm garbage truck,is a heavy-duty vehicle designed for efficient waste management and collection tasks. With a robust build and a maximum load capacity of 30 tons, this Isuzu 30 ton hook loader garbage truck is well-suited for collecting and transporting large volumes of waste material. The hook loader system simplifies the process of loading and unloading containers, making it a versatile and effective solution for waste disposal operations. These trucks are commonly used by municipalities, waste management companies, and other entities involved in waste collection and disposal services. The Isuzu 30-ton hook loader garbage truck combines strength, functionality, and reliability to streamline waste management operations and contribute to a cleaner and more sustainable environment.
Key feature:
---- ISUZU GIGA chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Main hydraulic coomponents of our hooklift truck are imported from well-known company.
---- Strong, durable, perfect performance.
|
Isuzu GIGA 30 ton hook loader garbage truck |
|||
|
Chassis parameters |
|||
|
Vehicle model |
PT5310GWT |
Chassis brand |
I SUZU |
|
Overall dimensions |
11800*2540*3055mm |
Wheel base |
1850+4575+1370mm |
|
GVW |
31000Kg |
Curb weight |
10450Kg |
|
Front/rear wheel track |
2065/1855mm |
Front/rear suspension |
1370/2635mm |
|
Front and rear axle load |
6500/6500/19000 |
Maximum speed |
90km/h |
|
Cab |
Configuration |
Isuzu GIGA single air suspension cab, with air conditioner, allowable 2 passengers, with ABS, with air suspension seat |
|
|
Color |
white,other color is optional |
||
|
Engine |
Model |
Isuzu 6WG1-TCG60 |
|
|
Emission |
Euro 6 |
||
|
Type |
6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine |
||
|
Rated power |
420HP |
||
|
Displacement |
15681ml |
||
|
Max.torque |
2250N·m |
||
|
Tire |
Size |
295/80R22.5 |
|
|
Number |
12+1 nos |
||
|
Rated voltage |
24V,DC |
||
|
Transmissions |
FAST, 12-speed |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Lifting systerm |
|||
|
Dumper |
All-metal, about 30 cubic meters |
||
|
Sidewalls |
Sheet carbon steel (thickness: 5 mm) |
||
|
Bottom |
Sheet carbon steel (thickness: 6 mm) |
||
|
Discharge time |
40S-50S |
||
|
Discharge system |
lifting/dump type |
||
|
Dump angle |
50 degree |
||
|
Hydraulic system pressure |
30Mpa |
||
|
Standard equipment |
ITALY BRAND Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. |
||
The Isuzu 30 ton hook loader garbage truck stands as a pinnacle of efficiency and robust design within the waste management industry. With a focus on superior functionality and practicality, this vehicle serves as a reliable workhorse for municipalities and waste management companies worldwide.
★ Design and Structure
At the heart of the Isuzu 30 ton hook loader garbage truck is a sturdy chassis designed to bear heavy loads with ease. Engineered to withstand the rigors of waste collection, the truck's framework is reinforced to ensure durability and longevity. The hook loader system is elegantly integrated into the design, allowing for seamless loading and unloading operations.
★ Engine Performance
Powered by a high-performance engine, this Isuzu garbage truck delivers exceptional power and torque to handle demanding waste collection tasks efficiently. The engine's design emphasizes fuel efficiency and reduced emissions, aligning with modern sustainability standards. This ensures that the truck operates smoothly while minimizing its environmental impact.
★ Hook Loader System
The hook loader system sets this garbage truck apart, enabling quick and efficient container swapping. With its hydraulic hook arm mechanism, the truck can effortlessly load and unload containers of varying sizes, optimizing operational efficiency. This innovative system significantly reduces downtime between collection runs, enhancing productivity on the field.

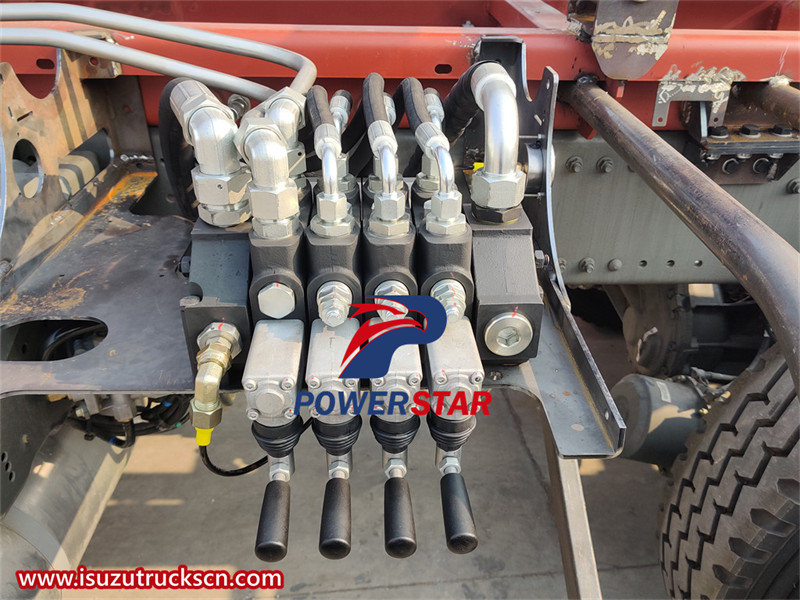

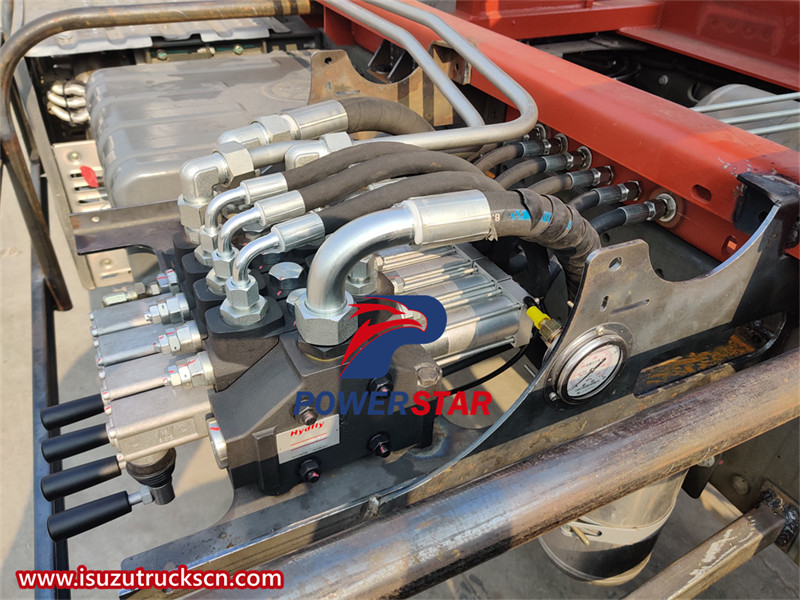

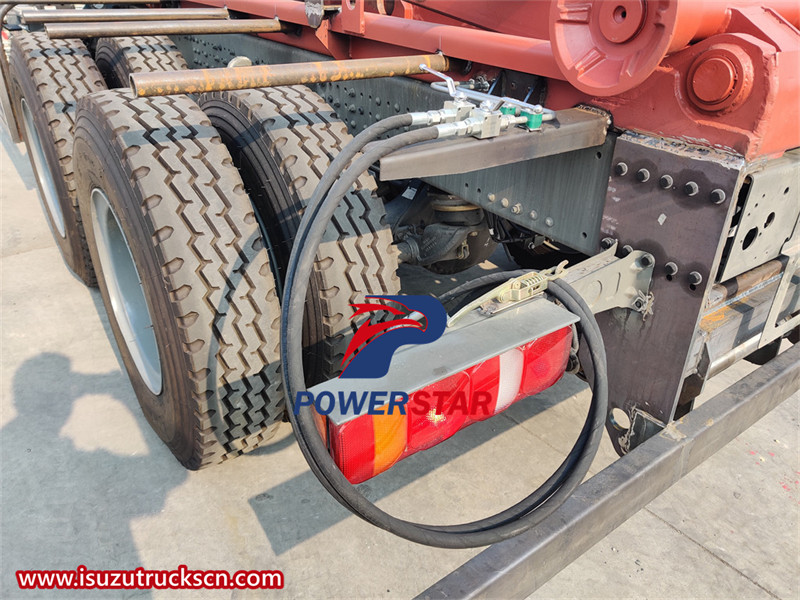

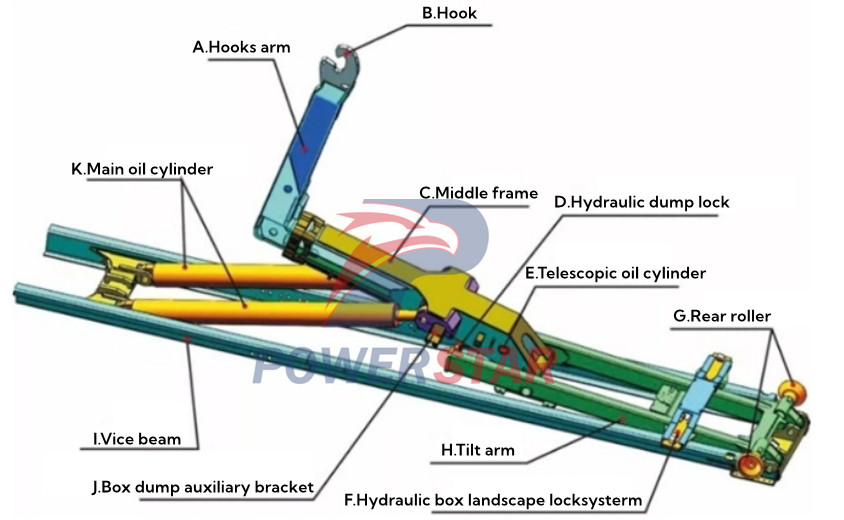

Hook lift main components
★ Payload Capacity
With a whopping 30-ton payload capacity, the Isuzu garbage truck stands out as a heavy-duty workhorse capable of handling large volumes of waste. Its robust construction allows it to carry substantial loads, making it ideal for transporting bulky or dense materials commonly found in industrial and commercial waste streams.
★ Cabin Comfort and Safety
Inside the cabin, operators are treated to a comfortable and ergonomic workspace. The cabin is designed with a focus on driver comfort, featuring adjustable seating, ample legroom, and intuitive controls for ease of operation. Safety is paramount, with the inclusion of advanced driver-assist systems, providing enhanced visibility and ensuring a secure driving experience.
★ Technology Integration
Featuring cutting-edge technology, the Isuzu 30 ton hook loader garbage truck is equipped with digital displays, onboard diagnostics, and GPS tracking systems. These tech-savvy features enhance operational efficiency, allowing fleet managers to monitor performance metrics, track routes, and optimize collection schedules in real-time.

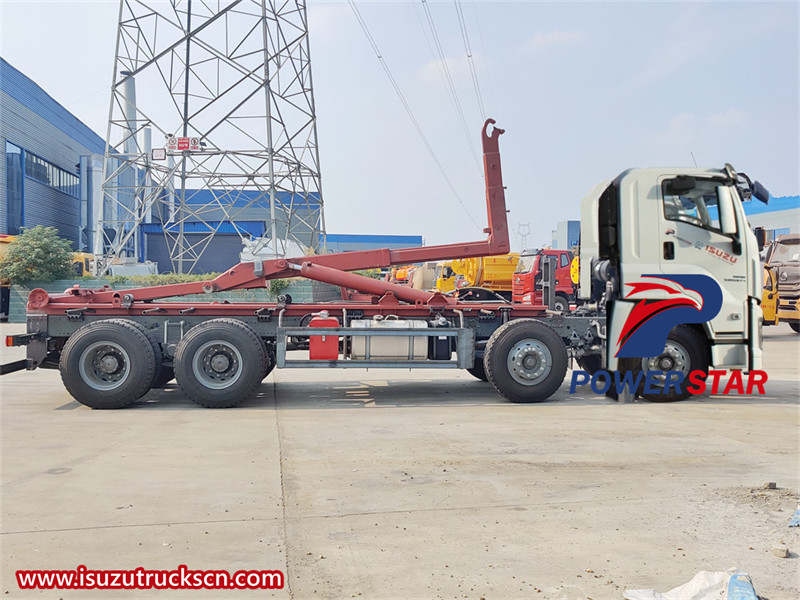

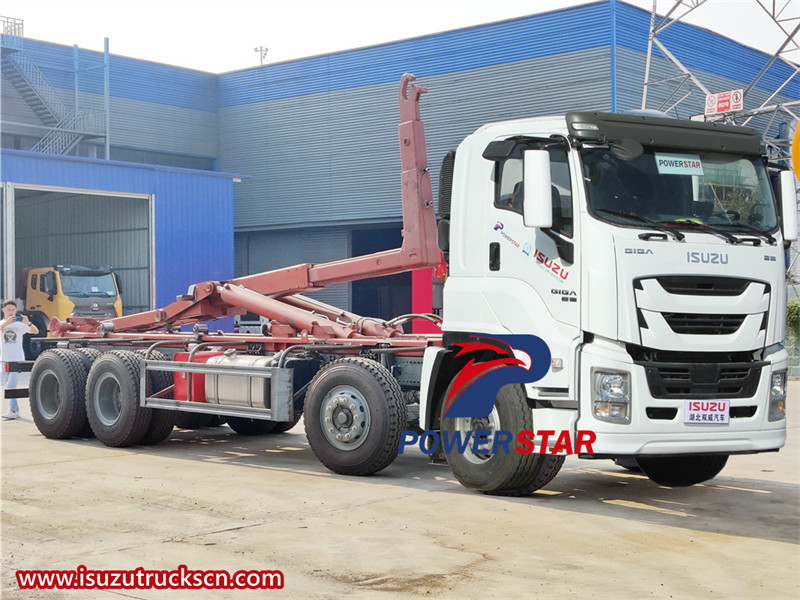

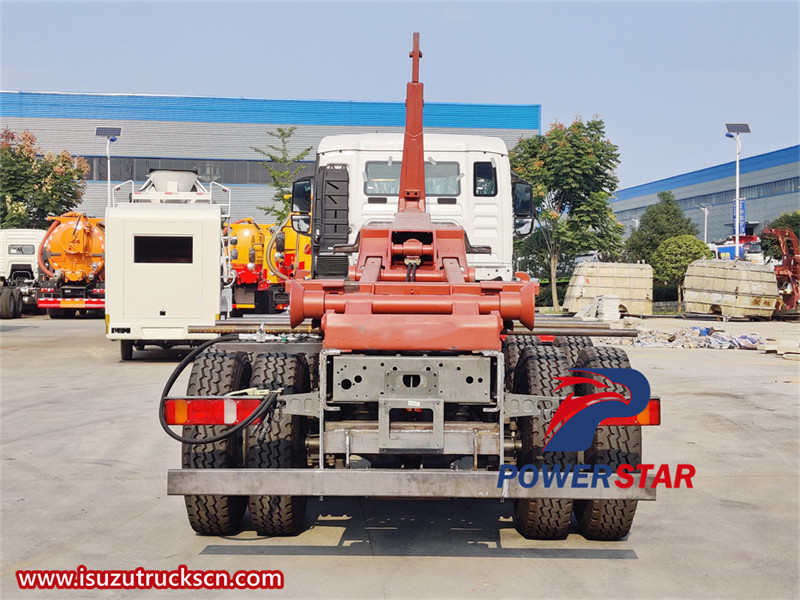

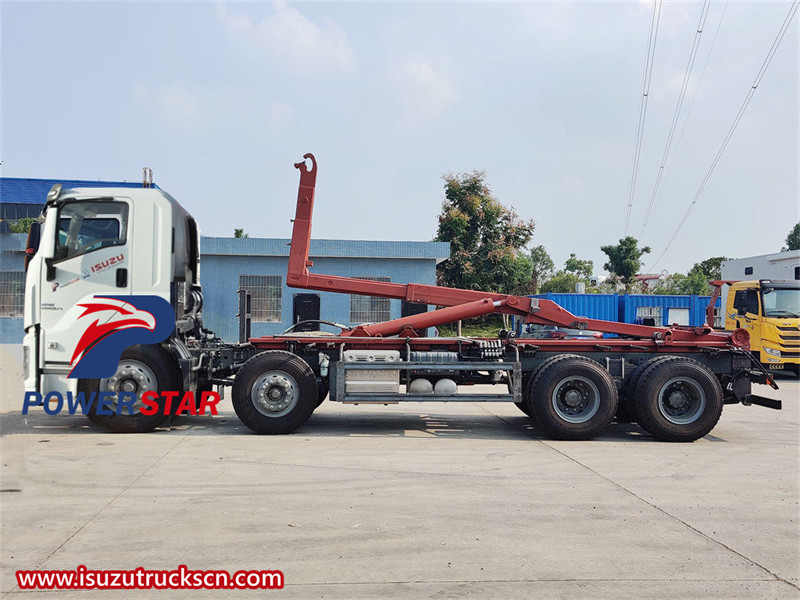

Isuzu GIGA 8x4 30 ton hook loader garbage truck
The Isuzu GIGA 30 tons roll-off waste truck serves a critical function in waste management by efficiently collecting, transporting, and disposing of various types of waste. Its primary purpose is to facilitate the loading, transport, and unloading of waste containers, optimizing the waste collection process. The truck's hook loader system enables it to pick up, transport, and deposit containers at designated waste disposal sites, contributing to the overall cleanliness and sanitation of urban and industrial environments.

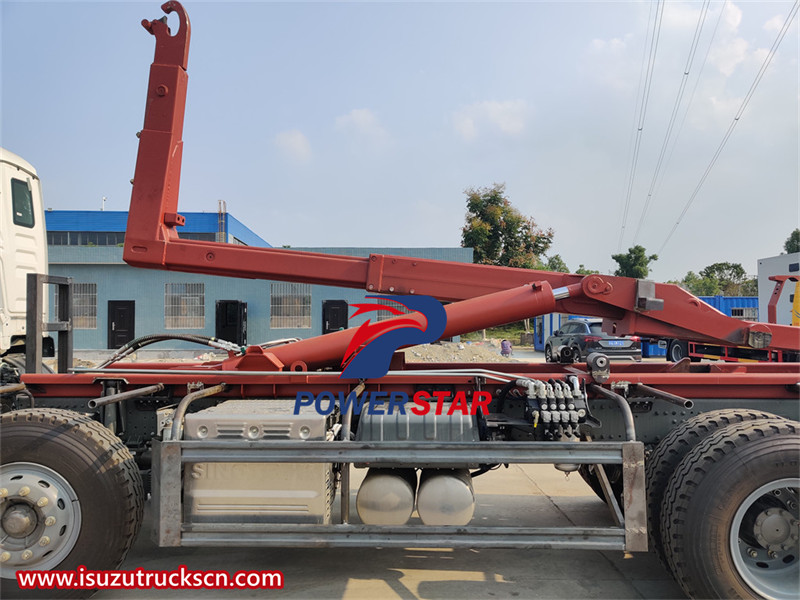

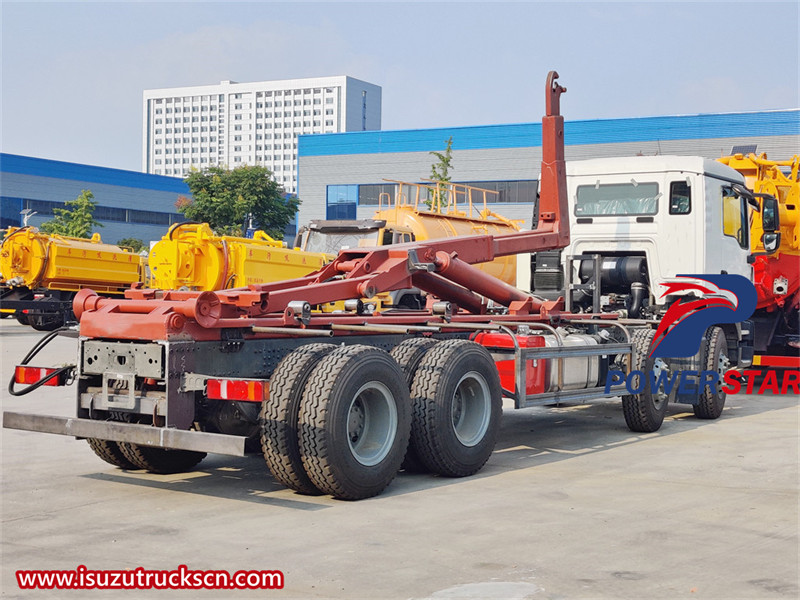

Isuzu GIGA 30 tons roll-off waste truck

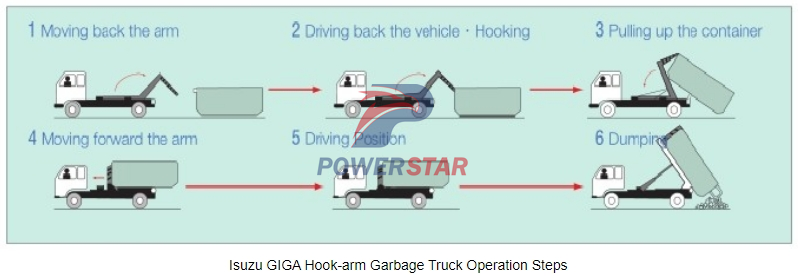

Working principle of Isuzu GIGA arm-lift garbage truck:
Before loading garbage, when the no-load operation reaches 6 standard air pressures, hang up the power take-off (lower left of the steering wheel in the cab), check whether there are any leaks or abnormalities in each component, and then operate according to the position indicated by the operation sign; the specific operation steps are as follows:
Step 1. Push the locking hook operating handle to the retracted position, retract the locking cylinder, retract the locking frame and lock the flip frame and the attached frame;
Step 2. Pull the arm operating handle to the extended position, the arm cylinder extends, the movable arm rotates around the front hinge shaft of the flip frame, the arm is in the hook box position, and the appropriate Adjust the height of the arm hook and align it with the hook of the bin;
Step 3. When the arm hook is hooked to the hook of the bin, continue to push the arm operating handle to the lowered position to allow the garbage bin to continue to load (note: ensure that the longitudinal beam of the garbage bin is located between the two rear rollers at the rear of the attached frame);
Step 4. After the garbage bin is dropped onto the attached frame, release the arm operating handle to return it to the middle position, then pull up the locking hook operating handle to the locking position, extend the locking cylinder, flip up the locking frame and lock the flip frame and the garbage bin, and release the handle to return it to the middle position;
Step 5. Before unloading the garbage, when the vehicle reaches 6 standard air pressures, hang up the power take-off, open the locking device of the garbage bin rear door, and at the front two-way valve, first make sure that the locking frame locks the garbage bin (pull up the locking hook operating handle to the locking position), then pull up the arm operating handle to the extended position, and the garbage bin is ready to be tilted and lifted to unload the garbage;
