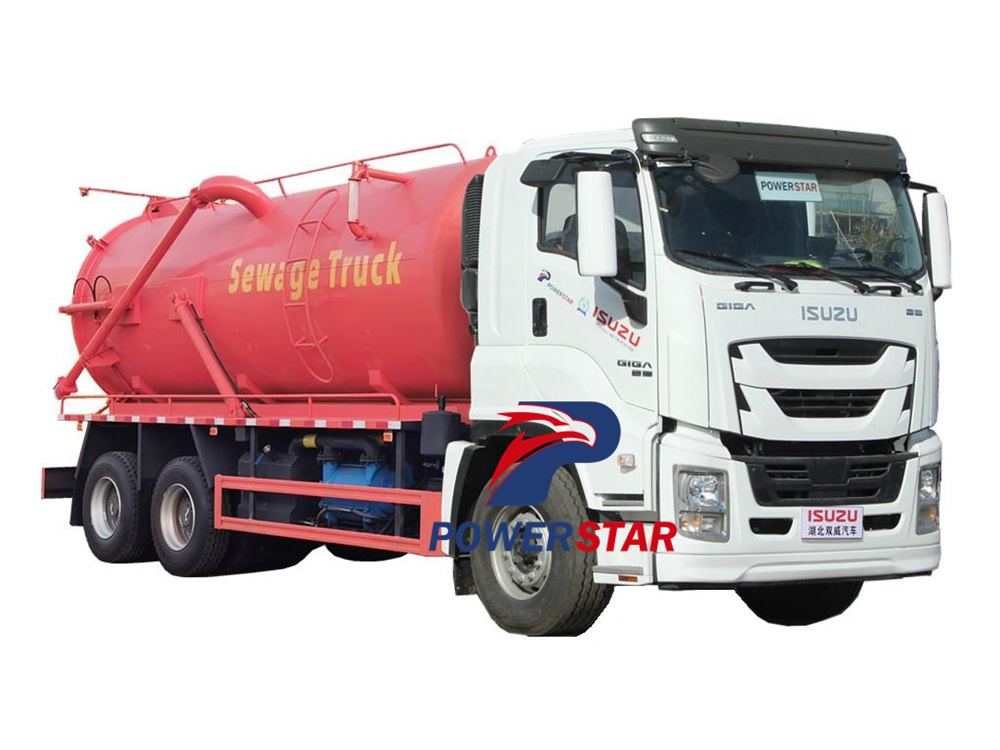

GIGA Isuzu septic tank pumper trucks is a special vehicle designed for urban sanitation and sewage treatment industries. It is mainly used to clean up dirt and wastewater in septic tanks, sewage wells, sewers and other places in the city.
Work capacity:
18000LTruck model:
PT5250GXYEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
6x4,LHDGear box:
Fast 12-speed,manualRemarks:
Isuzu GIGA heavy-duty septic suction truck,optional capacity.
GIGA Isuzu Septic Tank Pumper Trucks also called Isuzu GIGA septic suction truck,Isuzu GIGA 6x4 septic tank pump truck,Isuzu GIGA 18000L septic vacuum truck,Isuzu GIGA 6x4 cesspit emptier,Isuzu GIGA fecal suction truck,is a special vehicle used to clean sewage, feces and other wastes. It is mainly used by urban and rural sanitation departments to suck and transport feces and other sewage. The GIGA Isuzu septic tank pumper trucks can transport the collected waste to designated treatment sites for harmless treatment or reuse, achieving effective resource circulation and sustainable environmental development. It is suitable for sucking feces, sewage, sludge and liquids mixed with smaller suspended debris, and is suitable for municipal sanitation, large, medium and small industrial and mining enterprises, communities, schools, septic tank cleaning and transportation, urban pipeline cleaning and dredging, factory biogas slurry and biogas residue cleaning, etc.
Through a powerful suction system and professional pumping device, the Isuzu GIGA sewage pump truck can quickly and effectively suck these dirt into the vehicle, avoiding the problems of high labor intensity, low efficiency, high safety risks and other problems brought about by traditional manual cleaning methods.
Features:
1. Using Japanese technology ISUZU GIGA Chassis, super power, larger displacement, with Stronger Engine performance.
2. Remove the urea system and cancel DPF.
3. Quality test from the production to the finish of the whole truck.
4. Professional and experienced technical team support to provide customized trucks with high quality & reasonable price.
5. Genuine spare parts supply.
6. Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.
Isuzu GIGA 6x4 septic tank pump truck is a highly efficient mechanical equipment designed for environmental cleaning and sewage treatment. Its exterior structure is sturdy and durable, suitable for operation in various harsh environmental conditions. Equipped with advanced suction systems and pumping devices, the Isuzu GIGA Sewage suction truck can quickly and efficiently suck sewage, sludge and solid waste, thereby effectively cleaning the environment. Its high-performance filtration system ensures that the sucked waste is effectively treated and reduces the emission of pollutants in the process. In addition, the vehicle adopts an energy-saving and environmentally friendly design concept, reducing energy consumption and environmental impact. Operators can easily control the sewage pump truck through an intuitive control panel and dashboard to complete various cleaning tasks.
This sewage pump truck is also equipped with a stable chassis and suspension system to ensure that the vehicle remains stable under harsh road conditions. The high efficiency, reliability and environmental protection characteristics of the Isuzu Juka Sewage Pump Truck make it an indispensable and important equipment in the cleaning industry. It is widely used in urban sanitation, sewage treatment and environmental protection, and plays an important role in improving the living environment and protecting the ecological environment.
|
GIGA Isuzu Septic Tank Pumper Trucks |
|||
|
Vehicle |
Manufacturer |
POWERSTAR |
|
|
Brand |
ISUZU |
||
|
Model |
PT5250GXY |
||
|
Overall Dimensions L*W*H |
10000*2560*3700mm |
||
|
Weights |
GVW. |
25000kg |
|
|
Curb Weight |
12305kg |
||
|
Rated Payload |
12500kg |
||
|
Chassis |
Chassis Brand |
ISUZU |
|
|
Drive Type |
6x4 |
||
|
Steering |
LHD |
||
|
No. of axle |
3 |
||
|
Transmission |
Fast 12-speed,manual |
||
|
Engine |
Brand |
ISUZU 6UZ1-TCG61,380HP |
|
|
Power |
380HP/279KW |
||
|
Emission Level |
EURO 6 |
||
|
Performance |
Max. Speed |
90km/h |
|
|
Wheel base |
4565+1370mm |
||
|
Tyre Specifications |
12.00R22.5 , /80R22.5 for option |
||
|
No. of Tyre |
10 pcs (1 spare tire included) |
||
|
Cab |
Cab Capacity |
ISUZU GIGA Flat roof cab, 2 seats+1 bed, |
|
|
Body/Superstructure |
Vacuum pump |
Italy Moro pump or China famous vacuum pump |
|
|
Suction head |
6m-8m |
||
|
Rotation speed |
500 rpm,low noise,high efficiency |
||
|
Tank |
Capacity |
18000L |
|
|
Material |
high quality carbon steel |
||
|
Thickness |
Side 3mm,bottom 4mm |
||
|
Basic |
Install vacuum pumps and hydraulic systems driven by engine through |
||
|
Equipment |
PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose |
||
|
Paint |
Tank color is according to client's requirements. |
||
|
Optional Equipment |
Italy or Spain vacuum pumps |
||
|
Stainless steel |
|||
|
Anti-rust coating inside tank |
|||
The Isuzu 6x4 1800L septic pump tanker is a powerful tool designed for efficient cleaning and treatment of sewage and sludge. Its excellent performance and reliability make it the first choice for cleaning work in various environments. This model adopts Isuzu's advanced technology to ensure its stable operation in harsh environments.
Technical drawing of GIGA Isuzu Septic Tank Pumper Trucks
This sewage suction truck has precise control and optimized design, equipped with a powerful engine and a reliable transmission system, providing it with excellent power and control capabilities. The 6x4 drive mode makes the vehicle more stable and can easily cope with various road conditions and working environments.
When it comes to cleaning sewage and sludge, this Isuzu GIGA vacuum pump truck has an efficient suction and storage system. Its specially designed suction pipes and storage tanks ensure a fast and efficient cleaning process, while the pressure relief valve and filtration system ensure work safety and environmental protection.
In addition to performance and functions, the Isuzu 6x4 GIGA cesspit emptier also focuses on comfort and ease of operation. The cab is equipped with a humanized design and advanced control system, allowing the driver to easily grasp the vehicle status and operation information. In addition, the body structure is sturdy, durable, and has strong corrosion resistance, and can withstand the pressure of heavy work for a long time.
The Isuzu 6x4 GIGA septic suction truck is a powerful, efficient and reliable professional cleaning equipment. It can demonstrate excellent cleaning capabilities in various work scenarios, become a powerful assistant in the sanitation industry, and make important contributions to the cleanliness and sanitation of the urban environment.

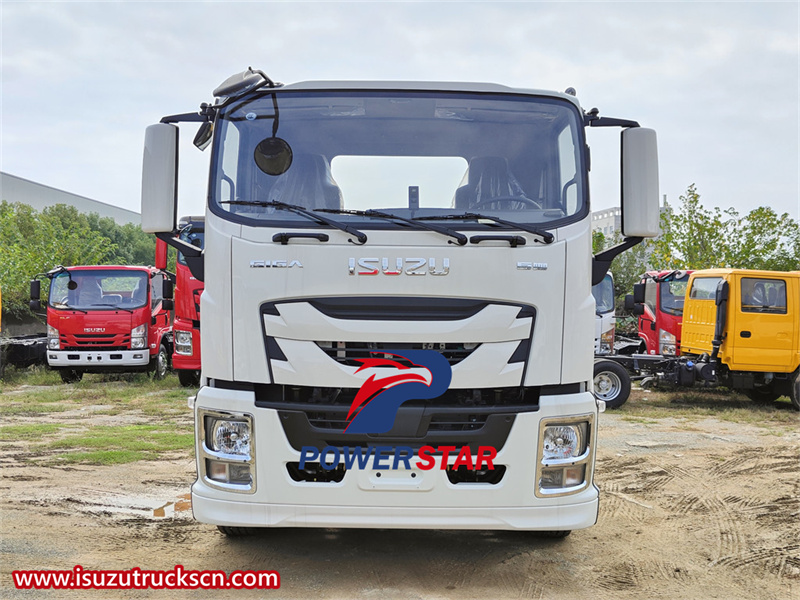

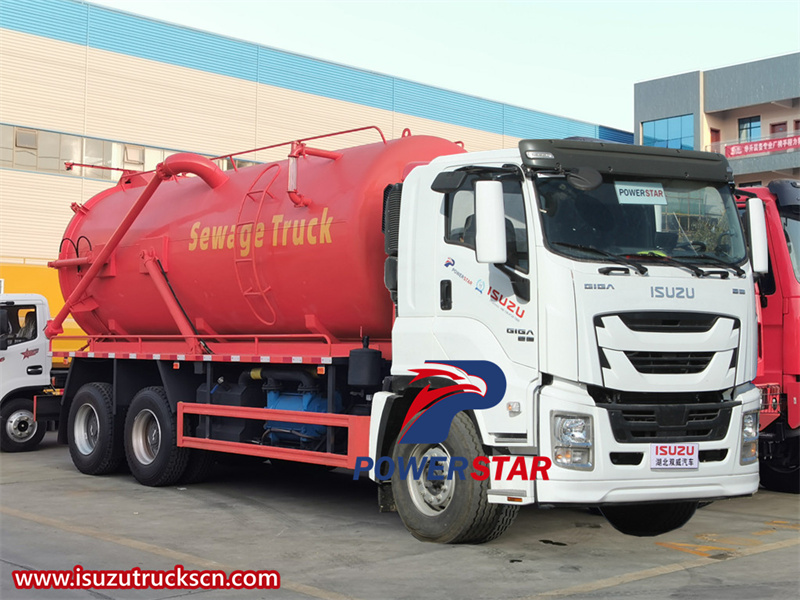

Isuzu GIGA 6x4 Septic Tank Pumper Truck
The Isuzu GIGA fecal suction truck is mainly composed of a car chassis, a tank body, a fecal suction device, etc., including an oil-water separator, a water-gas separator, a special vacuum fecal suction pump, a volume pressure gauge, a pipe network system, a suction conduit, a self-flow valve, a vacuum tank body, a connecting vessel (fecal viewing window), and a fully automatic anti-overflow valve.
The tank body is the main container of the fecal suction truck, which is used to store the sucked feces, sewage and other wastes. The vacuum pump is the power source of the fecal suction truck, which realizes the function of sucking waste by generating negative pressure. The liquid level meter is used to monitor the liquid level in the storage tank and control the start and stop of the vacuum pump to ensure the safety and efficiency of the suction process. The suction pipeline and the discharge pipeline are responsible for sucking feces, sewage and other wastes into the storage tank and discharging them when necessary.

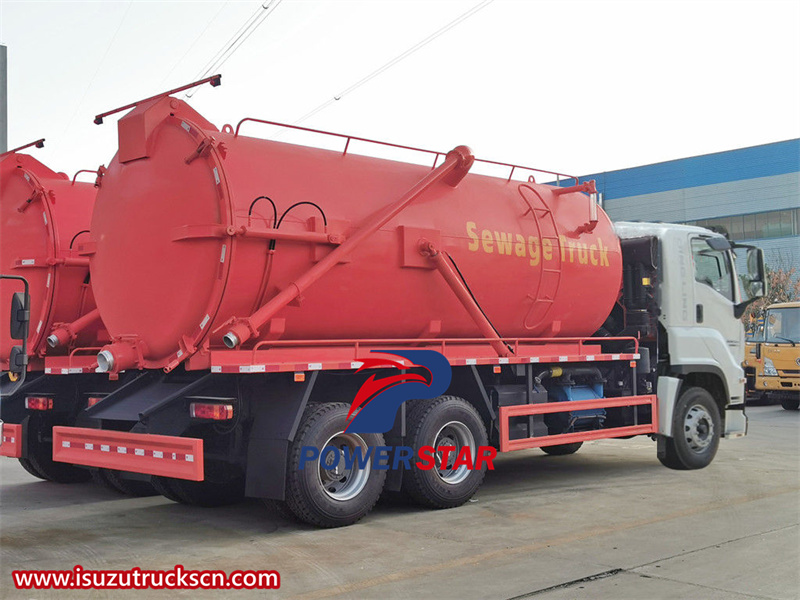

Isuzu GIGA septic suction truck
Working principle of Isuzu GIGA septic suction truck
The Isuzu GIGA septic suction truck mainly uses a vacuum pump to extract the air in the storage tank to form negative pressure, and then uses the negative pressure to suck feces, sewage, etc. into the storage tank. During the suction process, the amount of feces sucked in is controlled by a liquid level meter. When the liquid level meter detects that the liquid level in the storage tank reaches a certain height, the vacuum pump is automatically turned off to avoid excessive suction and overfilling of the storage tank. In this way, the fecal suction truck can safely and efficiently suck feces, sewage and other waste into the storage tank.
Working principle of Isuzu GIGA septic pumper's vacuum pump
For the vacuum pump of a fecal suction truck to work, we must first understand its working principle. The more important considerations in the working principle are the source of power and stability. The power of the vacuum pump comes from the chassis engine. The engine is transmitted to the vacuum pump through the gearbox, power take-off, and drive shaft. When the sewage is sucked, the vacuum pump extracts the air in the sealed tank to form a negative pressure, and uses the atmospheric pressure outside the tank to press the sewage into the tank through the sewage suction pipe. When the sewage in the tank accumulates to a certain amount, sewage discharge is required. At this time, the vacuum pump changes the working mode, presses the atmospheric pressure outside the tank into the tank, and uses air pressure to discharge the sewage out of the tank (the continuous working time of the vacuum pump generally does not exceed 30 minutes).

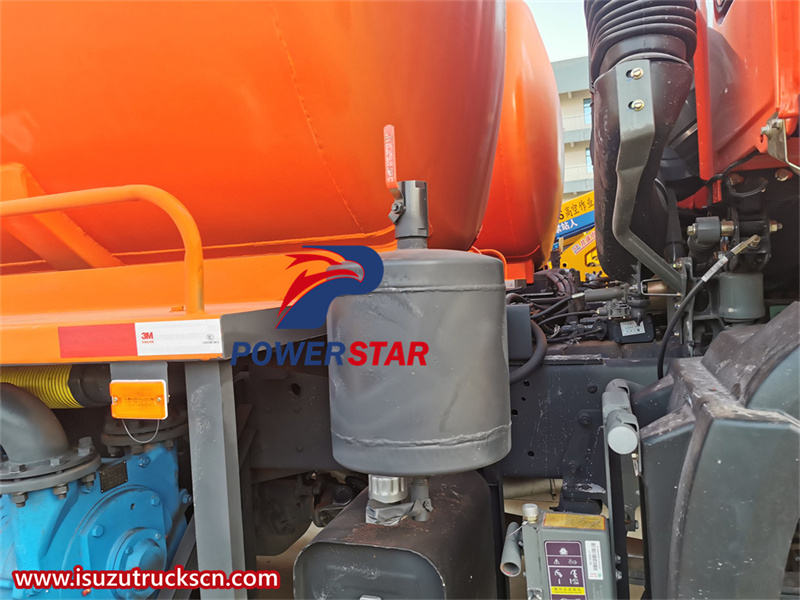

Flow sequence of vacuum pump airflow
The flow sequence of the airflow in the air path is: when sucking sewage, the vacuum pump sucks the air with a certain humidity in the tank into the water-gas separator, where the water is separated and flows back into the tank, and the gas enters the vacuum pump air inlet along the pipeline through the four-way valve. Mixed with the lubricating oil in the pump, it is discharged from the exhaust port through the compression chamber, especially the mixture is initially separated by the coarse filter, and the separated oil flows back to the oil pump. The mixed gas is further separated by the oil-gas separator and then enters the four-way valve to be discharged into the atmosphere. The four-way valve can be manually operated to change the direction of the airflow, allowing for free suction and discharge.

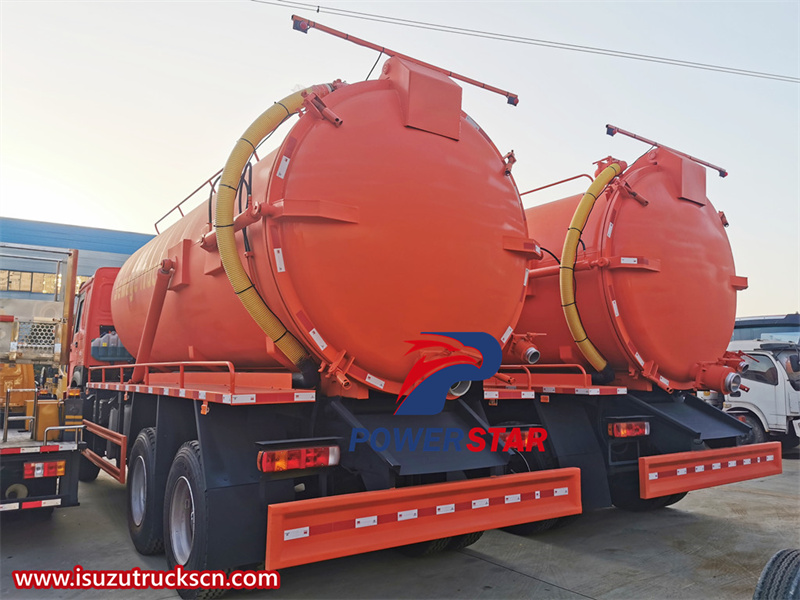

Isuzu GIGA 18000L septic vacuum truck
Isuzu GIGA cesspit emptier
How to use an Isuzu septic vacuum truck?
When using an Isuzu septic vacuum truck, you first need to insert the suction pipe into the dirt that needs to be cleaned, and then start the vacuum pump to form negative pressure and suck the dirt into the storage tank. During the suction process, it is necessary to monitor the liquid level in the storage tank through a liquid level gauge to avoid excessive suction. When the fecal suction truck completes the cleaning task, it is necessary to treat or discharge the dirt in the storage tank through the discharge pipe. During the entire use process, you need to pay attention to safe operation and regularly check the working status of each component to ensure the normal operation of the septic vacuum truck.

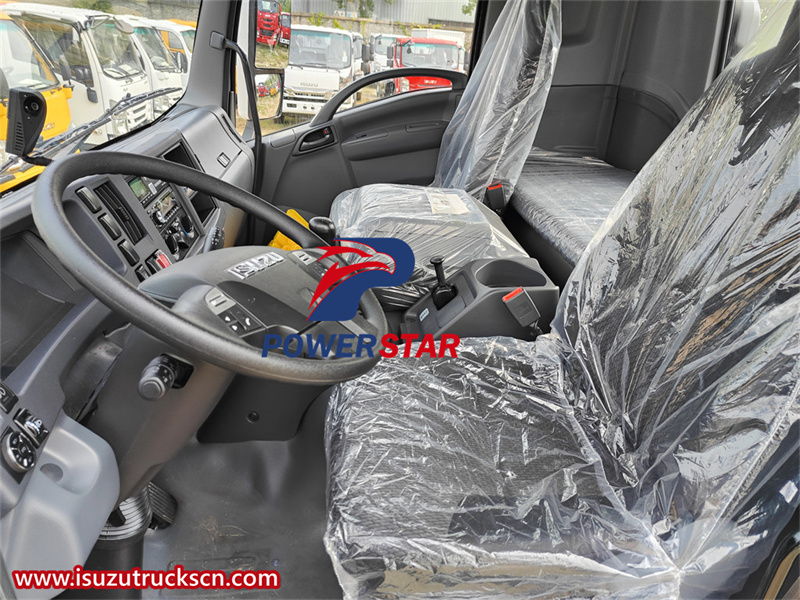

Isuzu GIGA vacuum pump truck cabin

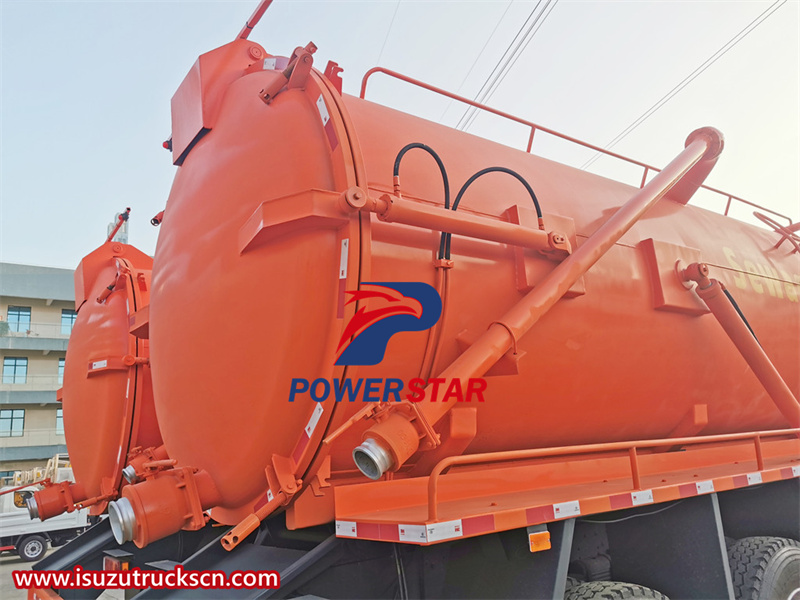

Isuzu GIGA vacuum pump truck hydraulic cylinder

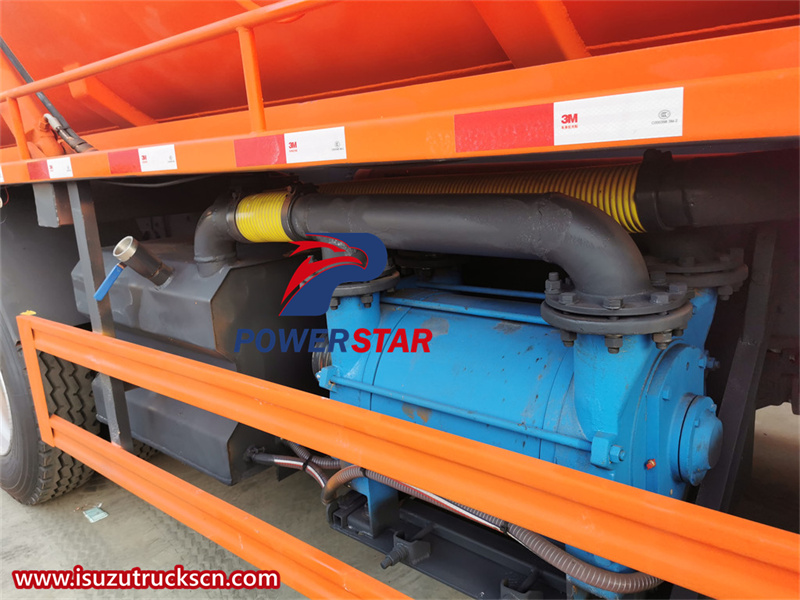

Isuzu GIGA septic suction truck vacuum pump

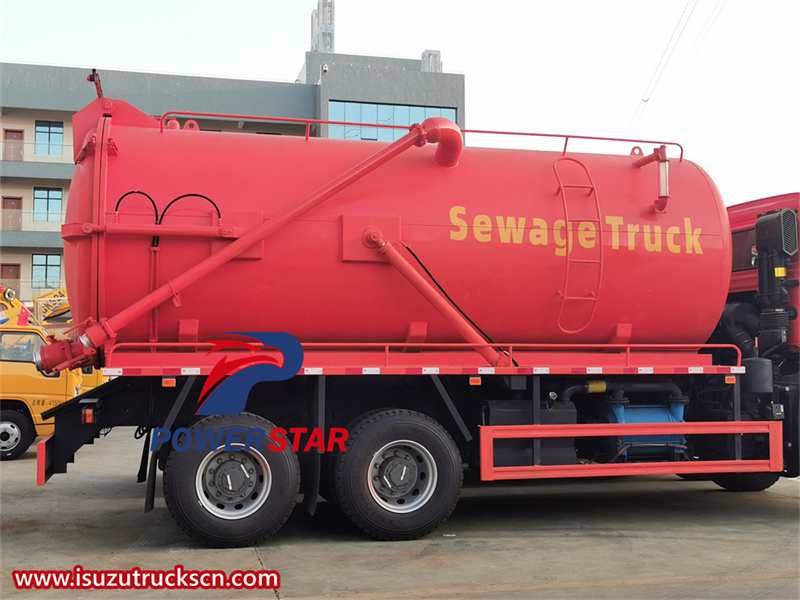

Isuzu GIGA septic suction truck tank side view
