Isuzu's dry cargo box trucks with their rugged construction, efficient engines and versatile design, these vehicles are a valuable asset to any logistics or transportation business.Whether you want to transport freight across town or across the country, an Isuzu dry cargo box truck is the perfect choice to ensure your cargo is delivered safely and efficiently.
Work capacity:
6cbmTruck model:
PT5080GXQEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
Isuzu MSB Five speed transmissionRemarks:
Isuzu KV100 chassisDry freight box trucks made by Isuzu also called Isuzu KV100 dry cargo van,Isuzu KV100 dry freight cargo truck,Isuzu 4x2 dry freight van truck,Isuzu KV100 transport van cargo truck,Isuzu KV100 van truck with dry freight, is a vehicle designed for transporting goods. It usually has a sturdy frame and a spacious cargo box space in order to accommodate a large amount of cargo.
This type of vehicle is often used in the logistics and transportation industries to provide efficient cargo transportation solutions. Dry freight box trucks made by Isuzu usually have reliable engines and suspension systems, enabling them to operate stably under various road conditions. The body design can maximize the convenience of loading and unloading cargo, thereby improving work efficiency.
Features:
★ ISUZU KV100 chassis, perfect performance
★ 4KH1 engine, super powerful, reliable perfommance, no overhaul within 100,000 km.
★ Payloading from 2ton to 40 tons.
★ Easy operation and easy maintenance
★ Virious types of cargo body are available
|
Vehicle parameters |
|||
|
Vehicle Model |
PT5070GXQ |
Vehicle Brand |
POWERSTAR |
|
Overall dimensions |
5995x2200x2760mm |
Van dimensions |
3650x2050x1800mm |
|
Total mass |
7300kg |
Curb weight |
2350kg |
|
Chassis parameters |
|||
|
Chassis brand |
ISUZU |
Wheel base |
3360mm |
|
Front/rear wheel track |
1680/1650mm |
Front/rear suspension |
1110/1525mm |
|
Drive form |
4X2 |
Maximum speed |
95km/h |
|
Cab |
Configuration |
Isuzu KV100 ,Single cab,allowable 3 passengers, air conditioner, USB radio interface. |
|
|
Color |
White and blue,other color is optional |
||
|
Engine |
Model |
4KH1CN6LB |
|
|
Emission |
Euro 6 |
||
|
Type |
4 cylinders, in-line, diesel engine |
||
|
Rated power |
88kw / 120HP |
||
|
Displacement |
2999ml |
||
|
Manufacturer |
Isuzu |
||
|
Tire |
Size |
700R16 |
|
|
Number |
6+1 nos |
||
|
Front axle |
2580kg |
||
|
Rear axle |
4720kg |
||
|

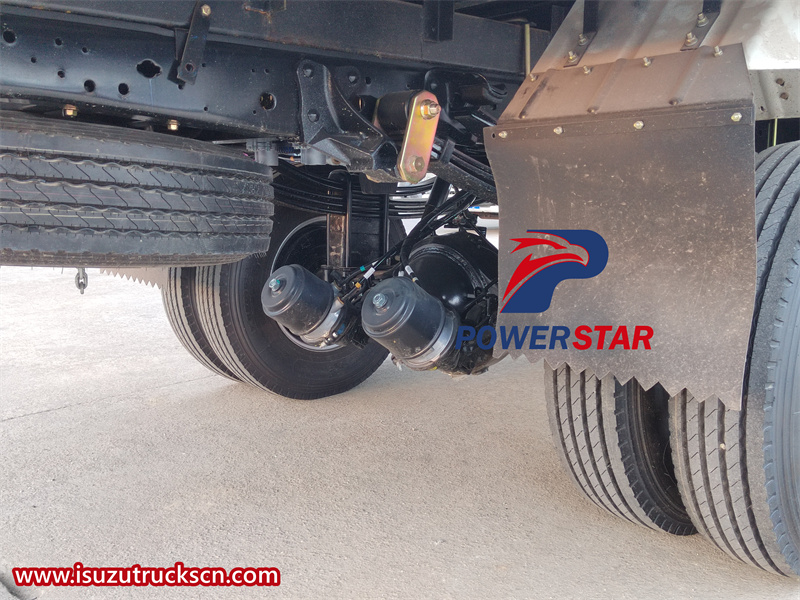

Suspension |
Multi leaf springs |
||
|
Rated voltage |
24V,DC |
||
|
Transmissions |
Isuzu MSB Five speed transmission,5 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Right hand drive |
||
|
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
|||
|
Van body structure parameters |
|||
|
Van dimensions |
3650x2050x1800mm |
Loading capacity |
6m3 |
|
Van material |
Q235 steel |
Color |
Truck color white |
Isuzu dry freight box trucks, manufactured by POWERSTAR, are a staple in the logistics and transportation industry, renowned for their reliability, versatility, and fuel efficiency. These vehicles are designed to haul a wide range of non-perishable goods over both short and long distances, playing a pivotal role in maintaining the smooth flow of commerce and supply chains worldwide.

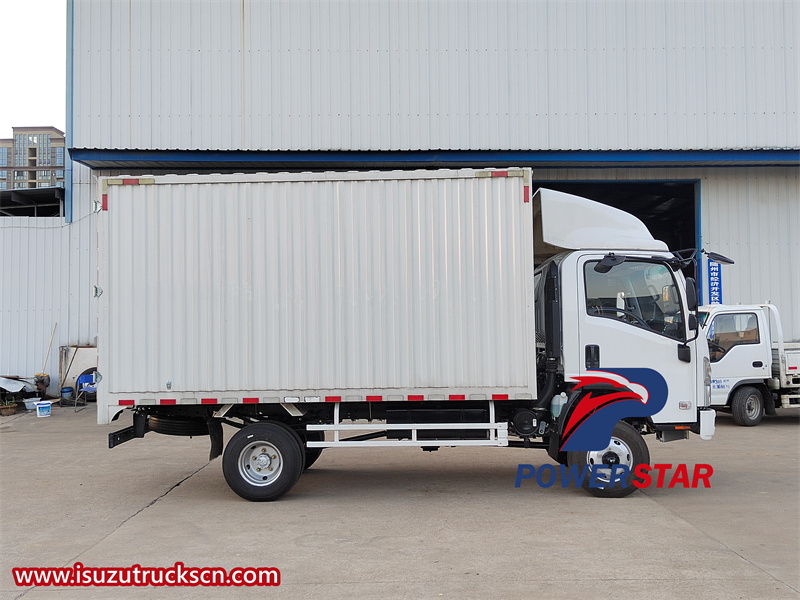

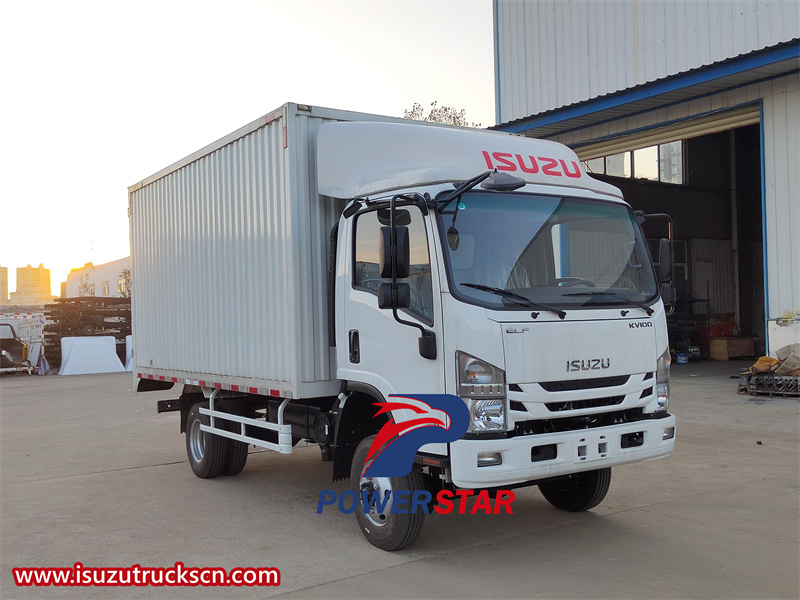

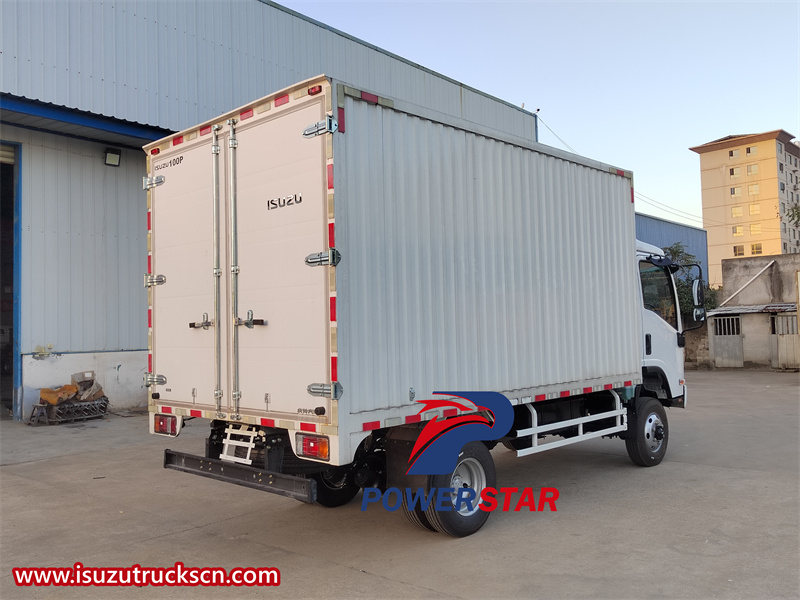

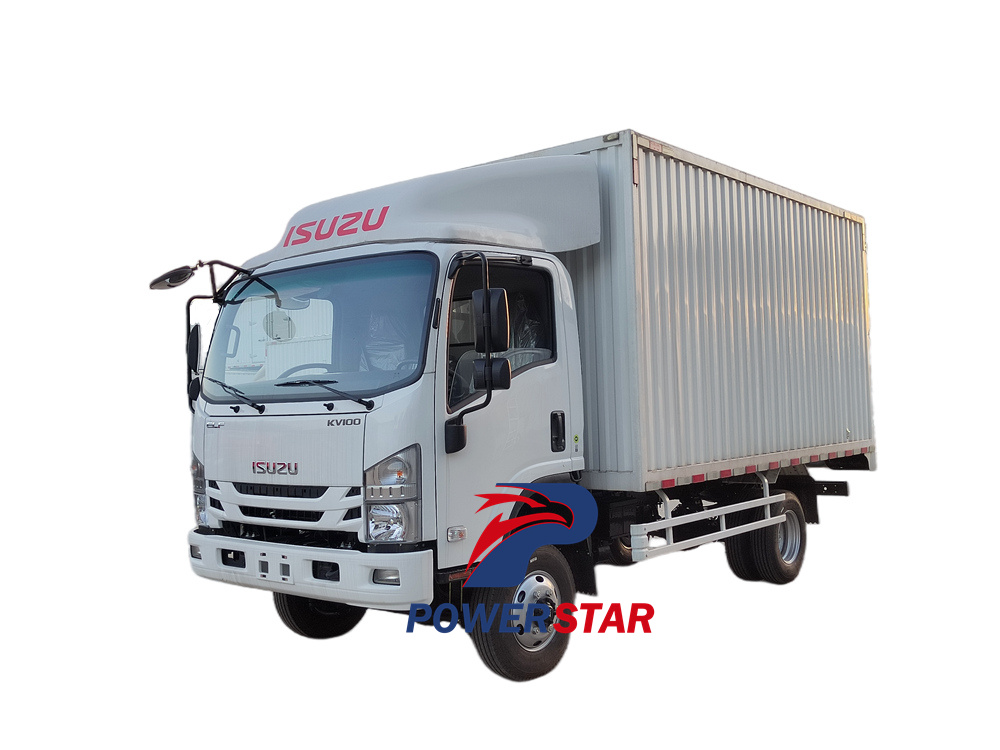

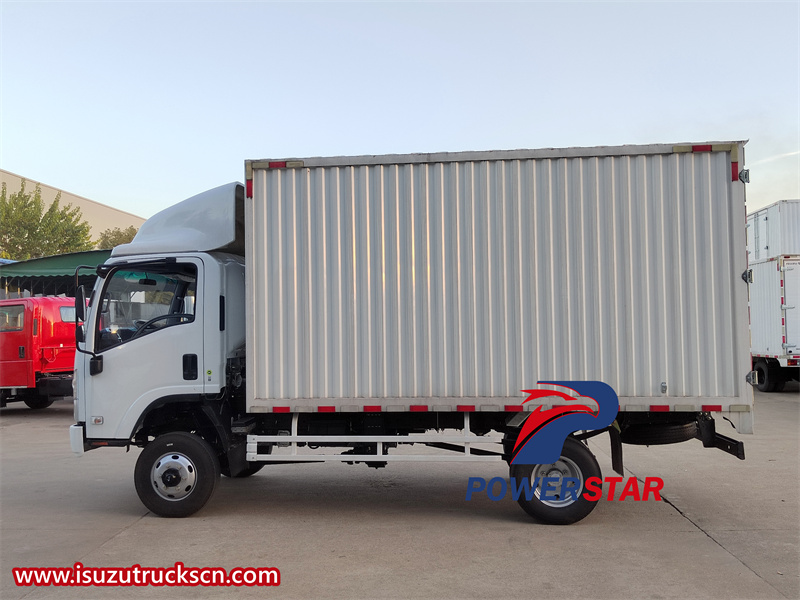

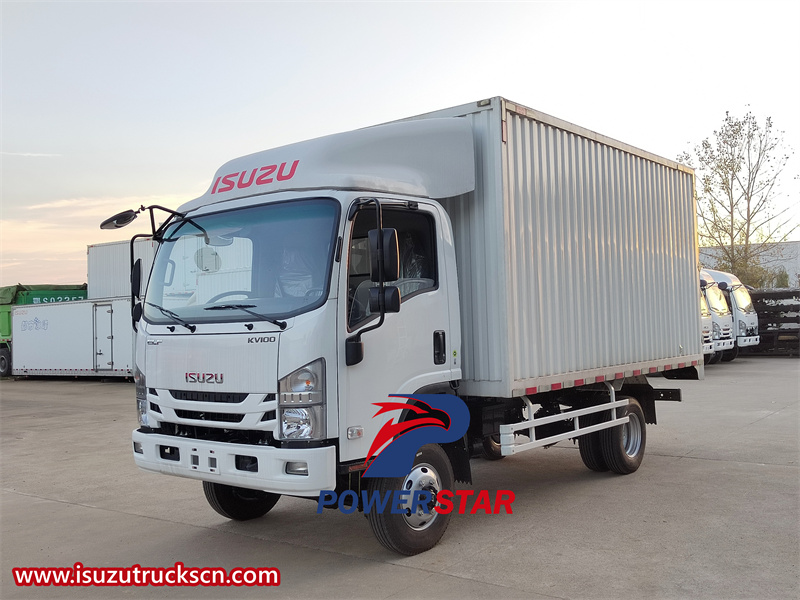

Isuzu KV100 van truck with dry freight
Construction

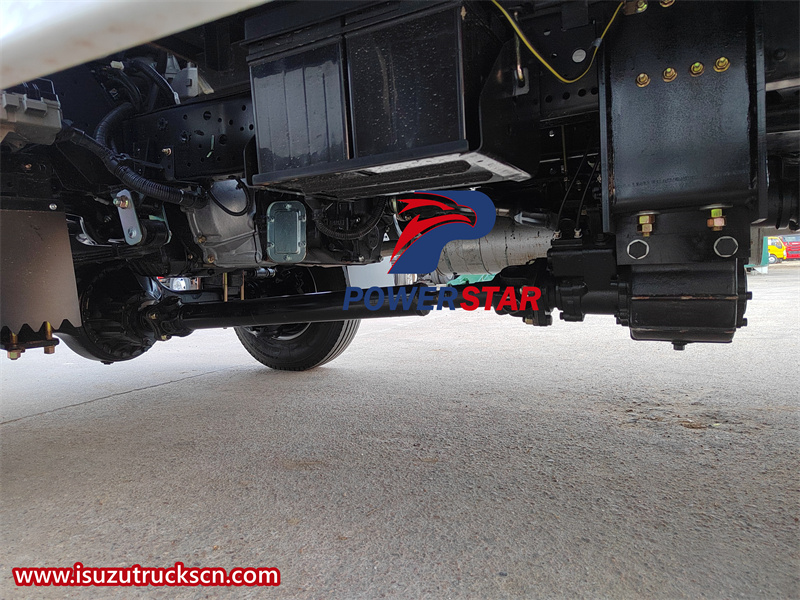

At the heart of every Isuzu dry freight box truck lies a robust and dependable chassis, built to withstand the rigors of daily operation and heavy loads. The frame is typically constructed from high-strength steel, ensuring structural integrity and longevity. The body of the truck, known as the dry box or cargo box, is a fully enclosed structure, providing protection to the cargo from the elements and ensuring secure transportation. These boxes come in various sizes, ranging from smaller models suitable for urban delivery to larger ones capable of carrying substantial loads over extended distances.
Design

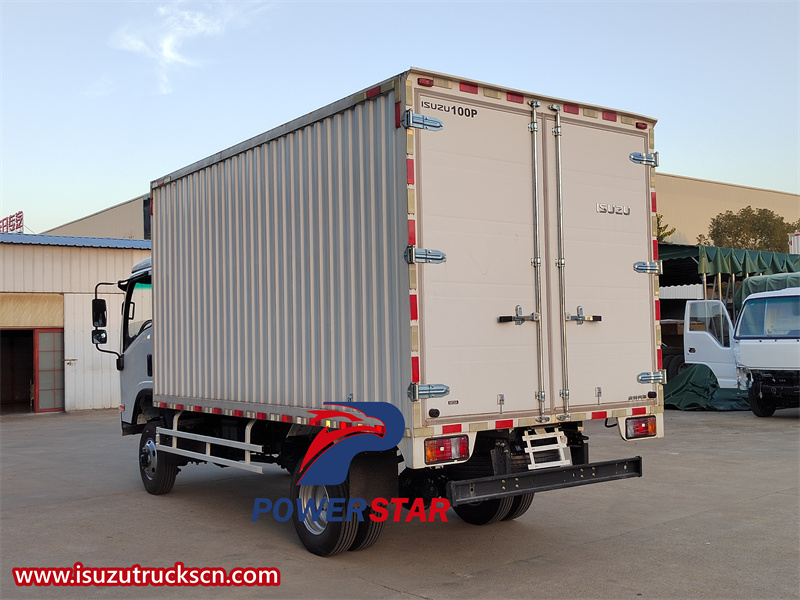

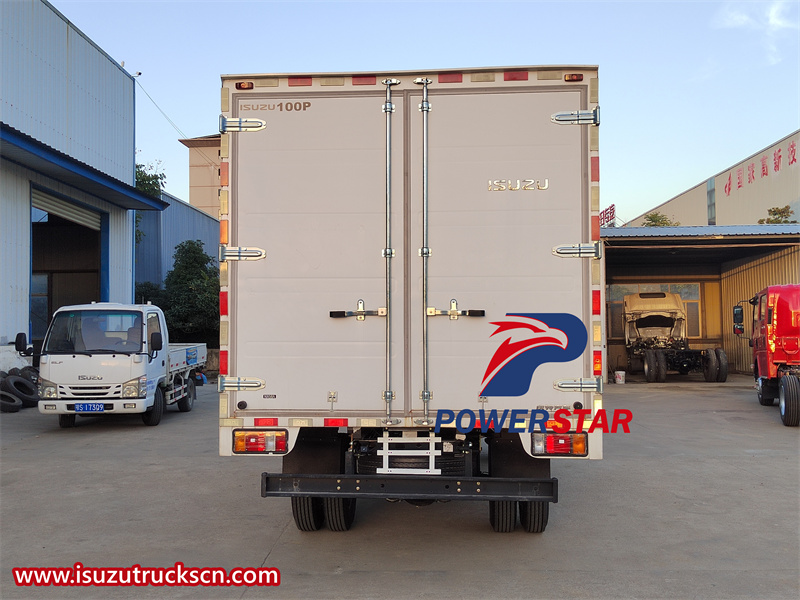

The design of Isuzu KV100 van truck with dry freight prioritizes ease of access and efficient loading/unloading. Most models feature rear doors that swing open wide, providing ample clearance for forklifts or other material handling equipment to quickly and safely load and unload goods. Side doors or side access panels are also available in some configurations, offering additional flexibility depending on the specific transportation needs.
Engine and Powertrain
Isuzu is renowned for its advanced diesel engines, which power many of its dry freight box trucks. These engines are designed for maximum fuel efficiency, low emissions, and long service life. With ample torque and horsepower, they ensure smooth acceleration and effortless climbing, even when fully loaded. The transmission systems are typically automatic or manual, offering drivers a choice between ease of operation and greater control over engine power delivery.
Cab and Interior
The cab of an Isuzu KV100 dry freight cargo truck is designed for both comfort and functionality. It features ergonomic seating, adjustable steering wheels, and ample legroom, ensuring that drivers can remain comfortable and focused on the road for extended periods. The instrument panel is intuitive and well-laid out, with clear gauges and controls that are easy to read and operate.
Durability and Reliability
High-quality materials: The body and chassis of Isuzu KV100 dry cargo van are made of high-strength, corrosion-resistant materials to ensure that the vehicle can maintain stability and durability in various harsh environments.
Strict quality control: Powerstar implements strict quality control standards during the production process to ensure that every vehicle leaving the factory meets the highest quality requirements. This insistence on quality has made Isuzu trucks enjoy a good reputation in the market.
Industry Applications
Isuzu KV100 dry freight box trucks find applications across various industries, including logistics, retail, e-commerce, construction, and more. Their versatility, reliability, and efficiency make them indispensable assets for businesses looking to streamline their transportation operations and deliver goods safely and promptly. From urban deliveries to long-haul journeys, these trucks excel in meeting the dynamic demands of modern supply chains.
City ELF ISUZU cargo Delivery Van truck,Isuzu CARGO TRUCK/high quality cargo truck/good quality cargo truck/,isuzu Philippines/Low oil Consumption/Cargo truck
Learn More

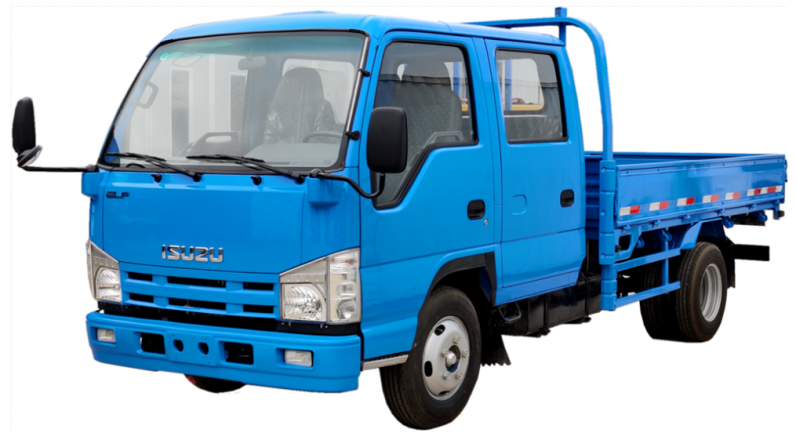

Isuzu 100p 1.2 - 4 Ton, 9-19 M3 Single Row Light Duty Van, 4JB1CN ISUZU new elf cargo truck
Learn More

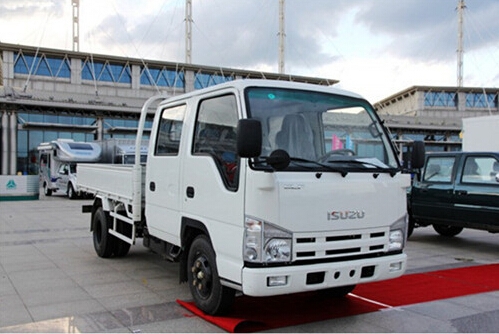

Brand New 4x2 ELF NPR 100p double cabin cargo duty isuzu truck on sale,Isuzu cargo truck, also known as a freight truck Isuzu, is a specialized vehicle designed for transporting goods over long distances. These heavy-duty vehicles are essential for the transportation of various types of cargo, including liquid fuels, chemicals, perishable goods, and general freight.
