CEEC Dump Truck Trailers and Trailers -- Specifications

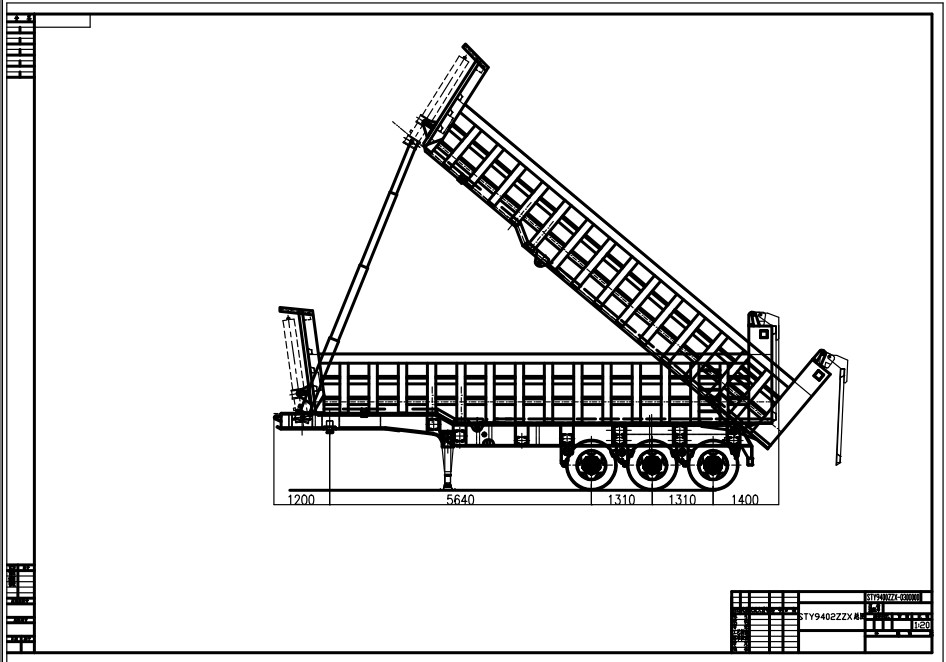

Dimension:
Length: 10,500mm
Width: 2,500mm
Height: 3,300mm
Box Size :10,500*2,500*1,700mm
Main Beam:
Beam height: 500mm
Upper plate : 16mm
Double Middle plate : 8+8mm
Down plate : 18mm
Side beam:18# U-shape steel 18#
Platform Thickness: 4mm
Side Wall Thickness: 4mm
Material: T700
Gross Vehicle Weight: Approx.8ton
Max Payload: Approx.70ton
Kin Pin: 90#
Land Gear: Standard 28T
Axle: FUWA Brand, 1200R22.5,12pcs
Suspension: Normal Suspension
Thicken Leaf Spring: 10/10/10
Tire: Double Qian Brand, 1200R22.5,12pcs
Rim: 6.5, 12pcs
Brake Val: WABCO
Brake Chamber: 4Double, 2 Single
Spare Wheel Carrier: 2pcs
Tool Box: 1pcs
Electrical System: Chinese Standard 24V Light System
Marking and Color: By customer's Requirement

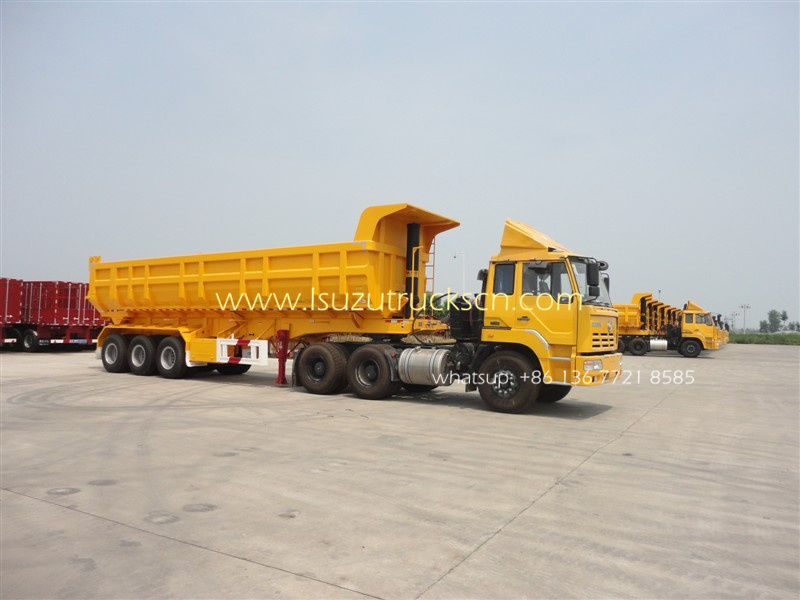

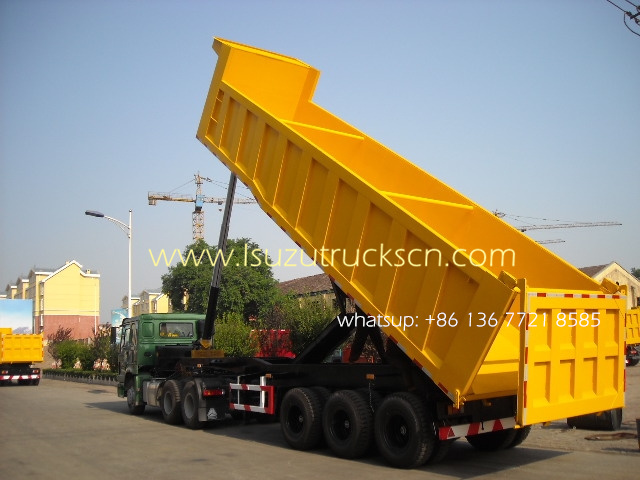

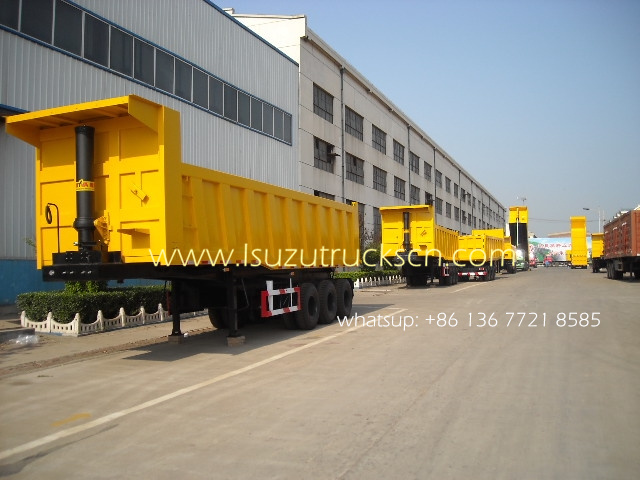

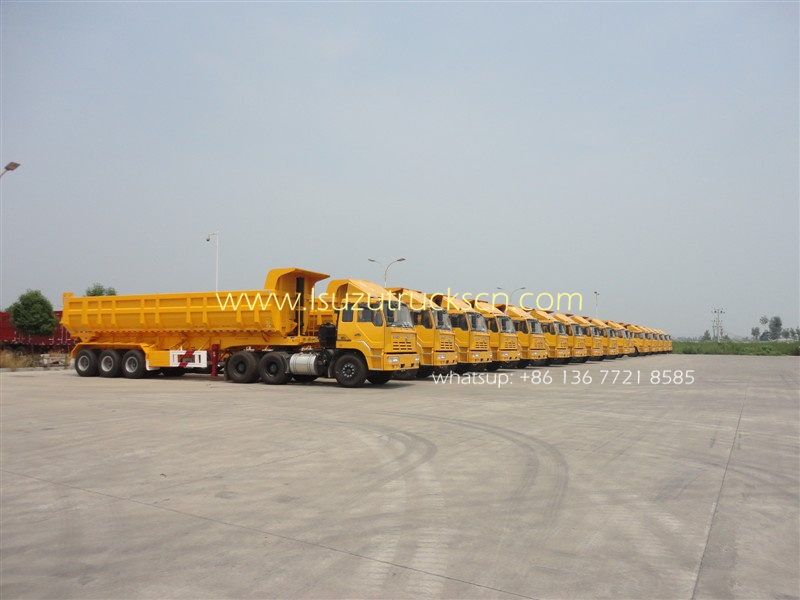

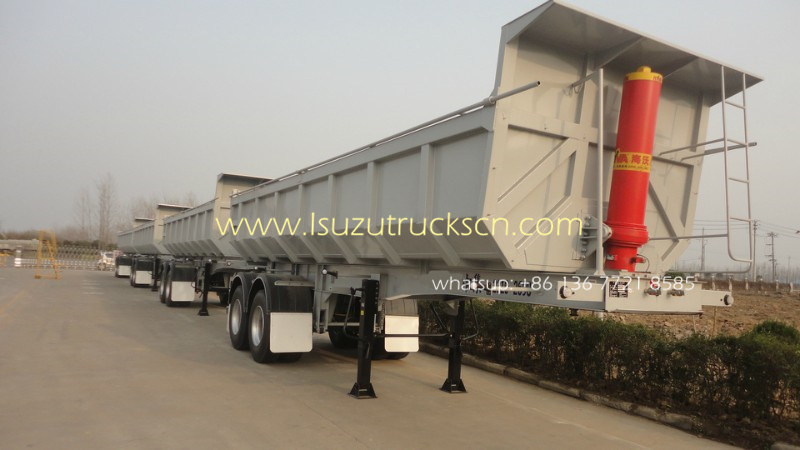

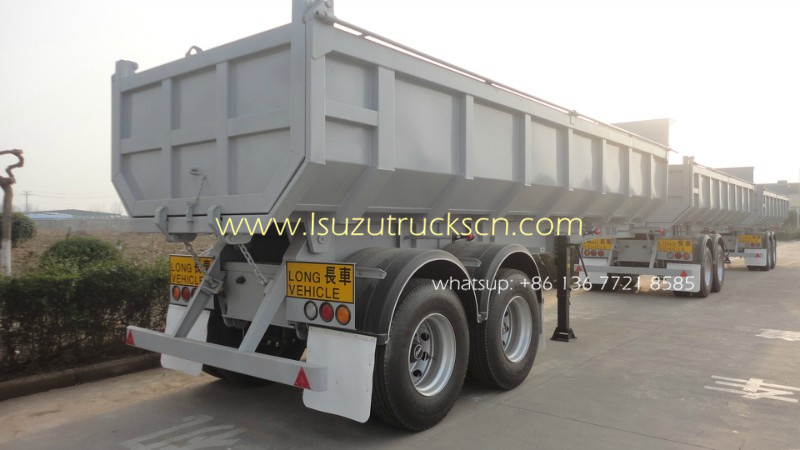

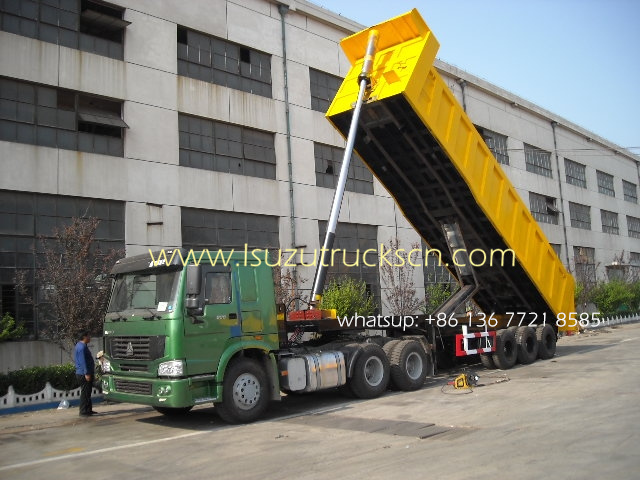

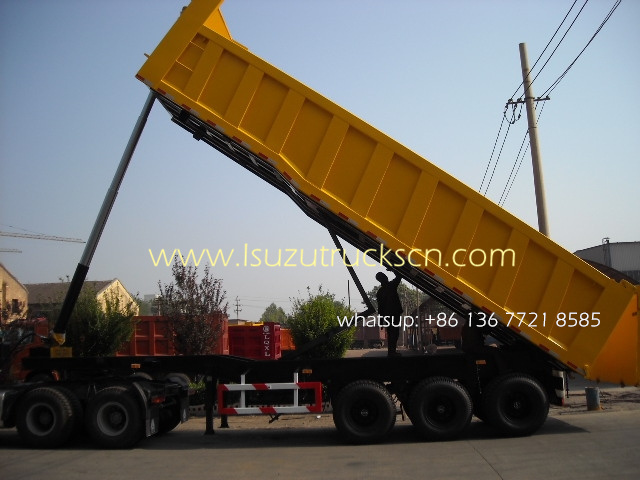

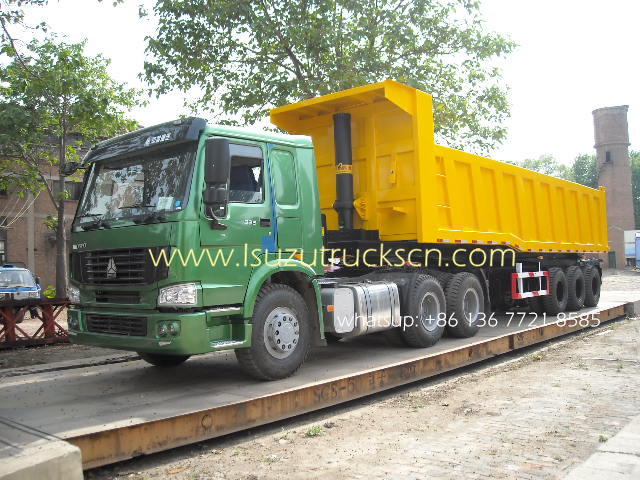

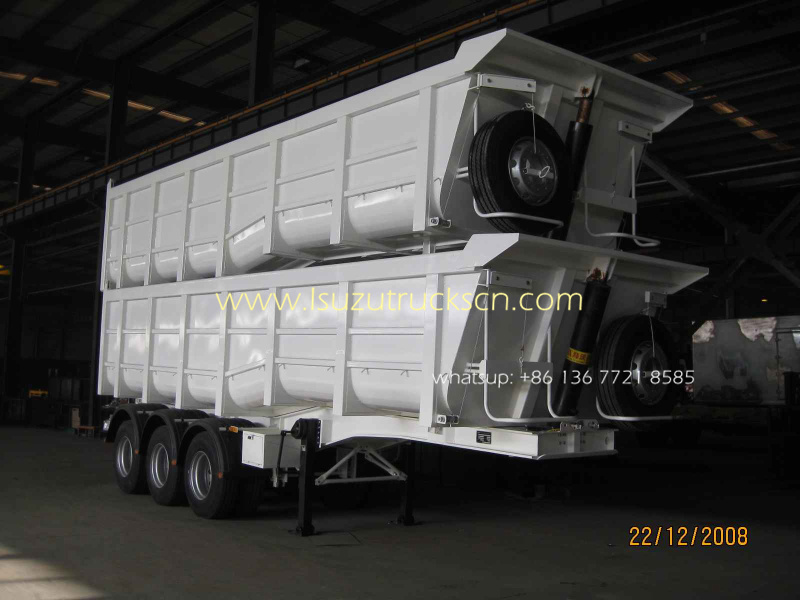

Customer build example of tipper semi trailer.
