1Germany Man heavy water fire truck 12000L (also called as Man emergency rescue fire trucks, Man TG5 fire fighting truck manufacturer in China) widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment.
Geramany Man Fire fighting trucks types: Man Water fire truck, Foam fire truck Man, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.
Features:
Man heavy duty Chassis, Durable & Performance.
High performance fire pump and fire cannon
Tanker material: Carbon steel or Stainless steel
A complete set of fire fighting Accessories & Equipment, your can put work immediately.
FREE training in our factory if customers need.
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO., LIMITED |
||
Product Name |
MAN Industrial Fire Truck (12,000 L water) |
||
Vehicle Brand Series |
ISUZU |
||
Vehicle Model |
PT5330GXFPM40 |
||
Chassis parameters |
Overall dimensions |
mm |
10300*253*3680 |
Gross weight |
kg |
33000 |
|
Curb weight |
12100 |
||
Wheel base |
mm |
4565+1300 |
|
Driving type |
6x4 |
||
Number of axles |
3 |
||
Tire specification |
315/80R22.5 |
||
Number of Tires |
10+1 |
||
Passengers in cab |
2+6 |
||
Engine |
Engine model |
D2676LFAR |
|
Type of fuel |
Diesel |
||
Power/Displacement |
ml |
510HP |
|
Max speed |
Km/h |
90 |
|
Emission standard(TAS) |
EURO6 |
||
Fire performance |
Tank capacity |
Water tank capacity: 12000 L |
|
Foam tank capacity: NIL |
|||
Fire pump |
Model: CB10/100-RSD HALE |
||
Pressure (Mpa): 1.0 |
|||
Rate (L/S): 100 |
|||
Fire monitor |
Model:AKRON CB10/80WB |
||
Flow:80L/S |
|||
Water jet distance:≥85m |
|||
Foam jet distance: ≥60m |
|||
Electronic alarm |
LY CJB-100-C24 |
||
Alarm lamp |
LY TBD-XF-168LED |
||

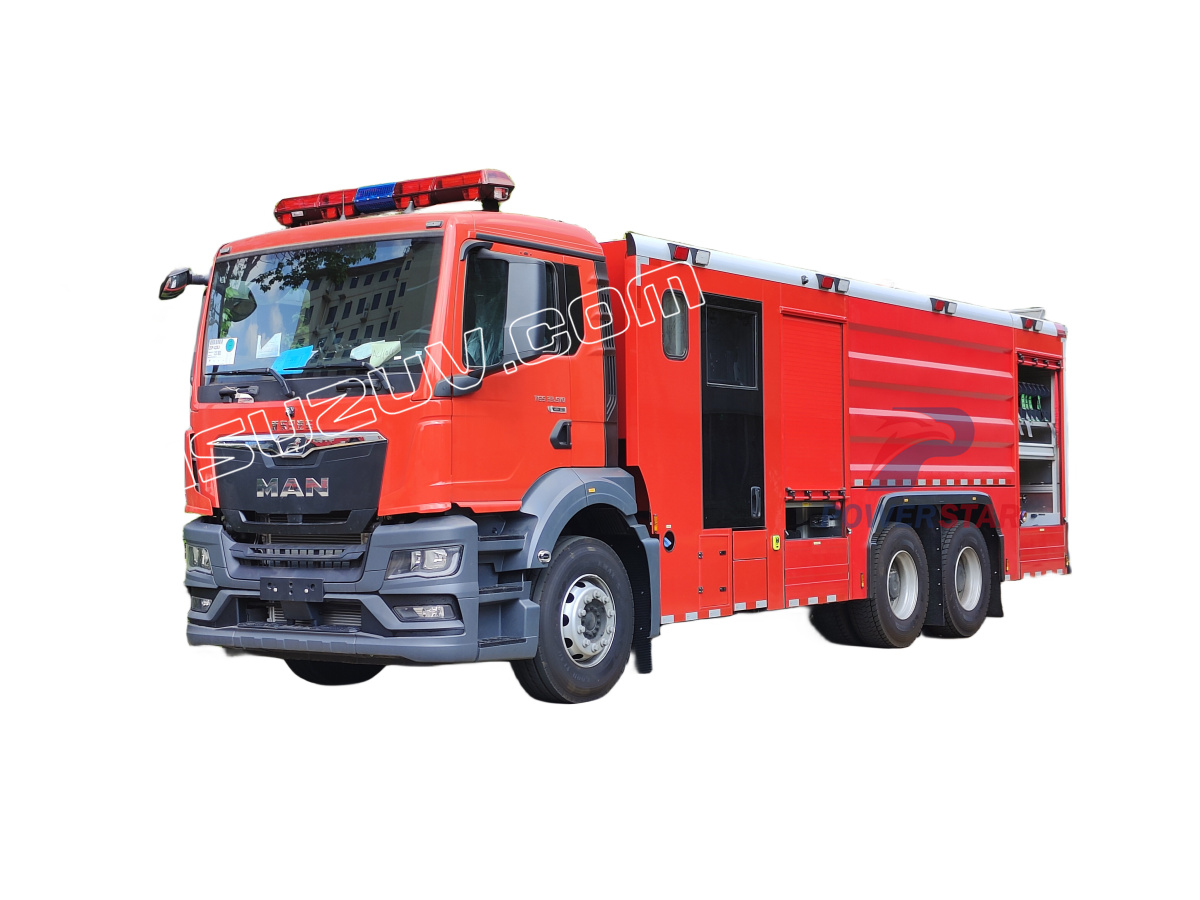

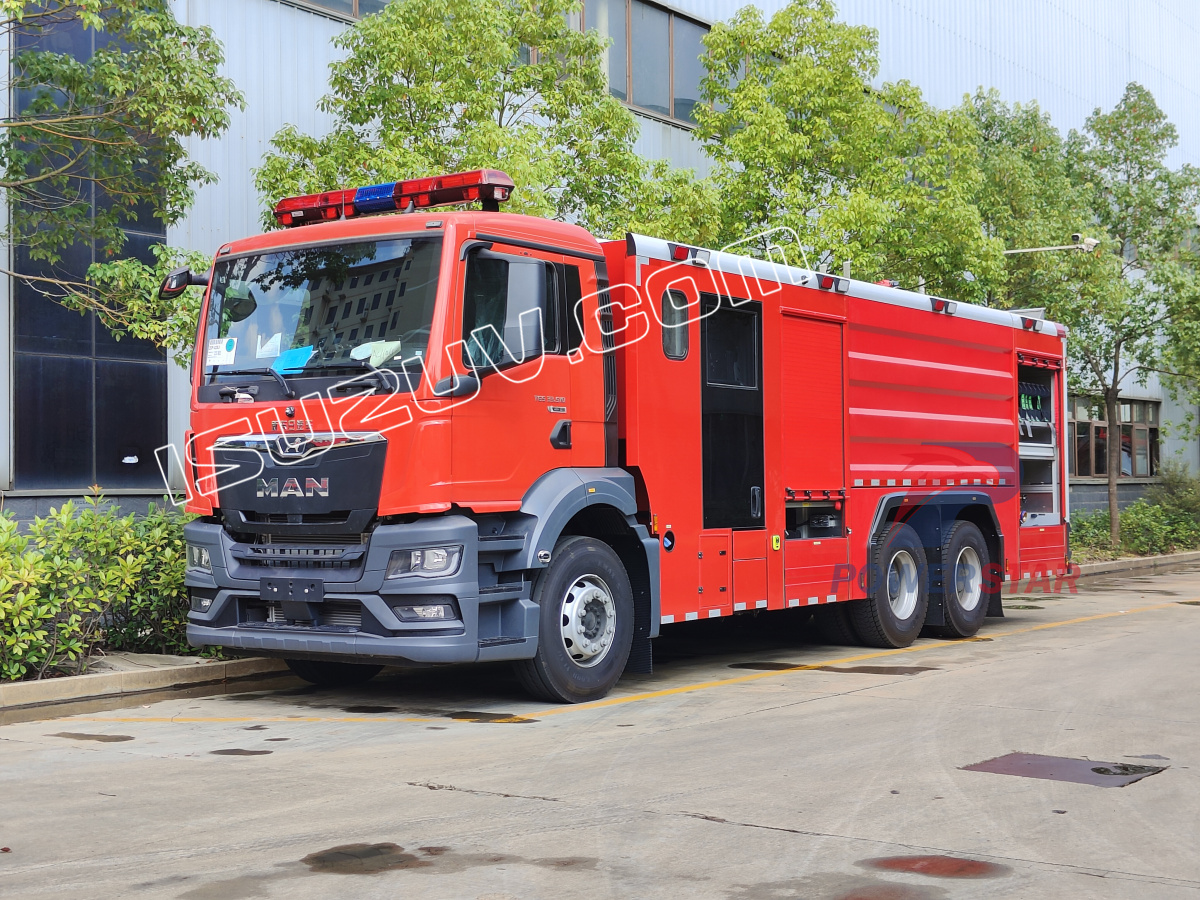

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor front view

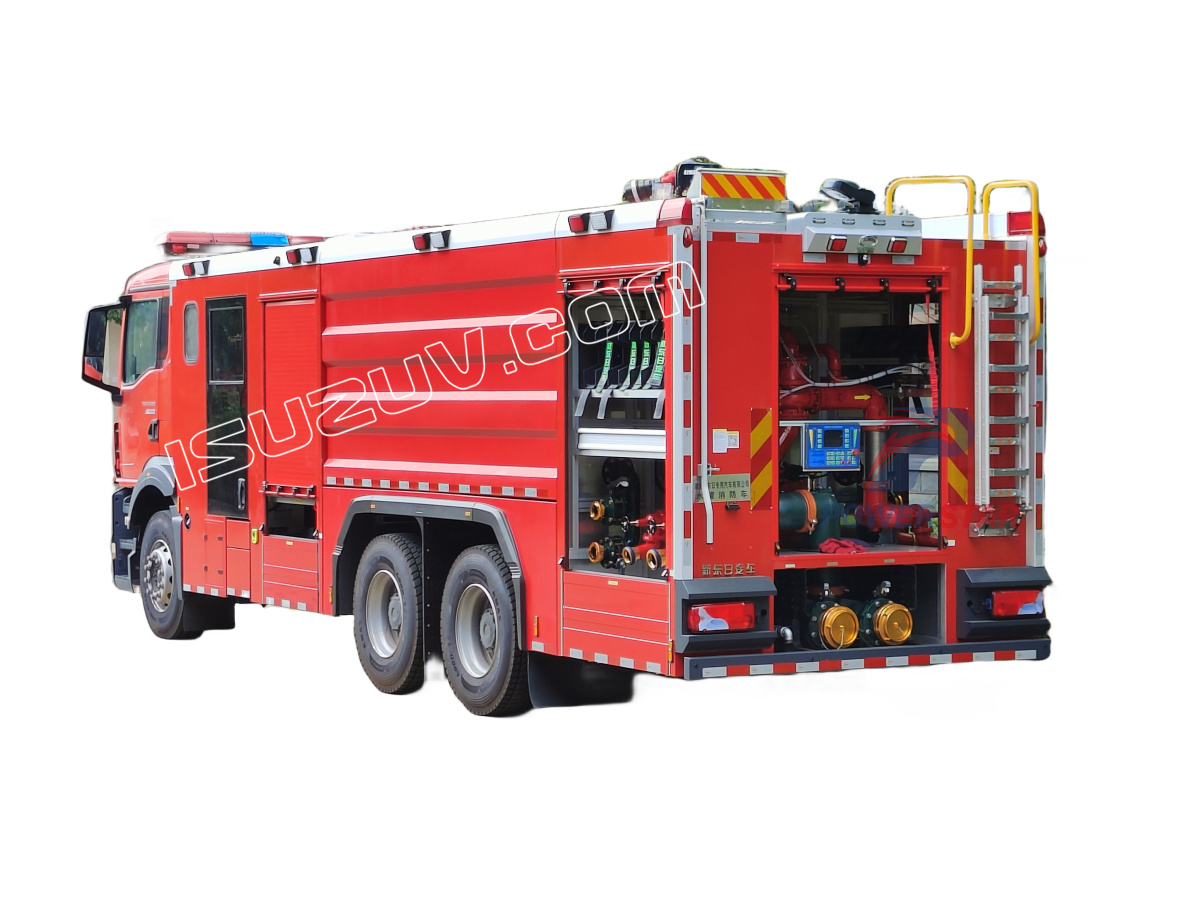

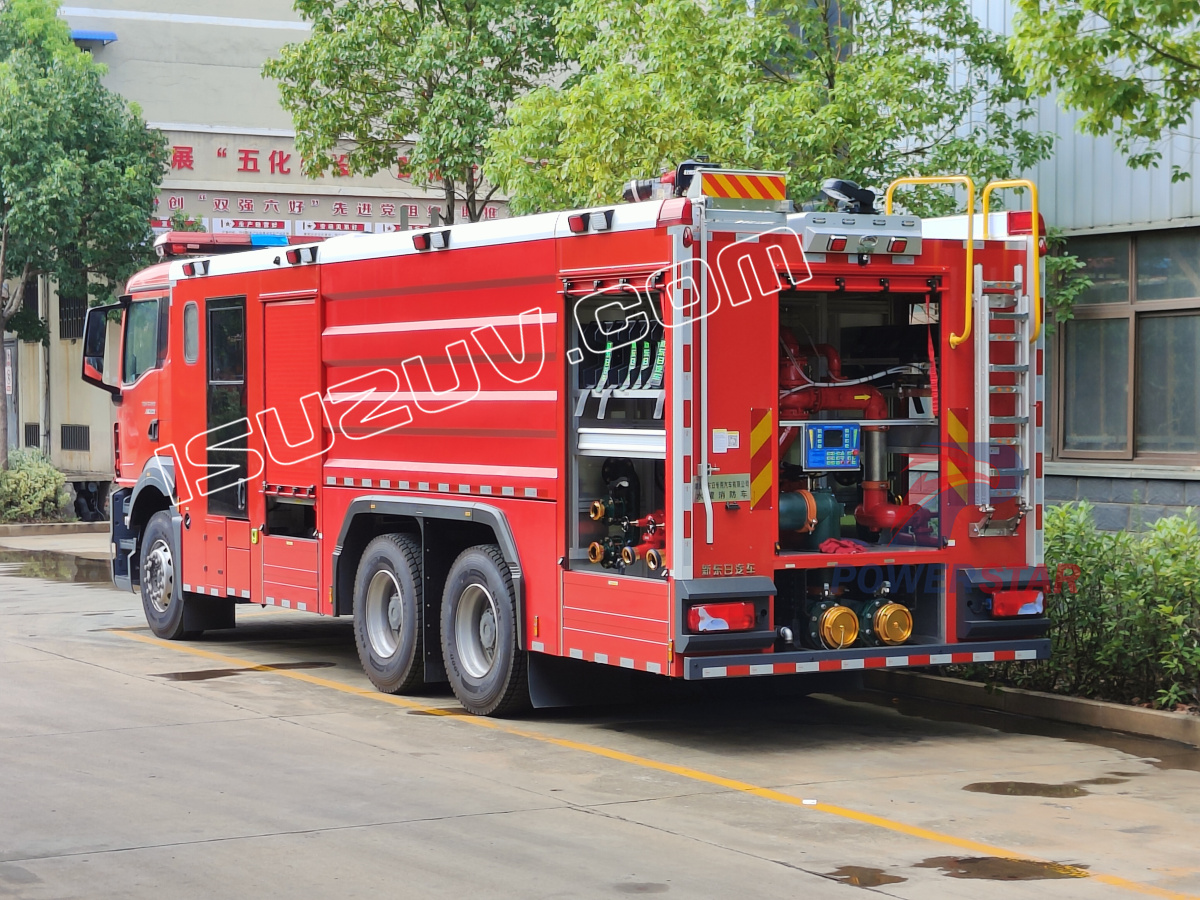

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor rear view

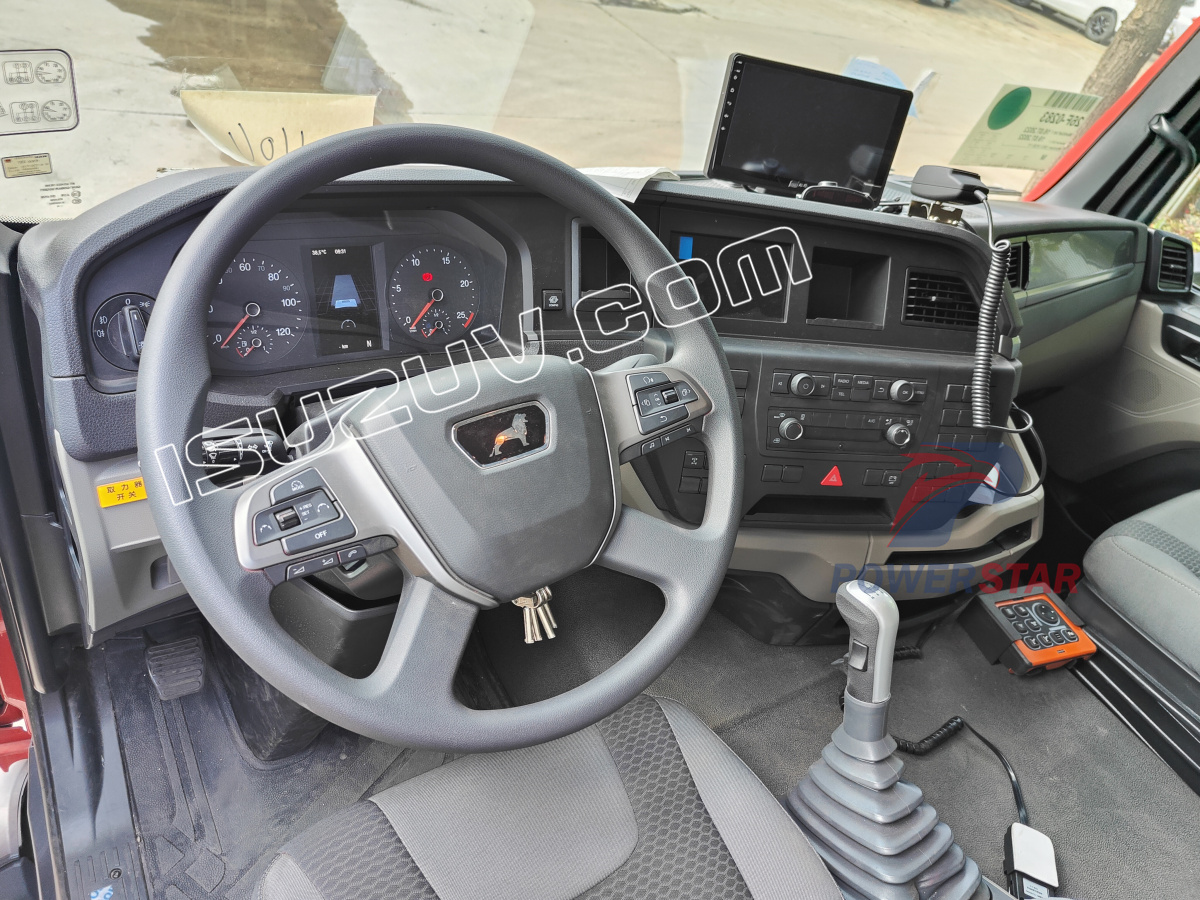

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor cab inside view

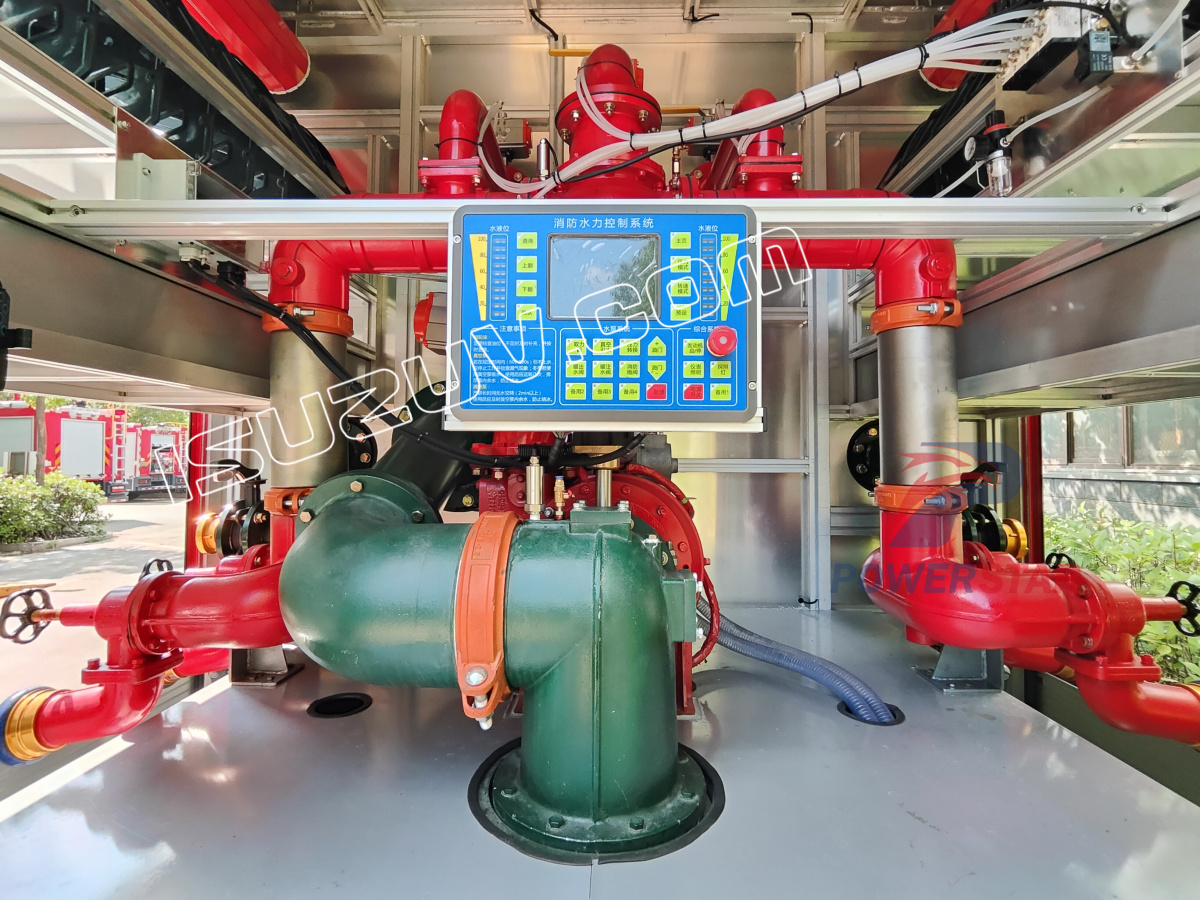

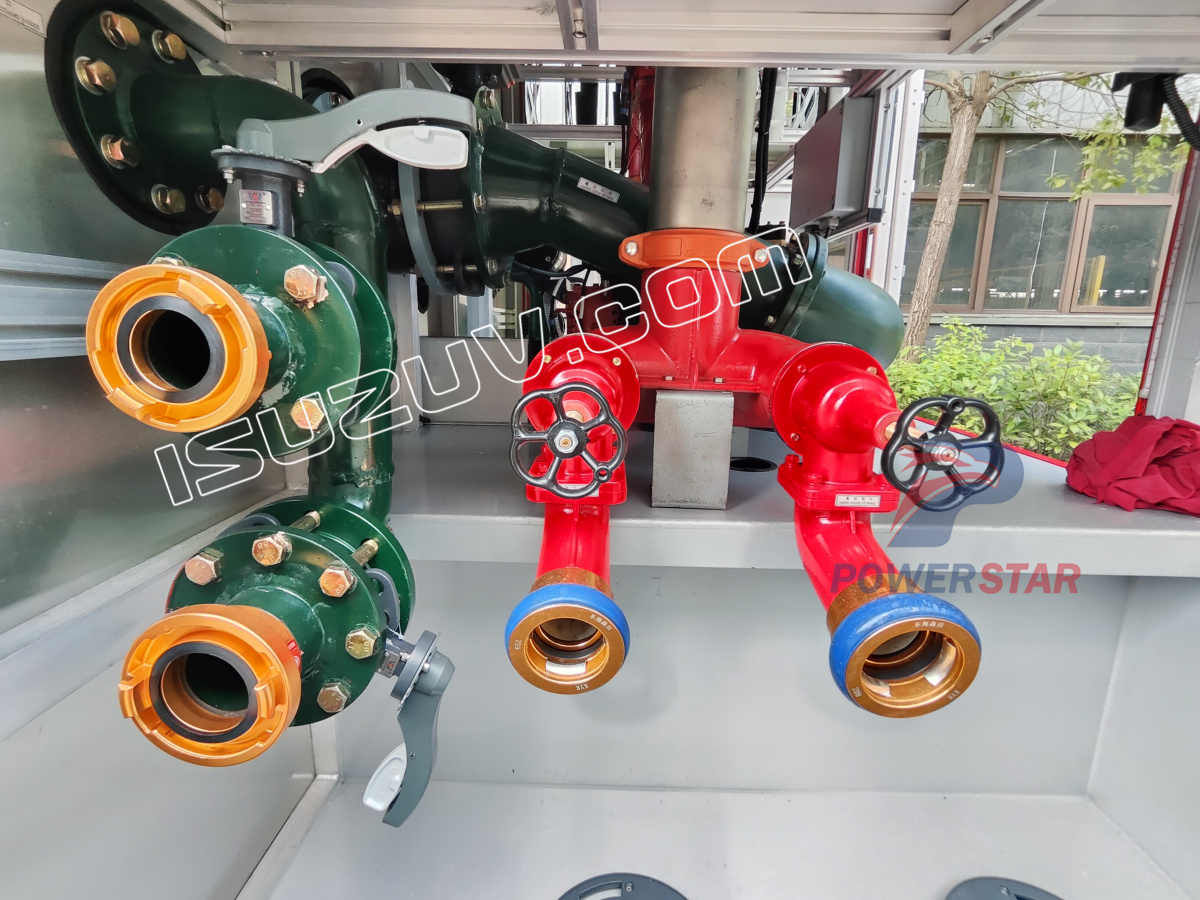

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor fire pump room view

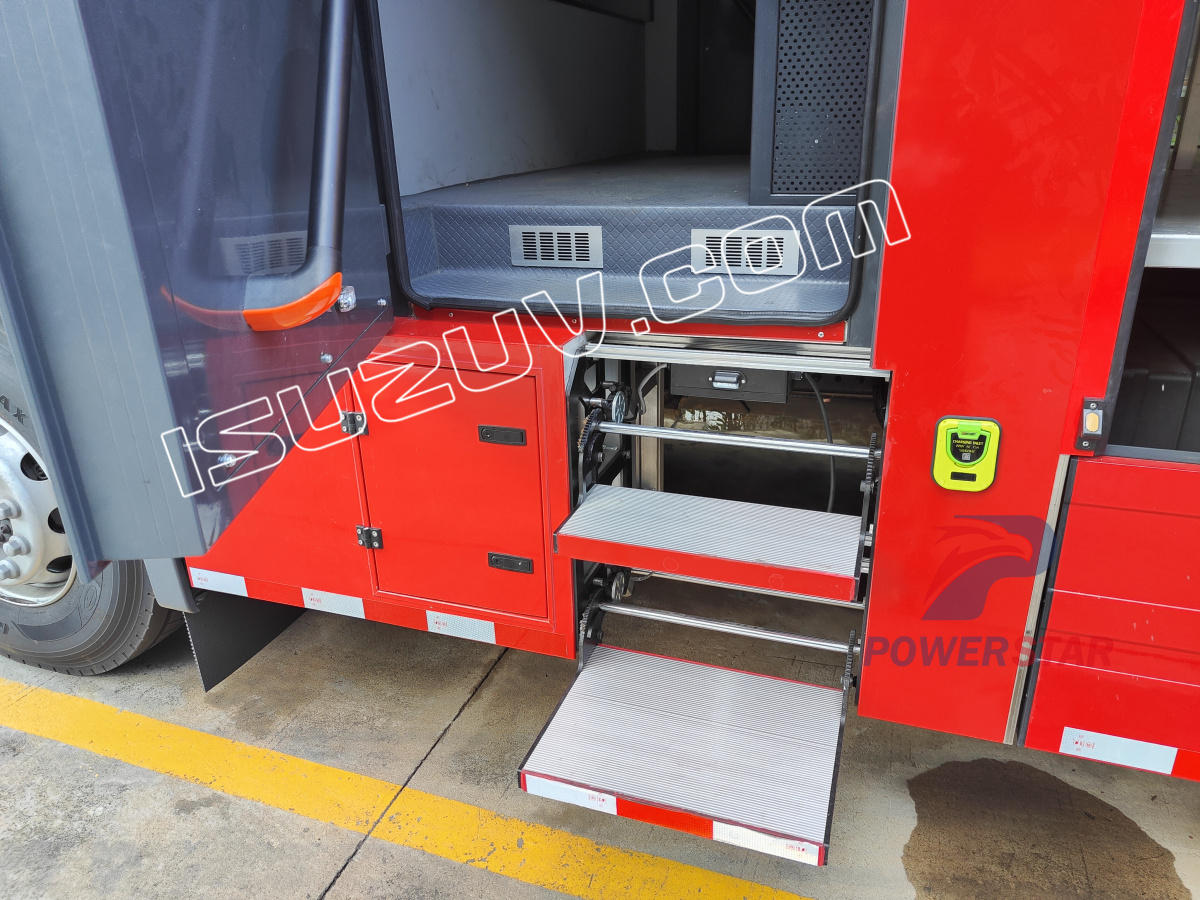

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor independent crew cabin view

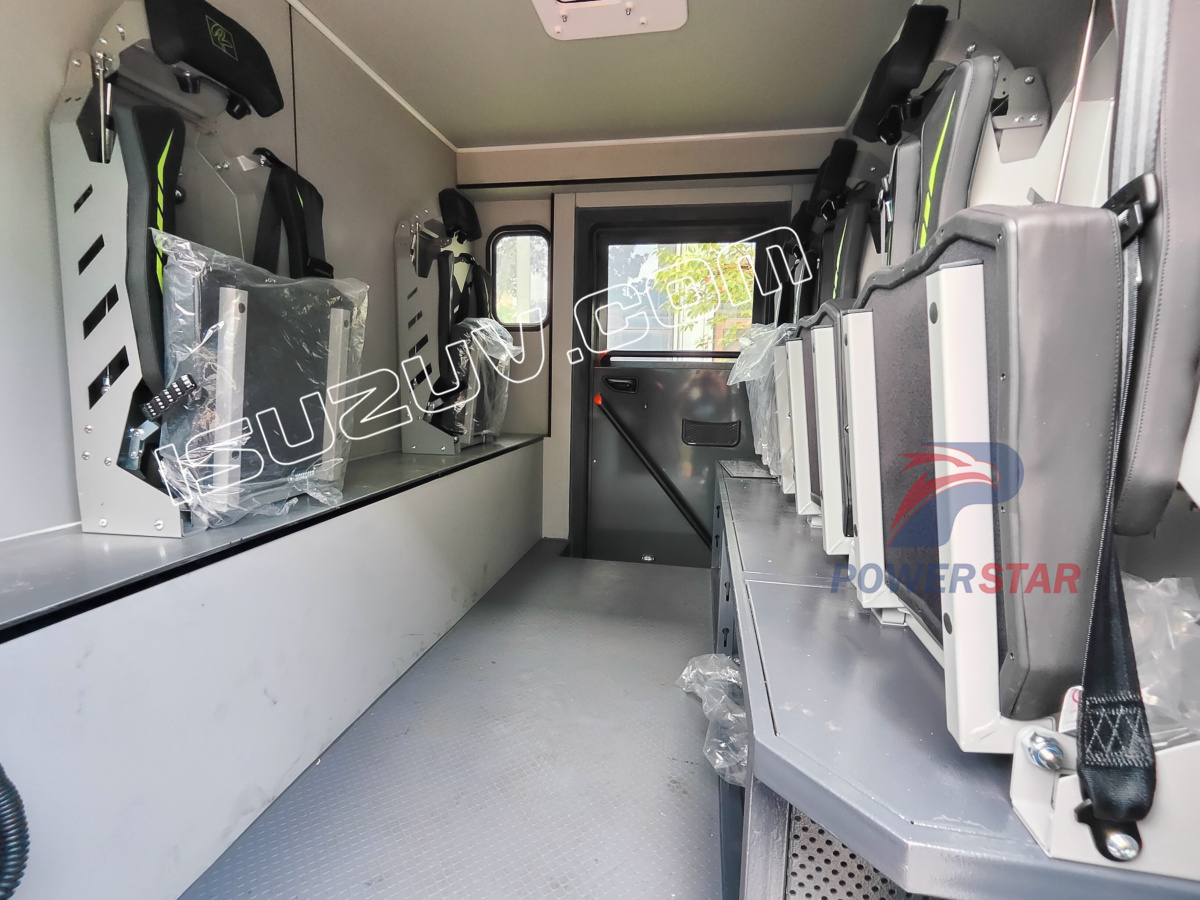

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor independent crew cabin inside view

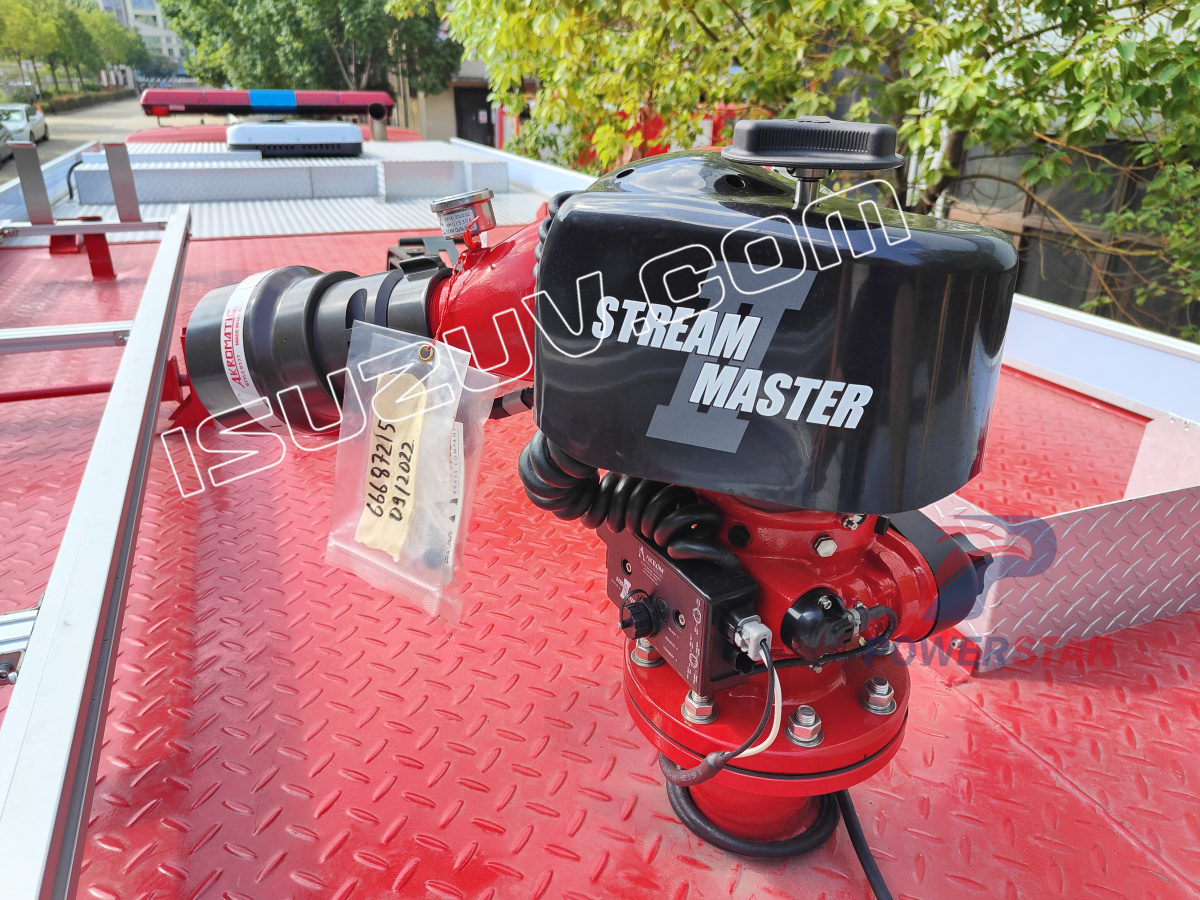

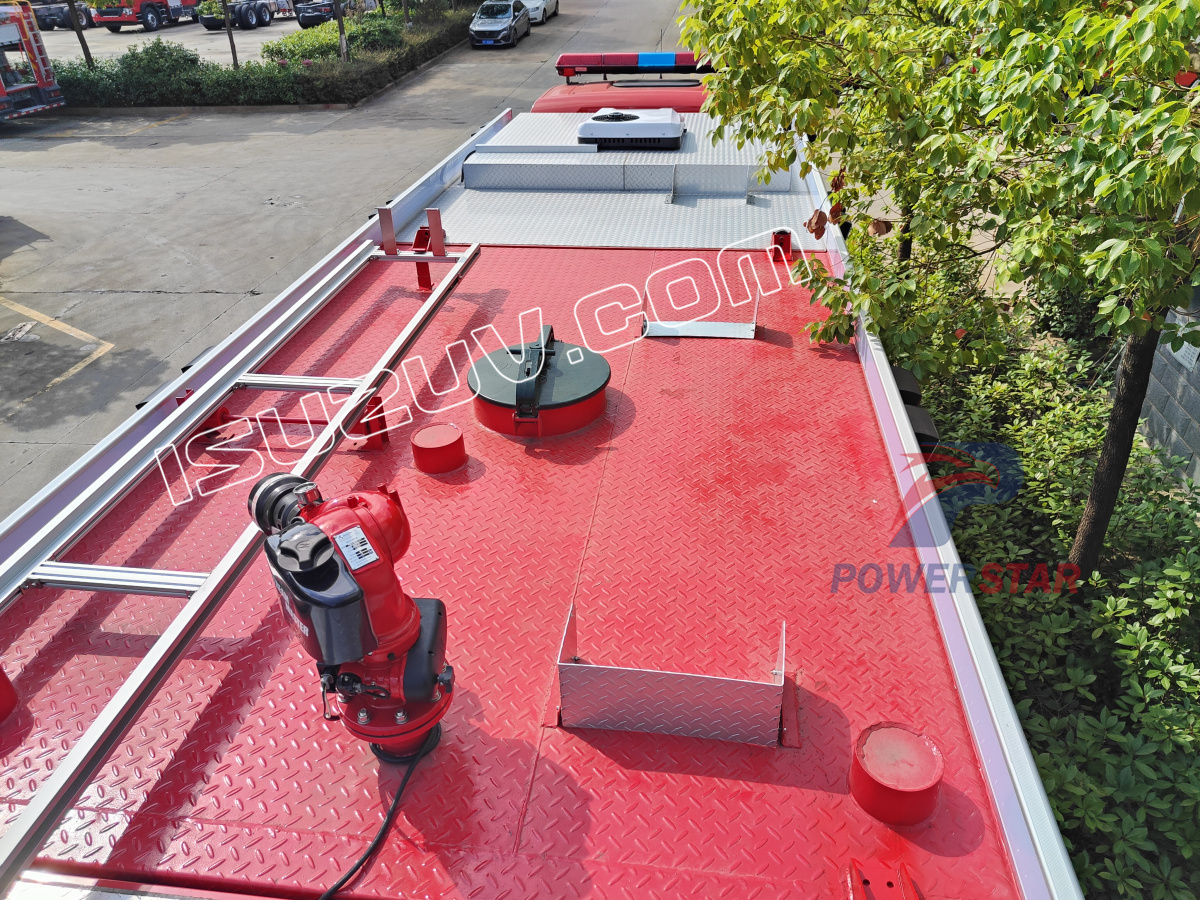

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor roof view

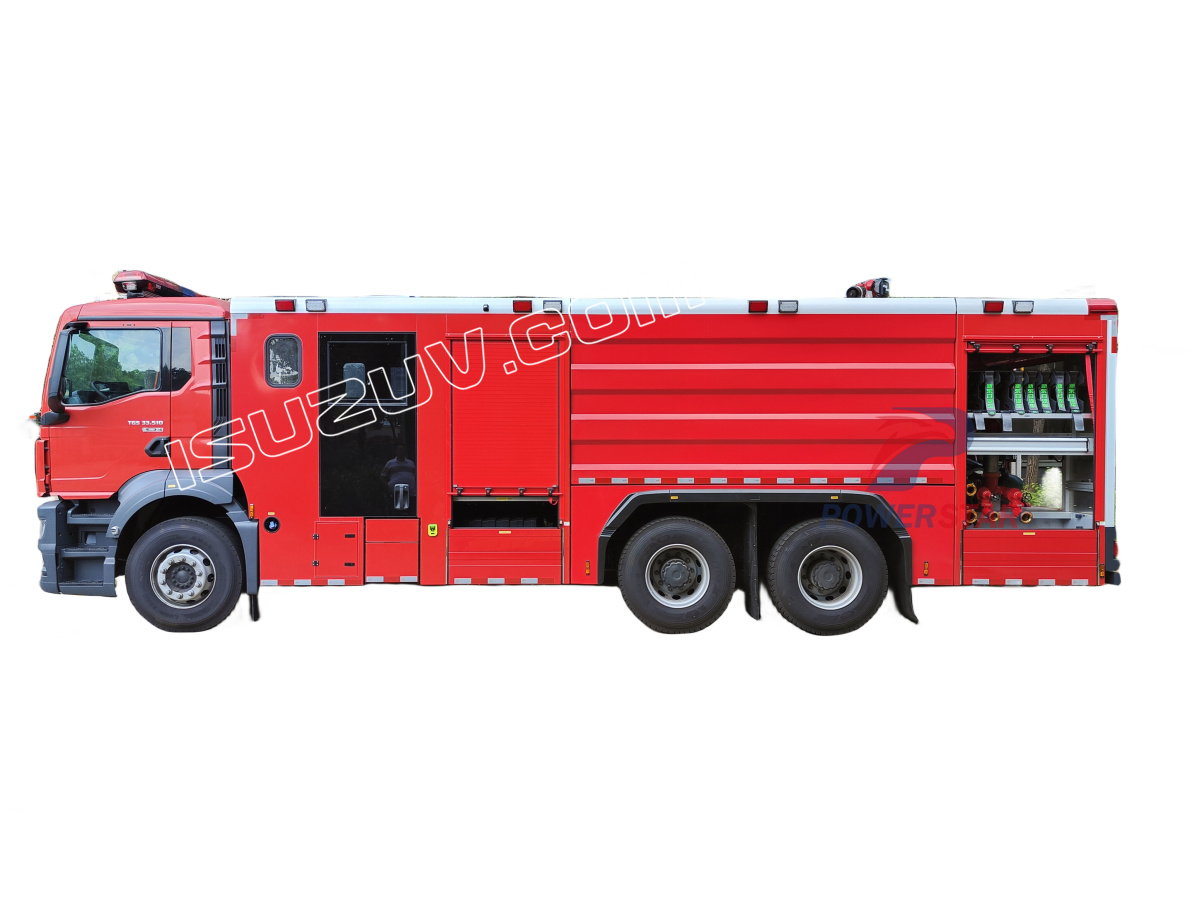

Germany 6x4 MAN TG5 Rescue Fire Engine Truck 12000L water with hale CB10/100-RSD fire pump Akron PSKD 10/80WB monitor view
