4WD ISUZU ELF NPR 700P 4x4 6000 liters Fuel Oil Tanker Truck
Light Duty ISUZU ELF NPR 700P 4X4 All wheel drive 5000L Fuel Tank Truck 5m3 Oil Refueling Truck, Isuzu all drive Fuel tank truck also called oil tank truck could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere.The tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.The material of the tanker could be carbon steel, stainless steel, aluminum alloy.
Order(MOQ):
1Work capacity:
6000LTruck model:
PT5110GYYEngine power:
190 HPEngine type:
Isuzu 4HK1Axle drive:
4x4Gear box:
Isuzu MLDRemarks:
Optional Right hand driveCustomer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks
ISUZU 4WD 4X4 Diesel oil fuel dispenser truck (also called ISUZU NPR 4X4 Fuel tank oil transport truck, ISUZU All wheel drive oil tank truck, ISUZU 4WD Refueling tanker vehicle ) is designed for the transport and storge of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc.
1. Euro standard tank mouth: also known as manhole cover, installed on the top of the tank. Features built-in breathing and emergency exhaust. The folding guardrail can be raised or lowered for easy use.
2. Bottom loading system: including unloading valve, oil and gas recovery, subsea valve and other devices. Subsea valve automatically disconnects the line in an emergency to prevent leaks.
3. Safety device: Two fire extinguishers are equipped with the vehicle. The tail is equipped with an anti-static device to prevent accidents caused by static electricity during loading and unloading or transportation.
4. Fuel Dispenser: optional side mounted tanker or built-in tanker.
5. Speed limiter: special speed limiter, with intelligent chip control to limit the speed, high precision, stable and reliable performance. Does not affect the start of the big throttle, does not affect the torque. Just limit the top speed, lower the throttle but don't turn off the engine.
6. ABS: Make full use of the brakes. Shortening the braking time and distance can effectively prevent the vehicle from slipping and drifting during emergency braking. It can avoid the violent friction between the tire and the ground and reduce the wear of the tire.
7.Tank Body: high quality carbon steel or aluminum alloy (can be customized according to your needs). The tank body of the small tanker is 5mm thick. Above 15 square meters, the thickness is 6mm. Tank body can be set up with compartments according to your needs.
 |
100% custom-made
|
|
|
3 cbm to 35 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU ELF 4WD Fuel Tanker Trucks |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5110GYY |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
7560*2500*2760 |
|
Gross weight |
kg |
11,000 |
|
|
Kerb weight |
5,600 |
||
|
Wheelbase |
mm |
4,175 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU ELF Middle-duty |
||
|
Tire size |
235/75R17.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC51 |
|
|
Type of fuel |
Diesel |
||
|
Power |
190HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 4,5,6 |
||
|
Fuel Tanker performance |
Tanker Body |
6,000L |
|
|
Body Material |
Carbon Steel 5mm |
||
|
Tanker Shape |
Ellipse as standard |
||
|
Fuel Pump |
China Famous Brand 50m3/h |
||
|
Optional Italy, Euro brand |
|||
|
Compartment |
2 compartments |
||
|
Manhole cover |
Aluminium alloy European standard |
||
|
Bottom valve |
Aluminium ally, 2 pcs |
||
|
Discharge valve |
4 inch, 2 pcs |
||
|
Hose & Hose-carrier |
Factory standard |
||
|
Control Panel |
English |
||
|
Walkway and Hand rail |
Yes |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Pumping system, Anti-static system, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Stainless steel tank, Aluminum alloy tank 2, Fuel dispenser with 15M Gun 3, All API standard 4, Bottom Loading and Vapor Recovery |
||

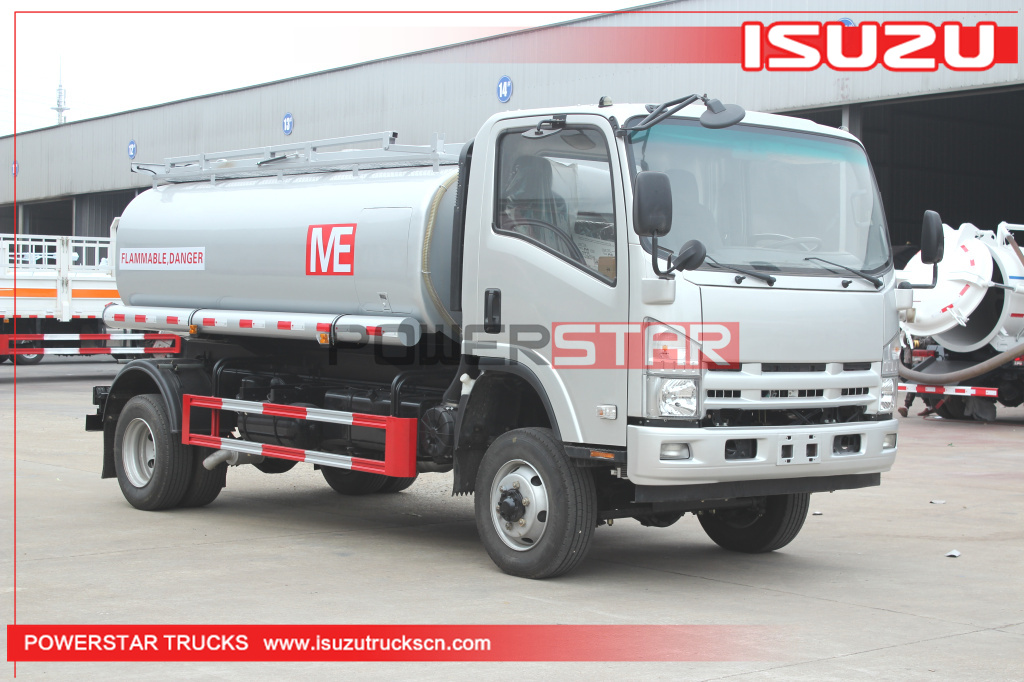

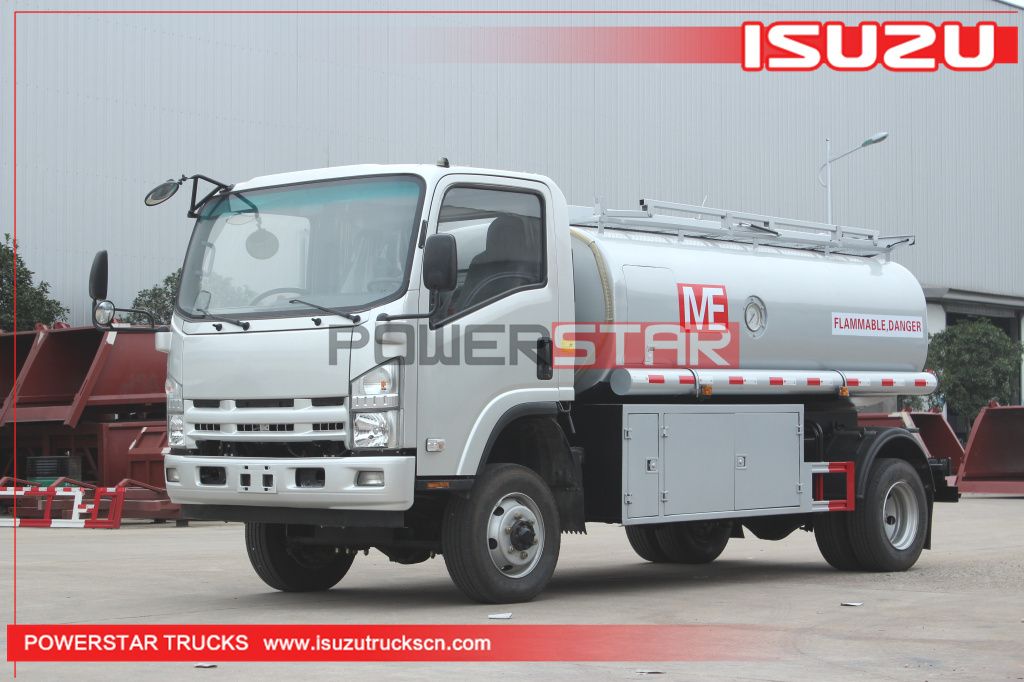

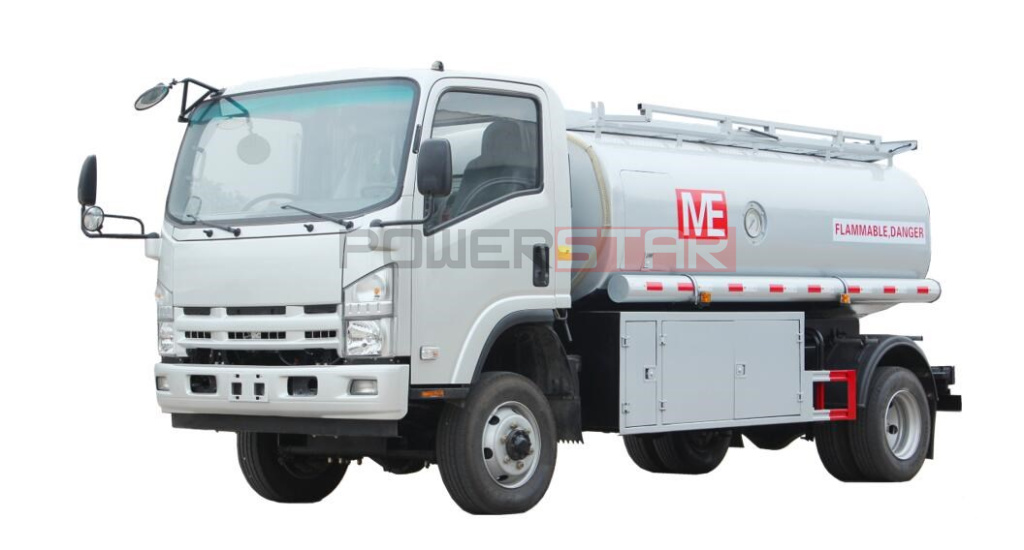

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks front view

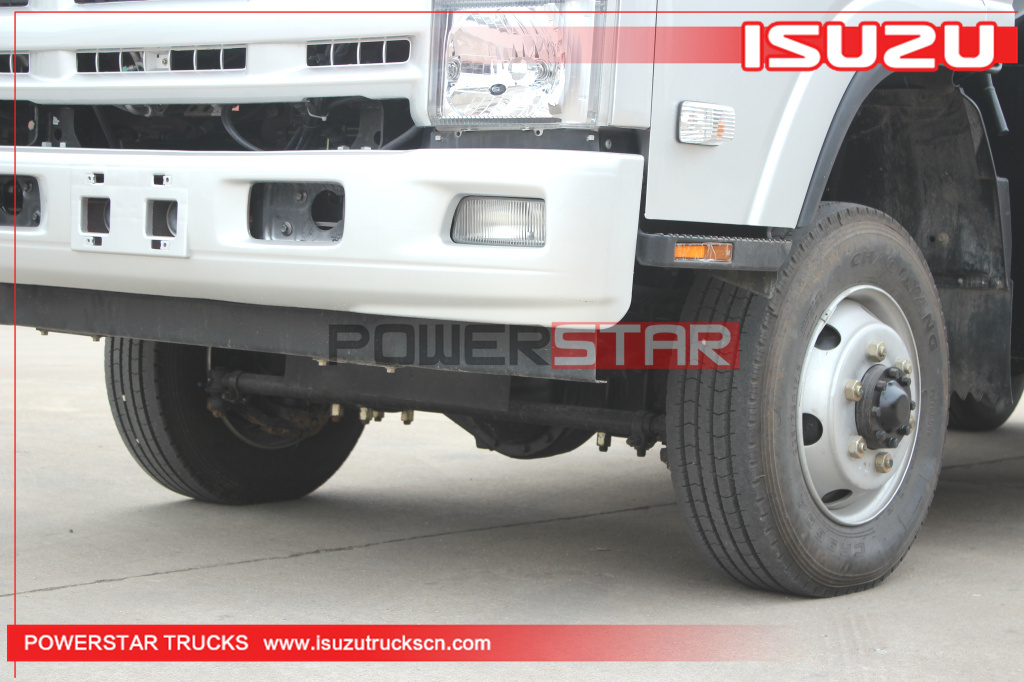

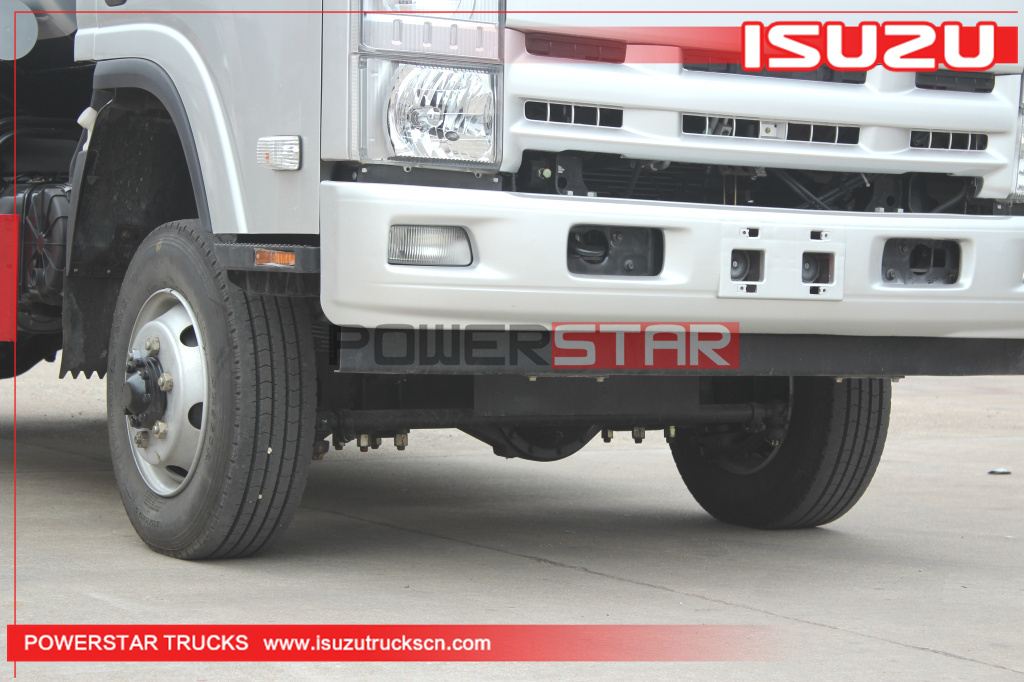

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks front drive axle view

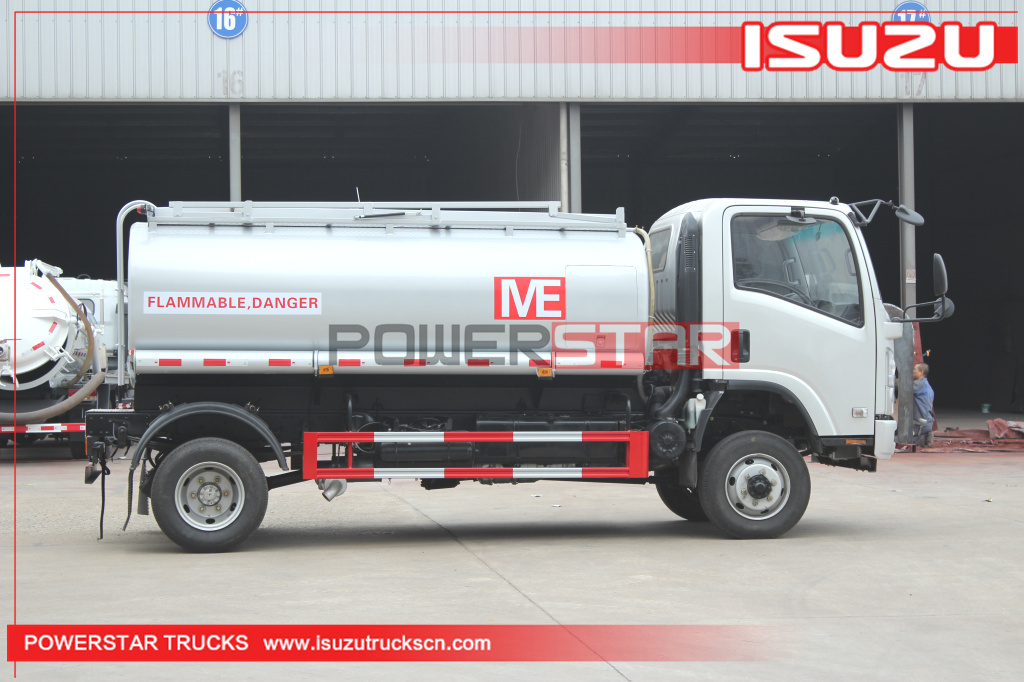

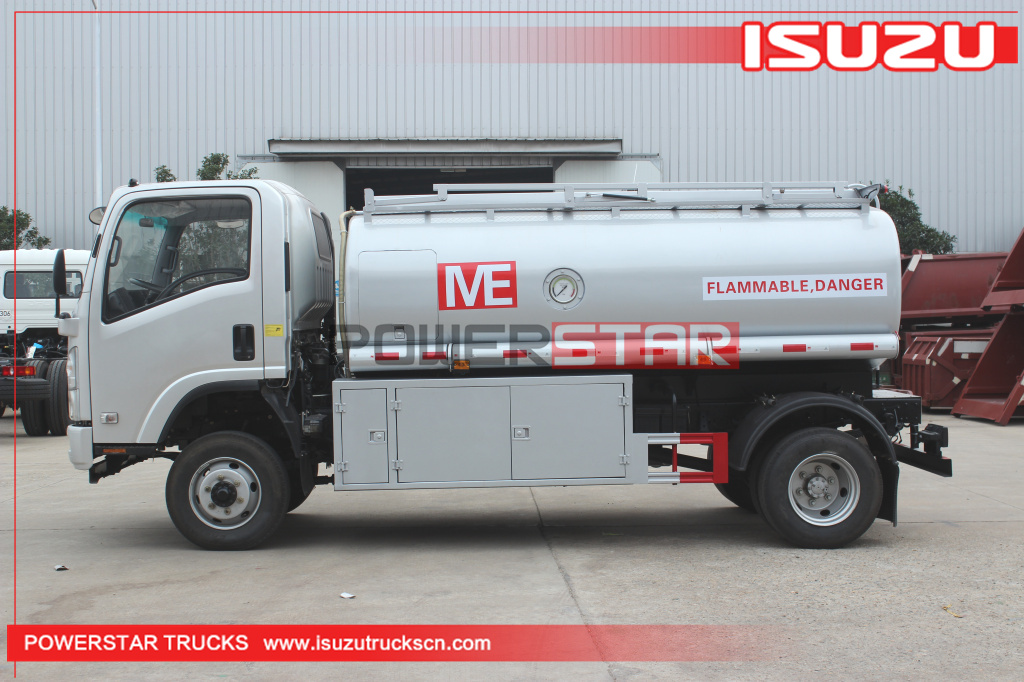

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks side view

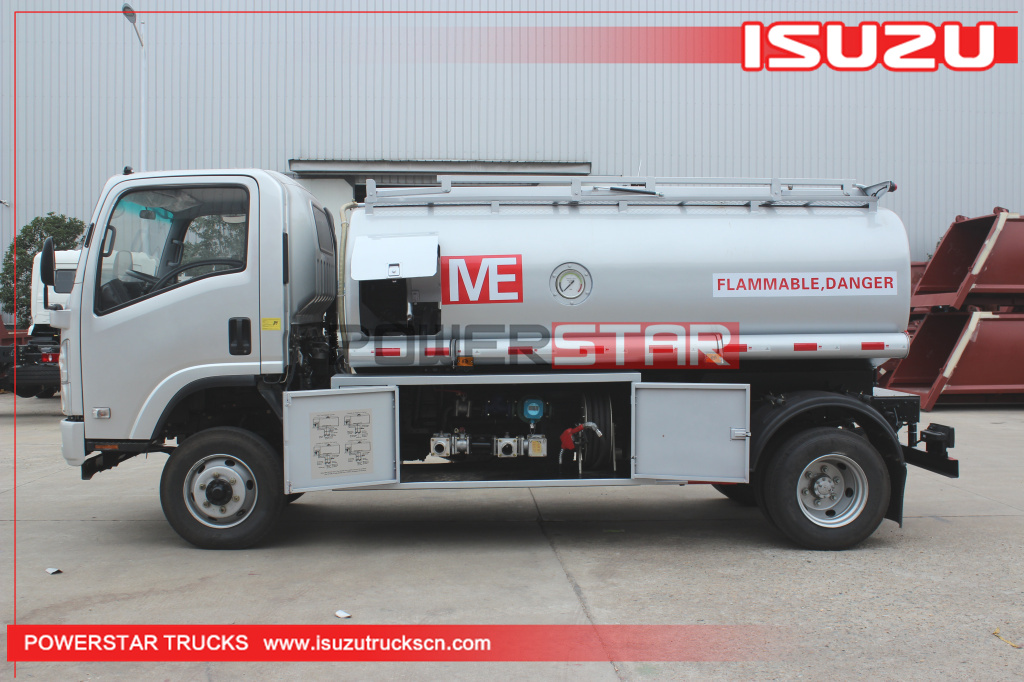

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks sode view

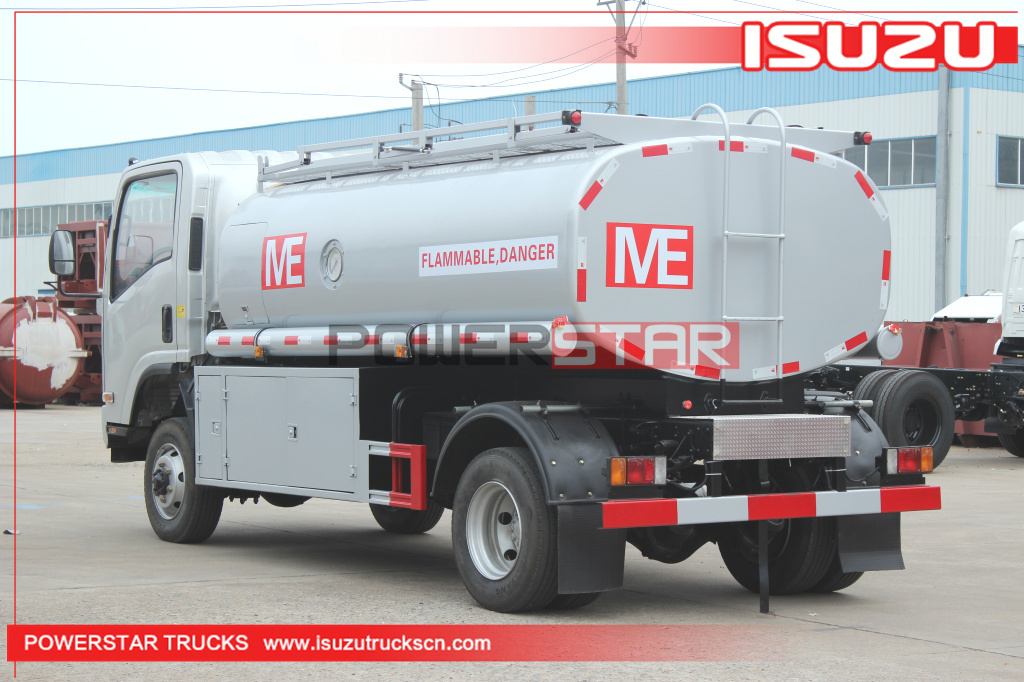

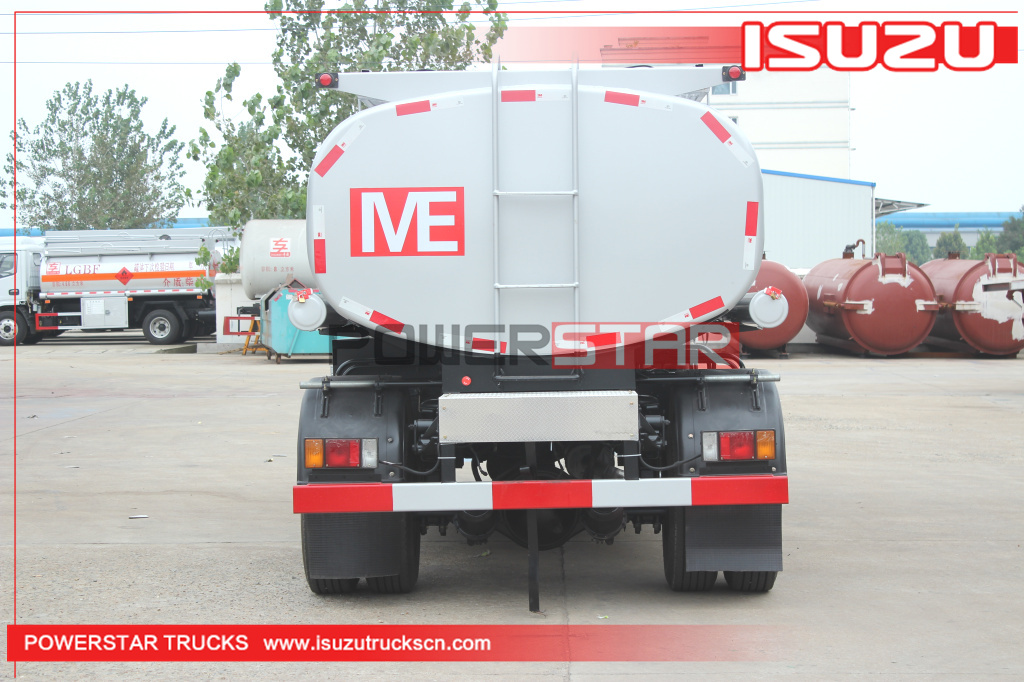

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks rear view

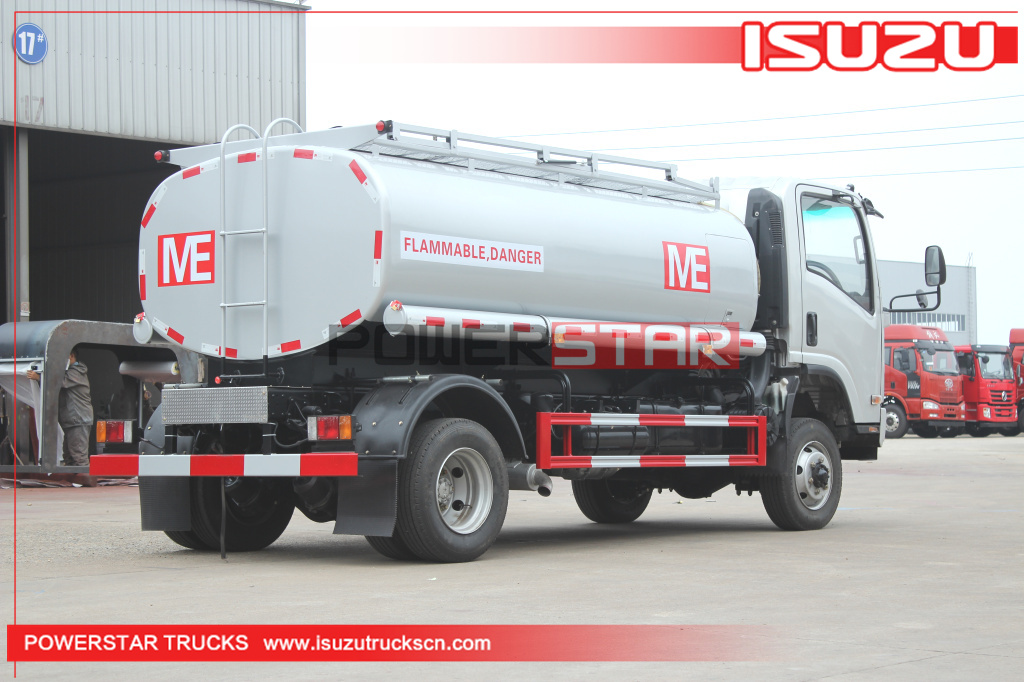

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks rear view

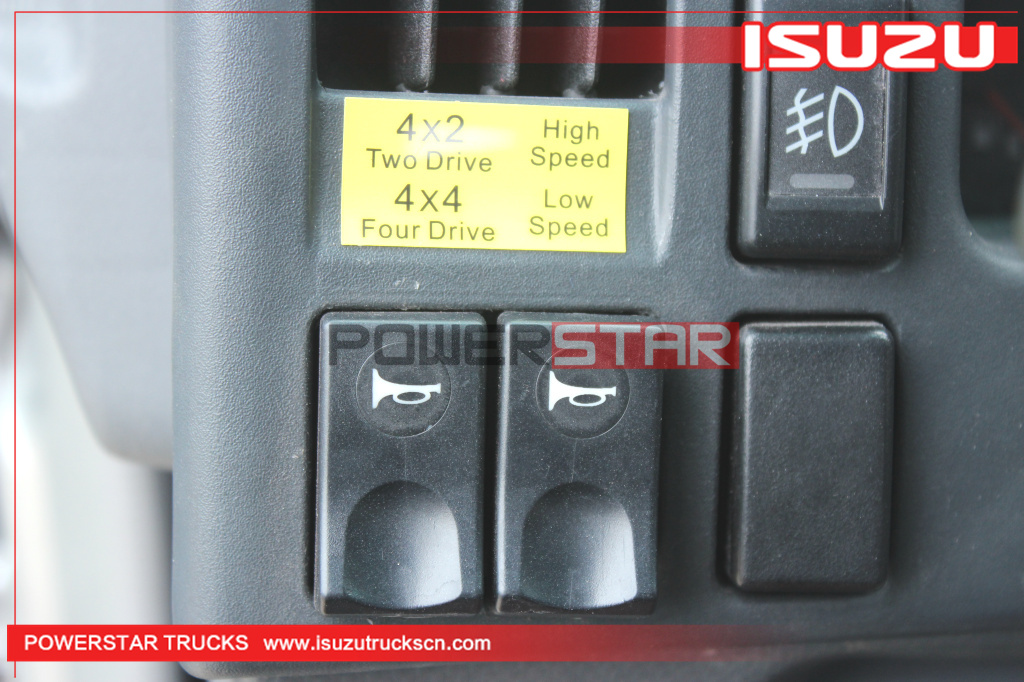

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks drive model view

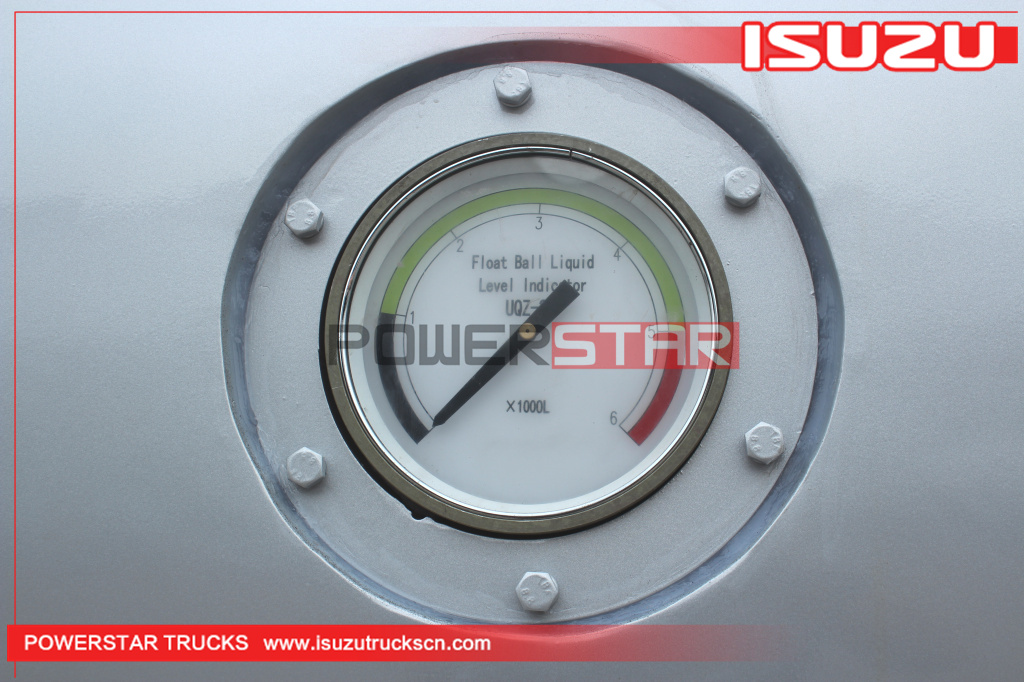

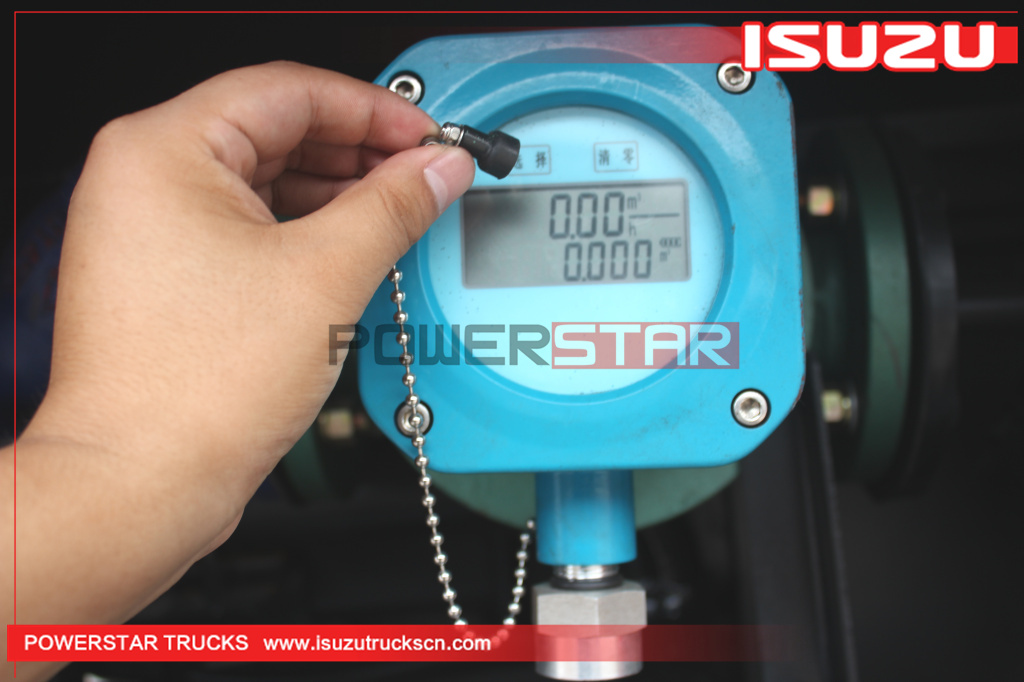

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks level indicator view
Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks control box view

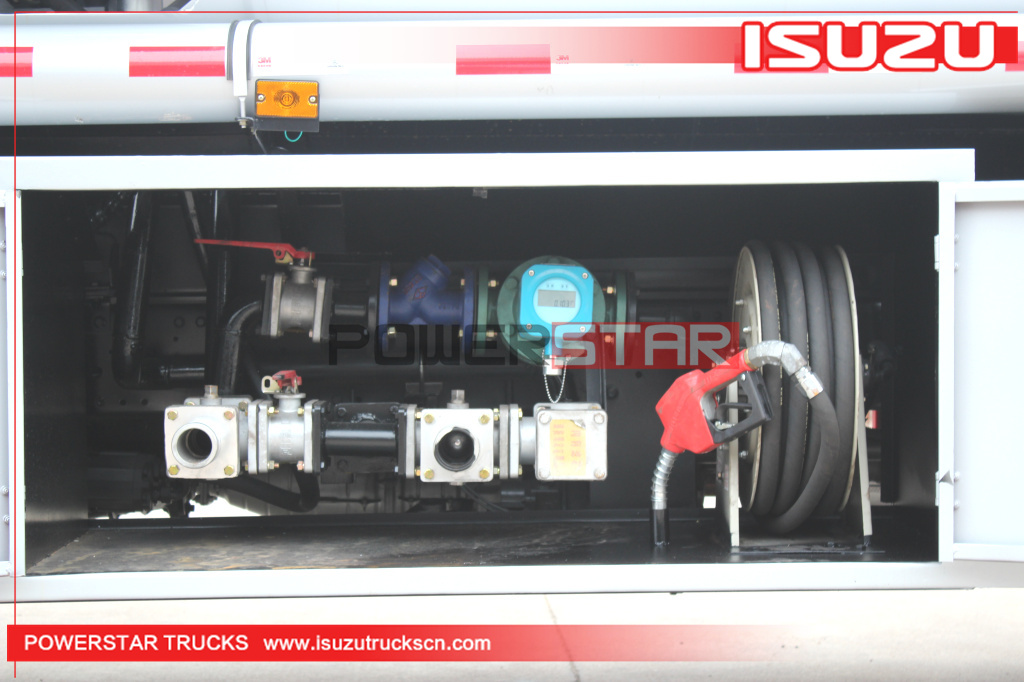

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks pump box view

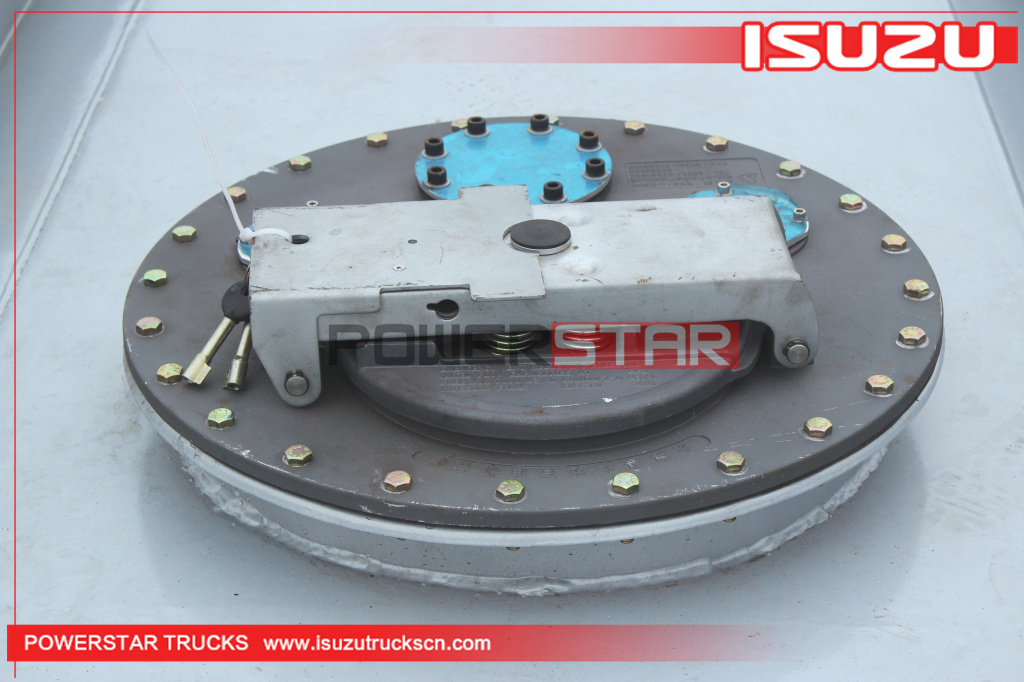

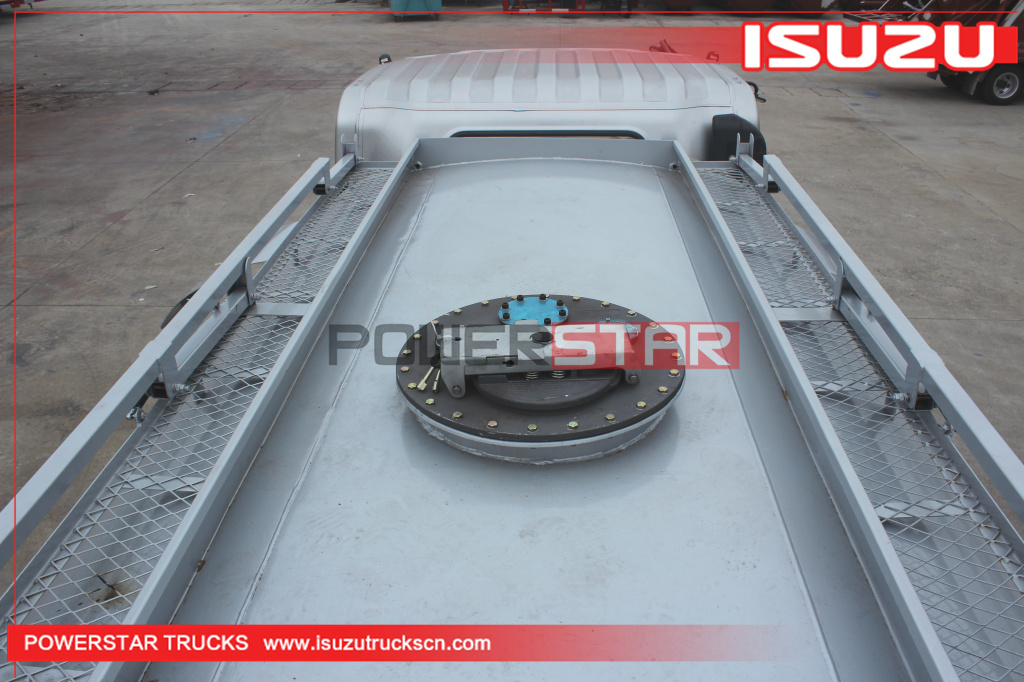

Customer made 4x4 Isuzu ELF NPR 700P 4WD 6,000L Fuel Oil Refueling Tanker Trucks manhole view
