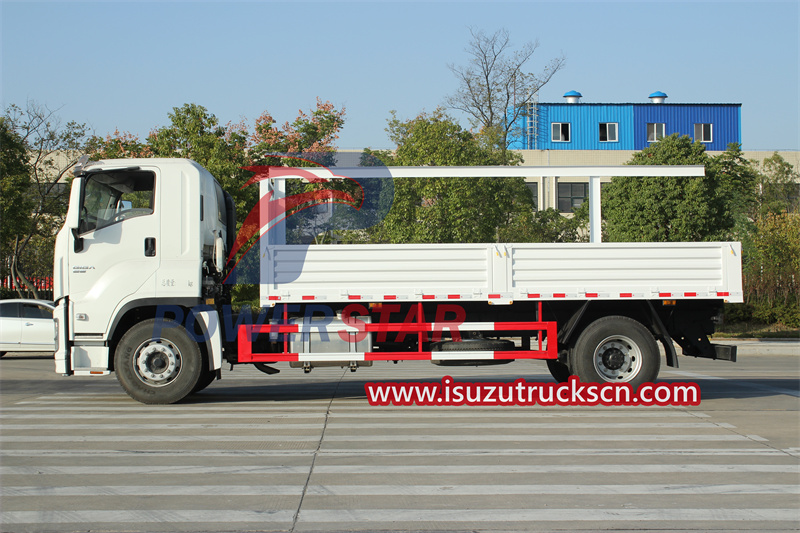

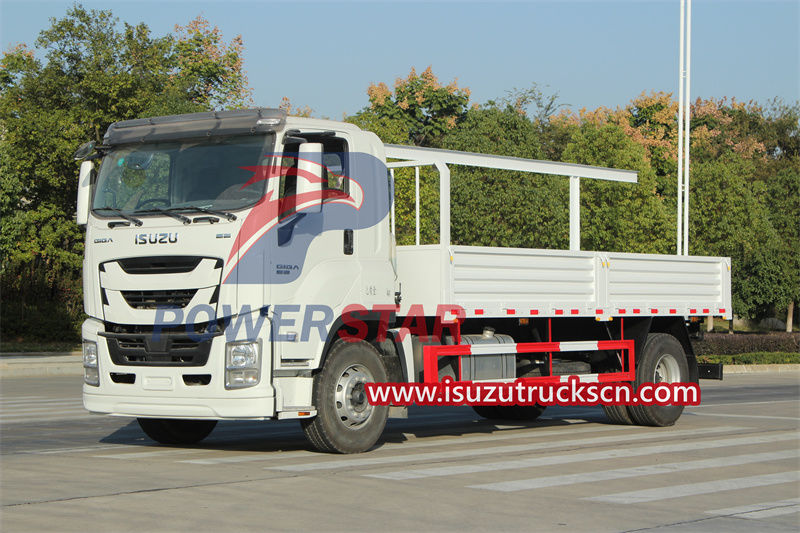

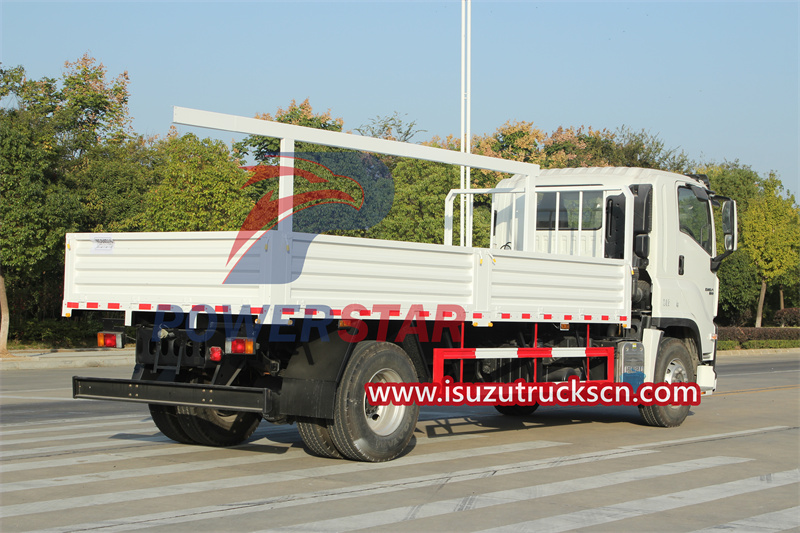

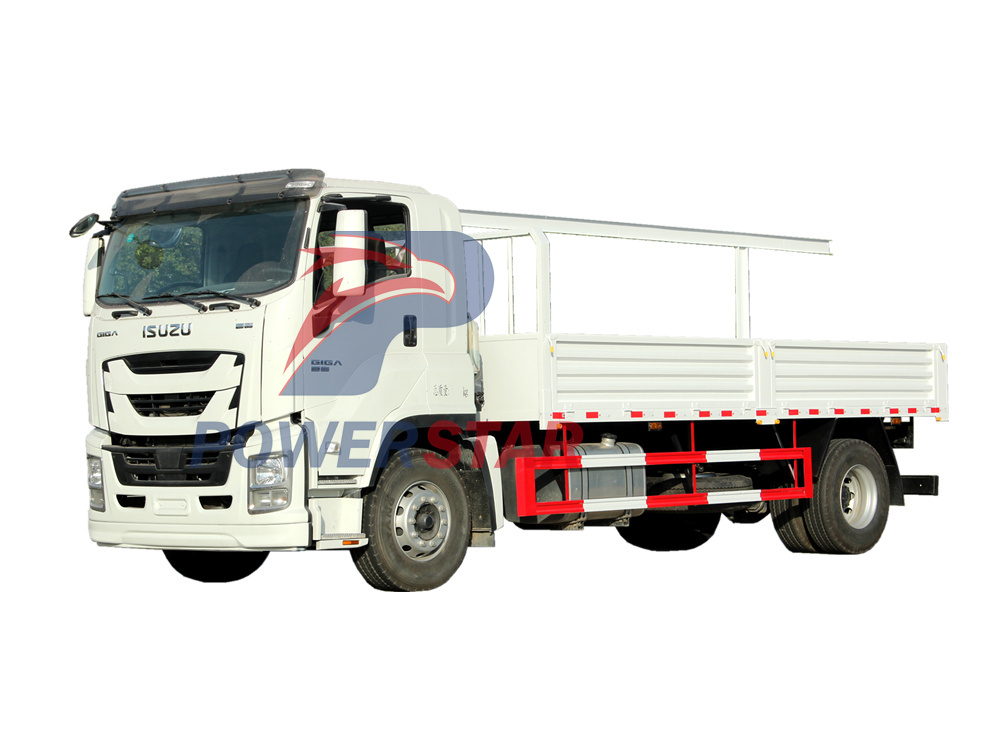

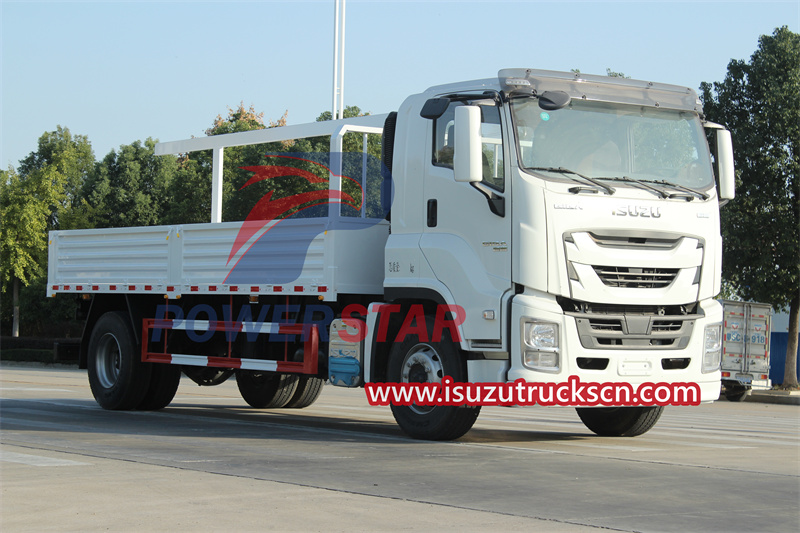

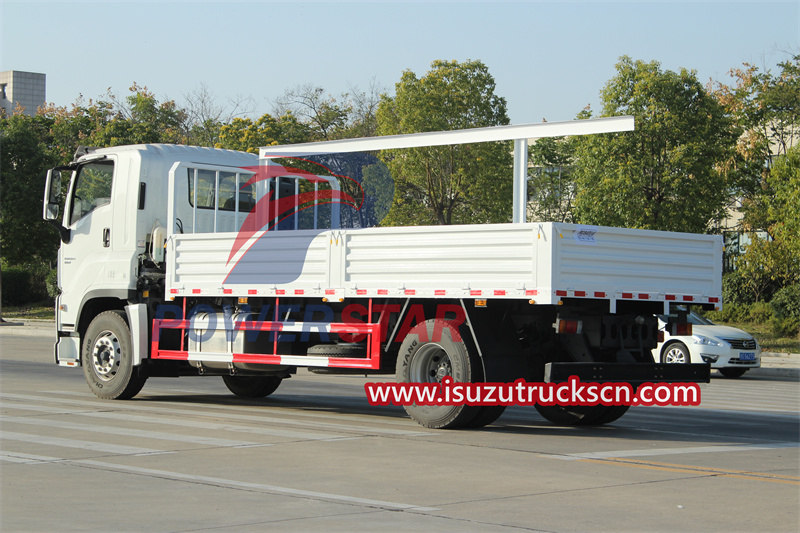

The Isuzu 24ft Dropside Work Trucks are high-performance trucks designed specifically for hauling goods. It uses strong and durable steel and can carry 15 tons of cargo. The Isuzu 24ft Dropside Work Trucks are equipped with a 6UZ1-TCG61 engine with 380 horsepower, bringing powerful power output and environmental performance. Isuzu 24ft Dropside Work Trucks are also equipped with dual-circuit compressed air braking, emergency braking, and hydraulic steering, providing excellent driving and handling performance. Isuzu 24ft Dropside Work Trucks are a reliable, durable, and efficient option for a variety of trucking needs.
Work capacity:
15tonsTruck model:
PST6030CXZEngine power:
380hpEngine type:
6UZ1-TCG61Axle drive:
4x2Gear box:
FAST 12-speed, manualRemarks:
Dropside BodyFirst , the performance of the Isuzu 24ft Dropside Work Trucks is impeccable. It is equipped with a powerful and reliable engine with a horsepower of up to 380, excellent torque and excellent power output. The excellent suspension system and stable steering performance of Isuzu 24ft Dropside Work Trucks ensure a smooth driving experience in various road conditions. In addition, Isuzu 24ft Dropside Work Trucks are equipped with advanced braking systems and adjustable anti-roll systems to ensure safe and reliable driving.
Isuzu 24ft Dropside Work Trucks are extremely versatile. Whether you need to haul building materials, heavy equipment or large shipments, these Isuzu 24ft Dropside Work Trucks are up to the task. Its spacious cargo box space and strong carrying capacity allow drivers to easily carry a variety of goods to meet your diverse needs. In addition, the Isuzu 24ft Dropside Work Trucks can also be customized according to customer needs, such as adding side panels, closed cargo boxes, etc.To better meet the transportation needs of specific industries.
|
Isuzu GIGA 4x2 CARGO TRUCK SPECIFICATIONS |
||
|
Truck Model |
PST6030CXZ |
|
|
Truck Brand |
Isuzu |
|
|
Dimension (LxWxH) (unloaded)mm |
8550×2550×3250 |
|
|
Cargo body size(mm) |
6500X2400X700 |
|
|
Steel thickness of Carriage(mm) |
Floor:4mm/Side:3mm |
|
|
Approaching angle/ Departure angel (°) |
16/15 |
|
|
Overhang (front/rear) (mm) |
1500/2707 |
|
|
Wheel base (mm) |
5200 |
|
|
Max. Driving speed (km/h) |
105 |
|
|
Front axle loading capacity (kg) |
7500 |
|
|
Rear axle loading capacity(kg) |
15000 |
|
|
Curb weight (kg) |
7400 |
|
|
Gross vehicle weight |
22000 |
|
|
Cab Model |

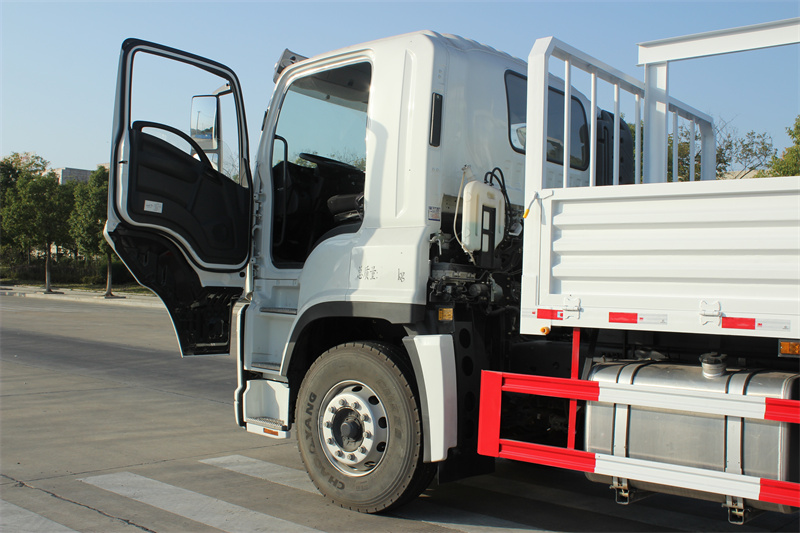

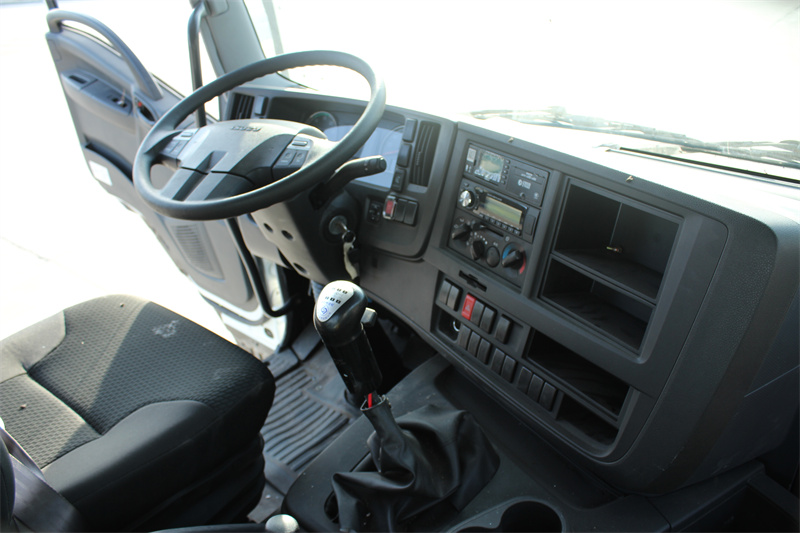

Isuzu GIGA cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|
|
Engine Model |
Model |
6UZ1-TCG61 |
|
Power |
380hp |
|
|
Euro VI emission standard |
||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|
Parking Brake (emergency brake) |
Spring energy, compressed |
|
|
Steering system |
Model |
Fast 12 speed Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) |
|
Tire |
295/80R22.5 radial tyre with 1 Spare tire. |
|
|
Electrical system |
Electrics Operating voltage |
24V,negative grounded |
|
Starter |
24V,7.5 Kw |
|
|
Alternator |
3-phase,28V,1500 W |
|
|
Batteries |
2x12 V,165 Ah |
|
|
horn,headlamps,fog lights,brake lights,indicators and reverse light. |
||
|

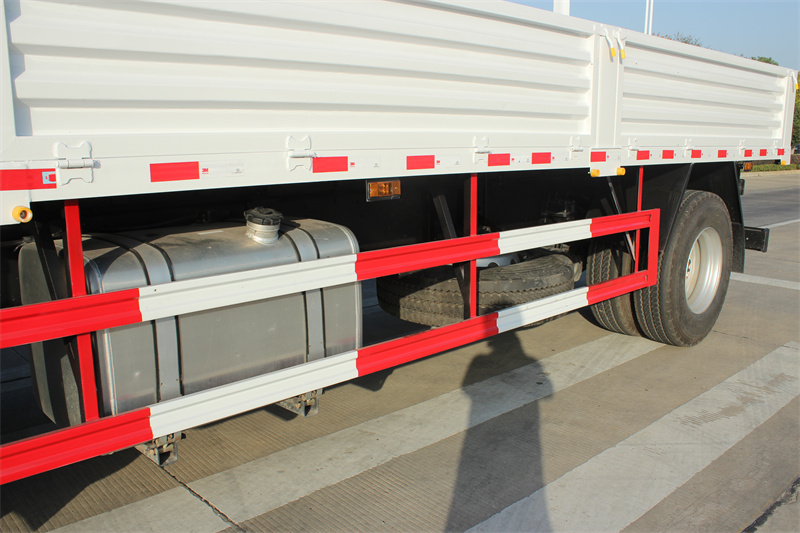

Oil Tank |
Square type-400L Aluminum alloy fuel tank |
|
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
|

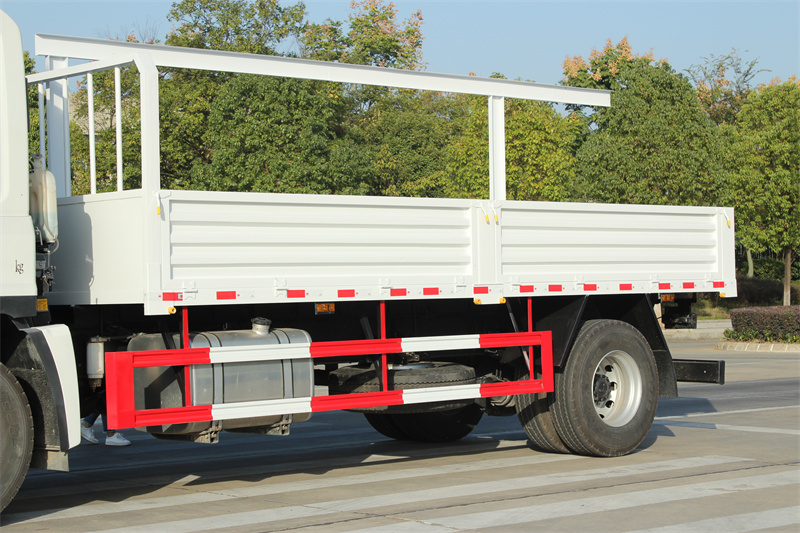

Cargo Box |
carbon steel material |
|
|
Capacity |
15tons |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
Isuzu 24ft Dropside Work Trucks offer the following five advantages:
1. Powerful carrying capacity: Isuzu 24ft Dropside Work Trucks are made of high-strength materials and have excellent carrying capacity. They can carry a large amount of goods and meet customers' transportation volume needs.
2. Efficient fuel economy: Isuzu 24ft Dropside Work Trucks use advanced fuel injection technology and power system to achieve excellent fuel economy. This energy-saving design helps reduce operating costs and improve overall efficiency.
3. Reliable performance and durability: Isuzu 24ft Dropside Work Trucks undergo strict quality control to ensure excellent performance and reliability. Its high-quality parts and components enable it to operate in a variety of harsh working conditions and have a long life.
4. Excellent handling: Isuzu 24ft Dropside Work Trucks are equipped with advanced suspension and braking systems, providing excellent handling performance. Drivers can maneuver their vehicles more easily, improve work efficiency and reduce driver fatigue.
5. Strong safety performance: Isuzu 24ft Dropside Work Trucks are equipped with a variety of safety devices, such as ABS braking systems, vehicle power control systems, etc., providing comprehensive safety protection. These safety devices not only reduce the risk of accidents, but also protect the safety of cargo and drivers.
