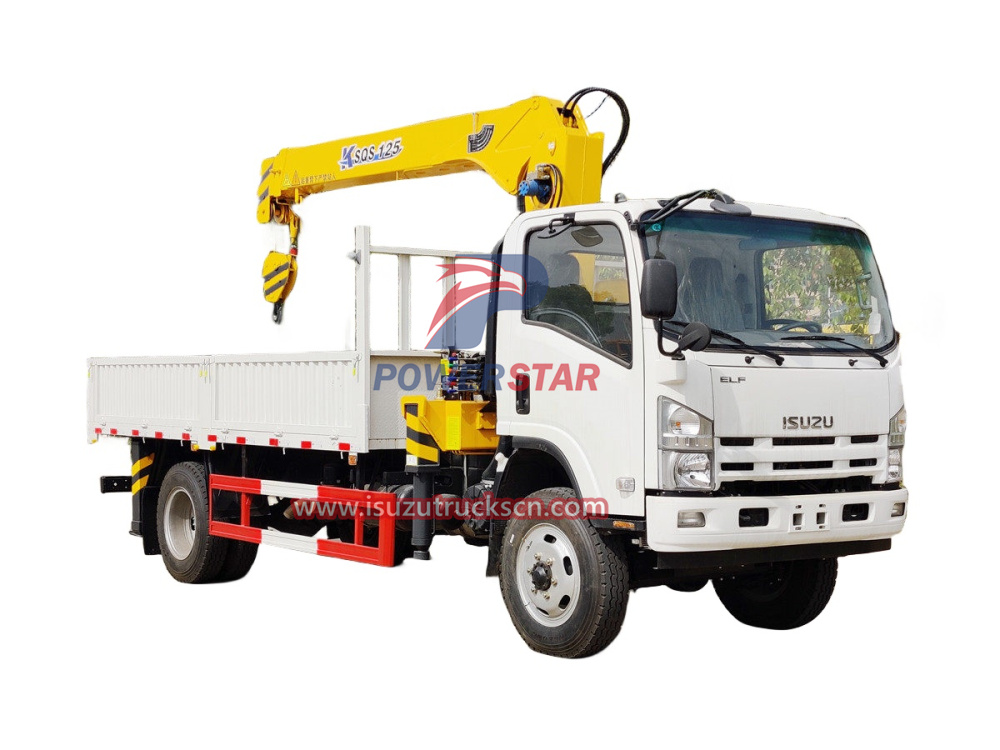

16ft 18ft 4HK1 Isuzu NPR Off-road cargo truck with crane refers to a type of boom crane truck that is designed to transport goods off paved roads. These 4x4 Isuzu boom crane trucks are built with features that enable them to navigate through rough terrains such as dirt roads, rocky paths, and steep slopes. They are commonly used in industries such as mining, construction, and agriculture, where transportation of goods over rough terrains is required.
Work capacity:
5 TonsTruck model:
PT5110JSQEngine power:
190HPEngine type:
Isuzu 4HK1-TC51Axle drive:
4x4 all driveGear box:
Isuzu MLD6SRemarks:

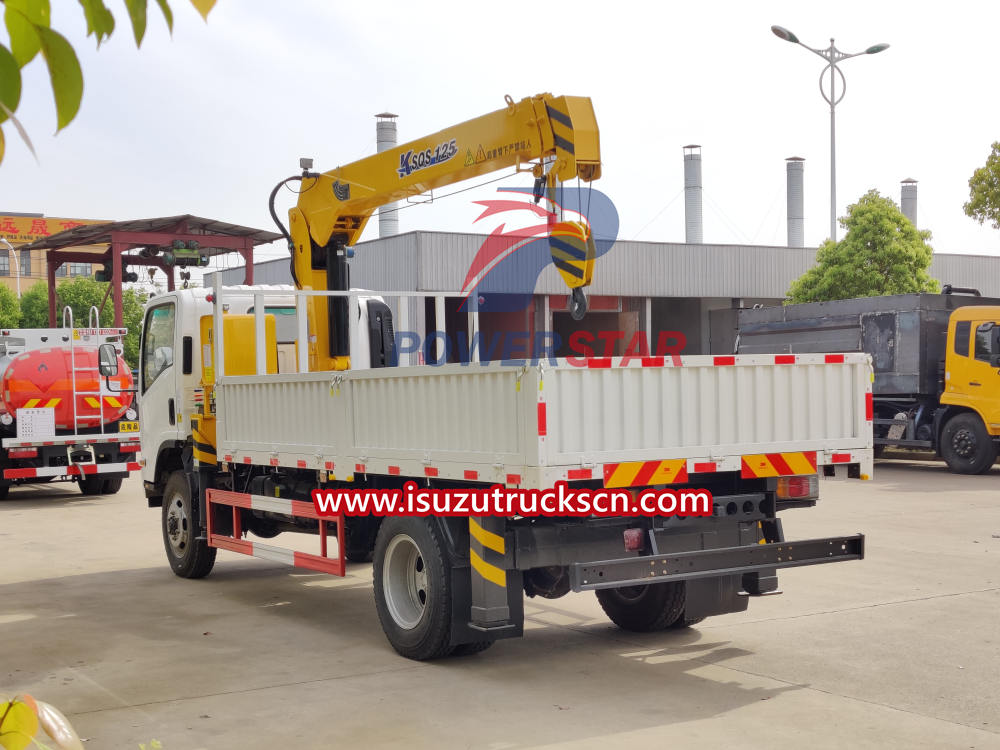

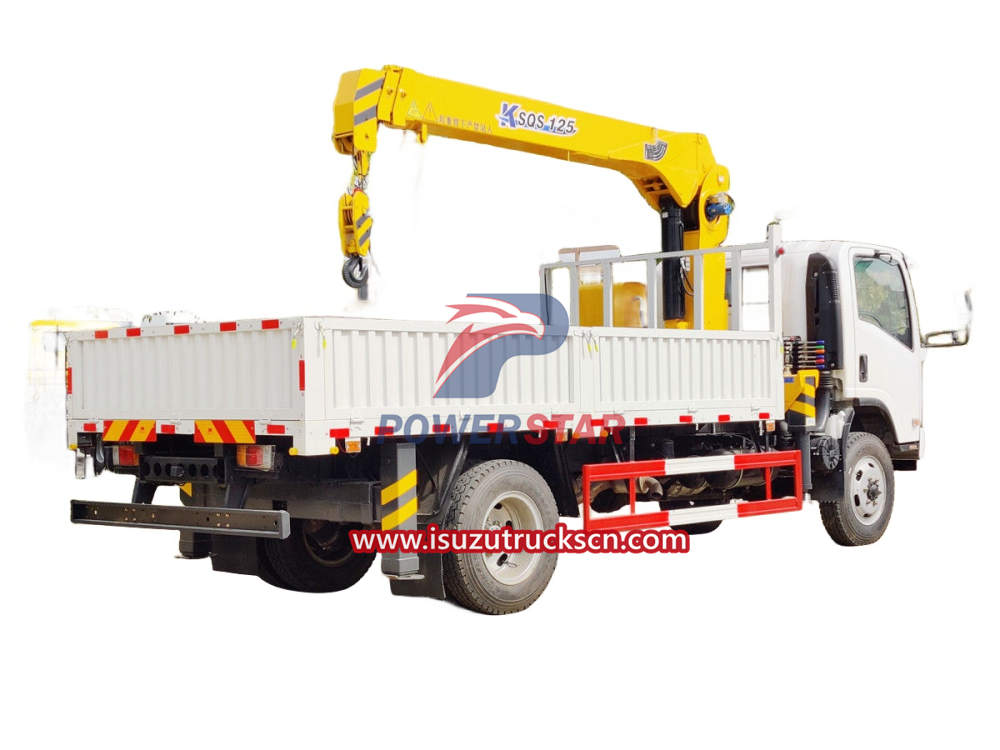

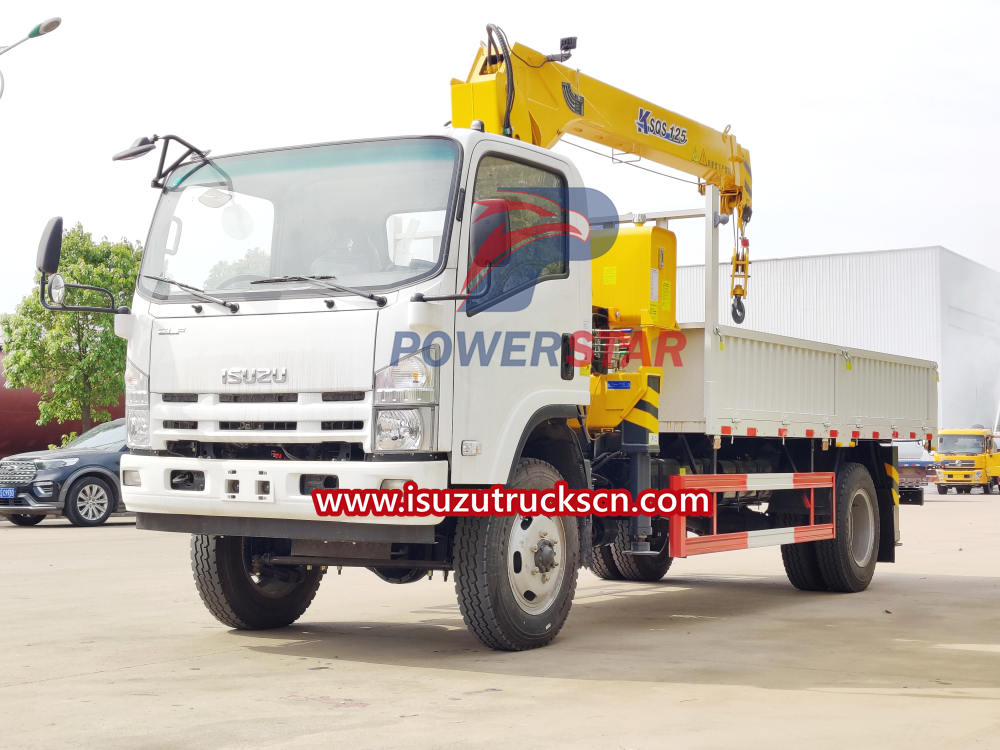

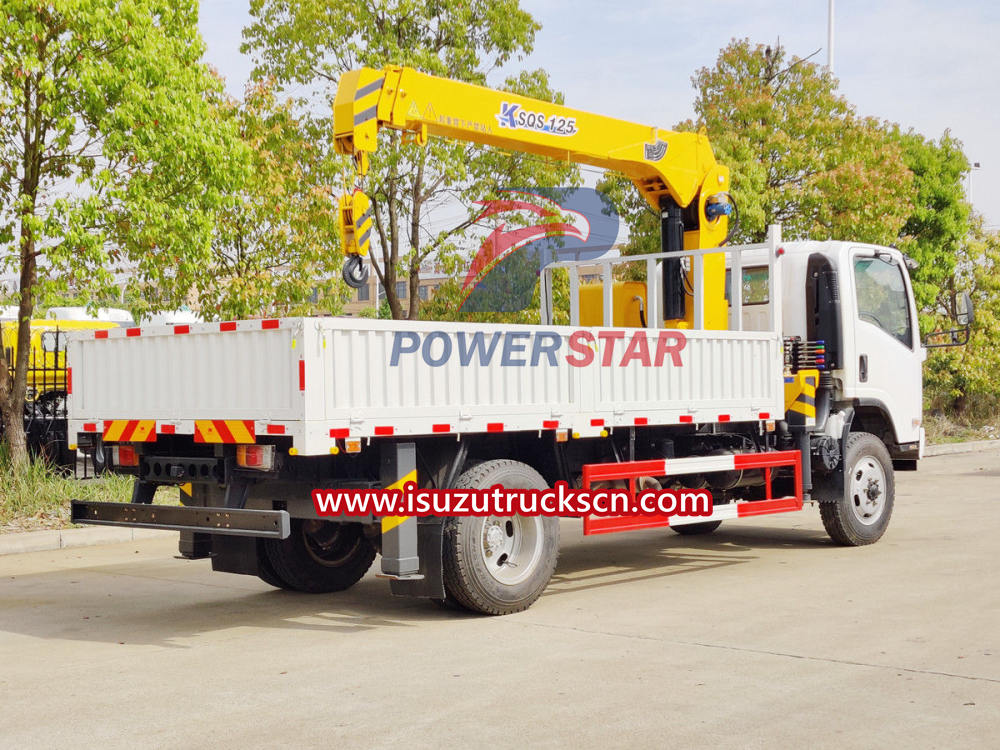

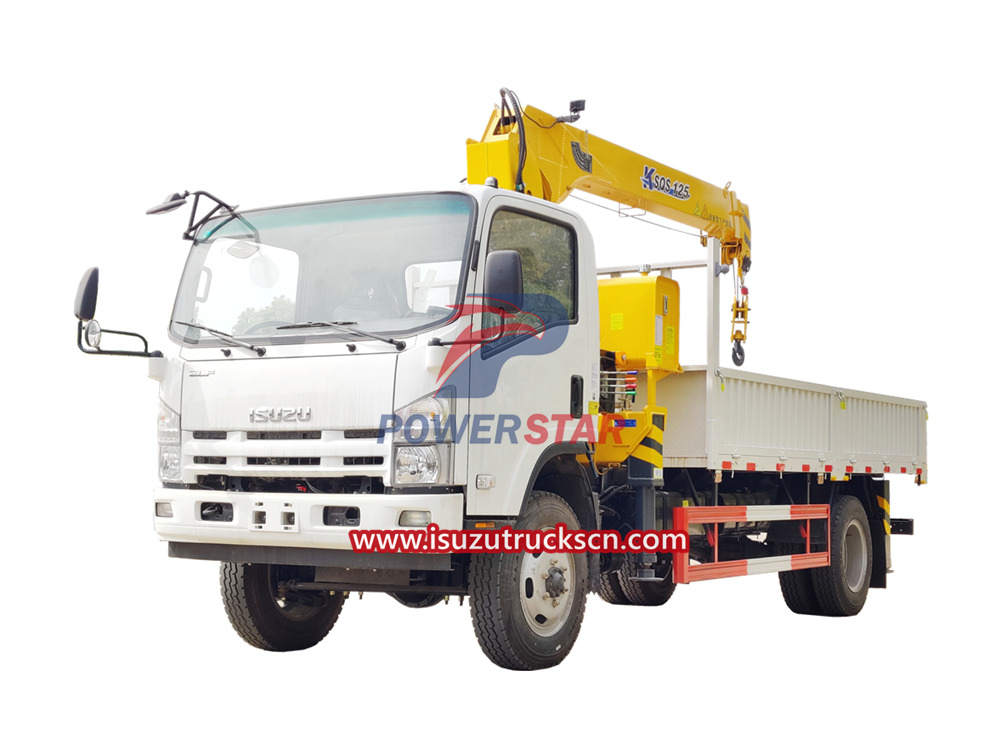

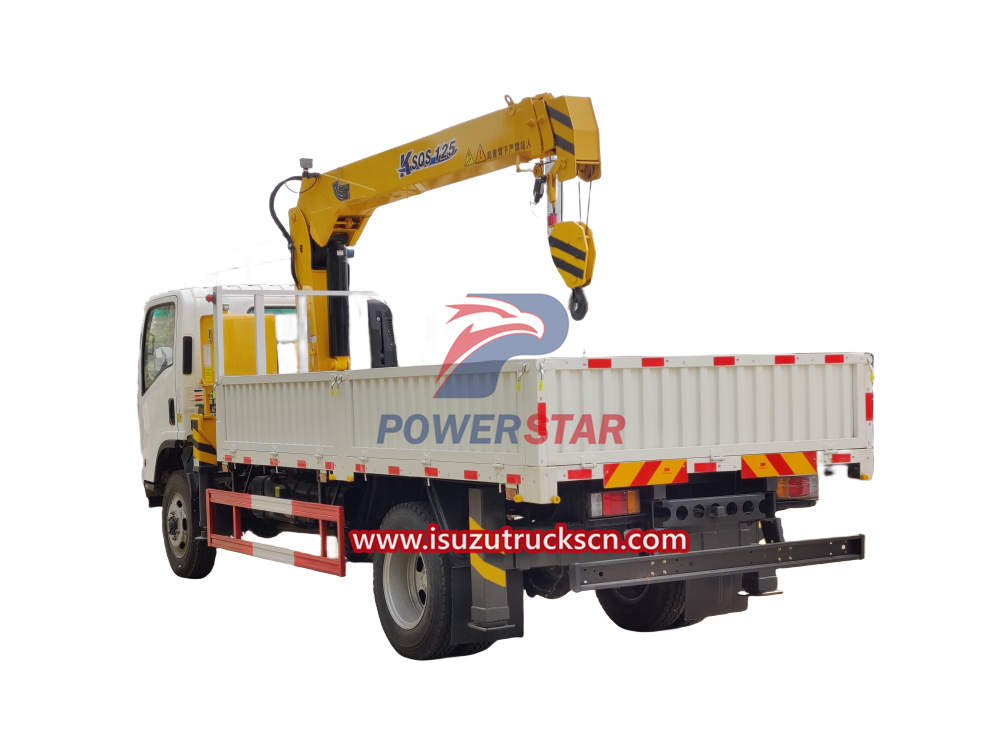

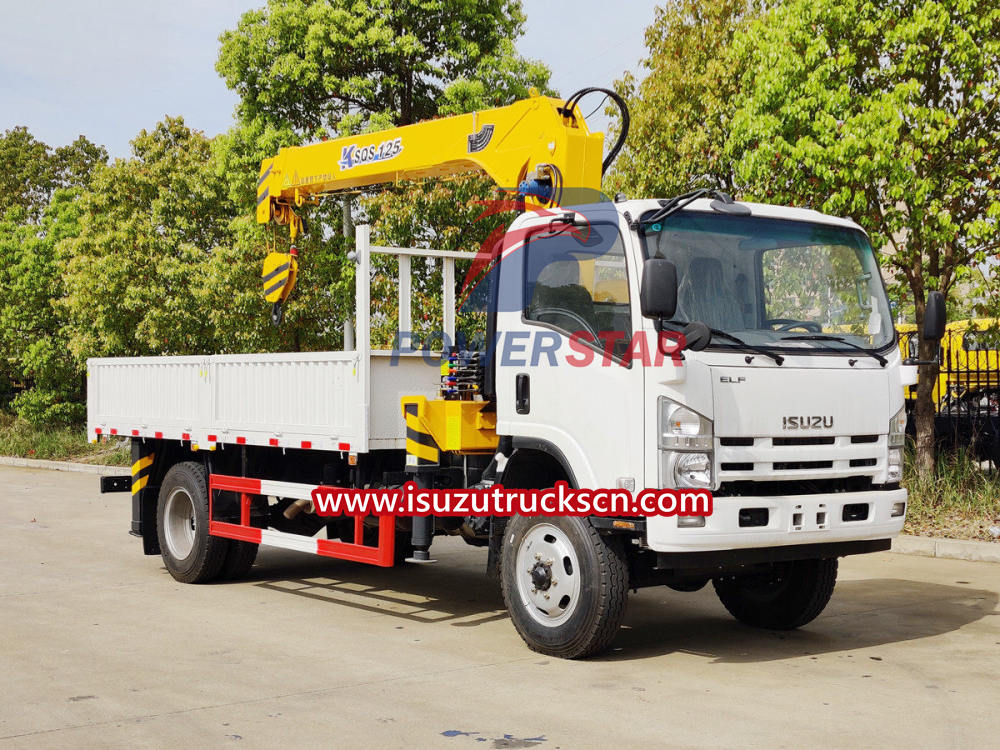

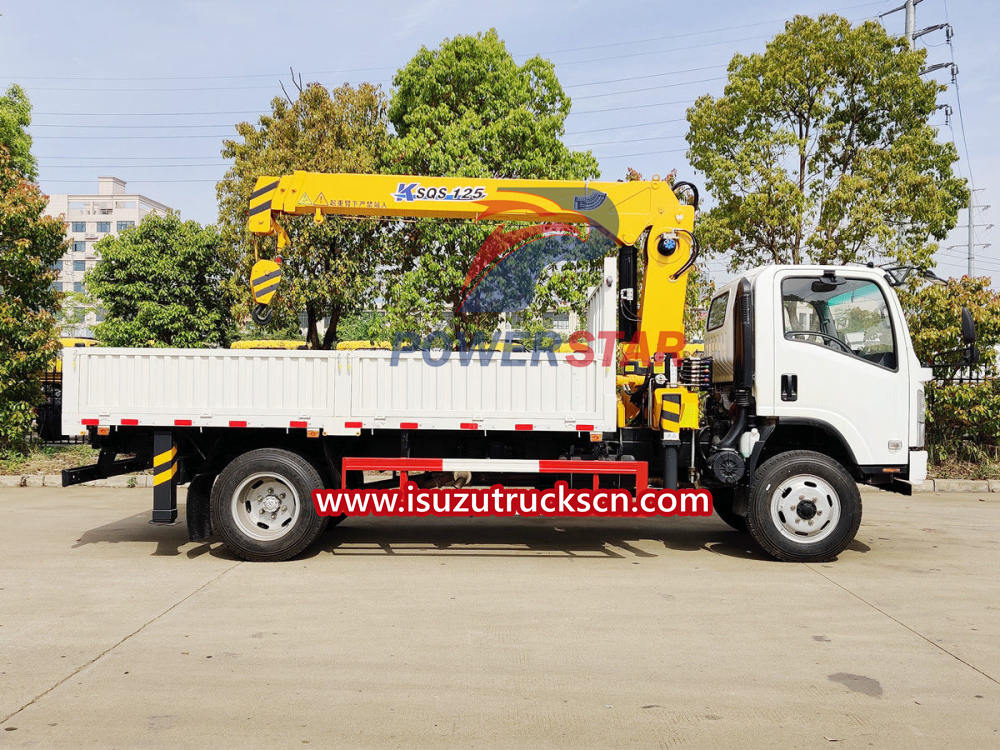

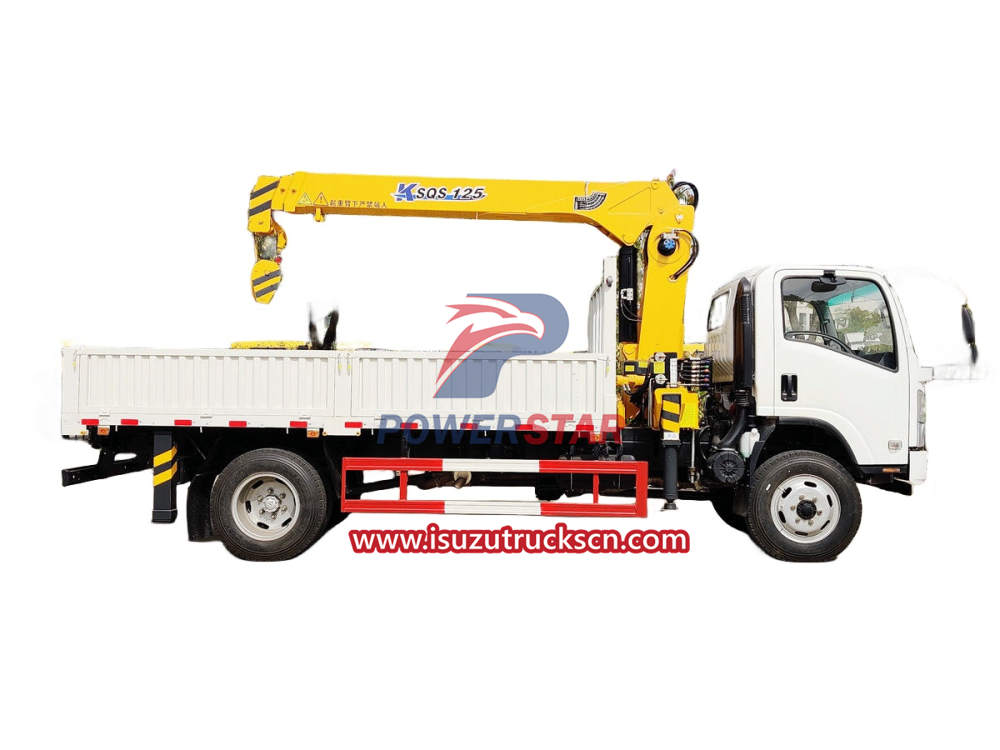

Pstar brand boom craneThe QL1100A8LAY 16ft off-road dropside truck Isuzu with crane is designed for versatile and efficient transportation and lifting operations. This Isuzu 4x4 boom crane truck combines the reliable Isuzu npr 4x4 chassis with a dropside cargo bed and a powerful crane, making it perfect for off-road applications and rugged terrains.
2. Features:
- Off-Road Capability: The Isuzu offroad boom crane truck is equipped with features that enhance off-road performance, including robust suspension, high ground clearance, and durable tires. It can effortlessly navigate through challenging terrains, such as uneven roads, gravel, or muddy surfaces.
- Powerful Crane: The Isuzu 4X4 dropside truck with crane comes with a reliable and powerful crane, capable of lifting and maneuvering heavy loads. The crane's hydraulic system ensures precise control and smooth operation, making it suitable for construction, logistics, and other industries.
- Sturdy Construction: Built on a robust Isuzu 4x4 chassis, this truck offers durability and stability even in demanding environments. It is designed to withstand heavy loads and rough conditions, ensuring long-lasting performance.
 |
 |
 |
 |
3. Advantages:
- Versatility: The Isuzu off-road dropside truck with crane is versatile, making it suitable for various applications such as construction projects, infrastructure development, and transportation of goods in challenging terrains.
- Efficient Operations: The truck's dropside cargo bed and powerful crane enable quick and efficient loading, unloading, and transportation of materials, reducing downtime and improving productivity.
- Reliable Performance: With the reliable Isuzu chassis and high-quality components, this truck ensures excellent performance and longevity even in demanding off-road conditions.
- Operator Safety: The Isuzu 4x4 boom crane truck is equipped with safety features, including stability control, anti-lock braking system (ABS), and airbag systems, ensuring the safety of the driver and passengers during operations.
| Specification | ||||
| Vehicle Main Dimensions | (L x W x H)mm | 7100*2400*3700 | ||
| Wheel base (mm) | 4475 | |||
| Approach/Depart. Angle | 20/11 | |||
| Front/Back rear | 1880/1860/1860mm | |||
| Weight in KGS | Curb Weight | 7880 | ||
| Pay loading | 5,000KGS | |||
| Max. driving speed(km/h) | 90 | |||
| Engine | Brand | ISUZU | ||
| Model | 4HK1-TCG40 | |||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 190 | |||
| Emission standard | Euro 4 | |||
| Gearbox | 6 forwards& 1 reverse | |||
| Steel Spring | 9/11+7 | |||
| Fuel Tank | 200L | |||
| Clutch | Reinforced diaphragm clutch, diameter 350mm | |||
| Tire | 8.25R16 6 tires with 1 spare totally in 7pieces. | |||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | power steering, hydraulic steering with power assistance | |||

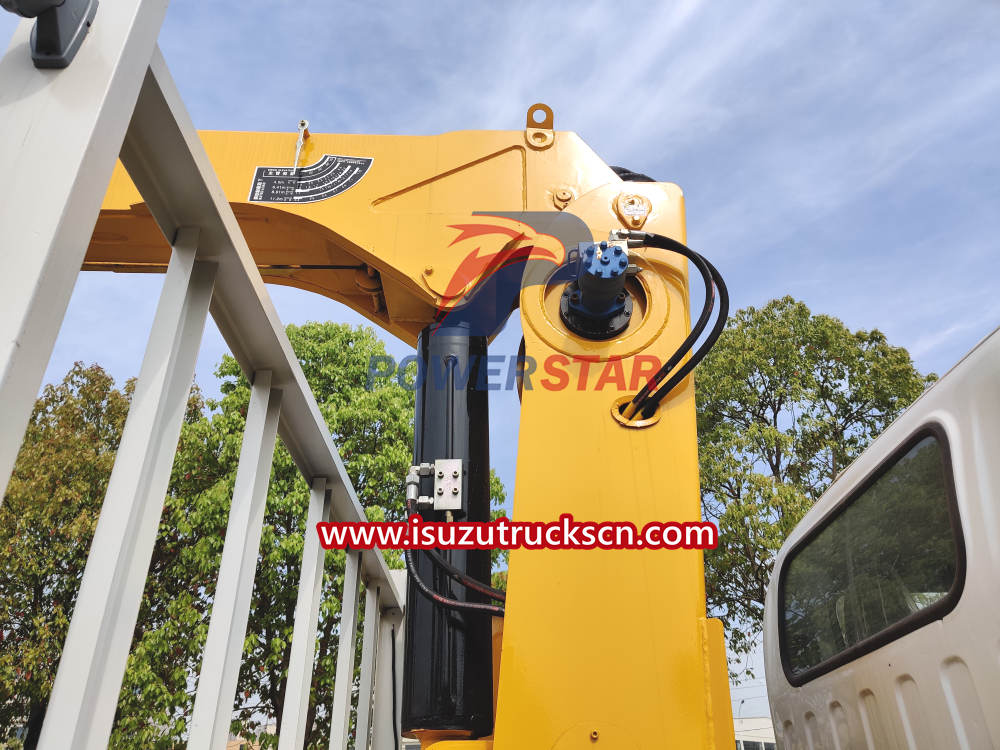

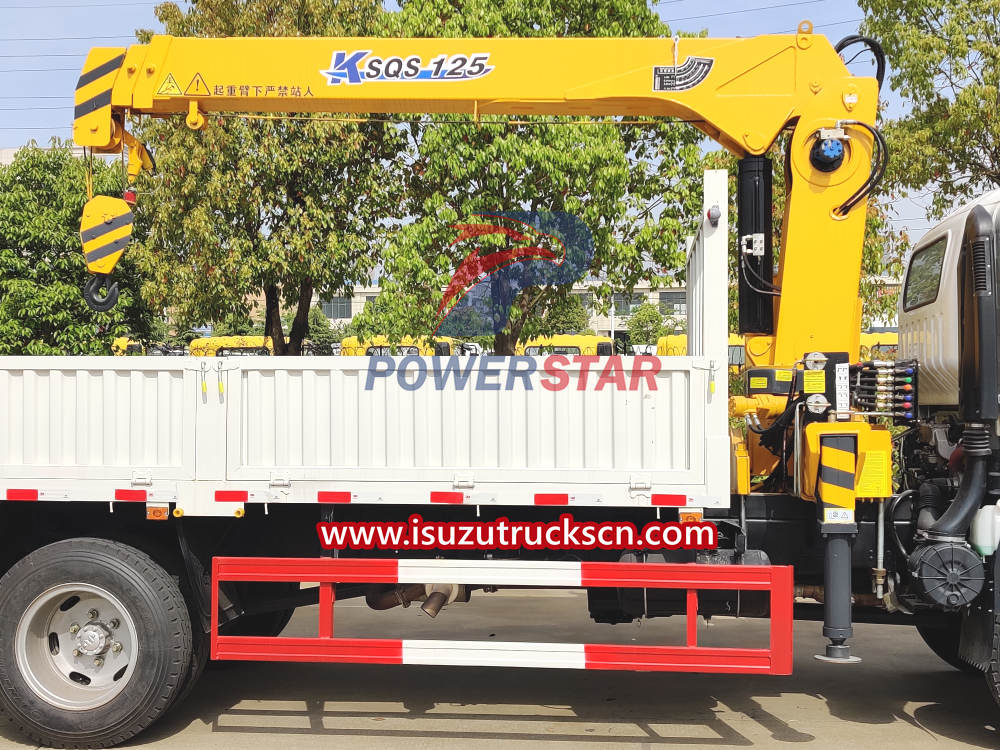

| Equipment for Crane Mounted Parts | ||||
| Modle No | SQ5SK2Q | |||

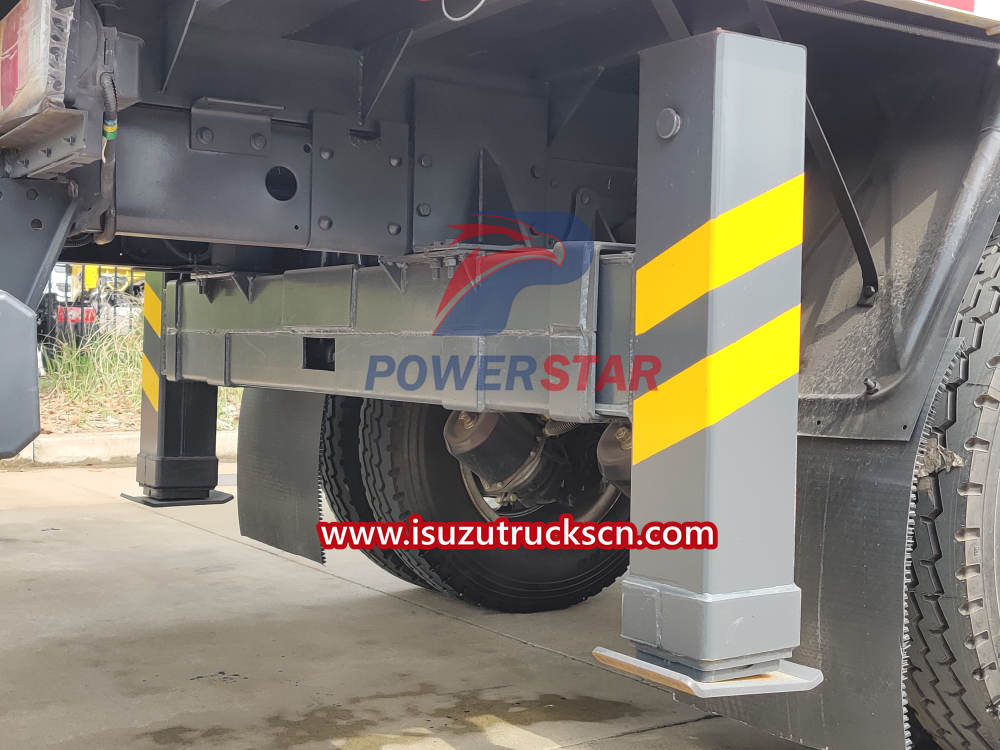

| Working Platform | 360°turning(left or right), H-shape legs 360° | |||
| Material | Q235 Carbon steel | |||
| Extendable boom section | 3 | |||
| Boom Type | Straight | |||
| Lifting Max. Weight | 5ton | |||
| Lifting Max. Height | 11m | |||
| Working Radius | 9m | |||
| Body dimension | 6250*2250*550mm | |||
| Max. Torque | 600N.m | |||
4. Application:
The 16ft off-road dropside truck Isuzu with crane is suitable for a wide range of applications, including construction, infrastructure projects, off-road logistics, and transportation of heavy materials. It offers efficient transport and lifting solutions in challenging terrains and remote areas.
5. After-sales service:
Customers can rely on comprehensive after-sales service for the off-road dropside truck Isuzu with crane. This includes regular maintenance, servicing, technical support, and readily available spare parts to ensure optimal performance and minimize downtime.
FAQ:
1. What is the lifting capacity of the crane?
The lifting capacity of the crane depends on the specific model chosen. Please refer to the product specifications for the exact lifting capacity information.
2. Can the upper body of the truck be customized according to specific requirements?
Yes, the upper body can be customized to accommodate additional storage compartments or specialized equipment installations based on individual customer requirements.
3. Can the off-road dropside truck with crane handle steep slopes and rugged terrains?
Yes, the truck is designed for off-road use and can handle challenging terrains, including steep slopes, rough terrains, and uneven surfaces.
4. Are spare parts readily available for the Isuzu truck and the crane?
Yes, spare parts for both the Isuzu truck and the crane are readily available to ensure quick and efficient maintenance or repairs when needed.
7. Upper Body Customized:
The upper body of the off-road dropside truck with crane can be customized according to specific requirements. This customization can include additional storage compartments, toolboxes, or other specialized equipment installations to meet individual customer needs.
 |
 |
 |
 |
 |
 |
8. Truck Chassis Choice:
Customers have the flexibility to choose the Isuzu truck chassis model that best suits their requirements. Various options with different load capacities and specifications are available, allowing customers to select the most suitable truck chassis for their specific operations.
Factory direct sale ISUZU FTR 4×4 Truck Mounted Crane Palfinger SPS25000, ISUZU FTR 4WD crane truck Palfinger 10 tons telescopic boom crane.
Learn More
Isuzu NPR ELF 4x4 Off-road boom crane trucks are specialized Isuzu crane trucks designed for lifting and transporting heavy loads in challenging off-road environments. These Isuzu all drive boom trucks are equipped with a hydraulic boom crane that can be used to lift and move heavy objects. Some examples of off-road boom crane trucks include the Isuzu 4x4 stiff boom crane truck and the Isuzu 4x4 knuckle crane truck. Isuzu Off-road boom crane trucks are commonly used in industries such as construction, mining, and forestry, where heavy loads need to be lifted and transported in challenging terrain.
Learn More
The Philippines 18 tons Isuzu FVR 4x4 AWD Boom Truck Crane is a versatile and robust vehicle designed for heavy-duty operations in the construction, logistics, and infrastructure sectors. This truck combines the reliable Isuzu chassis with a powerful boom crane, ensuring efficient lifting and transportation capabilities in the Philippines' diverse terrains and demanding working conditions. 2. Features: - 4x4 All-Wheel Drive: The Isuzu FVR 4x4 AWD Boom Truck Crane is equipped with an all-wheel-drive system, providing exceptional off-road capabilities. This feature allows the truck to navigate through challenging terrains, such as uneven roads, muddy surfaces, or construction sites, ensuring smooth and reliable transportation. Sturdy Boom Crane: The truck is equipped with a sturdy boom crane designed for heavy lifting capacities. The crane's hydraulic system enables precise and controlled movements, making it ideal for loading and unloading heavy cargo, construction materials, or equipment. The boom crane is durable, ensuring extended operational life and consistent performance. - Spacious Flatbed Platform: The flatbed platform of the truck provides ample space for carrying a wide range of goods and materials. The flat and unobstructed surface allows for easy loading and unloading, and it can accommodate various sizes and types of cargo. - Safety Features: The Isuzu FVR 4x4 AWD Boom Truck Crane prioritizes safety with features such as stability control, anti-lock braking system (ABS), and airbag systems. These features enhance driver and passenger safety during operations and reduce the risk of accidents. 3. Advantages: - Versatility: This truck offers versatility for a range of applications, including construction, logistics, transportation, and infrastructure projects. It provides efficient lifting and transportation solutions, making it an excellent investment for businesses operating in the Philippines. - Reliable Performance: The Isuzu FVR 4x4 AWD Boom Truck Crane delivers reliable performance even in challenging environments. Built on the sturdy Isuzu chassis, it provides stability and durability, ensuring long-lasting operational efficiency. - Fuel Efficiency: With Isuzu's advanced engine technology, this truck ensures optimal fuel efficiency, reducing operational costs and environmental impact. It satisfies stringent emission standards, contributing to a greener and more sustainable working environment. - Exceptional Load Capacity: The truck's 18 tons load capacity allows for the transportation of heavy loads and equipment, making it a perfect choice for large-scale projects and logistical operations. 4. Application: The Isuzu FVR 4x4 AWD Boom Truck Crane is suitable for various applications in the Philippines, including construction projects, infrastructure development, logistics operations, and cargo transportation. It can efficiently handle heavy lifting tasks, making it an indispensable asset for industries requiring robust and reliable transport and lifting capabilities. FVR ISUZU 4x4 Truck Chassis parameters Chassis model FVR Chassis brand ISUZU Overall dimensions 8390x2370x2760mm Wheel base 5000mm Front/rear wheel track 1880/1800mm Front/rear suspension 1430/2760mm Approach/departure angle 20/13° Maximum speed 90km/h Chassis Manufacturer ISUZU Motor Company Cab Configuration Isuzu one and a half row cab ,forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, air conditioner, manual window, manual lock Color white,other color is optional Engine Model ISUZU 6HK1 Emission Euro 5 Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine Rated power 240hp,rated power speed 2500rpm Displacement 5900ml Max.torque 560N·m Bore x stroke 102x120mm Manufacturer ISUZU Engine Co., Ltd. Tire Size 10.00-20 nylon tire Number 6+1 nos Clutch push type diaphragm spring clutch,Φ395mm Fuel tank 200L, Steel fuel tank Front axle 4.5T Rear axle 9.0T main reduction ratio 5.286 Drive form 4X4 All drive Rated voltage 24V,DC Transmissions Gearbox MLD 6S, 6 speed forward 1 reverse. Steering device Power assisted steering Steering wheel Left hand drive Truck mounted crane structure parameters &nbs...
Learn More
Isuzu 4x4 NPR Off-road crane trucks, also known as Isuzu rough terrain cranes, are designed for off-highway and rough terrain applications. They Isuzu off road boom trucks are equipped with features such as all-wheel drive steering, making them suitable for construction sites and other challenging environments. These cranes are well suited for both on and off-road lifting projects, ranging from everyday workhorses to powerful 50-ton cranes.
Learn More

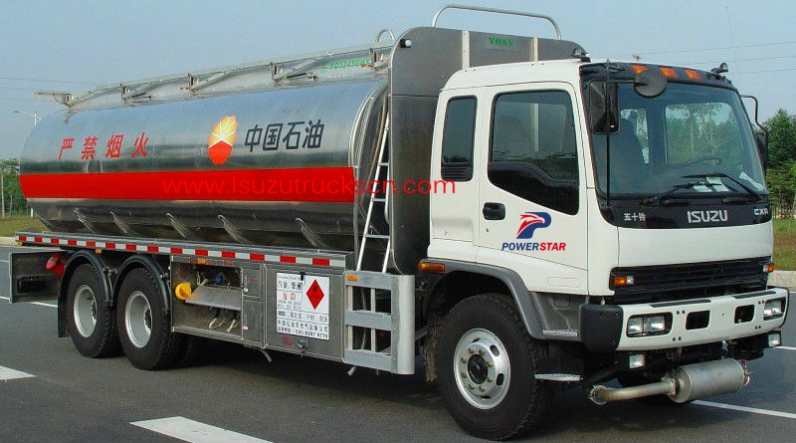

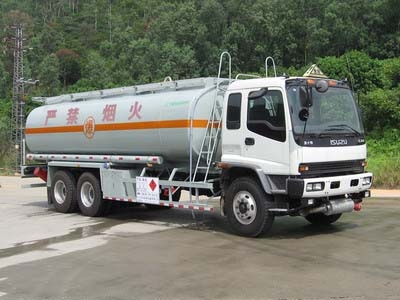

25m3 Isuzu truck Aluminum alloy fuel tanker truck, 25,000L Custom Aluminum Alloy Tanker Truck ISUZU,ISUZU 15,000L -18,000L Aluminum alloy oil Tanker Truck
