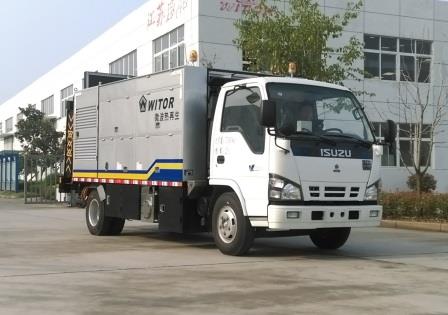

1000L Isuzu bitumen road Maintenance Truck
Order(MOQ):
11000L Isuzu bitumen road Maintenance Truck
Chassis |
ISUZU NKR NQP |
Dimension (mm) |
6980x2120x3090 (L*W*H) |
Voltage/power of generator set |
220V/380V, power 30Kw, fuel efficiency 258.4g/Kw.h |
Heating drum |
500Kg/drum, output 4 t/h, rotating speed 12-15rpm |
Heating mode |
RIELLO diesel burner, fuel consumption: 4.5~10kg/h |
Bucket capacity (Kg) |
250kg (based on the density 1.8t/m3) |
Hopper measurement |
S weighing sensor, measuring range 500Kg, total error ±0.03%R.O |
Loading time |
15S, heating 5min, mixing 2min |
Asphalt tank capacity (L) |
1000L, heating duration 1-2h, heating temperature 150°C controllable |
Heating mode of asphalt tank |
Conduction oil heating with diesel burner, fuel consumption 4.5~10kg/h |
Heating rate/heat insulation effect: 15°C/h, temp. drop ≤ 3°C/hour |
|
Asphalt measurement |
Weighing hopper capacity 25Kg, sensor range 100Kg, total error ±0.03%R.O |
Conduction oil capacity |
296L |
Emulsified asphalt capacity |
960L |
Powder measurement |
Hopper capacity 35Kg, sensor range 100Kg, total error ±0.03%R.O |
Cyclone & wet dust collector |
1100-1558m3/h Dust collection capacity: 1,100-1,558m3/h |
Mixing temperature (°C) |
100-160°C |
Mixing method |
Forced mixing with double horizontal axis at the power 11Kw |
Unit oil consumption (Kg/t mixture) |
3.5~6.5 |
Working process |
Preheating heating drum – feeding – drying – mixing – discharge |
Electrical control |
Auto heating under constant temperature, LED digital temperature display, microcomputer central control and manual control, fault diagnosis |

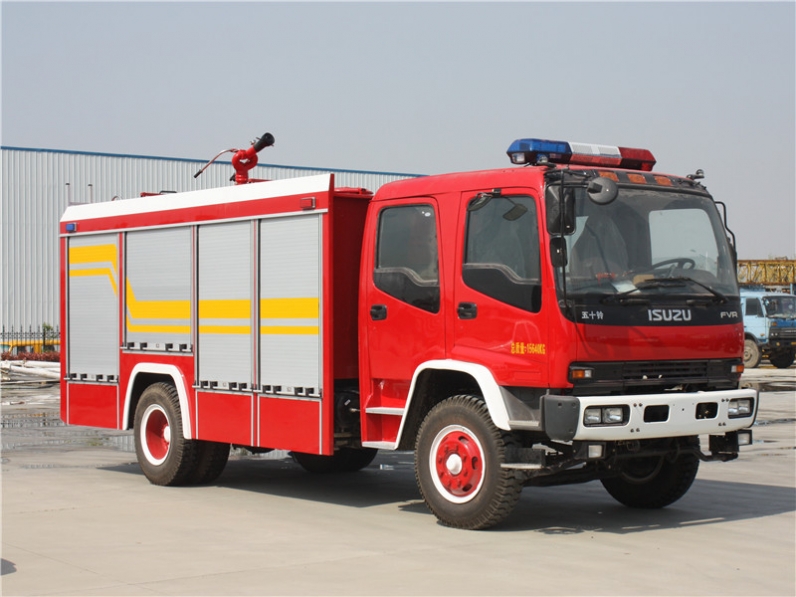

Military water foam fire truck, Isuzu fire fighting vehicle, water pumper fire fighting trucks
Learn More

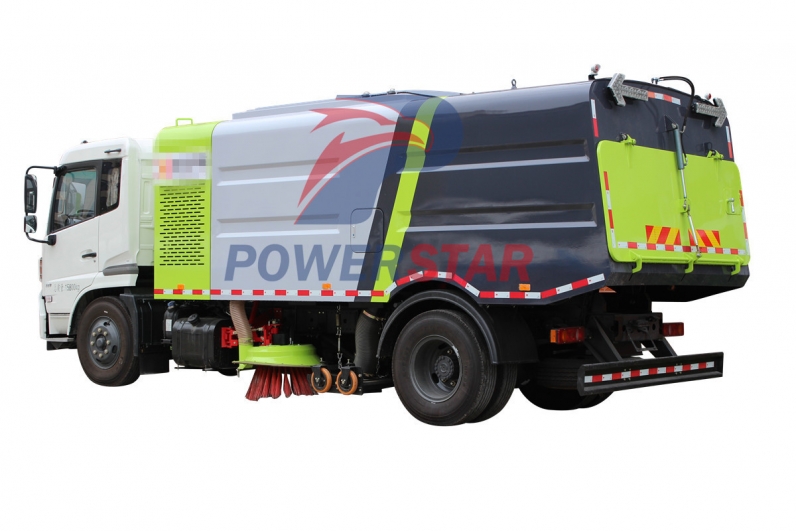

isuzu floor sweeper truck brand new 4x4 4x2 RHD 5m3 road street sweeper truck,brand new Isuzu 4x4 4x2 RHD 5m3 road street sweeper truck,Best Isuzu 5m3 garbage+1m3 water tanker 4x2 road sweeper truck
