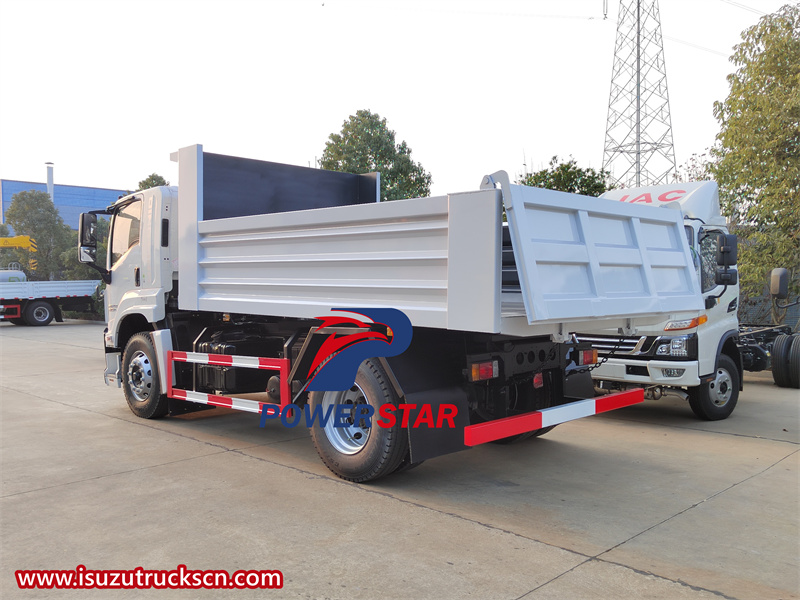

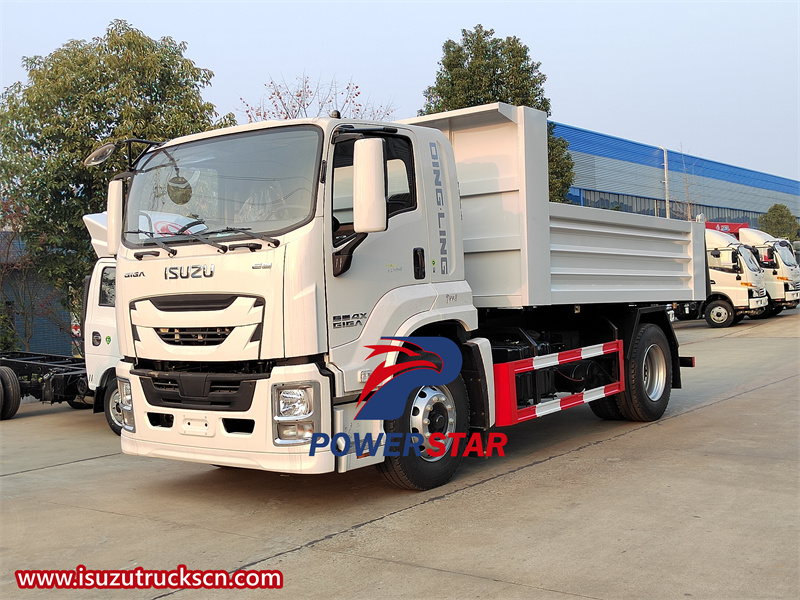

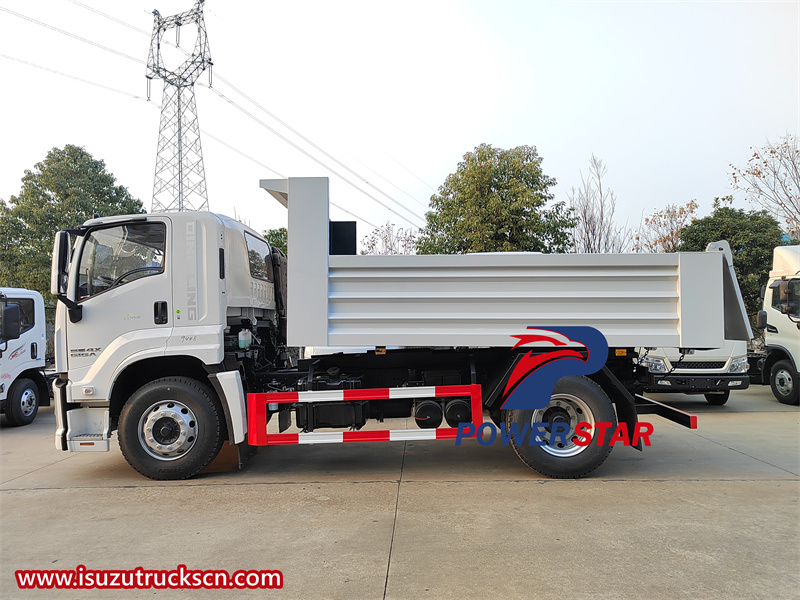

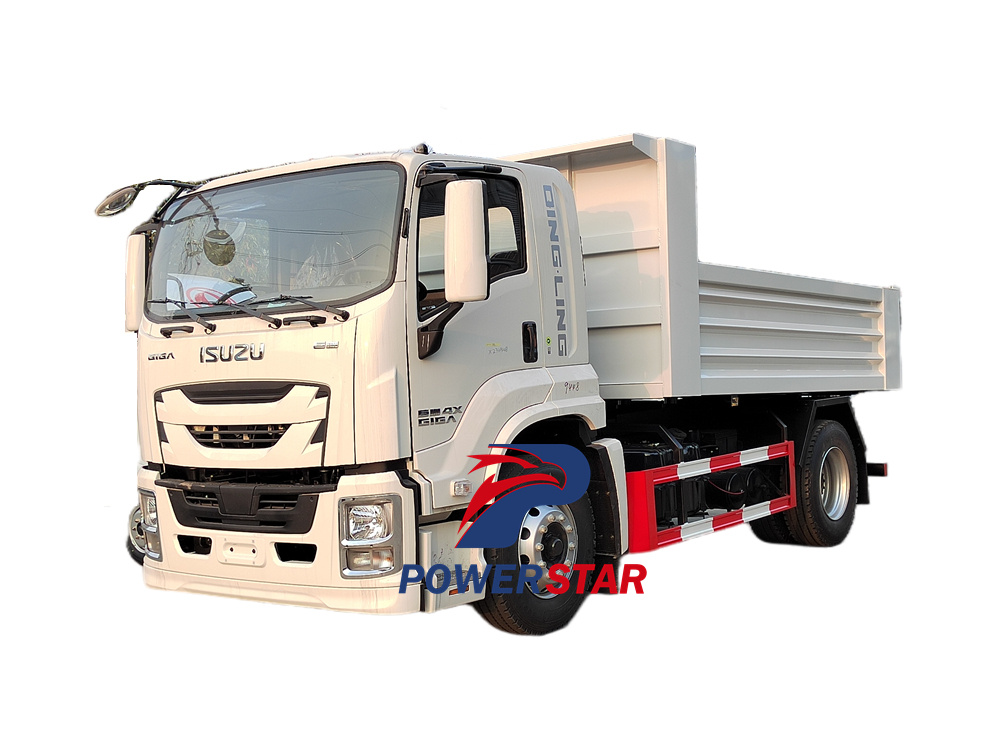

Isuzu FTR GIGA 4X dumper truck is a commercial vehicle designed for heavy-duty transportation. With strong loading capacity and excellent power performance, the dump truck is versatile and easy to maintain. It can be customized according to needs, making it an ideal choice for logistics, construction, mining and other fields.
Work capacity:
10～15 tonsTruck model:
PT5180GWZEngine power:
205HPEngine type:
4HK1-TC60Axle drive:
4x2, LHDGear box:
ISUZU MLD,6 forward with 1 reverseRemarks:
Isuzu GIGA 4x new FTR cabin chassis10~15Tons GIGA Isuzu 6 wheeler dump truck also called Isuzu FTR GIGA 4X dumper truck,Isuzu GIGA 4x2 205HP tipper truck,Isuzu middle lifting dump truck,Isuzu GIGA 4x2 garbage dump turck,Isuzu GIGA tipper lorry truck.
The 10~15Tons GIGA Isuzu 6 wheeler dump truck is a heavy-duty vehicle designed for transporting large quantities of materials such as sand, gravel, and other loose materials. With a capacity of 10 to 15 tons, this dump truck is ideal for construction sites, mining operations, and other industrial applications where heavy lifting and hauling are required.
Key Features:
★ ISUZU GlGA chassis, perfect performance
★ ISUZU engine & gearbox, super powerful, no overhaul within 100.000 km
★ Easy operation and easy maintenance
★ Various capacity of dump box are available
|
10~15Tons Giga Isuzu 6 wheeler dump truck |
||
|
Main specification |
Chassis brand |
ISUZU FTR GIGA |
|
Overall dimension(L*W*H) |
9200*2530*3150mm |
|
|
Gross Weight |
18,000 kg |
|
|
Curb weight |
6,200 kg |
|
|
Chassis |
Drive modle |
4X2 |
|
Cabin |
Isuzu GIGA 4x cabin,One and half row , 3 persons allowed ,with air condition |
|
|
Front axle |
Loading:6,500kg. |
|
|
Rear axle |
Loading:11,500kg. |
|
|
Wheel Base |
5550mm |
|
|
Transmission |
ISUZU MLD,6 forward with 1 reverse |
|
|
Steering |
LHD with power assistance |
|
|
Tyre size & number |
295/80R22.5, with one spare tyre |
|
|
Max speed |
105 km/h |
|
|
Engine |
Model |
4HK1-TC60 |
|
Engine Type |
Diesel,4-cylinder in-line,water-cooled, four stroke, direct injection |
|
|
Horse power |
205HP |
|
|
Max Torque |
650 N.m |
|
|
Displacement |
5193ml |
|
|
Emission |
Euro VI |
|
|
Dump body |
Overall dimension(L*W*H) |
6700 X 2430 X 1300mm |
|
Thickness |
Side:4 mm ; Bottom:5mm |
|
|
Tipping |
Middle tipping |
|
The 10~15Tons GIGA Isuzu 6 wheeler dump truck is commonly used in a variety of industrial and construction applications where large quantities of materials need to be transported. Its sturdy frame and powerful engine make it ideal for use in rough terrain, such as construction sites, mining operations, and quarries. The truck is also commonly used in landscaping and road building projects, where it can transport materials such as sand, gravel, and rocks. Its versatility and fuel efficiency make it a popular choice for businesses that need to transport heavy materials efficiently and effectively, while also keeping operating costs in check.
Design
Crafted from high-grade materials and engineered with precision, the GIGA Isuzu dump truck exemplifies durability and resilience. Its chassis, meticulously designed to handle immense loads, forms the solid foundation upon which this brute of a machine operates. Every component, from the thick steel frame to the reinforced body panels, is built to withstand the rigors of heavy-duty operation.
Engine
Equipped with a powerful engine that roars to life with a thunderous rumble, the Isuzu GIGA dump truck packs a punch when it comes to performance. The engine's raw power is 205 horsepower, propels the truck forward with unwavering force, conquering even the most challenging terrains without breaking a sweat. Whether navigating steep inclines or rough terrain, this formidable machine remains steadfast in its mission.
Hydraulic sysytem
The dump truck's hydraulic system is designed to provide smooth and efficient operation. The hydraulic system allows the driver to easily raise and lower the dump body, making it easy to load and unload materials. The hydraulic system is also designed to provide precise control, allowing the driver to accurately position the dump body for optimal loading and unloading.
Transmission system
The truck's transmission system, designed for optimal efficiency and reliability, seamlessly transfers power to the wheels, ensuring smooth acceleration and controlled operation. With multiple gears to choose from, the driver can adjust the truck's speed and torque to match the demands of the job, enhancing productivity and fuel efficiency.
Large capacity
One of the standout features of the GIGA 4x2 Isuzu dump truck is its impressive payload capacity, ranging from 10 to 15 tons. This immense hauling capability makes it an indispensable asset for heavy construction projects, mining operations, and transportation of bulk materials. The truck's spacious dump bed, reinforced to handle the weight of various materials, facilitates quick and efficient loading and unloading processes, streamlining operations and maximizing productivity.
Performance
In terms of performance, the Isuzu Giga middle lifting dump truck is capable of hauling heavy loads with ease. The truck's powerful engine and sturdy frame make it easy to transport large quantities of materials, even over rough terrain. The truck's hydraulic system also makes it easy to load and unload materials, which can help to improve productivity and efficiency on the job site.
The Isuzu FTR GIGA 4X dump truck is widely used in various usage scenarios due to its powerful chassis and large carrying capacity.
Construction Sites: On construction sites, this truck is widely used to transport sand, gravel and construction waste, adhering to the characteristics of high load-bearing capacity and durability.
Mining Operations: In mining environments, Giga Isuzu trucks are often used to transport ore, rock and other materials from mines to processing facilities or within mine sites.
Infrastructure Construction: It plays an important role in infrastructure construction projects, including road construction, construction projects and land development, effectively helping to transport large quantities of materials.
Waste Management: This truck is used in waste management operations to transport and handle large quantities of waste, making the waste collection and treatment process more efficient.

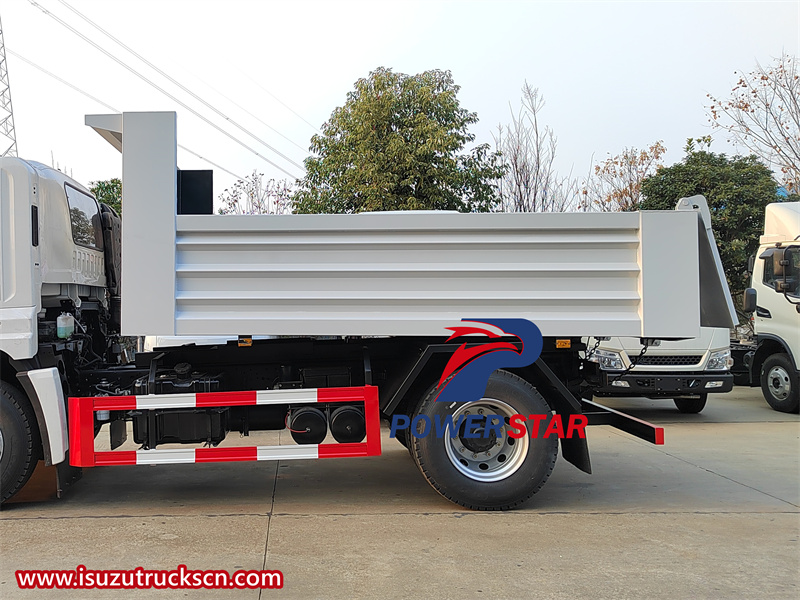

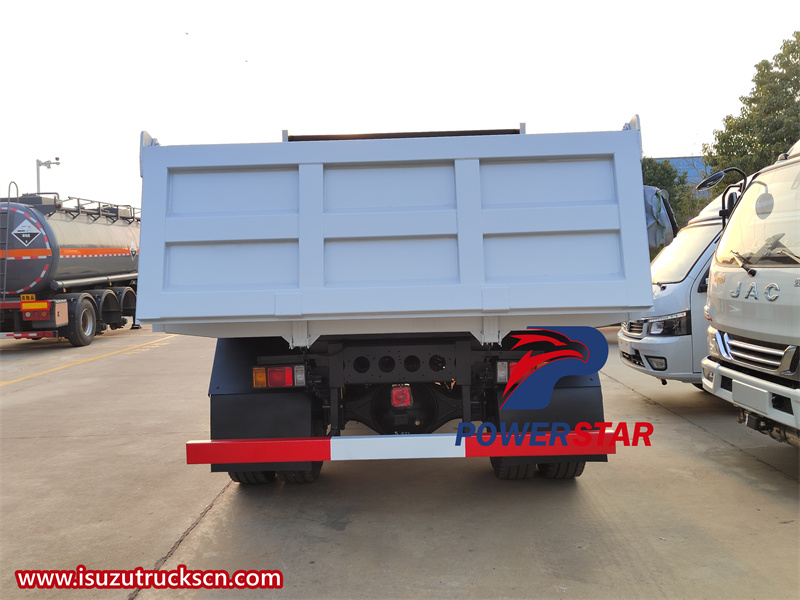

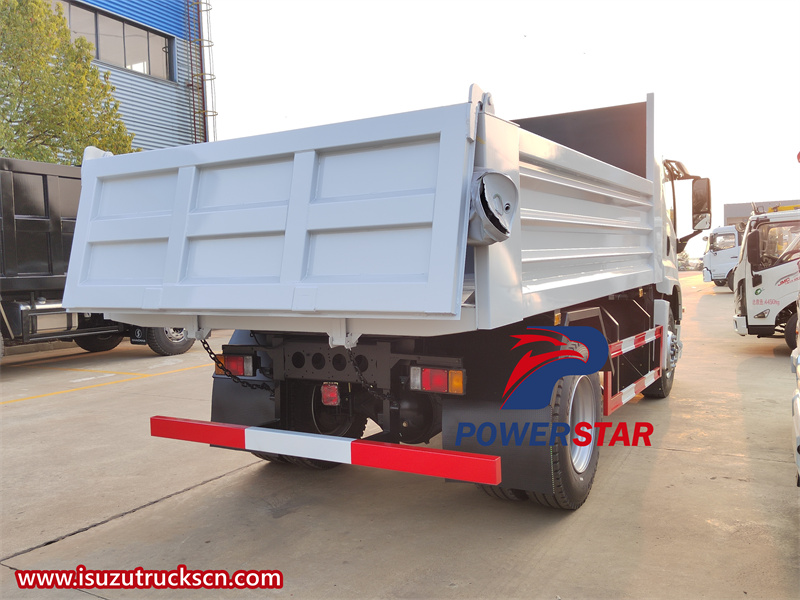

Dump box
Landscaping and Land Reclamation: This truck is very valuable in landscaping projects and land reclamation tasks, helping to transport soil, rocks and other garden materials to and from the job site.
Transportation: In some cases, the truck is also used in the transportation field for short to medium distance transportation of goods, equipment or materials, providing a reliable and powerful transportation solution.
Emergency Response: During disaster relief work or emergencies, the truck can be used to quickly clear debris, clear roads, and support cleanup efforts.

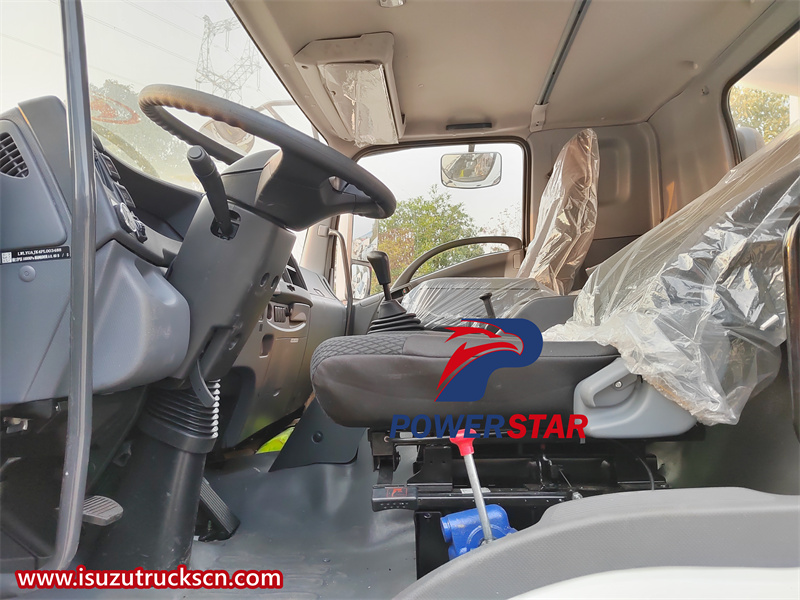

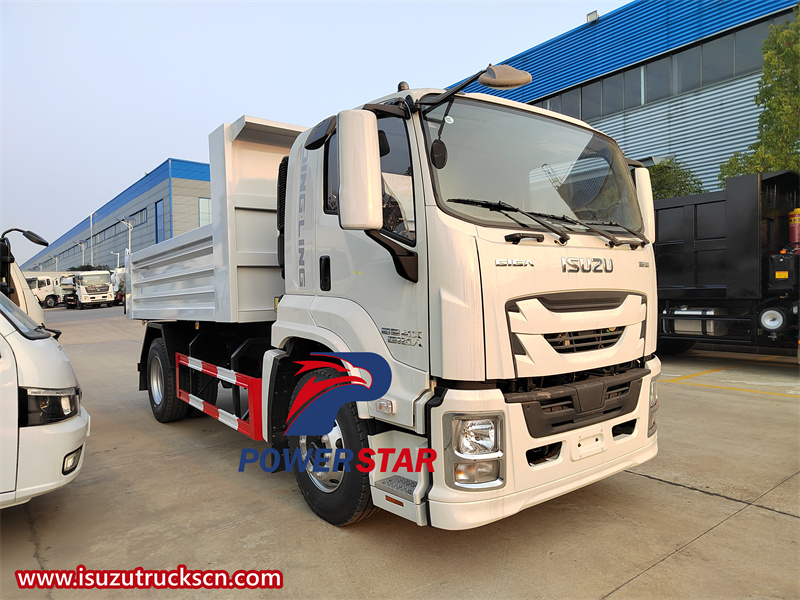

Isuzu FTR GIGA 4x cabin
