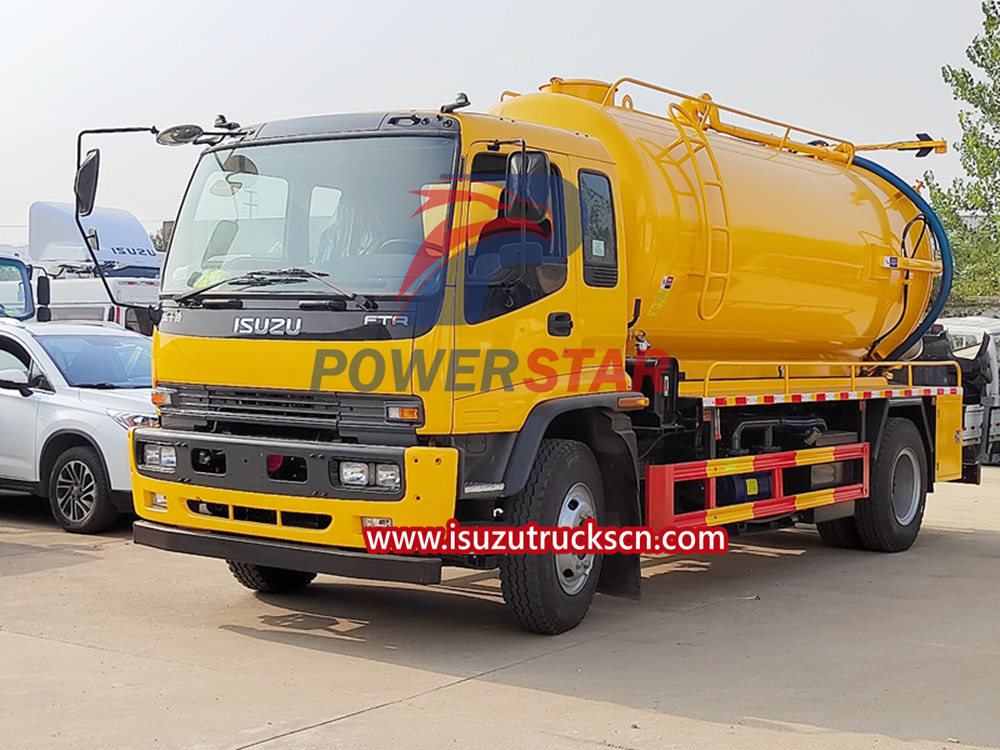

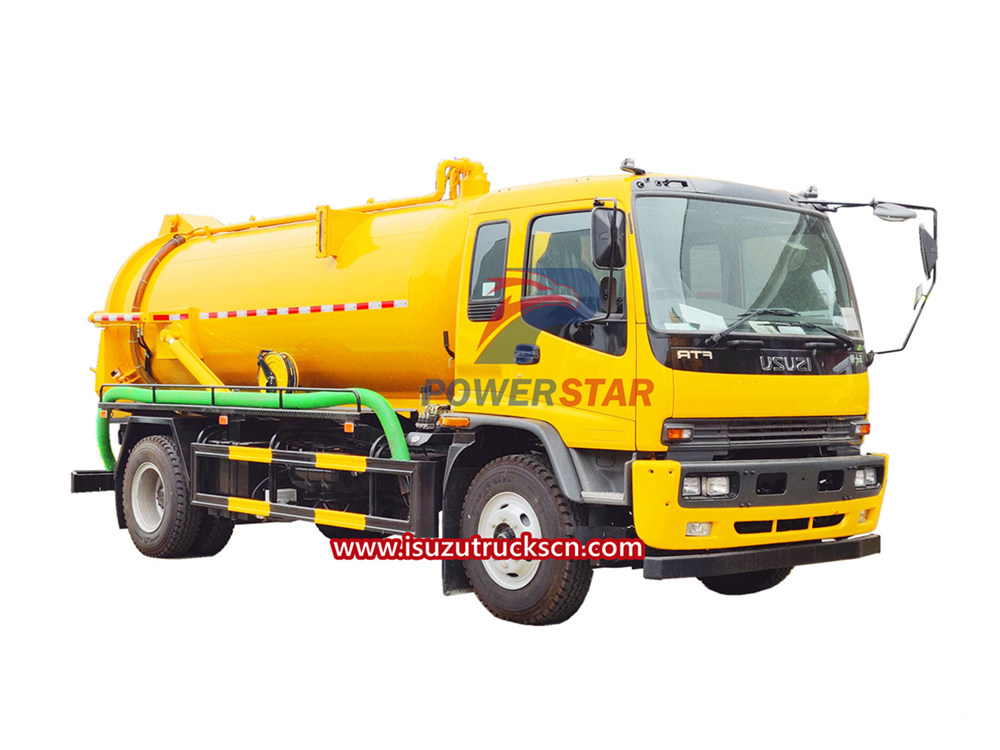

Isuzu sewage suction truck

Isuzu lorry vacuum tankers are special vehicles composed of ISUZU chassis, upper tank, vacuum pump system, dirt reservoir and washing device. The chassis is a heavy-duty truck chassis, which has stability and load-bearing capacity. The upper tank is often made of high-strength materials, which are corrosion-resistant and have good sealing properties. The vacuum pump system is its core component. It draws sewage and sludge into the sewage storage tank by generating negative pressure. The sewage storage tank is used to store waste and is divided into sewage sewage storage tank and sludge sludge storage tank. The washing device can spray water and cleaning agent with high pressure to thoroughly clean the dirt. Isuzu lorry vacuum tankers can promptly clean up and process wastewater, sludge and solid waste, prevent pollution, protect water sources, provide sanitation and rapid emergency response, and play an important role in environmental protection.

On Isuzu lorry vacuum tankers, spill prevention devices are essential. Overflow prevention devices can prevent tanks from overflowing, thus avoiding environmental pollution and economic losses. Common overflow prevention devices on Isuzu lorry vacuum tankers include the following:

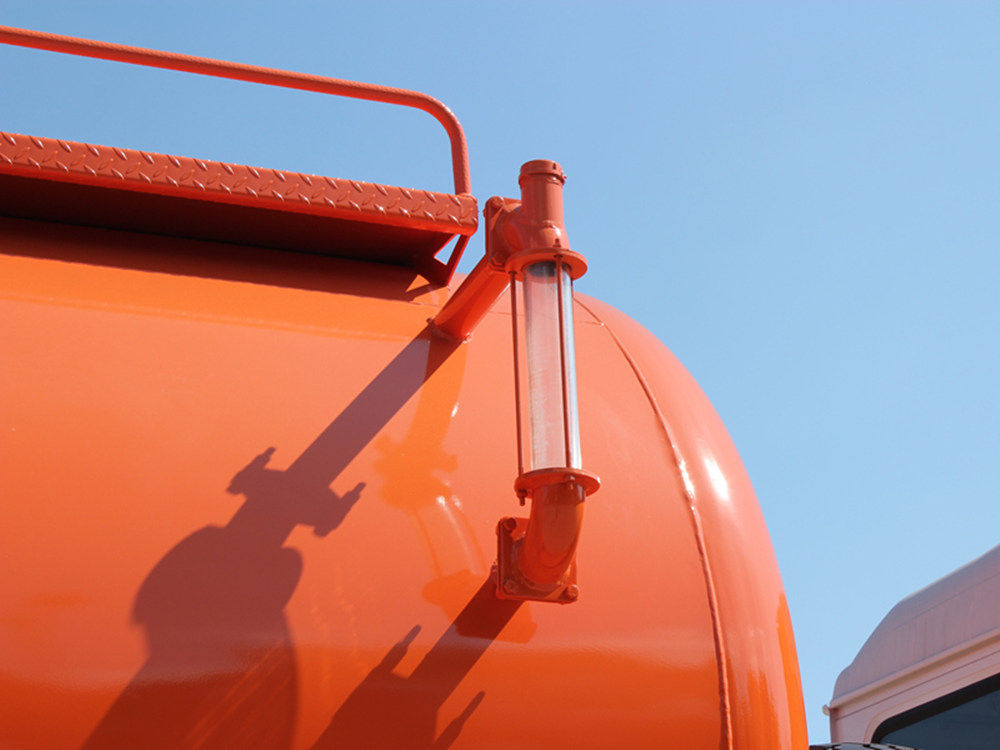

1. Liquid level alarm device: The liquid level alarm device is installed inside the Isuzu lorry vacuum tankers and is used to monitor the liquid level in the dirt reservoir. When the liquid level exceeds the set threshold, the liquid level alarm device will sound an alarm to remind the operator to stop the suction operation in time to avoid tank overflow.

2. Anti-overflow valve: Isuzu lorry vacuum tankers often use anti-overflow valves as anti-overflow devices. The anti-overflow valve contains a lightweight steel float. When the sewage in the sewage suction tank reaches a predetermined position, the floating ball will rise and block the exhaust hole, preventing sewage from entering the exhaust pipe and vacuum pump. However, ordinary anti-overflow valves cannot completely prevent flooding. Especially when there are a large number of floating objects in the tank, the float ball of the anti-overflow valve may not be able to lift up and cannot play its due role. Therefore, it is more reliable to use high-grade anti-overflow valves.

3. Water vapor separator: The water vapor separator installed on Isuzu lorry vacuum tankers can play two roles. One is to separate the moisture in the gas in the vacuum pump and protect the vacuum pump; the other is to act as an overflow prevention device. The working principle of the water-gas separator is similar to that of the anti-overflow valve. It also has a float ball. When the sewage in the water-gas separator accumulates to a certain amount, the floating ball will rise and block the air port to prevent sewage from entering the vacuum pump. However, the water-gas separator also faces the problem of the anti-overflow valve, that is, it cannot completely prevent the pipe from being clogged, especially when the suction force is large.

To sum up, no matter which type of overflow prevention device is used, it will play a supporting role. To avoid overflowing with sewage, operators of Isuzu lorry vacuum tankers should pay close attention and not only rely on overflow prevention devices, but also ensure the safety and effectiveness of their operations.
