Isuzu high pressure road sweeping truck is a tool specially used for sweeping road surfaces. Its main purpose is to remove debris such as garbage, sand, leaves, etc. on the road, keep the road clean and tidy, and improve the comfort and safety of road use.
The characteristics of Isuzu road sweeper truck include high efficiency and time saving, which can quickly sweep a large area of road; simple and convenient operation, which can be completed by one person; good cleaning effect, which can effectively remove various dirt on the road surface, and the cleaning force can be adjusted without damaging the road surface. In addition, Isuzu road sweeper truck is also environmentally friendly and energy-saving, which reduces the labor intensity of manual cleaning and reduces pollution to the environment.
The Isuzu road sweeper truck is composted by chassis ,auxiliary engine ,air blower,mahnetic vavles ,dustbin ,water taner ,sweepring system ,suction system ,water sprinkling system ,hydraulic system ,electrical control system ,etc .

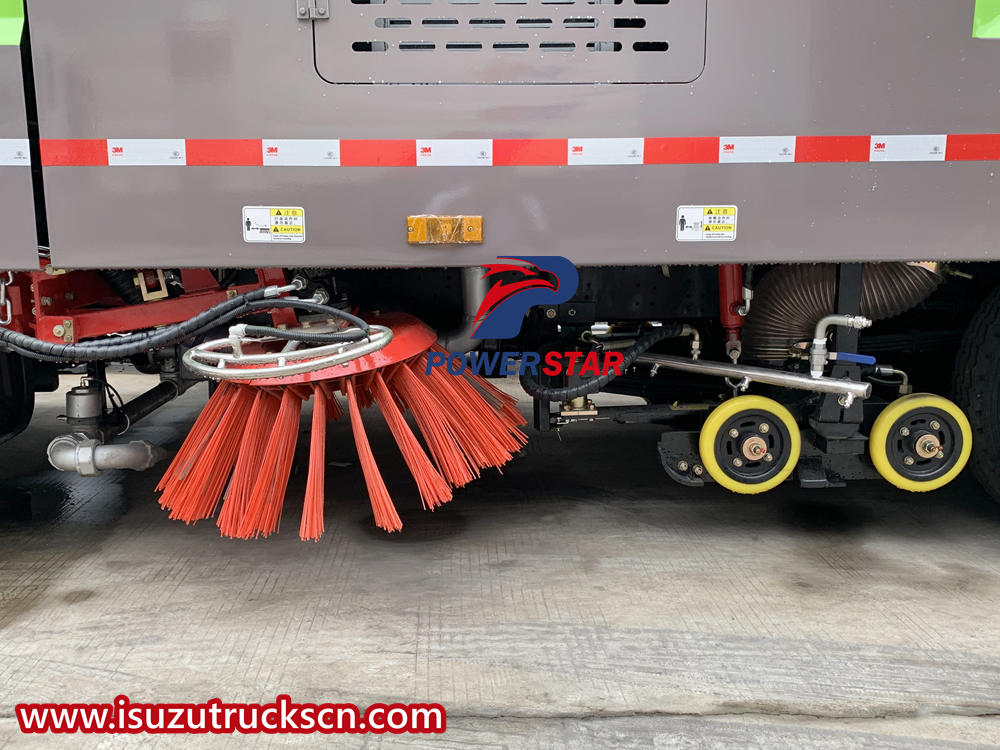

4 brooms sweeping system and suction system combine working high efficient.Water sprinklers equipped on brooms ,suction nozzles ,effective dust suppression.
Chassis parameters |
|||
Chassis model |
QL1080BUKAY |
Chassis brand |
ISUZU |
Overall dimensions |
6750x2200x2650mm |
Wheel base |
3815mm |
Front/rear wheel track |
1640/1655mm |
Front/rear suspension |
1120/1815mm |
Approach/departure angle |
23/12 |
Maximum speed |
105km/h |
Cab |
Configuration |
KV100,single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface |
|
Color |
White,other color is optional |
||
Engine |
Model |
4KH1CN6LB |
|
Emission |
Euro 6 |
||
Type |
4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine |
||
Rated power |
120hp / 88kW |
||
Displacement |
2999ml |
||
Tire |
Size |
750R16 |
|
Number |
6+1 nos |
||
Front axle |
2.5-3 tons |
||
Rear axle |
4.8-5.5 tons |
||
Drive form |
4X2 |
||
Transmissions |
Isuzu MSB five speed transmission,5 speed forward 1 reverse. |
||
Steering wheel |
Left hand drive |
||
Road sweeper structure parameters |
|||
Dust tank volume |
5000L |
Water tank volume |
2500L |
Sweep width |
3000m |
Cleaning speed |
3-20km/h |
Cleaning ability |
9000-60000 m2/h |
Cleaning efficiency |
0.98 |
Maximum suction particle |
120mm |
Min. clearance of suction nozzle |
200mm |
Unloading angle |
45° |
Unloading height |
970mm |
Standard configuration |
Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. |
Isuzu road sweeper truck are heavy-duty vehicles specially designed for efficient road cleaning and maintenance. Isuzu road sweeper truck are equipped with advanced technologies such as high-pressure water jets and powerful suction systems to ensure thorough cleaning of roads and streets. To effectively utilize an Isuzu road sweeper truck, one must understand its operations and functionalities. Below are three key points on how to use an Isuzu road sweeper truck:
1. Start the Isuzu road sweeper truck and engage the high-pressure water jets:
The first step in using an Isuzu road sweeper truck is to start the engine and ensure all systems are functioning properly. Once the truck is ready for operation, locate the control panel for the high-pressure water jets. These jets are essential for loosening and removing dirt, debris, and other contaminants from the road surface. Adjust the pressure and angle of the water jets according to the type of surface being cleaned. For stubborn stains or dirt build-up, increase the pressure of the water jets to effectively clean the road surface.
2. Activate the suction system and collect debris:
After initiating the high-pressure water jets, it is crucial to activate the suction system of the Isuzu street cleaning vehice. The suction system is responsible for collecting and storing the loosened dirt, debris, and water from the road surface. Ensure that the suction hose is properly connected and functioning before starting the collection process. Drive the truck slowly along the designated cleaning area, allowing the suction system to efficiently collect the debris and water. Monitor the storage tank of the truck and empty it as needed to maintain the performance of the suction system.
3. Perform routine maintenance and cleaning:
To ensure the optimal performance of an Isuzu road cleaning truck, regular maintenance and cleaning are essential. After each cleaning operation, thoroughly clean the truck's exterior, including the water tanks, suction hoses, and nozzles. Inspect the high-pressure water jets and suction system for any signs of damage or wear and tear. Replace worn-out parts and components to prevent any operational issues during future cleaning tasks. Additionally, schedule periodic maintenance checks and servicing to keep the truck in top condition and extend its lifespan. By conducting routine maintenance and cleaning, one can maximize the efficiency and effectiveness of an Isuzu road cleaning truck.
In conclusion, the proper operation of an Isuzu high pressure road sweeping truck involves starting the truck, engaging the high-pressure water jets, activating the suction system, and performing routine maintenance and cleaning. By following these key points and understanding the functionalities of the truck, one can effectively utilize it for road cleaning and maintenance purposes. Isuzu high pressure road sweeping trucks are powerful and reliable vehicles that play a vital role in keeping roads and streets clean and safe for motorists and pedestrians.
