Isuzu fire truck

Isuzu fire truck is also called Isuzu fire fighting truck ,Isuzu fire engine ,Isuzu fire tender and Isuzu fire rescue truck. Isuzu Giga fire truck is a medium-sized fire truck series from Isuzu Company. It has reliable performance and functions and is widely used in various firefighting and rescue applications. These Isuzu fire trucks are usually equipped with various fire extinguishing equipment, water pump systems, water tanks and other necessary equipment to deal with various fire scenarios.

Qingling Isuzu GIGA water tank foam fire truck is short and compact, with good power and maneuverability. The Isuzu fire truck is suitable for extinguishing general solid or liquid oil fires, and is easy to enter and exit narrow urban roads and village-level highways; the structural design of the vehicle Scientific and reasonable, with a neat and elegant appearance, the Isuzu fire truck is equipped with a variety of fire extinguishing and rescue equipment, and is easy to operate and maintain. It is the first choice tool for urban public security firefighting forces and new urban fire extinguishing.

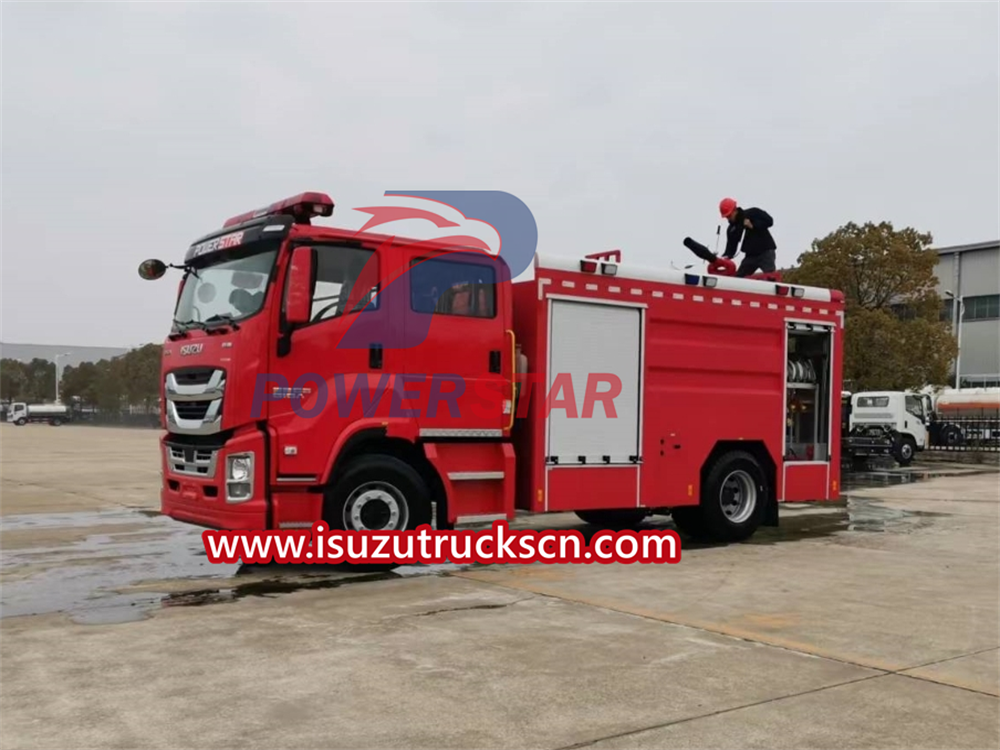

Isuzu Giga fire truck is loading water

Isuzu Giga Fire Truck Testing Water in Our Factory

Powerful configuration

Adopting the new Isuzu GIGA giant double row cab, equipped with Isuzu 350 horsepower engine, matched with Isuzu technology's eight speed manual transmission, 295/80R22.5 tires, standard ABS, heating and cooling air conditioning, central lock with key, electric doors and windows, multifunctional LCD instrument panel, and air brake.

Special chassis

Qingling Isuzu is my country's first Sino-Japanese joint venture automobile manufacturer. It has introduced more than 100 advanced production lines from Japan, Germany, the United States and other countries in the mid-to-late 1990s, forming three basic blanks: casting, forging and aluminum casting. The technology development center, mold center, forging die center, physical and chemical center and other technical backends have cultivated the ability to develop vehicles and core key assemblies, develop metal and non-metal materials, and develop processes and tooling. Our company introduced Isuzu's special chassis to lay a solid foundation for the manufacturing of Isuzu Giga fire trucks.

Comfortable driving experience

Flat-head all-metal enclosed cab, double-row cab, panoramic curved windshield. Optional new front mask, front bumper, front combination lamps, door windows, and lower cowl type mask. In line with the principles of ergonomics, the entire vehicle is equipped with humanized design principles from large to small parts, switches and layouts within easy reach, adjustable steering wheel, adjustable front and rear focus, free and diversified combination methods, interior The design is close to the needs and the space is very spacious.

Strong power, economical and fuel-efficient

Qingling Isuzu 6UZ1-TCG50 engine

Fuel type: Diesel emission standard: National VI maximum power: 278kw

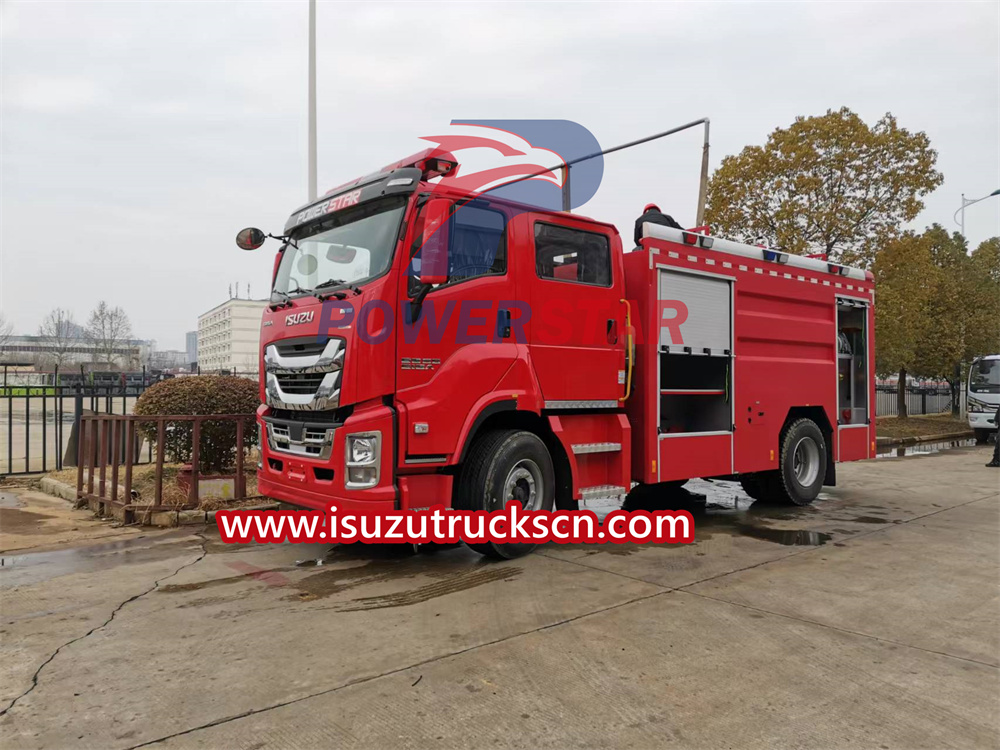

Isuzu 4x2 Giga fire truck for export

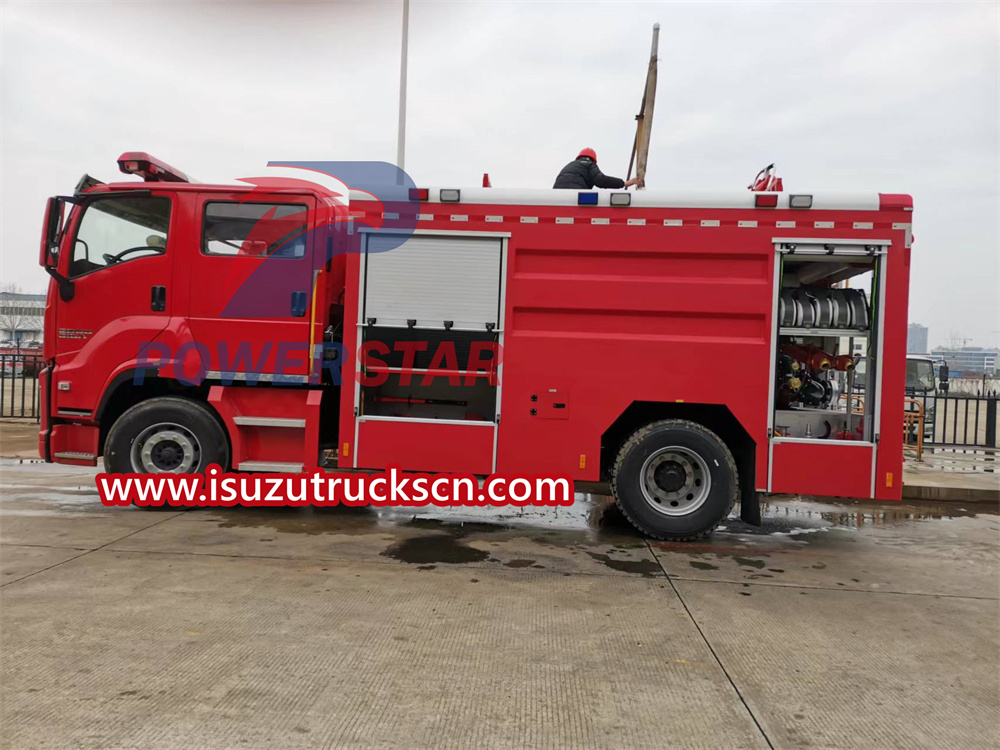

Isuzu fire truck for sale

Continuously variable speed

Manual transmission

Change the transmission ratio, expand the range of torque and speed changes of the driving wheels to adapt to frequently changing driving conditions; Enable the car to drive in reverse while keeping the direction of engine rotation unchanged; Using neutral gear to interrupt power transmission, allowing the engine to start, change gears, and facilitate transmission shifting or power output.

Liquid tank

High quality steel is durable and long-lasting

The tank body is in a concealed form (including connecting pipes and internal anti wave plates), made of high-quality carbon steel material (Q235A), with a welded structure, and equipped with longitudinal and transverse anti vibration plates. It has undergone high-tech rust and anti-corrosion treatment. Stainless steel material can be selected.

Equipment compartment

Sturdy and durable with reasonable layout

The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and is designed and manufactured with a built-in overlap structure. The interior panel is made of patterned aluminum plate, and the surface is anodized, making it strong and durable. In terms of structure, the equipment compartment is reasonably arranged and the equipment is more convenient to access. The special clamp fixing device makes the equipment storage more secure.

Fire water pump

Sealed and corrosion-resistant, no leakage

For mid-mounted or rear-mounted pumps, there are new easy-to-open high-strength aluminum alloy rolling shutter doors on the left and right sides of the pump room and the left and right sides of the equipment box. The pump room is equipped with water pump systems, liquid level gauges, vacuum gauges, pressure gauges, indicator lights and other instrument devices, making the operation clear at a glance.

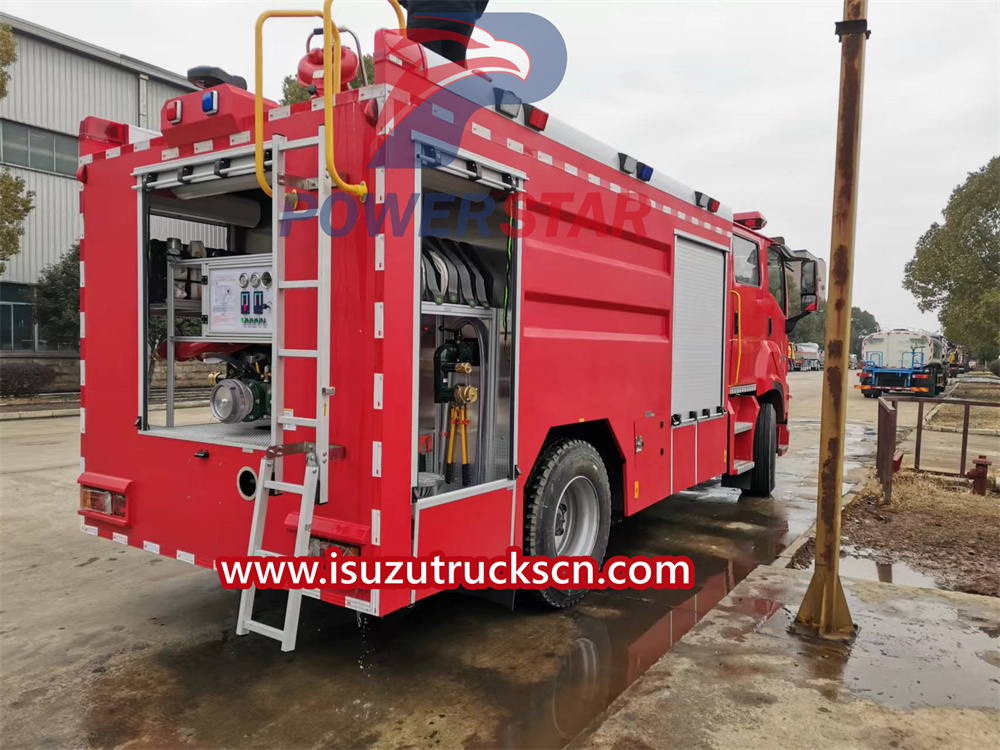

Isuzu fire truck in our plant

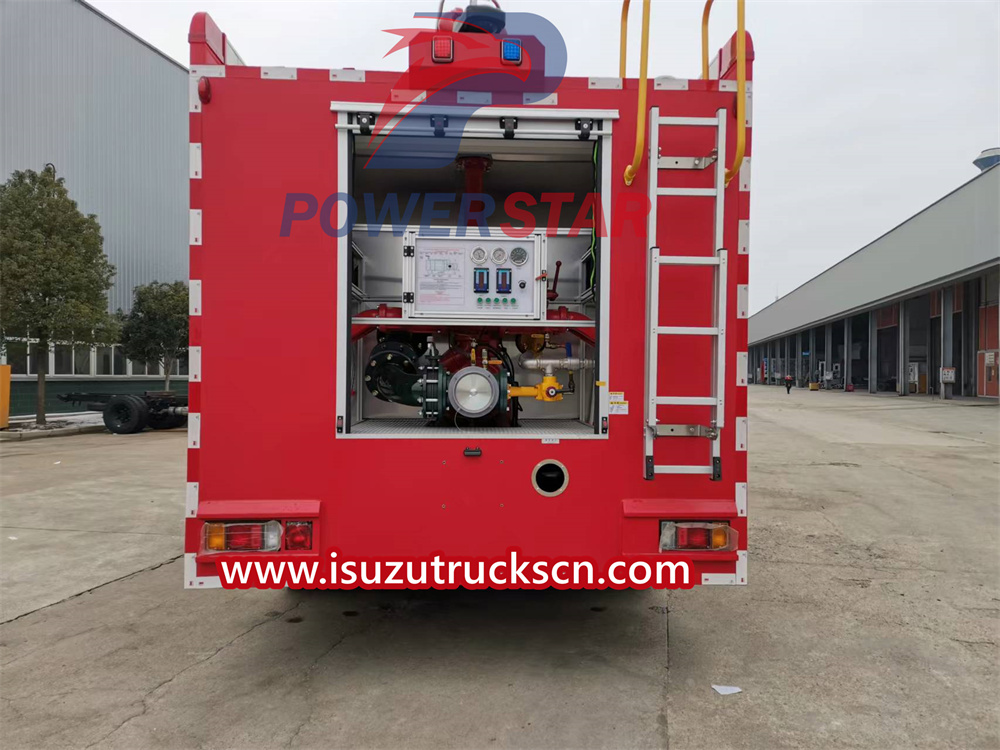

Isuzu Giga fire truck rear view

Electrical configuration

There is a long row of warning lights at the front of the top of the cab. There is a 24V/60W fire scene lighting behind the vehicle body. There are red and blue strobe lights on both sides of the Isuzu fire truck. Safety sign lights are installed below.

The crew compartment, equipment box, The pump rooms are equipped with lights, 100W sirens, rotary warning light switches, and communication equipment ready interfaces.

Control System

Automatic monitoring and control at any time

The Isuzu fire truck consists of linkage control cabinet, regional control box, system power controller, and computer fire (video) monitoring system. Its purpose is to control the water supply system and execution system, and can flexibly realize various operations of manual, automatic, on-site and fire control centers.

Private customization

Noble reflection to meet different needs

The Isuzu fire truck optional equipment: foam water combined fire cannon, DC switch water gun, foam gun, fire suction pipe, fire hose, water filter, water separator, water collector, heterosexual conversion interface, hose wrapper, water With bridge guard, hose hook, above-ground fire hydrant wrench, underground fire hydrant wrench, suction pipe wrench, dry powder fire extinguisher, fire shears, fire axe, shovel, iron collar, T-shaped pick, fire blanket, first aid kit, handheld walkie-talkie, ladder, full set of firefighting clothing.

Working status

Strong momentum and efficient work

Check the bearing box and oil level → close the remaining water cock and valve → divert and fill water → open the water diverting valve to fill the water tank; when using water from the fire hydrant, connect the fire hydrant to the water filling interface outside the water tank with a water hose. Water is directly injected into the water tank → the fire truck discharges water: open the rear water inlet butterfly valve and start the fire pump → 1. After the fire pump works, open the low-pressure water outlet ball valve to achieve low-pressure water outlet 2. When working at low pressure, close the low-pressure water outlet ball valve and open the gun The ball valve can realize the water discharge from the cannon to extinguish the fire → the fire truck water pump is used up → the remaining water in the pump is released and the switch is closed to facilitate anti-freezing.

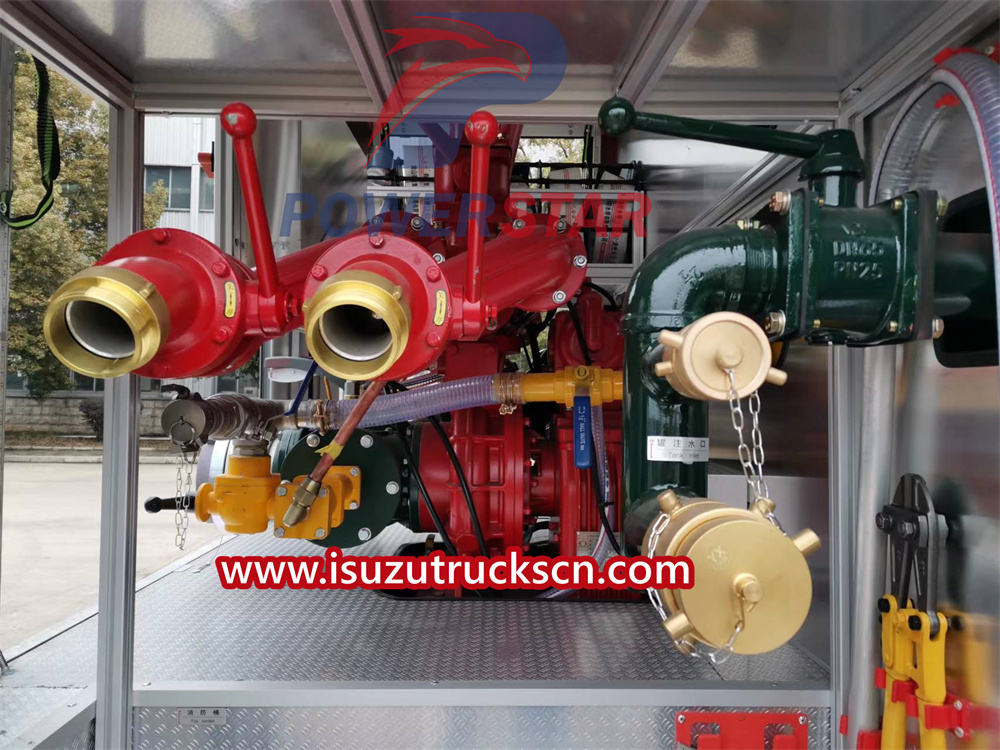

Isuzu fire truck equipment

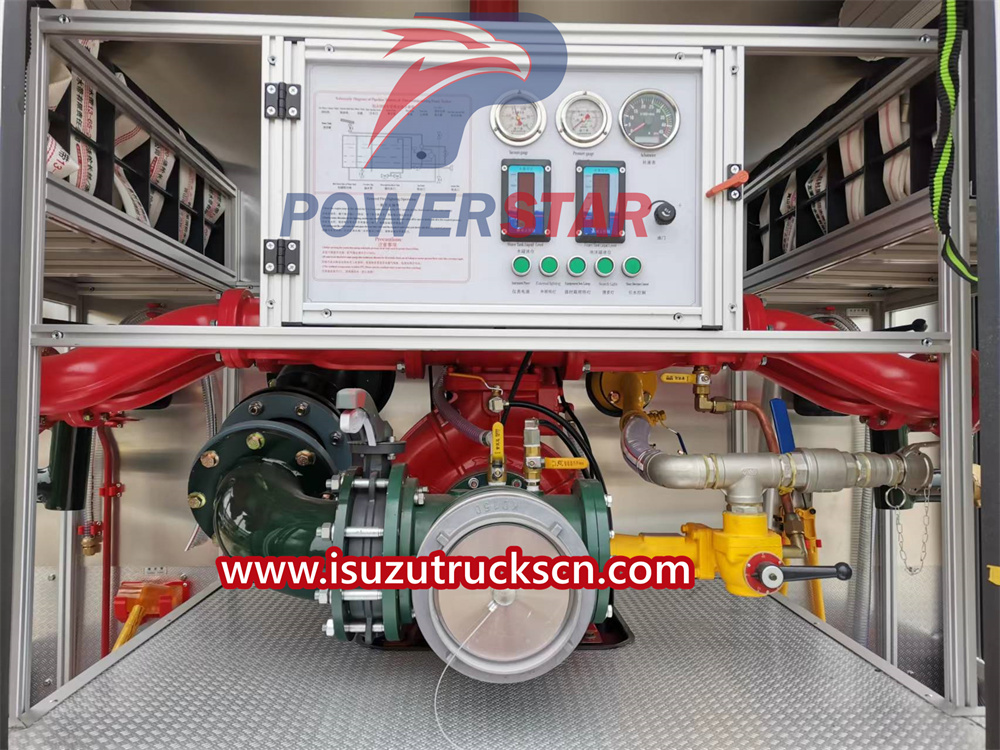

Isuzu fire truck operation box

Isuzu fire truck water injection port
