Isuzu fire truck

Isuzu fire truck is also called Isuzu fire extinguisher and Isuzu fire rescue truck，Isuzu fire engine,Isuzu fire tender; it assumes the responsibility of fire fighting and rescue in people's daily life, and provides safety guarantee.

An Isuzu fire truck is composed of various parts, among which fire-fighting equipment is a must. The completeness of the equipment directly affects the rescue effect. So what equipment does the Isuzu fire truck have?

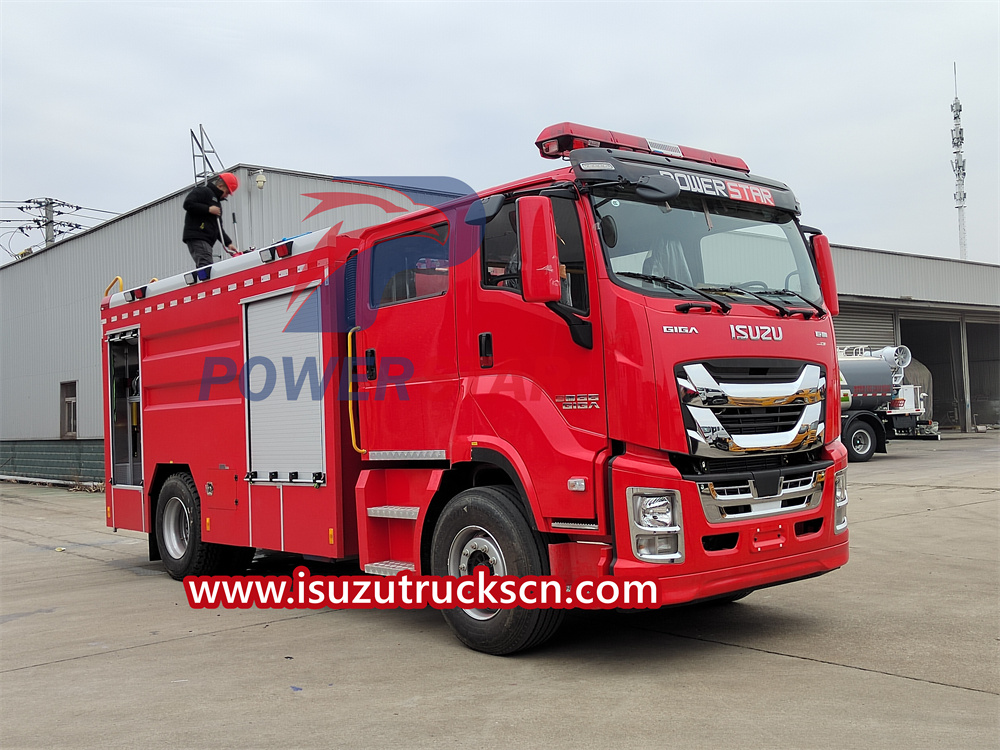

Our Isuzu fire truck is testing the water in our factory

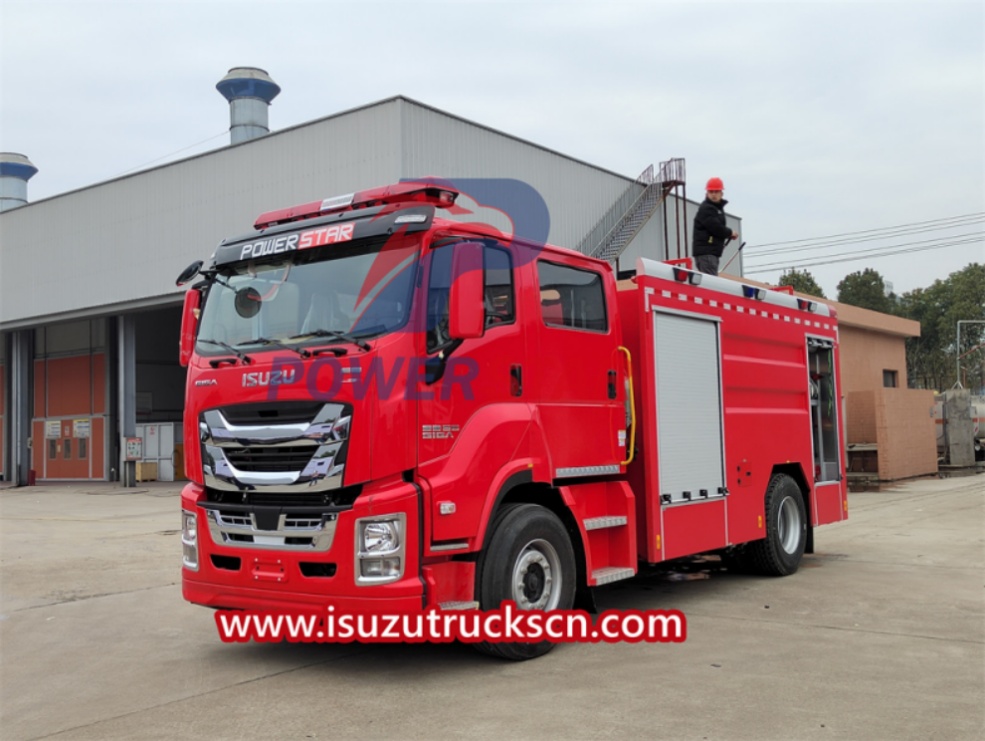

Isuzu 4x2 fire truck for export.

Isuzu fire truck in our plant.

The equipment of the Isuzu fire truck mainly includes: foam water combined fire cannon, DC switch water gun, Air-foam fire gun, Water suction pipe, fire hose, water filter, Two-way distributor, Siamese, Hose adapter, Hose blanket, hose bridge, Hose hanger, Ground hydrant spanner, Underground hydrant spanner, Suction pipe spanner, dry powder fire extinguisher, Fire scissors, fire axe, shovel, Fire Iron collar,  Hammer pick, fire blanket,  Hammer pick, Handheld wireless Radio Equipment, ladder, Full fire suit.

Foam water combined fire monitor: Foam water combined fire monitor can choose to use water or foam for fire extinguishing operations. Foam is often used to extinguish liquid fires and has better coverage and fire extinguishing effects than water.

DC switch water gun: It consists of a nozzle, a gun barrel, a pipe tooth interface, and a switch. It is used to spray dense water flow and is suitable for fighting outdoor fires. It is characterized by its long range and large flow rate. Compared with the DC water cannon, the water cannon has a switch that can be turned on and off at any time and can control the size of the water flow. Therefore, the switch DC water cannon is more suitable for fighting high, distant and indoor fires.

Air-foam fire gun: The foam gun is a portable fire-fighting equipment. It can be connected with the pipe tooth interface and the fire hose interface. It mixes with the foam liquid through fire-fighting pressure and inhales air to generate air foam for extinguishing oil fires and general solid material fires.

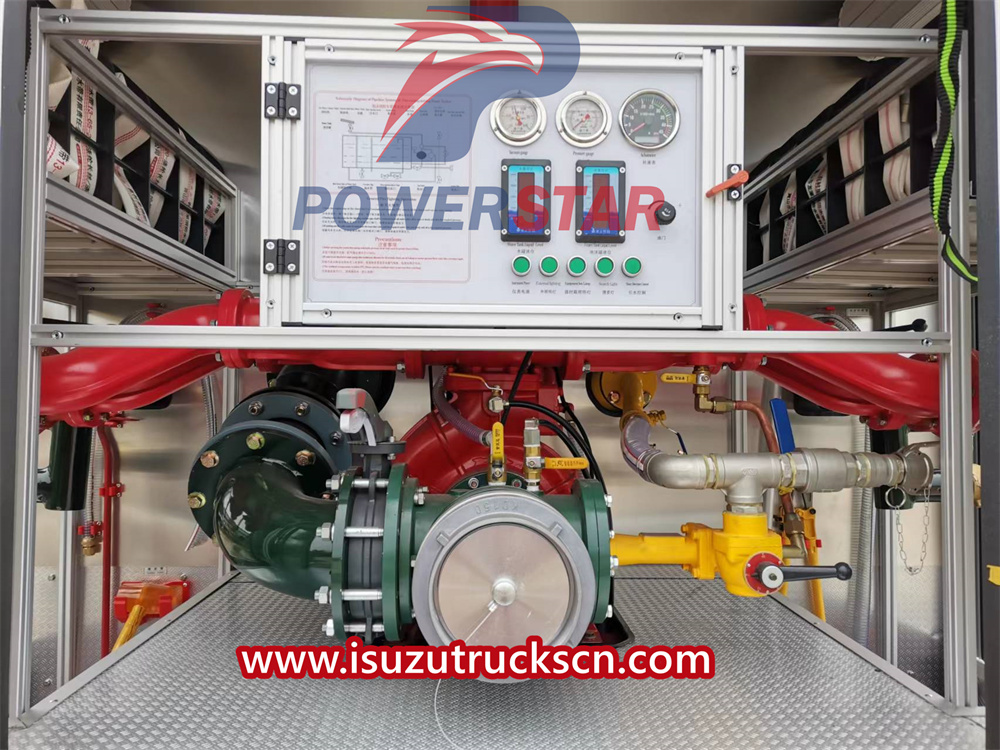

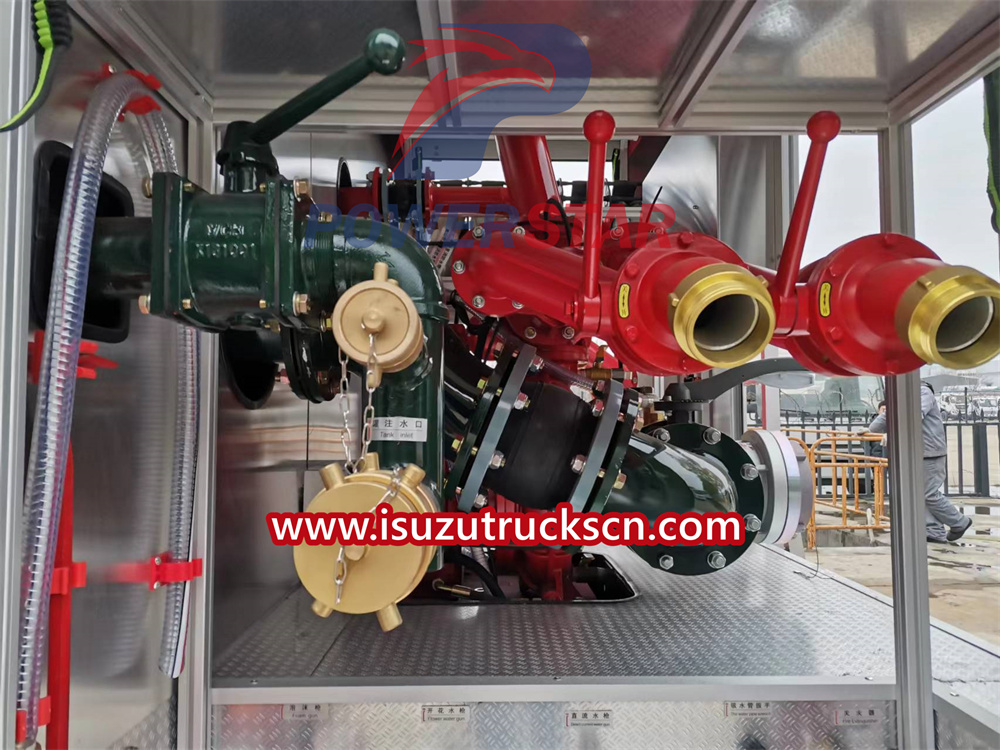

Isuzu fire truck operating plate

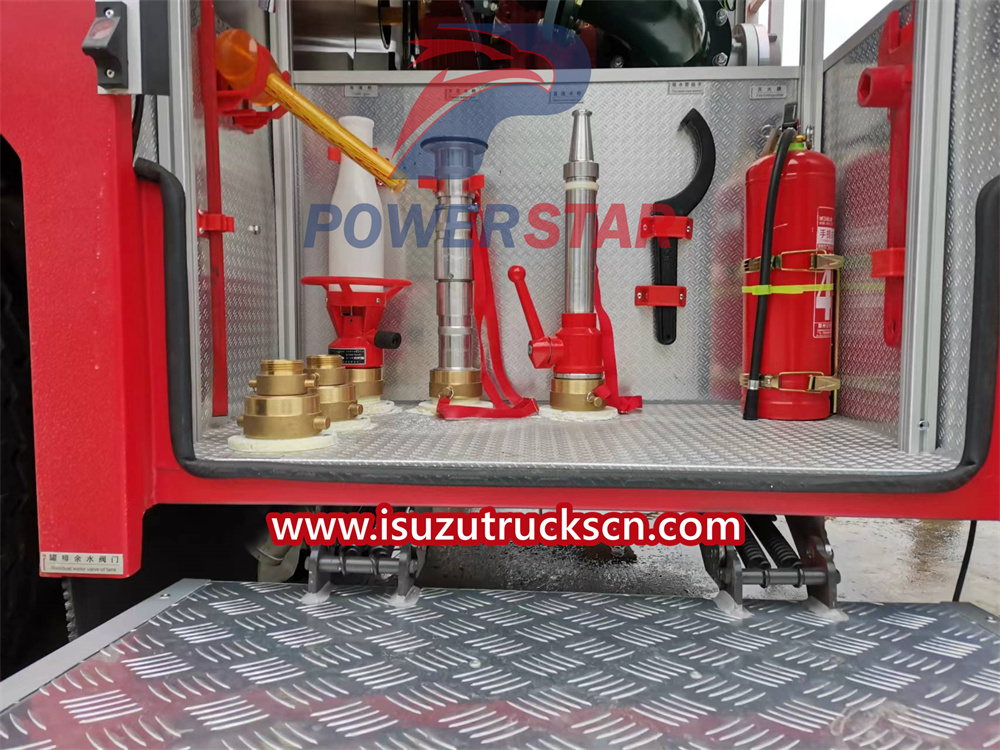

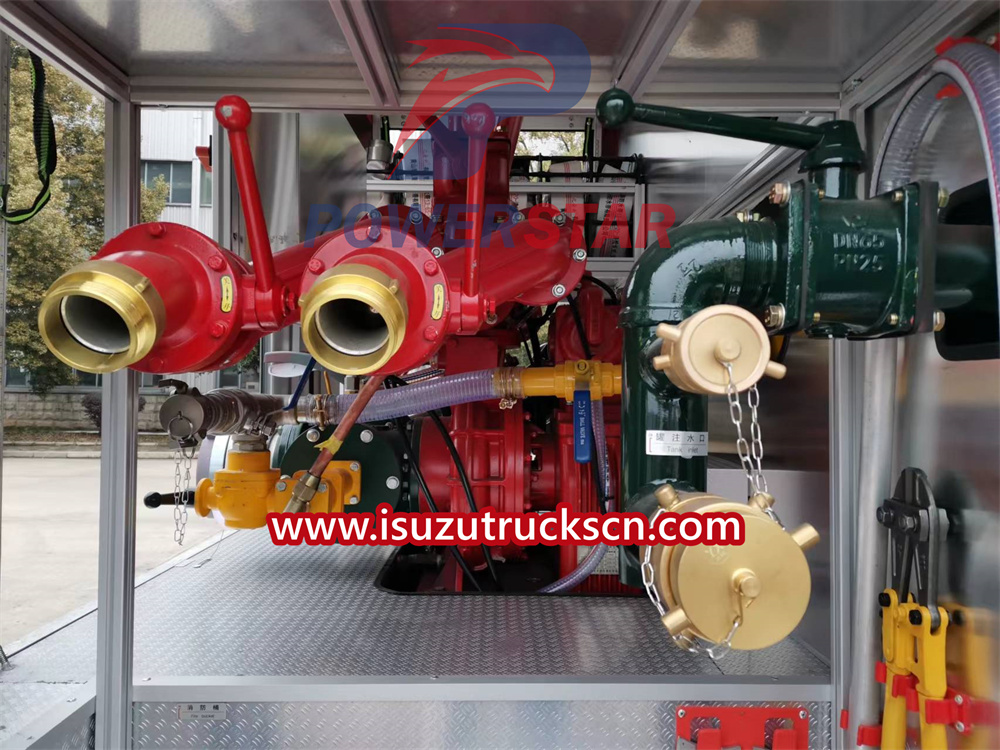

Isuzu fire truck equipment

Water suction pipe: The suction pipe in the Isuzu fire truck is mainly used to connect the water inlet of the water pump and the fire hydrant to draw water, and can withstand negative pressure. The water suction pipe is generally composed of a rubber layer, a cloth layer and a spiral reinforced steel wire. Three of them are placed on the pedals on both sides of the fire truck. There are different types and specifications of suction pipes on fire trucks. Choose the appropriate type and specification of suction pipes according to your needs.

Fire hose: Fire hose is mainly used to transport water to the fire scene and is an important equipment to protect fire trucks from floods.

Water filter: It can prevent the water pump and water inlet pipe from being blocked by weeds and sludge. It consists of a filter screen, a one-way valve and other components. It consists of a filter screen, a one-way valve and other components. When the water pump sucks water into the suction pipe, if the water pump stops running, there is no need to vacuum. Therefore, installing a water filter in a fire truck can effectively ensure the smooth flow of the water supply pipeline of the Isuzu fire truck.

Two-way distributor: It is a device that divides the water pressure in the fire water source entering the building into three channels. Its main function is to supply water sources to multiple fire-fighting equipment at the same time, such as fire hydrants, fire extinguishers, etc., to improve the utilization efficiency of fire-fighting water sources.

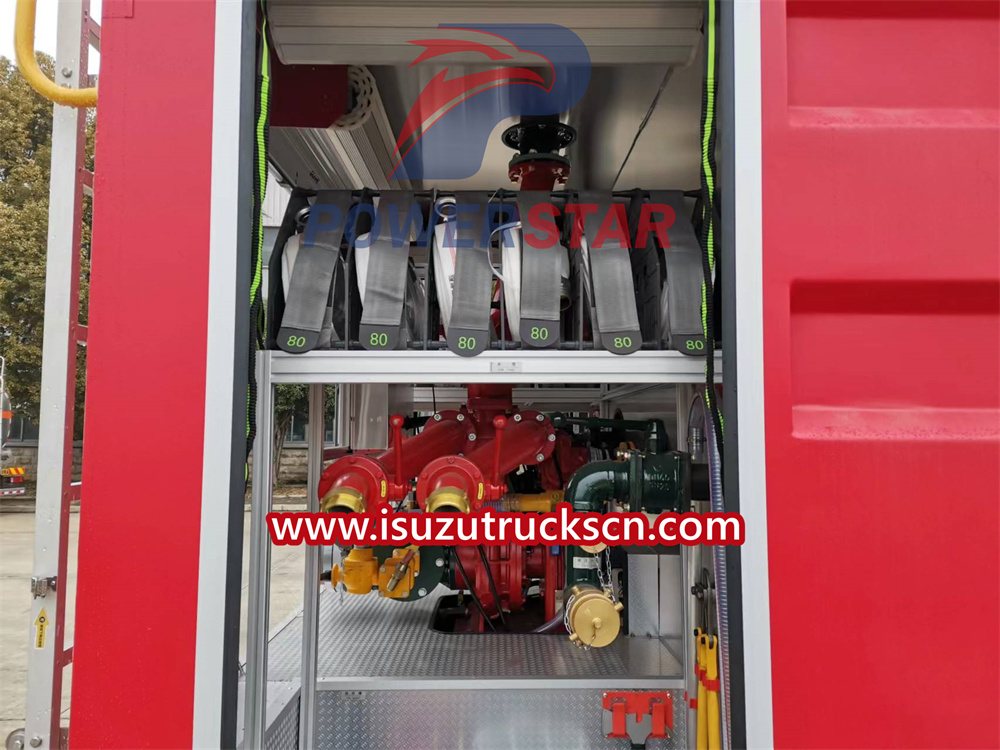

Isuzu fire truck equipment

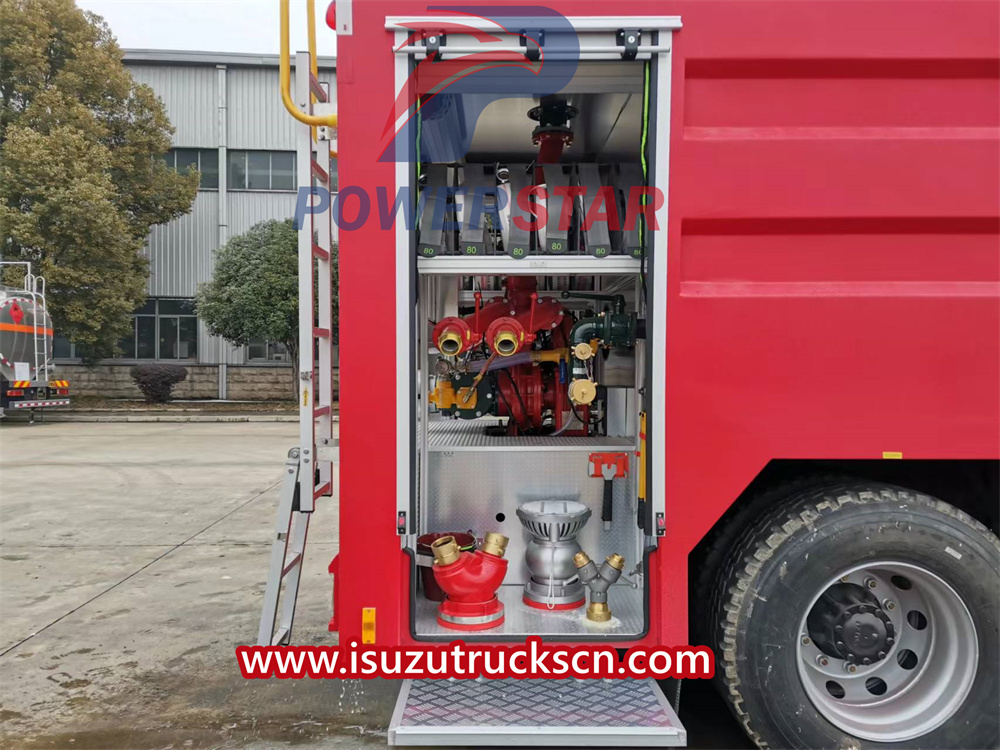

Isuzu fire truck water injection port

Siamese: The Siamese is a piece of equipment in a fire truck. Its function is to collect water and control the flow of water. The water collector usually consists of a water inlet and a water outlet. The diameter of the water inlet is generally Ф65mm and there is one water outlet. The function of the water collector is to automatically close when the water belt bursts. It is mainly used for fire trucks to relay water and to obtain water from fire hydrants. When in use, first install the water collector on the water inlet of the water pump, then connect one end of the water collector to the water collector, the other end to the second water outlet, one after another in series, and the two ends of the last water collector Each opening is connected with a water hose to the water outlet of the fire hydrant with a diameter of Ф65mm. Water is taken from the fire hydrant and supplied forward under pressure through the water pumps of each Isuzu fire truck.

Hose adapter: used to connect fire hoses or water guns of different calibers on the vehicle.

Hose blanket：used to wrap the leaks of fire hoses. It is one of the accessories on the fire truck. It consists of canvas straps, metal clamps and other parts.

Hose hanger：It is a tool for hanging fire hoses. During firefighting, when laying hoses vertically to high places, the hose hooks can be used to hang the hoses on ladders or other objects, which can not only reduce the falling force of the hoses, but also It is convenient for the water gunner to control the water gun to shoot water to extinguish the fire. The water hose hook is composed of canvas strap, metal hook and half ring.

Hose bridge：a device used to protect water hoses when laying across traffic arteries without affecting the normal movement of vehicles. It has the characteristics of high strength, pressure resistance and durability, and is easy to pack up.

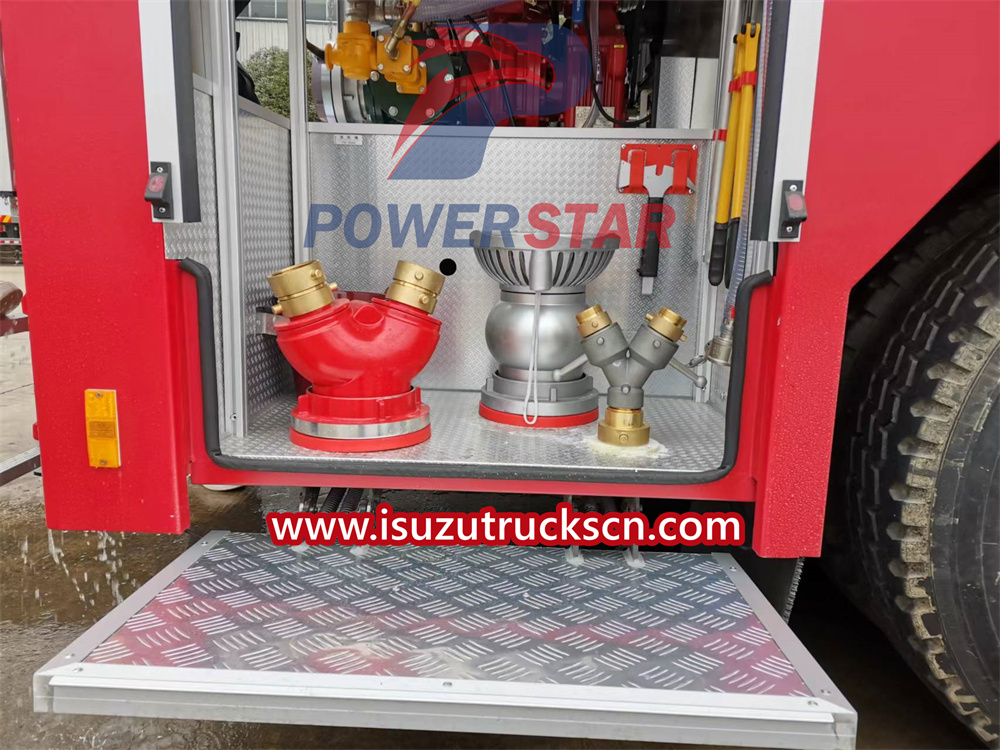

Isuzu fire truck water filter,Two-way distributor,Siamese,Fire axe

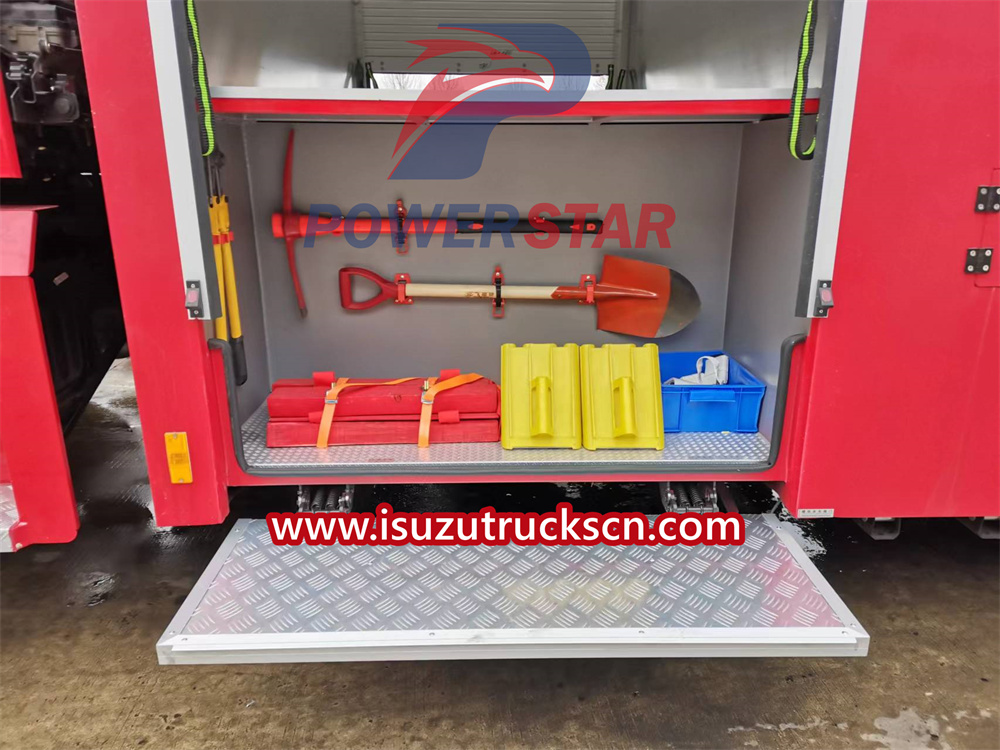

Isuzu fire truck Hose bridge,Hose hanger,Hose blanket,Hammer pick,Shovel,etc.

hydrant spanner：It is a tool specially used to open fire hydrants. It is usually made of metal and has a cross-shaped appearance. The fire hydrant wrench is a very important type of fire-fighting equipment. It can easily open the fire hydrant and obtain water from it, providing necessary conditions for fire extinguishing and rescue.

Dry powder fire extinguisher: It uses carbon dioxide gas or nitrogen gas as power to spray dry powder in the cylinder to extinguish fires. It can extinguish general fires, and can also extinguish fires caused by burning oil, gas, etc.

Isuzu fire truck water injection port

Isuzu fire truck fire extinguisher, suction pipe wrench,etc.

The completeness of the above equipment directly affects the effectiveness and safety of rescue, so it needs to be inspected and maintained regularly to ensure its good performance.
