Isuzu fire truck

During a fire, time is of the essence. Isuzu fire tender is the main equipment of the fire brigade, and its importance is self-evident. Its purpose is to safely and quickly transport fire-fighting officers, fire-extinguishing agents, equipment and equipment to the fire scene to rescue people and put out fires. The correct use and reasonable operation of the Isuzu fire tender are of great significance to quickly completing the fire extinguishing battle and extending the service life of the Isuzu fire tender.

To use an Isuzu fire truck correctly, the following steps and considerations should be taken into account:

1.Training and Familiarization: Personnel responsible for operating Isuzu fire truck should receive comprehensive training directly from Isuzu or authorized service centers to understand the unique features and functionalities of the vehicles.

2.Understanding the Equipment: Isuzu fire truck are equipped with advanced fire-fighting equipment, including fire pumps, fire monitors for water foam jetting, and full fire rescue equipment on the truck, such as fire-fighting hose reels, water spraying fire guns, fire extinguishers, safety breathing apparatuses, aluminum ladders, rescue axes, and hydraulic scissors. It is essential to be familiar with the operation of this equipment.

3.Environmental Performance: Isuzu fire truck are designed with high speed, complete equipment, and high flexibility to ensure they can arrive at the fire scene in time. They usually have high maneuverability and driving speed.

4.Maintenance and Care: Effective maintenance of Isuzu fire truck requires a strong partnership between fire departments and the manufacturer. This includes regular maintenance, spare parts availability, and ensuring that the vehicles are operating at their best.

Isuzu fire truck and fire pump operating instructions:

1. Preparation before operation of Isuzu fire truck

1). Check the lubricating oil level in the bearing box and diversion pump. If insufficient, replenish it. ​

2). Close all drain cocks and valves.

2. Fire trucks divert and inject water

1). When using water from the pond, remove the suction pipe, connect one end to the pump suction port, connect the other end to the water filter and put it into the pond. Close the rear water inlet butterfly valve, open the water diversion valve, and then supply water to the water. Fill the tank with water.

2). When using water from the fire hydrant, use a water hose to connect the fire hydrant to the water injection interface outside the water tank, and the water is directly injected into the water tank.

3. Isuzu fire engine comes out of water

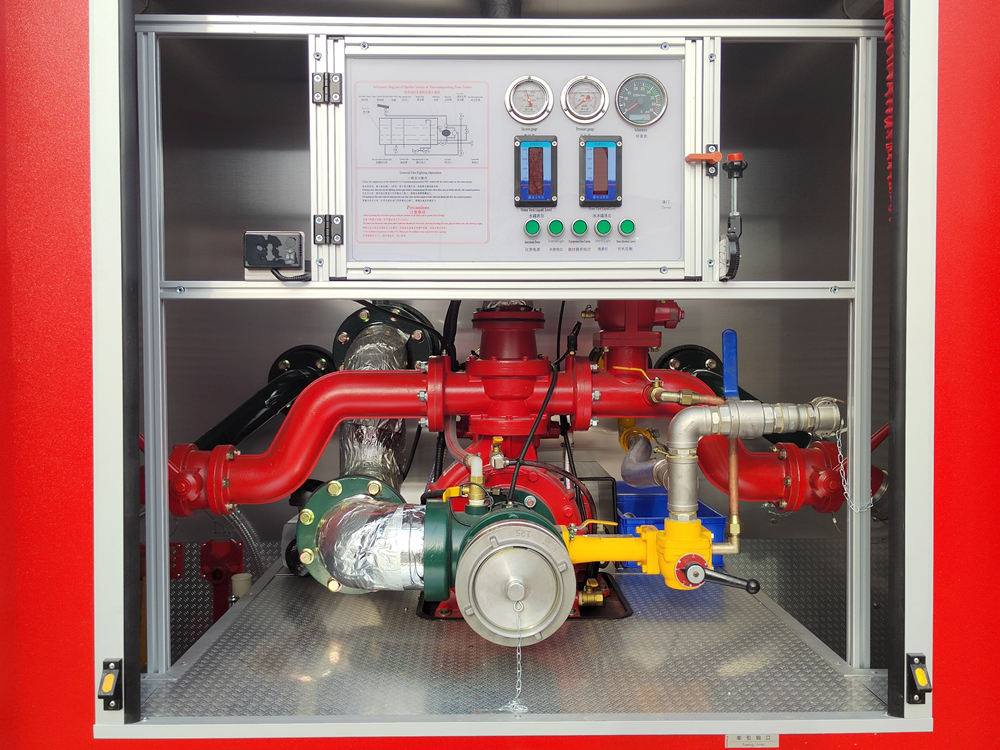

When the Isuzu fire engine uses water in the water tank, open the rear water inlet butterfly valve, start the fire pump, and perform the following operations:

1）. Low-pressure water outlet: After the fire pump is working, open the low-pressure water outlet ball valve to achieve low-pressure water outlet.

2）. When the cannon discharges water at low pressure, close the low-pressure water outlet ball valve and open the cannon ball valve to achieve water discharge from the cannon to extinguish the fire.

4. Precautions for Isuzu fire engine

1）. After using the Isuzu fire tender water pump, open all the residual water drain switches on the pump to drain the remaining water in the pump. After the remaining water is drained, close all switches to facilitate anti-freezing and next use.

2）. After the water pump has been used in seawater, sewage, corrosive water flow and foam mixture, it should be run with clean water for more than 1 minute to clean out the residual liquid in the pump.

3）. Regularly check the lubrication condition in the bearing. If it is lower than the oil level, make up for it.

4）. After using the fire pump of the fire truck in winter, run the piston pump several times to drain the remaining water in the piston pump to prevent formation of fire.

5）.The water pump is strictly prohibited from idling without water for a long time (more than 1 minute)
