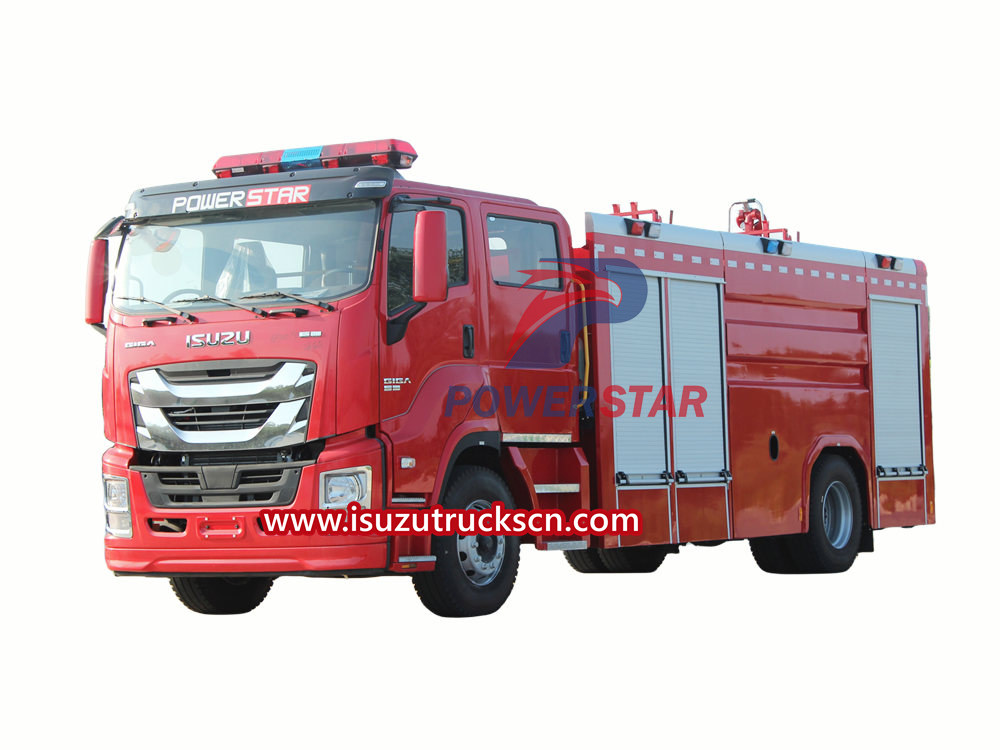

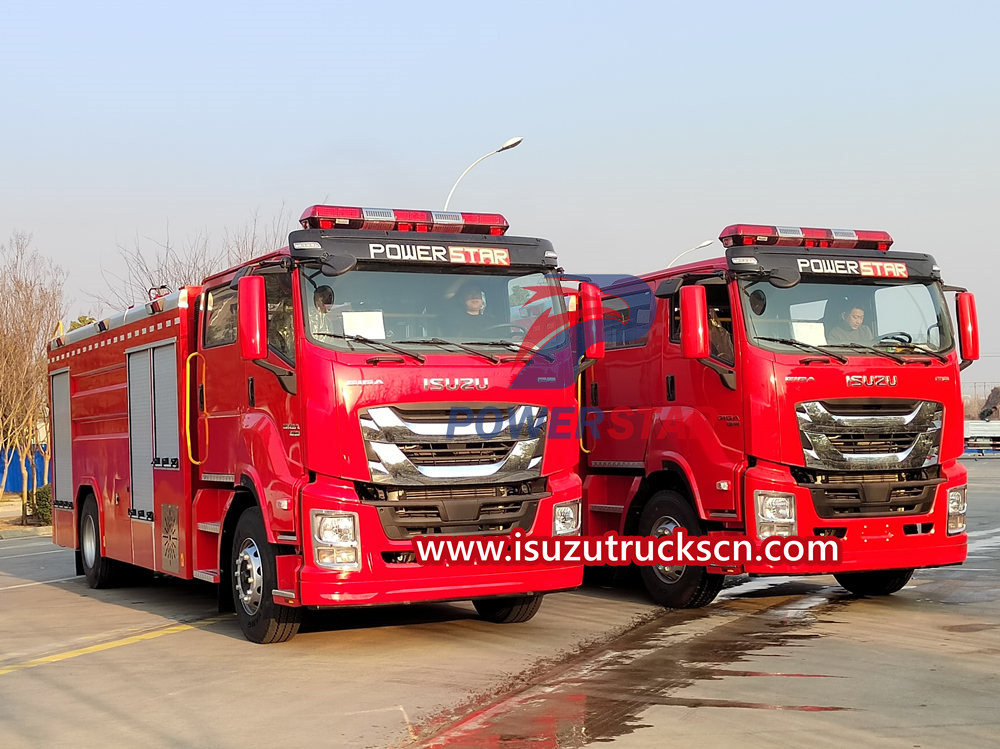

Isuzu fire truck

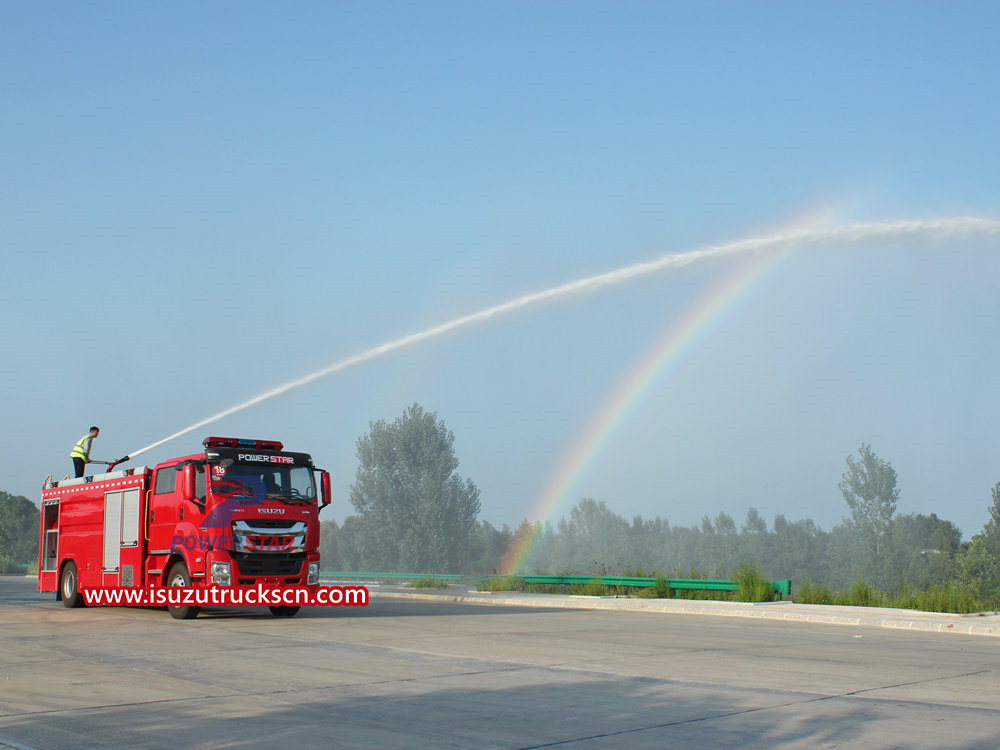

Isuzu fire truck is an important safety equipment in the city. It can quickly arrive at the scene and take effective measures to provide disaster relief. Isuzu fire truck are equipped with various fire cannon features, including long-range fire cannons with a range of over 65m, and adjustable pressure control up to 1.0Mpa, providing versatility in firefighting tactics.

Additionally, the Isuzu fire trucks are mounted with advanced fire-fighting equipment, such as fire pumps and fire monitors for water foam jetting, enhancing their firefighting capacity in challenging environments. The Isuzu fire trucks are designed primarily for fire-fighting operations, and they are equipped with reliable and powerful fire cannon systems to efficiently extinguish fires and prevent fire spread.

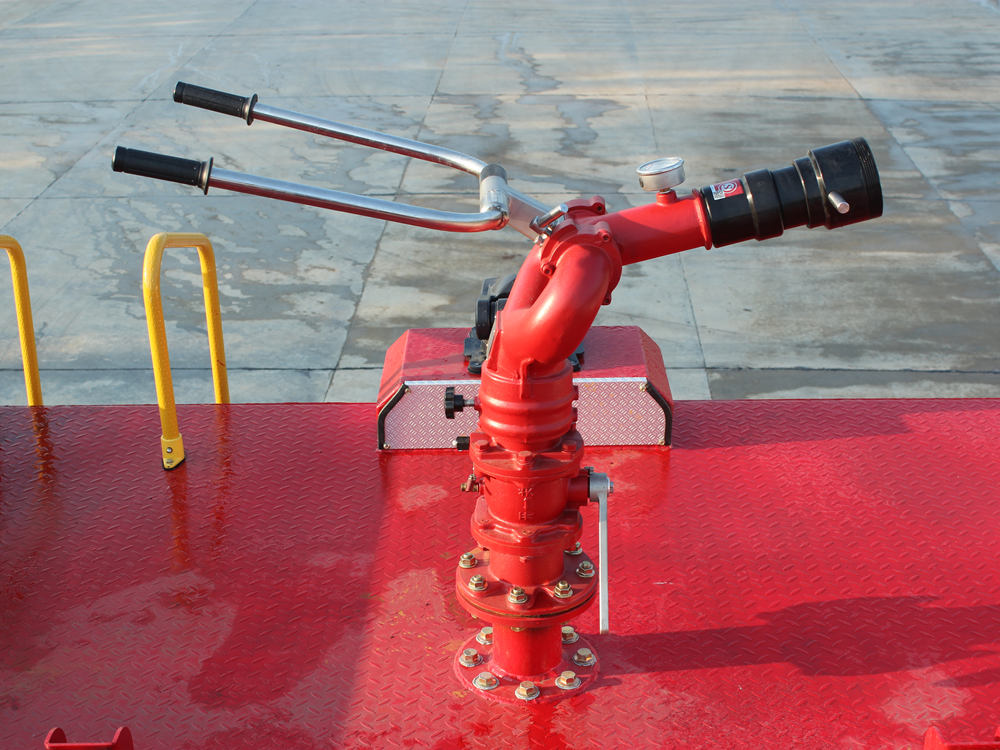

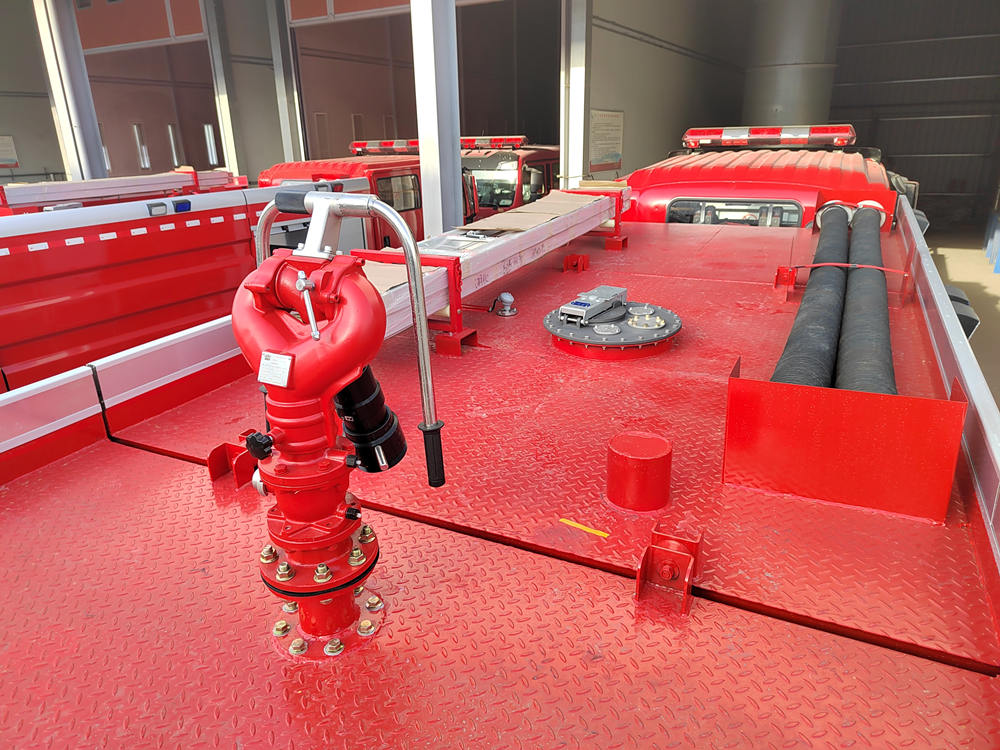

The fire cannon is a device used to spray water jets on the Isuzu fire truck. Its main structures include water tanks, water pumps, valves and nozzles. The water pump draws water from the water tank and transports it through the pipe to the nozzle of the fire monitor to form a high-pressure water column to extinguish the fire. The main features of fire monitors are their long spray distance, large hydraulic power, and adjustable angle and flow rate.

The following is an introduction to several commonly used fire cannons:

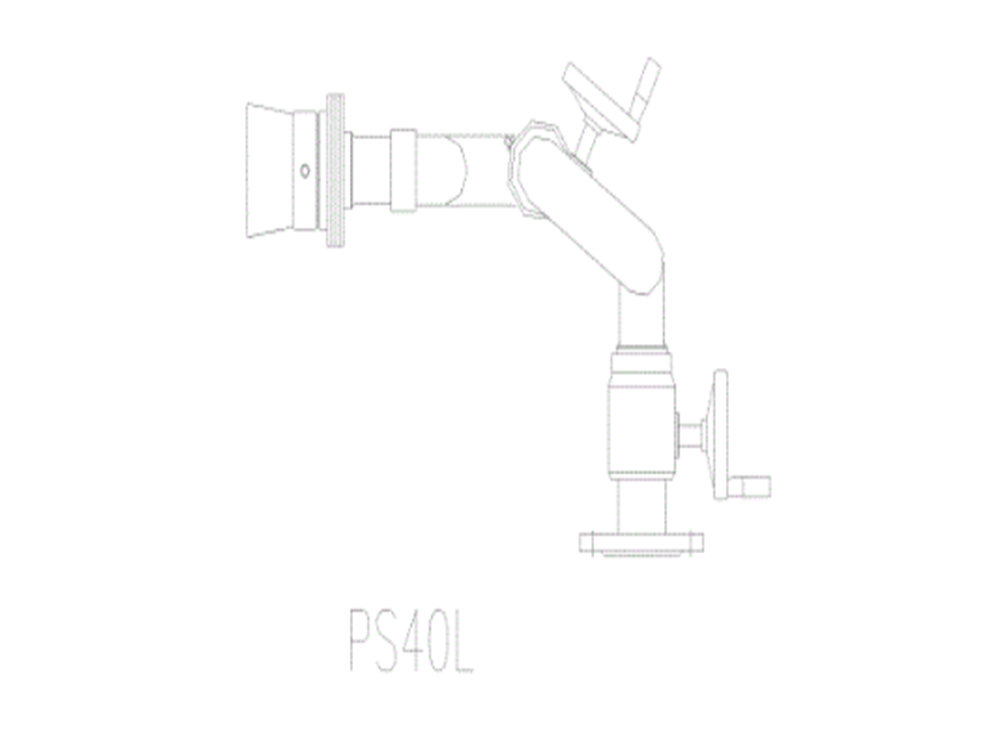

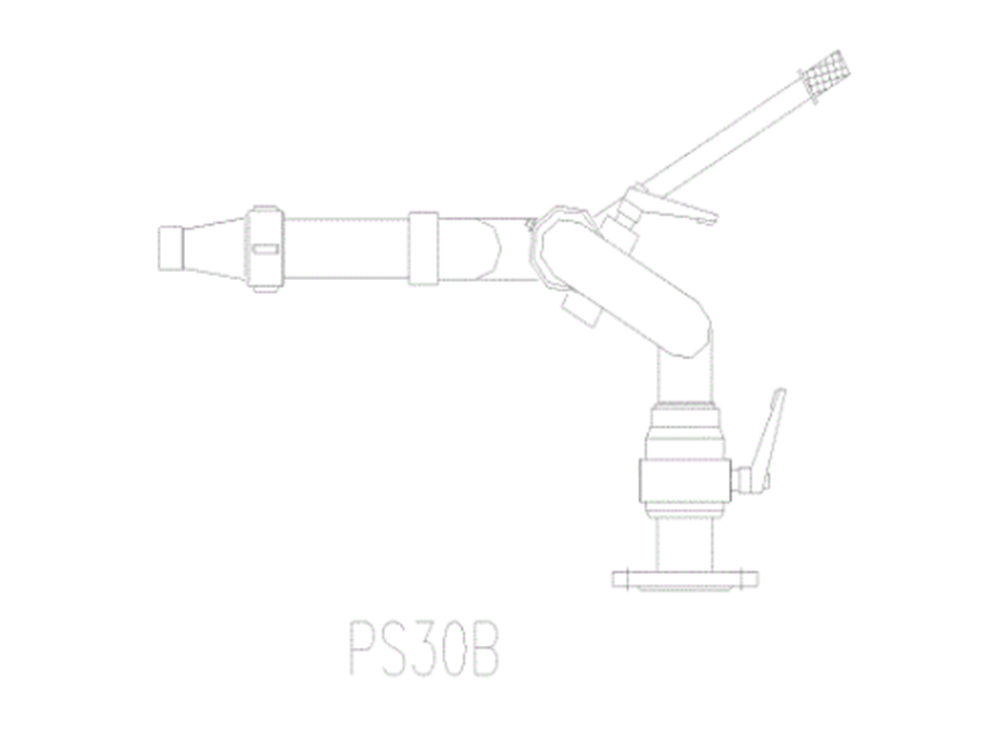

1.PS type fixed fire water cannon:

1). Many varieties and wide selection range.

2). Able to achieve positioning and locking.

3). When using a cylindrical/mist nozzle, the spray mode can be adjusted to direct current and mist.

4). The rotating device adopts international advanced technology, with reliable operation, flexible rotation, simple appearance and elegant appearance.

5).Maximum working pressure 1.6MPa.

6). It can be installed on various fire trucks, fire boats, ships, fixed turrets, etc., and is used to fight fires in oil irrigation areas, oil depots, petrochemical equipment, docks, airports, large space buildings and other places.

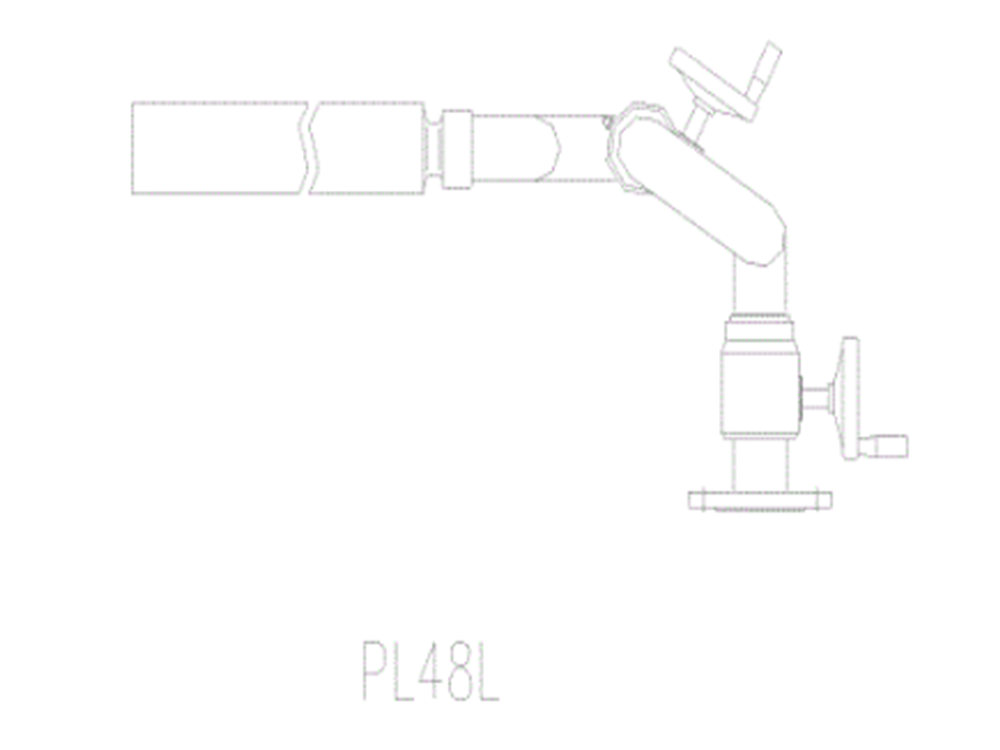

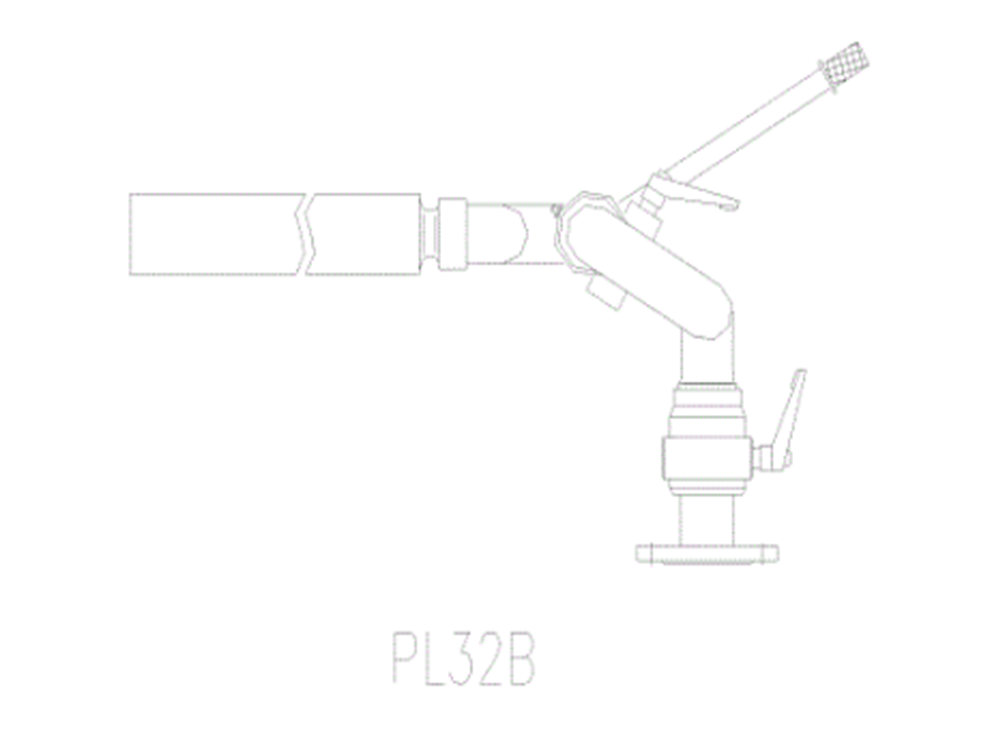

2.PL type fixed fire dual-purpose cannon:

1). It can spray two media: water and foam mixture, with many varieties and a wide selection range.

2). There are two control modes to choose from: handle type and hand wheel type. It can rotate at large angles in horizontal and vertical directions. Positioning and locking can be achieved through the lock pin.

3). The rotating device adopts international advanced technology, with reliable operation, flexible rotation, simple appearance and elegant appearance.

4).Maximum working pressure 1.6MPa.

5). Can be used to fight general solid fires and oil fires.

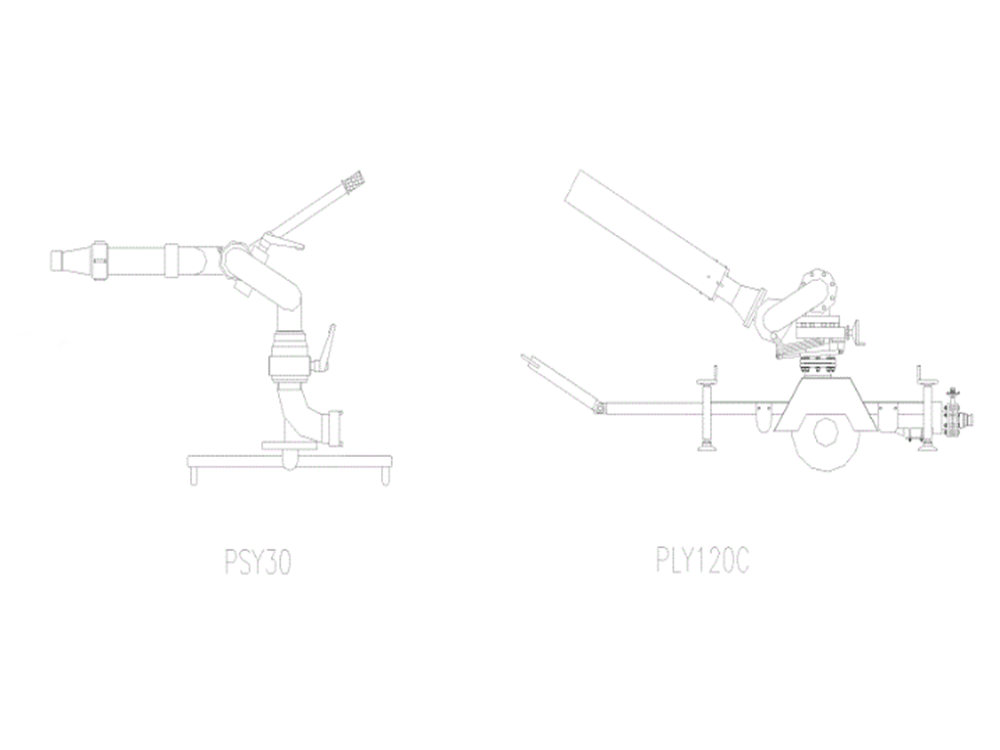

3.PSY, PLY type mobile fire monitors:

1). It has strong maneuverability and can overcome various terrain obstacles and quickly reach the fire scene.

2). If the rated flow rate is small, the elbow quick interface is used to realize mobile fire extinguishing, and for the rated flow rate is large, a trailer is used to realize mobile fire extinguishing.

3). It can rotate at large angles in horizontal and vertical directions, and can achieve positioning and locking through the lock pin.

4). The rotating device adopts international advanced technology, with reliable operation, flexible rotation, simple appearance and elegant appearance.

5).Maximum working pressure 1.6MPa.

With the development of technology, some Isuzu fire trucks have more functions in addition to long spray distance, large hydraulic power, adjustable angle and flow rate. For example, some fire monitors can spray different types of fire extinguishing agents, such as foam or dry powder, which can effectively control the fire in various fire situations and protect the safety of people and property.
