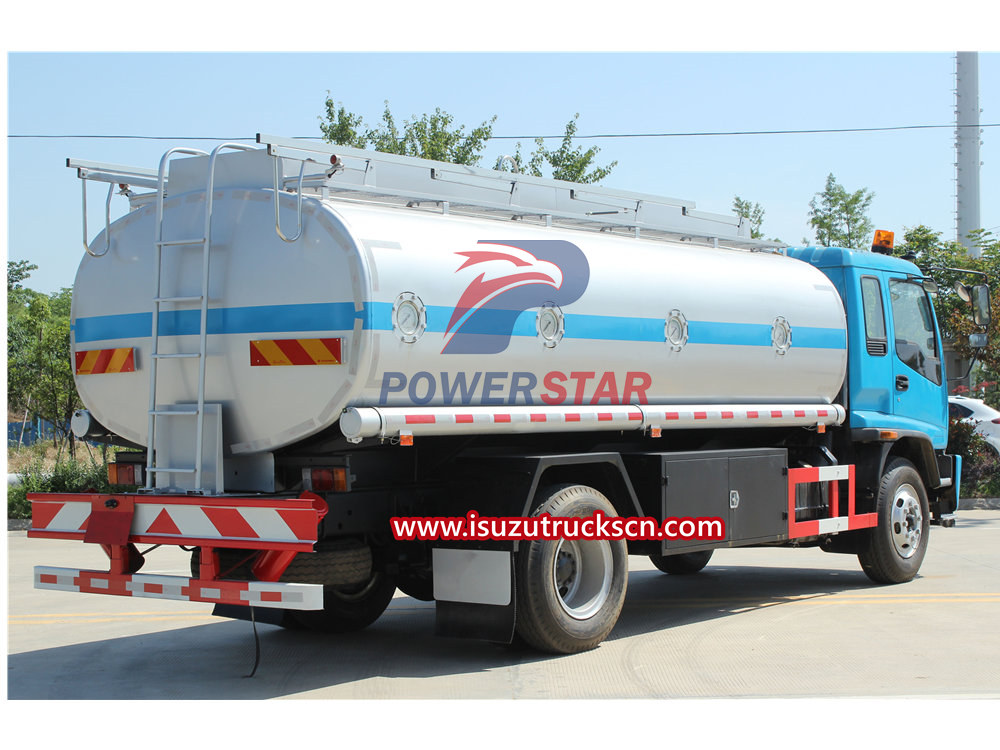

Isuzu fuel truck

The basic structure of Isuzu oil tanker trucks mainly consists of the body and the oil tank, both of which are important structural parts. The body is the main body of Isuzu oil tanker trucks. It has the ability to resist impact and durability. Its main components are the chassis, frame and engine. It may also have suspension and shock absorbers, as well as connectors used to connect the oil tank to the body and accessories.

An oil tank is a container that holds liquid or gas. It has the characteristics of pressure resistance, corrosion resistance, heat resistance and impact resistance. Generally, oil tanks are composed of multiple cylinders, each of which is welded by thick-walled steel plates. Each oil tank also has inlets and outlets and related relief, air extraction, heating and other devices to facilitate the flow, circulation and storage of liquid or gas.

The power source of Isuzu tank lorry truck is usually a diesel engine, which can generate enough power to drive the tank. The diesel engine transmits power to the wheels through the gearbox, allowing the tank lorry truck to drive on the road. Its safety is also very important, and its safety requires great caution in selection and use. The safety of Isuzu tank lorry truck is based on its structure, driving safety, maintenance and other aspects to ensure safety.

Isuzu diesel bowser safety operating procedures：

1. The fuel transfer tank should be equipped with a special fire extinguisher, and should be equipped with a towing iron chain and a lightning protection pole. When driving, the towing subway chain should be in contact with the ground; when refueling or draining oil, the lightning protection pole must be inserted into the wet ground. ​

2. When parking, keep away from fire sources and choose a cool place to park in hot seasons. During thunderstorms, do not park under large trees or high-voltage lines. When parking during driving, there should be dedicated personnel to supervise the vehicle. ​

3. During the maintenance process, if operators need to enter the oil tank, they are strictly prohibited from carrying fire, and must have reliable safety protection measures, and there must be a dedicated person monitoring outside the tank.

4. When the oil tank settling tank is frozen, it is strictly forbidden to bake it with fire. It can be melted with hot water or steam, or the car can be thawed in a greenhouse.

5. When performing maintenance and inspection under the car, the internal combustion engine should be turned off, the hand brake should be tightened, and the wheels should be firmly held.

6. When a vehicle needs to be tested after repair, it should be driven by a qualified person. No people or objects are allowed on the vehicle. When it needs to be tested on the road, a test license issued by the traffic management department should be attached.

7. Mobile fuel trucks should be equipped with a special storage shed, which should be kept away from fire sources, and obvious fire prohibition signs and fire-extinguishing equipment should be installed. ​

8. Refuelers are not allowed to smoke during refueling operations, and smokers are strictly prohibited from approaching the oil tank. Open flames are prohibited within 5 meters of the tank. Refueling is strictly prohibited during thunderstorms.

9. During the operation of Isuzu tank lorry truck, once diesel leakage occurs, the leakage location should be checked immediately and emergency treatment should be carried out. At the same time, clean up leaked diesel to avoid fires caused by open flames. After an emergency occurs, the diesel fuel truck should be inspected as a whole to eliminate hidden dangers before normal operations can be carried out.
