How to use Isuzu truck

The Isuzu 600P garbage compactor truck is equipped with a sophisticated PLC (Programmable Logic Controller) system to enhance its operational efficiency and reliability. The PLC system of this vehicle has been designed to ensure a fault tolerance rate that does not exceed 80%.

The PLC system in the Isuzu 600P garbage compactor truck primarily controls and manages the various functions and operations of the vehicle. It serves as the brain of the truck and allows for seamless communication and coordination between different components and systems.

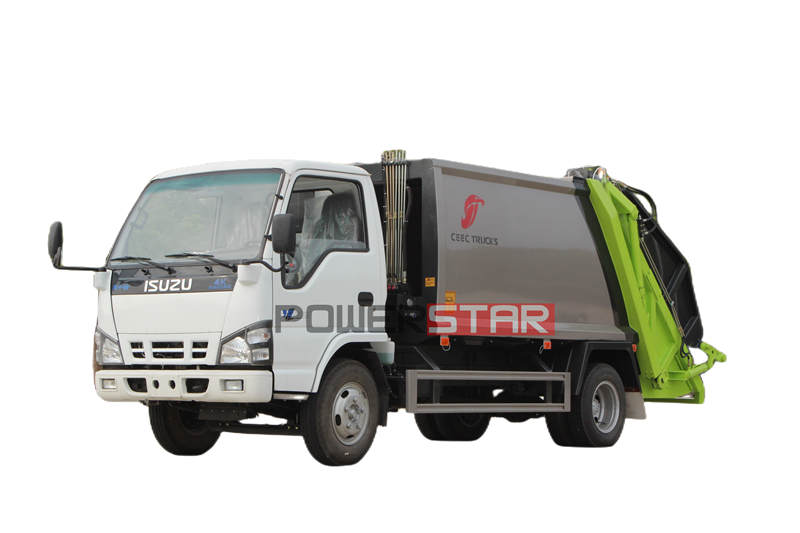

Isuzu 600P cabin garbage compactor truck with 5,000 liters upper body.

Through the PLC system, the operator can easily monitor and control important parameters such as waste compaction, hydraulic system, engine performance, and safety features. The system is equipped with different sensors and detectors that continuously monitor variables such as pressure, temperature, and load capacity to optimize the compaction process.

Furthermore, the PLC system provides real-time data and feedback to the operator, allowing for quick identification of any potential issues or abnormalities. It also offers automated safety features, such as alarms and shutdown mechanisms, in case of emergencies or malfunctions.

Overall, the Isuzu 600P garbage compactor truck's PLC system plays a crucial role in ensuring efficient and reliable waste management operations. Its fault tolerance rate that does not exceed 80% demonstrates the commitment to providing a highly functional and safe garbage truck for waste management purposes.

Automatic operating system

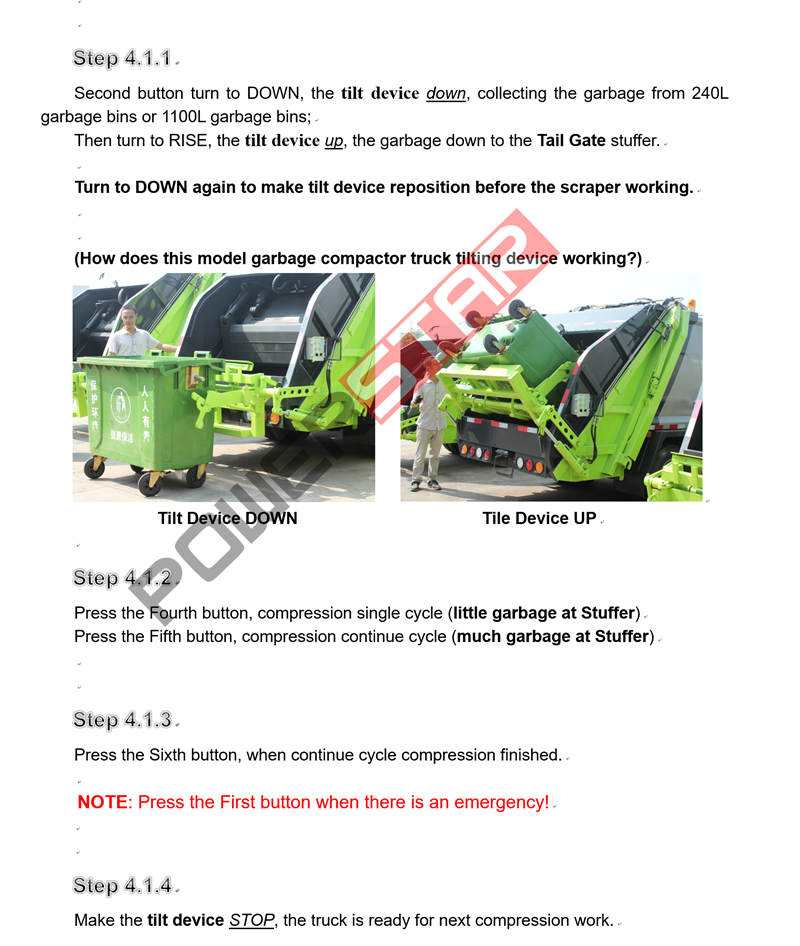

Third Button Turn to AUTOMATIC (main control box & rear control boxes)


Second button turn to DOWN, the tilt device down, collecting the garbage from 240L garbage bins or 1100L garbage bins;
Then turn to RISE, the tilt device up, the garbage down to the Tail Gate stuffer.

Turn to DOWN again to make tilt device reposition before the scraper working.


(How does this model garbage compactor truck tilting device working?)

Tilt Device DOWN                      Tile Device UP

Press the Fourth button, compression single cycle (little garbage at Stuffer)
Press the Fifth button, compression continue cycle (much garbage at Stuffer)


Step 4.1.3
Press the Sixth button, when continue cycle compression finished.

NOTE: Press the First button when there is an emergency!

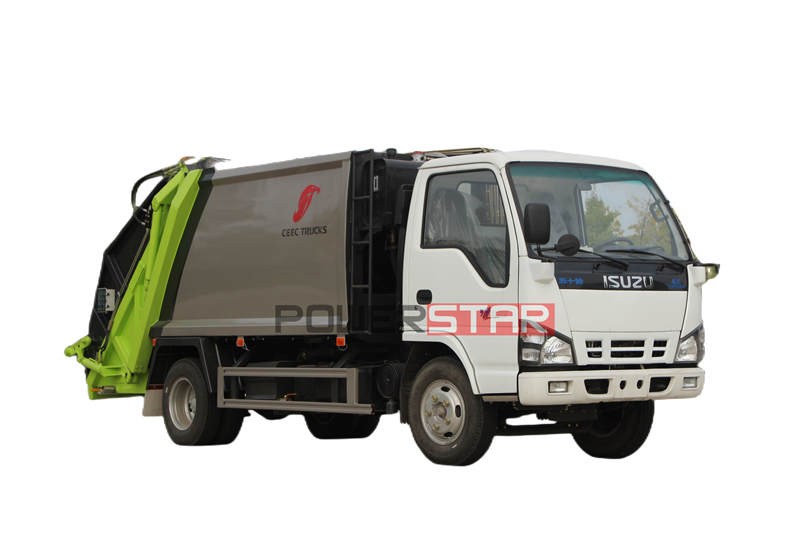

Isuzu 600P diesel engine 4HK1 garbage compactor truck

Step 4.1.4
Make the tilt device STOP, the truck is ready for next compression work.
Manual operating system

Third button turn to MANUAL (main control box & rear control box)

Step 4.2.1
Second button turn to DOWN, the tilt device down, collecting the garbage from 240L garbage bins or 1100L garbage bins;
Then turn to RISE, the tilt device up, the garbage down to the Tail Gate stuffer.

Turn to DOWN again make tilt device reposition before the scraper working.


Step 4.2.2
Press the fourth button to make slide plate down.


    Step 4.2.3
Press the First button to make the scraper closed to collect garbage.


Step 4.2.4
Press the Fifth button to make the slide plate upward


Step 4.2.5
Press the Sixth button to make the scraper open

Step 4.2.6

Operate once again to collect and compress more garbage.

（NOTE： tilt device should be Stop every time before the scraper working）


Step 5

NOTE: Only suggest to use MANUAL JOYSTICK when maintenance or emergency!

(Operation Joysticks with English version plate for operating guidance)

Control the manual joystick to work.

Great quantity isuzu garbage compactor truck for exporting.


1,2    Dumping the garbage

Step 1   Make sure no staying under tail gate.
 (Please be sure for every compression work)


Step 2   Turn the main control box to UNLOAD

Step 3   Control (Switch3 or Joystick4) to make the tail gate up. Please reposition when tail gate rises completely.

Step 4   Control (Switch4 or Joystick1) to make the push plate move out.

Step 5   Wait until all garbage discharged

Step 6   Control (Switch4 or Joystick1) to make the push plate move in until reposition.

Step 7   Control (Switch3 or Joystick4) to make the tail gate down. Please reposition all when tail gate down completely.

Step 8   Drain out all the waste water produced by compressing work.





1,3    Cleaning

The engine must flameout when arrive at cleaning field.

Step 1   Cleaning vehicle exterior.

Step 2   Control (Switch3 or Joystick4) to make the tail gate up. Then cleaning the inside body.

Step 3   Cleaning the tail gate device internal.

Step 4   Add some lubrication on spindle to keep compactor work safety and smooth.
