The Isuzu 700P fire fighting truck is a top-of-the-line vehicle designed specifically for firefighting operations. With a powerful engine and advanced technology, it provides exceptional performance, reliability, and safety.
The Isuzu 700P fire fighting truck is equipped with a robust 4-cylinder turbocharged diesel engine, ensuring high power and torque for quick response and efficient firefighting operations. Its fuel injection system helps in maintaining optimum fuel consumption, reducing operational costs, and minimizing environmental impact.
The Isuzu 700P fire truck comes with a spacious and ergonomic cabin, providing maximum comfort to the firefighting crew during long hours of operations. It is designed with multiple safety features like anti-lock braking system (ABS) and airbags to ensure the safety of the occupants.
The Isuzu firefighting capabilities of this truck are outstanding. It is equipped with a large water tank and specialized firefighting equipment like hoses, nozzles, and monitors. The powerful water pump enables a high water flow rate for effective extinguishing of fires. Additionally, it has a foam system that can create a foam solution for tackling flammable liquid fires.
To facilitate quick access to the fire scene, the Isuzu 700P fire truck has ample storage compartments for carrying firefighting tools and equipment. The truck is also equipped with powerful lighting systems and emergency sirens to alert and guide other vehicles during emergency situations.
The Isuzu 700P fire truck has undergone rigorous testing to ensure its reliability and durability. With regular maintenance and proper care, the truck has a low breakdown rate, ensuring it remains operational for longer periods. Isuzu's reputation for producing high-quality, dependable vehicles makes this fire truck an excellent choice for fire departments and rescue services.

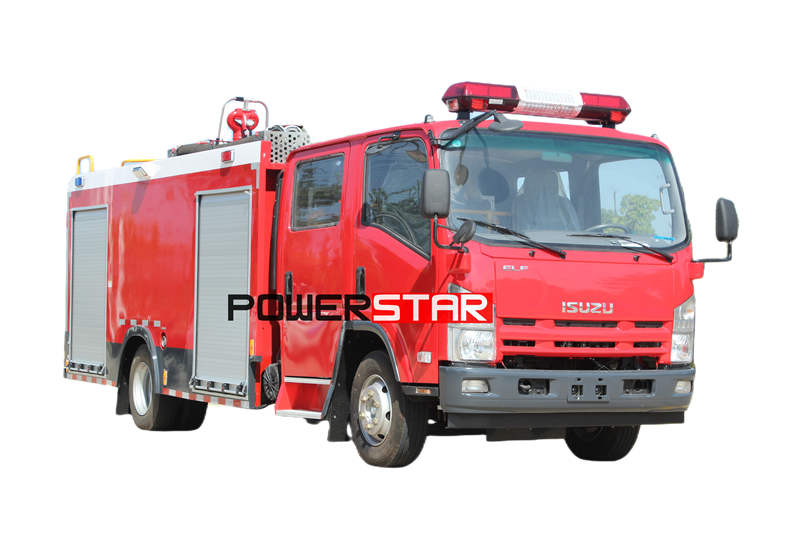

Isuzu 700P fire fighting truck for Philippine customer.

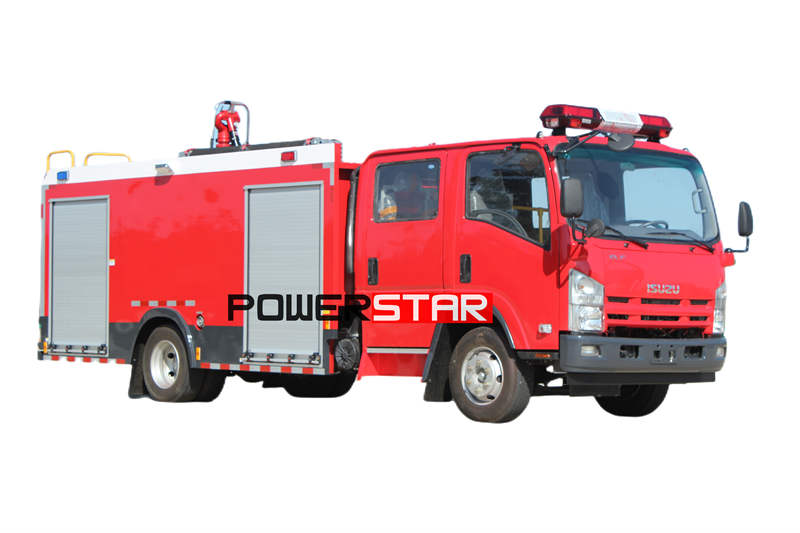

Isuzu 700P double cabin fire fighting truck with 4HK1 diesel engine
How to operate fire trucks? (Water Inlet Steps)

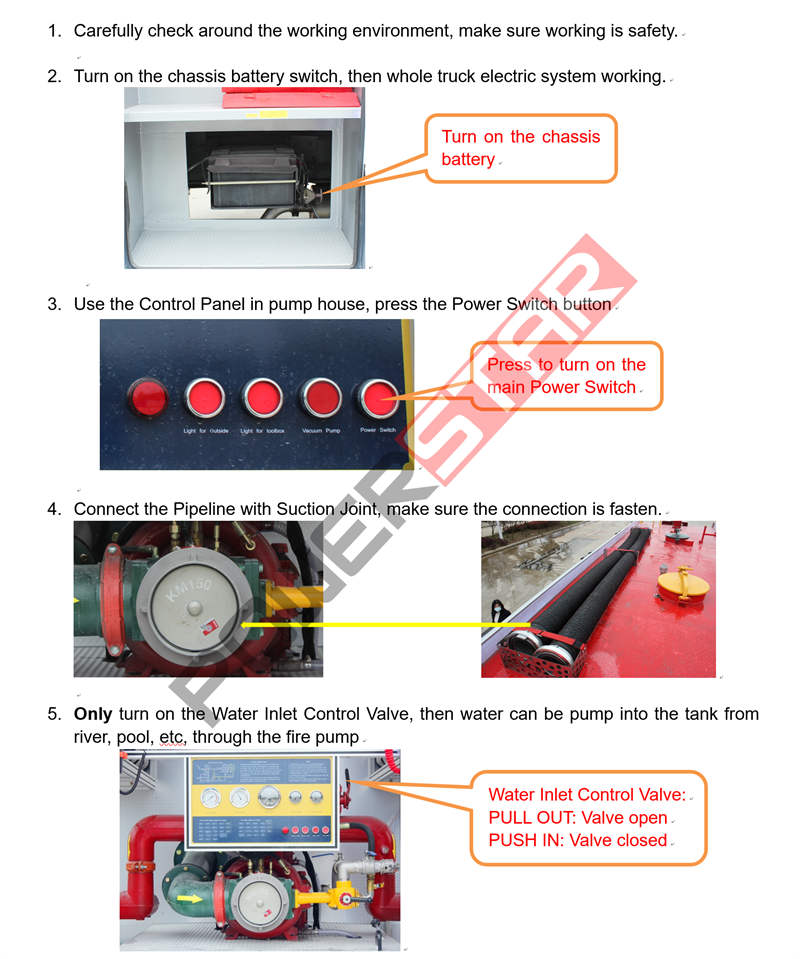

1. Carefully check around the working environment, make sure working is safety.
2. Turn on the chassis battery switch, then whole truck electric system working.
3. Use the Control Panel in pump house, press the Power Switch button
4. Connect the Pipeline with Suction Joint, make sure the connection is fasten.
5. Only turn on the Water Inlet Control Valve, then water can be pump into the tank from river, pool, etc, through the fire pump
6. Turn on the Ball Valve of Vacuum Pump, to make the pump working (Please keep it Open)
7. Turn off the Main Water Outlet Valve (Outlet Valve of Tank)
Japan isuzu 700P fire fighting truck with CB10.40 FIRE PUMP.
8. Turn off the Pump Drain Ball Valve. (This valve main used to discharge remained water from the pump)
9. Pump & PTO Recirculating Water Valve (Mainly used to cooling and Pump and PTO after keep working over 30min)

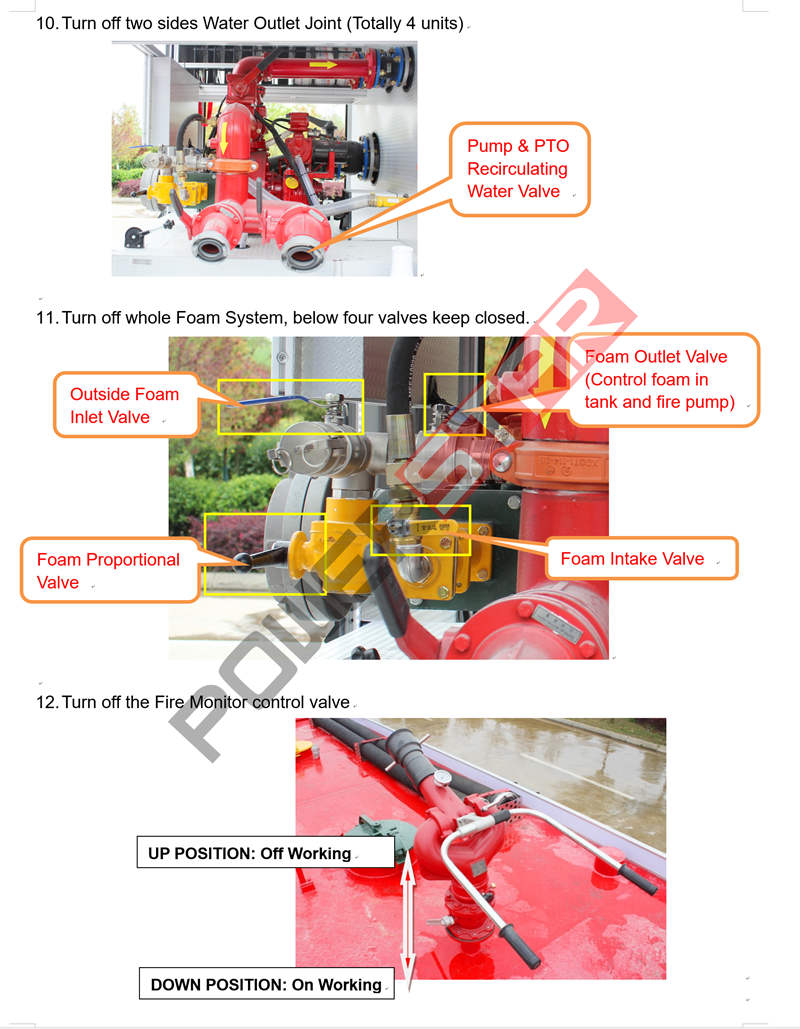

10. Turn off two sides Water Outlet Joint (Totally 4 units)
11. Turn off whole Foam System, below four valves keep closed.
12. Turn off the Fire Monitor control valve
13. Turn off Foam Tank Drain Outlet 1 and Water Tank Drain Outlet 2.
Isuzu 700P fire fighting truck with high pressure fire fighting pump.
14. Start the truck engine, make sure the truck air pressure is over 0.6Mpa, then press the Clutch pedal, pull out the PTO control rod to make PTO working, then release the Clutch pedal slowly. Then PTO and Fire Pump start working.
15. Use the Control Panel in pump house, press the Vacuum Pump button, the fire pump start working to suction water inside the tank.
16. Adjust the Accelerator Handle to keep the Rotation Meter at 2000~3000r/min, and the Vacuum Gauge at 0.02~0.04Mpa
17. When water get through Ball Valve of Vacuum Pump, means the fire pump successfully pumps water, then can press to turn off the Vacuum Pump button. The fire pump starts suction water to the tank automatically.
18. When Water Level Gauge reaches the maximum value and the tank if full of water. Press the Clutch pedal, push in the PTO control rod to make PTO not working.

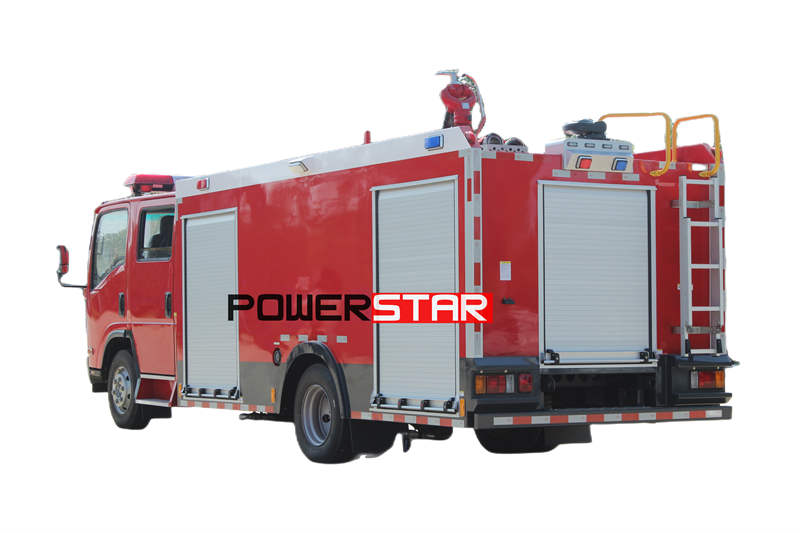

Rear view fore isuzu 700P fire fighting truck.
19. Water Pump In steps finished, stop the truck engine, and turn off the Water Inlet Control Valve, turn on the Water Drain Ball Valve to discharge all water in fire pump if need.
20. If get water from Fire Hydrant, just need to connect the Fire Hydrant with fire pipelines, then water can get into the tank under pressure of Fire Hydrant.
