How to use Isuzu truck

Isuzu FVZ garbage compactor truck is a highly efficient waste management vehicle that offers remarkable features. With a compaction ratio of over 80%, this truck ensures optimal garbage compression, allowing for maximum capacity utilization.

The Isuzu FVZ garbage compactor truck boasts a robust and durable construction, capable of withstanding heavy-duty operations. Its high-powered engine provides exceptional performance and reliability, making it suitable for various waste disposal tasks.

Equipped with advanced compaction technology, this truck offers efficient waste compaction and segmentation. It minimizes the volume of garbage, increasing the load capacity and reducing the number of trips required for waste disposal. The compaction process also prevents odor leakage and reduces environmental pollution.

The Isuzu FVZ garbage compactor truck features a user-friendly and ergonomic control panel, facilitating easy operation and minimizing the chances of errors. Its compact design and maneuverability allow it to navigate through narrow streets, making waste collection in crowded areas hassle-free.

Safety is a priority for Isuzu, and this garbage compactor truck is equipped with several safety features. These include a rearview camera, alarm systems, and anti-lock braking system, ensuring the safety of both the driver and other road users.

In summary, the Isuzu FVZ garbage compactor truck is lauded for its exceptional compaction ratio of over 80%, robust construction, advanced compaction technology, user-friendly controls, and safety features. It is an ideal choice for waste management companies looking for a powerful and efficient vehicle to optimize waste disposal operations.

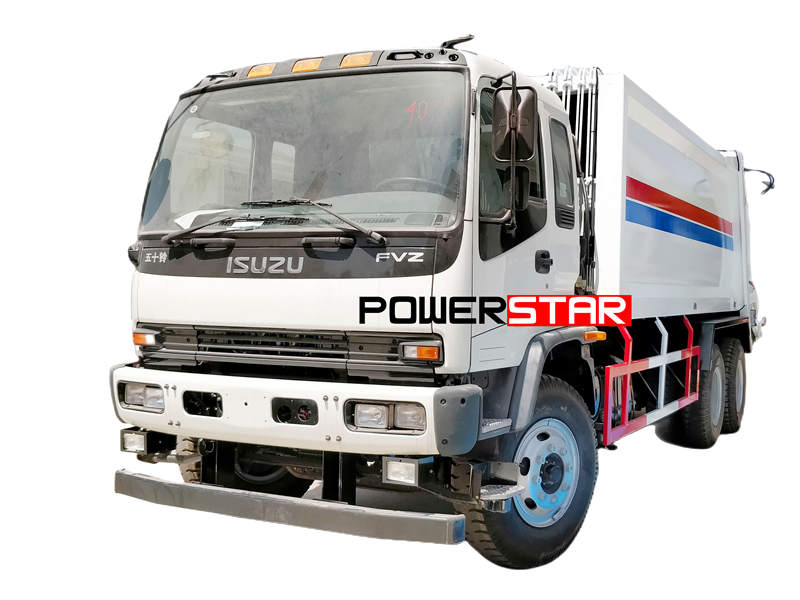

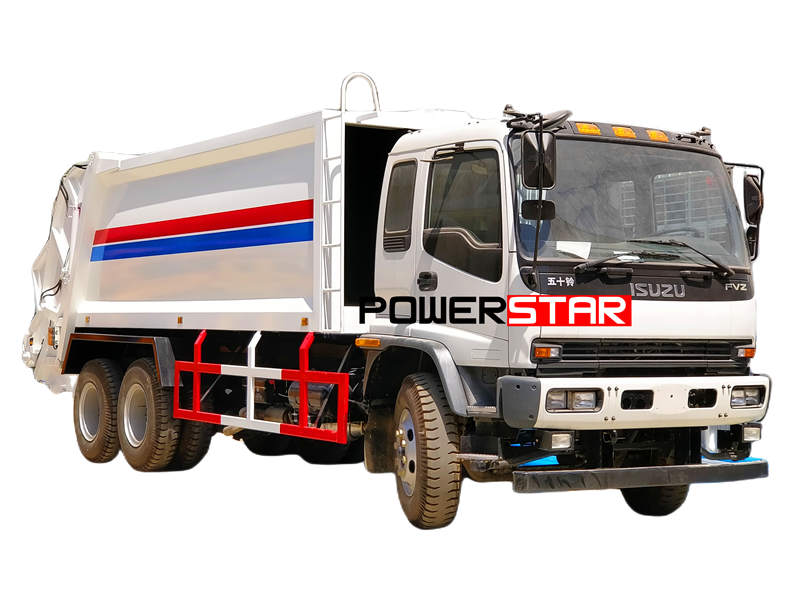

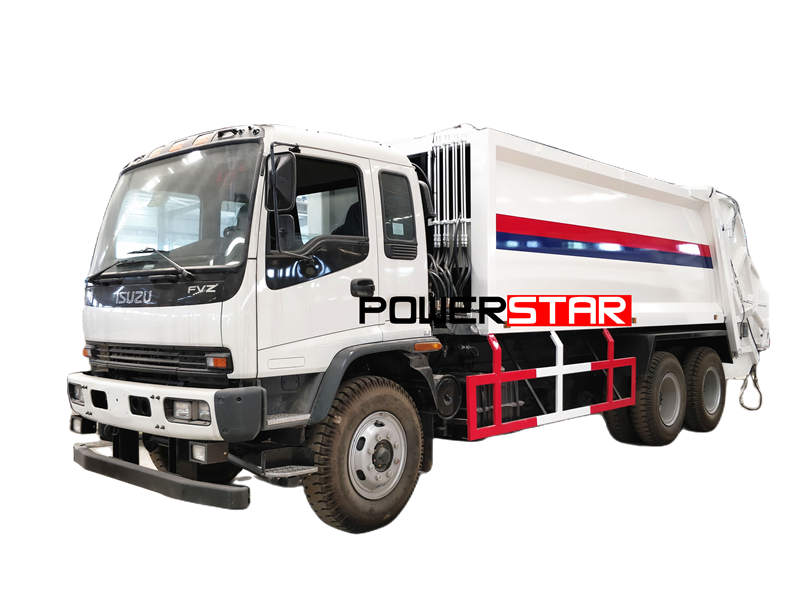

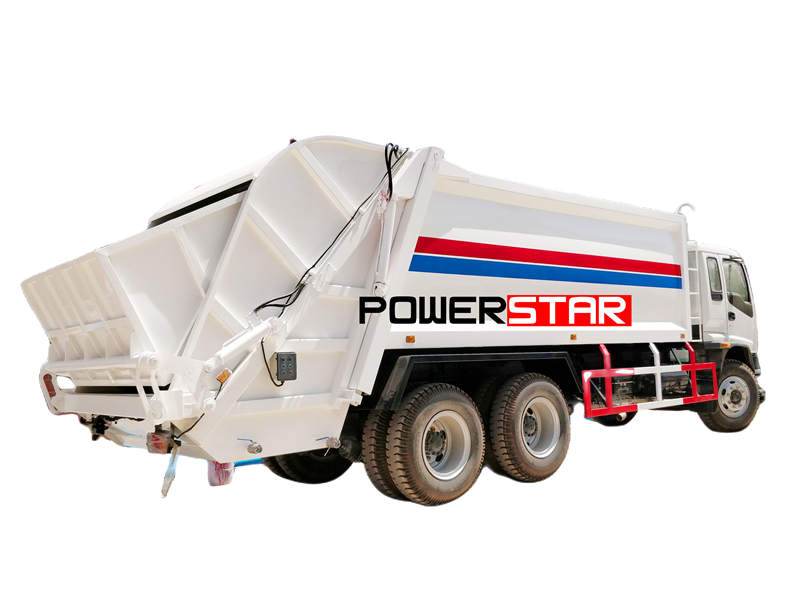

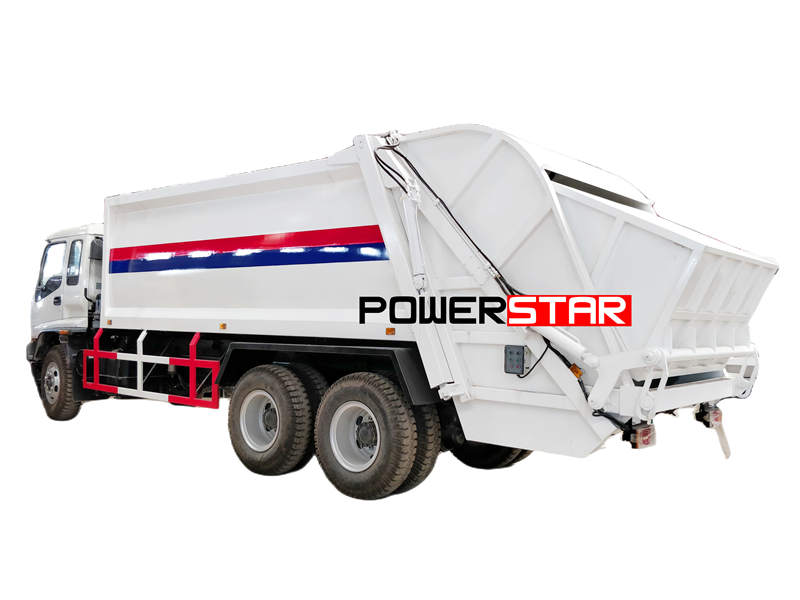

Isuzu FVZ cabin garbage compactor truck with 25 cbm capacity.

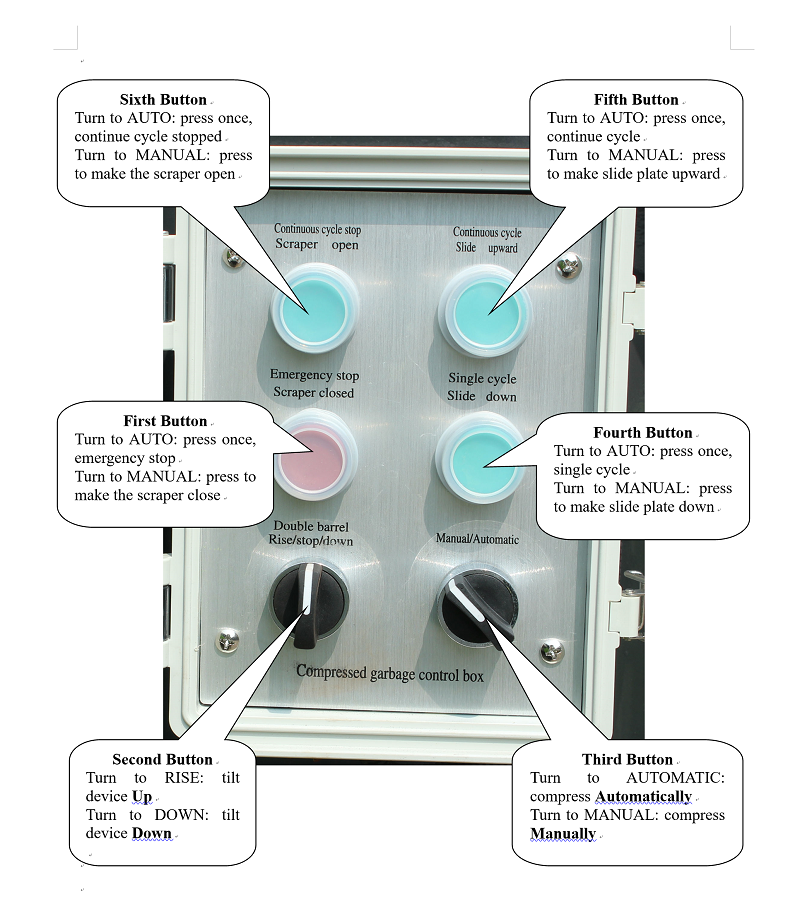

Automatic operating system

Third Button Turn to AUTOMATIC (main control box & rear control boxes)


Step 3.1.1
Second button turn to DOWN, the tilt device down, collecting the garbage from 240L bins;
Then turn to RISE, the tilt device up, the garbage down to the Tail Gate stuffer.

Turn to DOWN again to make tilt device reposition before the scraper working.

(How does this model garbage compactor truck tilting device working?)

Tilt Device DOWN                                     Tile Device UP


Step 3.1.2
Press the Fourth button, compression single cycle (little garbage at Stuffer)
Press the Fifth button, compression continue cycle (much garbage at Stuffer)

Step 3.1.3
Press the Sixth button, when continue cycle compression finished.

NOTE: Press the First button when there is an emergency!

Step 3.1.4
Make the tilt device STOP, the truck is ready for next compression work.


Manual operating system

Third button turn to MANUAL (main control box & rear control box)

Step 3.2.1
Second button turn to DOWN, the tilt device down, collecting the garbage from 240L bins;
Then turn to RISE, the tilt device up, the garbage down to the Tail Gate stuffer.

Turn to DOWN again make tilt device reposition before the scraper working.

Step 3.2.2
Press the fourth button to make slide plate down.

        Step 3.2.3
Press the First button to make the scraper closed to collect garbage.

Step 3.2.4
Press the Fifth button to make the slide plate upward

Step 3.2.5
Press the Sixth button to make the scraper open

Step 3.2.6
Operate once again to collect and compress more garbage.
（NOTE： tilt device should be Stop every time before the scraper working）
    Step 4

NOTE: Only suggest to use MANUAL JOYSTICK when maintenance or emergency!

(Operation Joysticks with English version plate for operating guidance)

Control the manual joystick to work.

The Isuzu FVZ garbage compactor truck is equipped with an advanced operating system that ensures efficient and precise control over the vehicle’s functions. This operating system integrates several components and features that contribute to its high reliability and superior performance.

Firstly, the operating system of the Isuzu FVZ garbage compactor truck includes a sophisticated control panel that allows the operator to monitor and manage various aspects of the vehicle’s operations. This control panel provides real-time information on important parameters such as engine performance, fuel consumption, and compactor functions. It also offers user-friendly interface and easy-to-understand controls, maximizing the operator’s efficiency and reducing any risks of errors or accidents.

Furthermore, the operating system utilizes cutting-edge sensor technology to detect and analyze the waste compaction process. These sensors not only ensure safe and effective waste handling but also optimize the compactor’s performance. By constantly monitoring factors such as container capacity, pressure levels, and compaction cycles, the operating system can make real-time adjustments to maximize compaction rates without compromising safety.

In addition, the Isuzu FVZ garbage compactor truck’s operating system is designed with robust connectivity features. Thanks to advanced telematics capabilities, the system allows for remote monitoring and control of the vehicle. This enables fleet managers to keep track of performance metrics and ensure timely maintenance and repairs, optimizing overall operational efficiency.
