How to use Isuzu truck

Isuzu FTR  Vacuum Tanker Truck Working Principles, to teach you how to operate isuzu FTR vacuum suction truck. it is very important to know how to properly use Isuzu FTR sewage tanker truck.  The operator should fully understand Whole Structure and Working Principle for ISUZU FTR cabin Sewage Truck before any operation.

Only trained person can operate this vehicle properly and to prevent unnecessary accidents and equipment damage. The Isuzu FTR sewage tanker truck is equipped with several distinctive features that make it the preferred choice for sewage disposal and transportation.

Firstly, the truck is powered by a robust engine that ensures strong performance and reliability. This enables it to efficiently handle the demands of sewage operations, even when operating in challenging terrains or adverse weather conditions.

The FTR sewage tanker truck also boasts a spacious and carefully designed tank, which allows for optimal storage and transportation of sewage. The tank is constructed using high-quality materials that are resistant to corrosion and leakage, ensuring the safety of both the environment and the workers involved in the sewage management process.

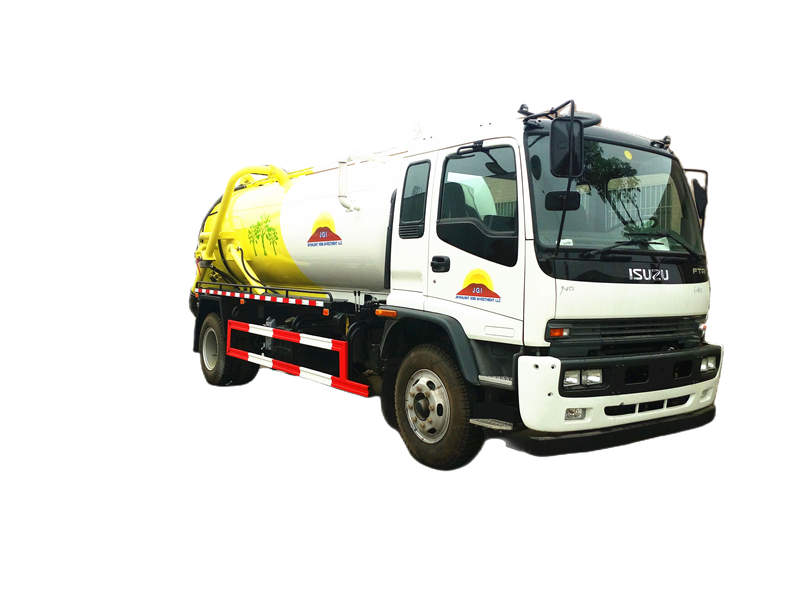

Japan Isuzu FTR vacuum tanker truck in factory.

ⅰ,How are the Isuzu FTR sewage trucks working?
The ISUZU FTR Sewage Truck makes use of the PTO to get the power from truck engine, and the power drive the vacuum system working. Operation the valves to control the truck suction liquid sewage, adjust the throttle knob to make suction speed faster and slowly. After suction working, using Manual Operated Valves to control rear door Open/Close, and sewage tanker Rise/Fall. After working, cleaning the sewage tank, and ready for next time operation.


ⅱ,What is the main component for Isuzu FTR truck?
The Isuzu FTR sewage truck is refitted based on the ISUZU 4x2 LHD chassis. The refit part includes Vacuum suction assembly, actuator device and operation system.
    Vacuum suction assembly: One round shape vacuum sewage tank. 1 unit suction pipeline, whole suction system.
    Actuator device: includes PTO, drive line, etc., which can pass the power to the pump.
    Operation system: helps come to all special functions’ convert.

, How to operate Isuzu FTR sewage trucks?
(1) Suction operation preparation

A, Keep the sewage tank rear door closed
B, Carefully check whether the lubrication of vacuum pump gas-oil separator working normally.

(2) Operations sequence (Detail figure)

A, Press the clutch pedal, adjust the PTO box joystick, to get power from the truck engine and start the vacuum pump, then slowly release the pedal.

B, Start the safety alarm (in the cab)

C, Adjust the hand throttle joystick to largest position, and keep the revolution meter point to 500-600r/min (already has been set before out the factory)

D, Adjust the four-way valve joystick to suction position, carefully check the released air, the vacuum pump sound, the vacuum meter.

E, Put the suction pipe into the sewage. Park the vehicle in right place before suction working, which can keep the pipe straight or free bending state, and guarantee vehicle work normally.

(3) Attention while working

A, Things like over 50mm stone, cotton yarn, leaves etc. will block the suction pipe, and should not be suction, also should keep the pipe clean and unblocked.

B, Keep the suction valve full open while vacuum meter point to 65-80kpa, because half-open may damage the valve.

C, The suction pipe should be moved frequently while suction. Because suction some air and water will increase efficiency when the sewage is too viscosity.

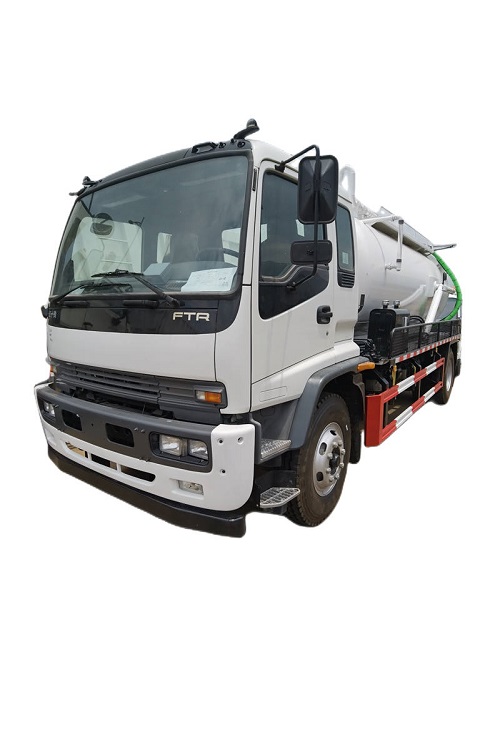

Isuzu FTR vacuum tanker truck for Philippine customer.

Chassis    ISUZU FTR

Gross Wt./Kerb Wt.    16,000 /7,100 kg

Cab    Cab Capacity    3 persons' seat
Air Conditioner    YES
Chassis    Drive Type    4x2, left hand drive
Fuel Type    Diesel
Engine Model    ISUZU 4HK1
Power    190 Ps / 139 KW
Displacement    5200 ml
Emission Standard    Euro IV
Transmission    ISUZU MLD 6-speed forward, 1-reverse
Brake    Air Brake
Wheelbase/No.of axle    4500 mm / 2 axles
Tyre Specification    9.00-20
Tire No    10 tyres and 1 spare tyre
Max Speed    100 km/h
Paint    Automotive metallic paint


Super structure    Dirty water tank    14,000 liters
Material    Carbon steel, 5mm thick
Design pressure    Full Vacuum－0.9bar
Vacuum pump    China famous
Suction Pipeline    PVC hose with 4" diameter
Full-suction time    ≤5min
Discharge valve    6" discharge valves
Rear cover    Hydraulic open and Manual locking

Remarks    All basic necessary accessories.

Tool kit, English manual
NOTE: a) All standard accessories: In-cab controls, hydraulic pump, emergency stop, over pressure device, lever detector, working light, anti-static belt, fire extinguisher, Hose & Hose box, Backup alarm, reflectors and mud flaps, water level gauge, pressure gauge
b) Hydraulic lift cylinder: is used for tipping the dirty water tank shaft, close or open the rear cover, tipping the tank.

Vacuum Tanker Truck Working Principles

The operator should fully understand Whole Structure and Working Principle for ISUZU Sewage Truck before any operation. Only trained person can operate this vehicle properly and to prevent unnecessary accidents and equipment damage.


ⅰ,How are the sewage trucks working?
The ISUZU Sewage Truck makes use of the PTO to get the power from truck engine, and the power drive the vacuum system working. Operation the valves to control the truck suction liquid sewage, adjust the throttle knob to make suction speed faster and slowly. After suction working, using Manual Operated Valves to control rear door Open/Close, and sewage tanker Rise/Fall. After working, cleaning the sewage tank, and ready for next time operation.

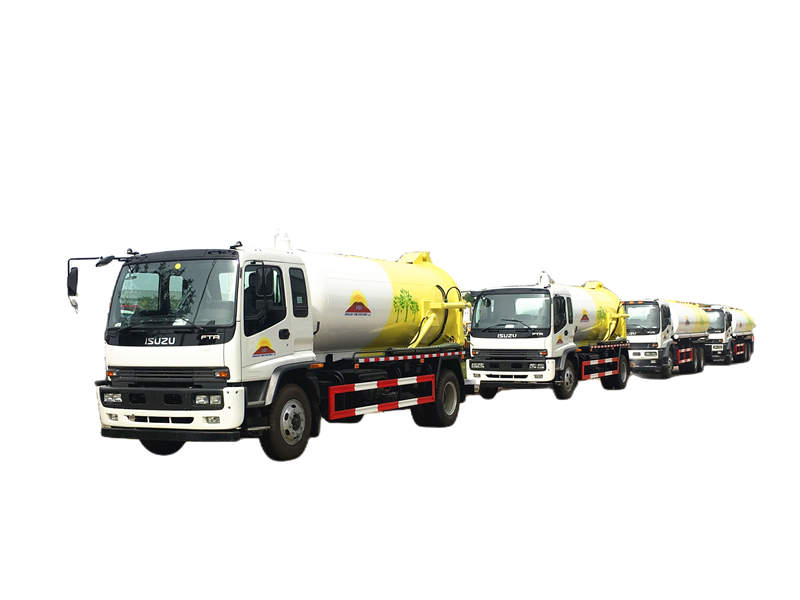

Great quantity Isuzu FTR vacuum suction truck for exporting.

ⅱ,What is the main component for truck?
The sewage truck is refitted based on the ISUZU 4x2 LHD chassis. The refit part includes Vacuum suction assembly, actuator device and operation system.
    Vacuum suction assembly: One round shape vacuum sewage tank. 1 unit suction pipeline, whole suction system.
    Actuator device: includes PTO, drive line, etc., which can pass the power to the pump.
    Operation system: helps come to all special functions’ convert.

, How to operate sewage trucks?
(1) Suction operation preparation

A, Keep the sewage tank rear door closed
B, Carefully check whether the lubrication of vacuum pump gas-oil separator working normally.

(2) Operations sequence (Detail figure)

A, Press the clutch pedal, adjust the PTO box joystick, to get power from the truck engine and start the vacuum pump, then slowly release the pedal.

B, Start the safety alarm (in the cab)

C, Adjust the hand throttle joystick to largest position, and keep the revolution meter point to 500-600r/min (already has been set before out the factory)

D, Adjust the four-way valve joystick to suction position, carefully check the released air, the vacuum pump sound, the vacuum meter.

E, Put the suction pipe into the sewage. Park the vehicle in right place before suction working, which can keep the pipe straight or free bending state, and guarantee vehicle work normally.

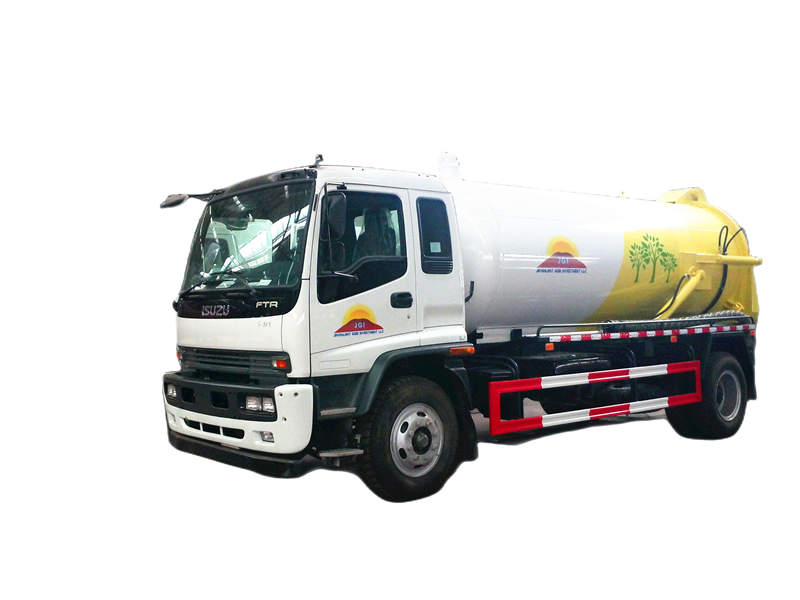

Isuzu FTR vacuum sewage suction truck for Philippine customer.

(3) Attention while working

A, Things like over 50mm stone, cotton yarn, leaves etc. will block the suction pipe, and should not be suction, also should keep the pipe clean and unblocked.

B, Keep the suction valve full open while vacuum meter point to 65-80kpa, because half-open may damage the valve.

C, The suction pipe should be moved frequently while suction. Because suction some air and water will increase efficiency when the sewage is too viscosity.
