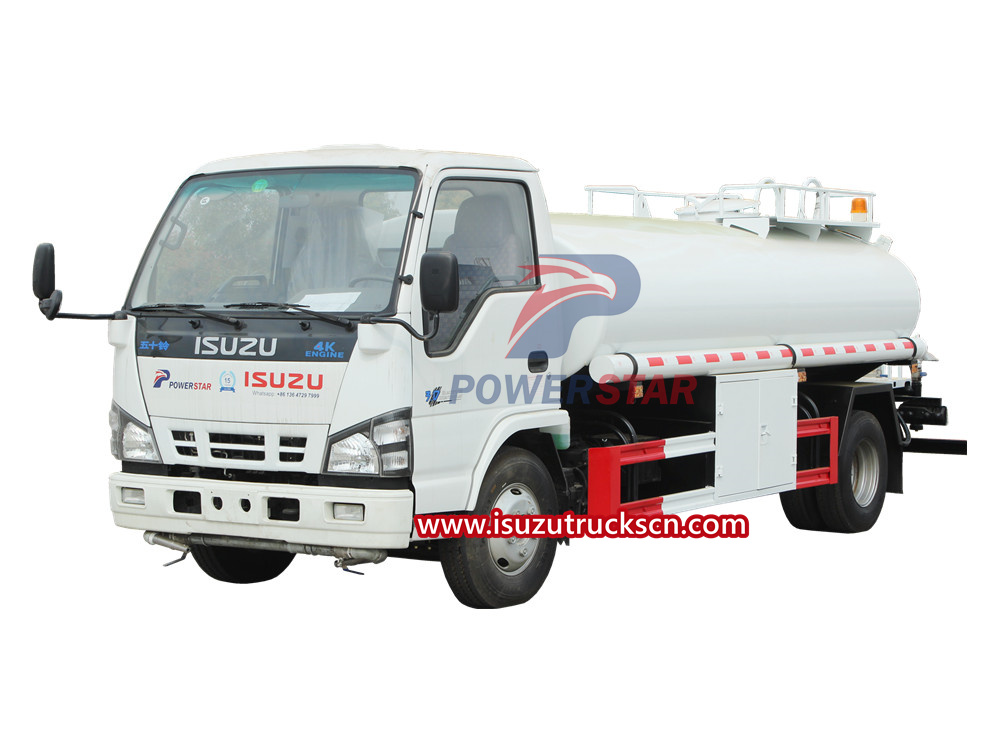

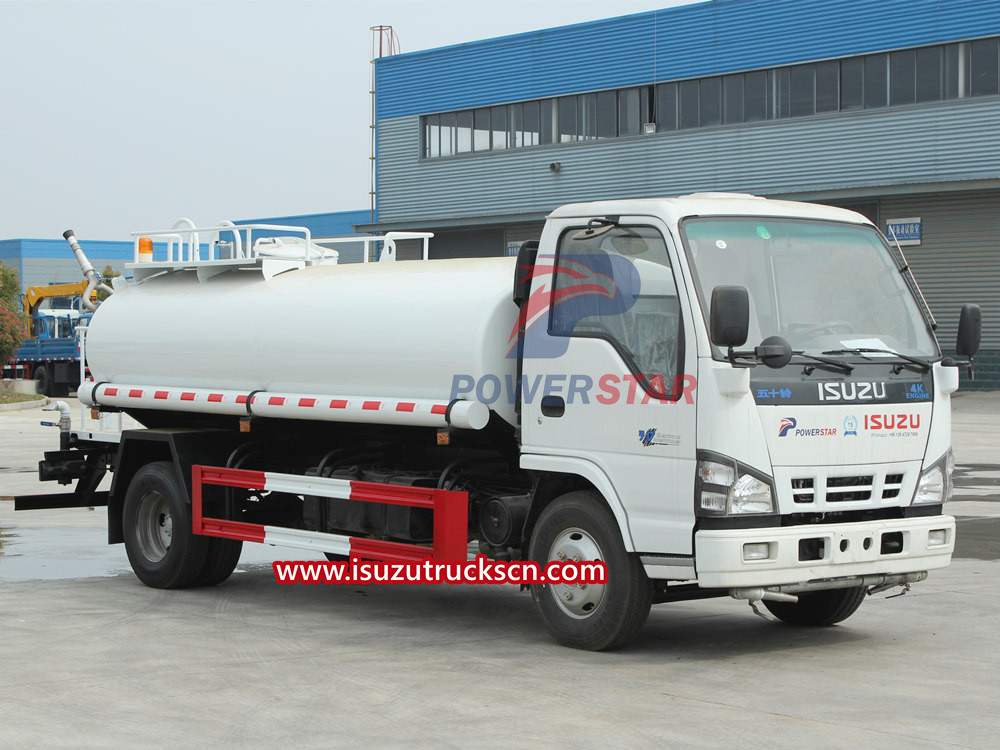

Isuzu sprinkler trucks are also called spray trucks multi-function sprinklers landscaping sprinkler water tank trucks, and water trucks. Sprinkler trucks are suitable for washing various road surfaces, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude building washing. It has the functions of water sprinkling, dust pressing, high and low position spraying, pesticide spraying, guardrail washing and other functions.

Isuzu sprinkler truck, also known as spray truck or multi-functional greening sprinkler truck. It is used for cleaning roads, sanitation, dustproofing, watering, spraying pesticides, etc. on urban roads, large factories, military units, gardens and other units to beautify the environment. It can also be used for temporary emergency firefighting.

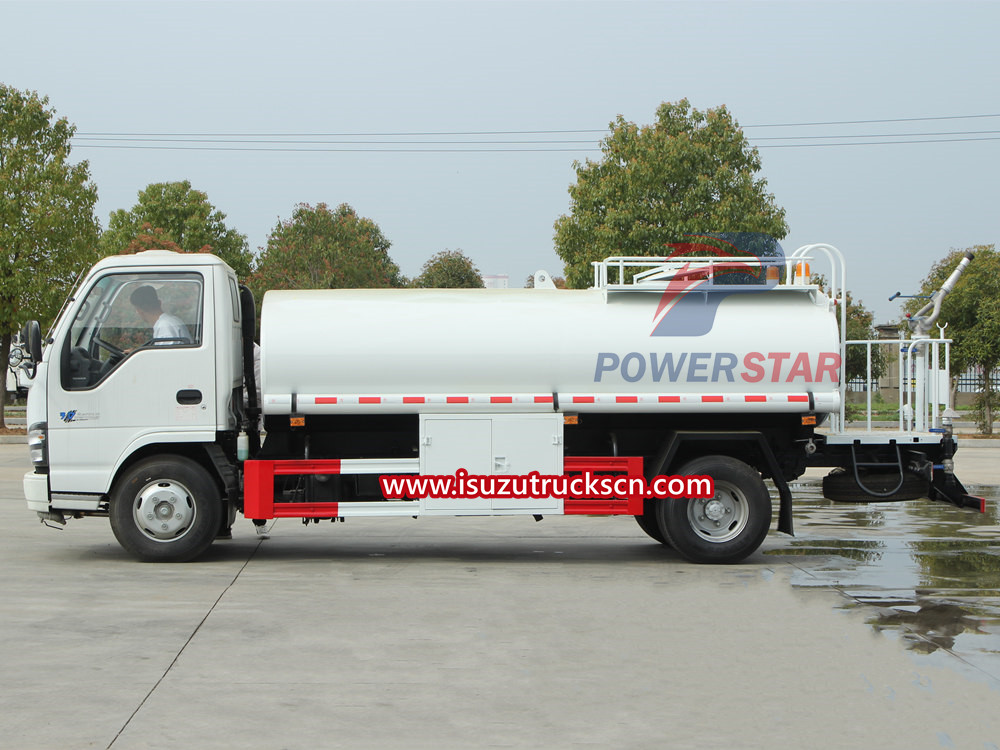

Isuzu sprinkler trucks have functions such as water transportation, drainage, and emergency firefighting. It is configured as front flush, rear sprinkler and side spray, self-priming special water pump, the pump can pump water and drain water, equipped with fire joints, gravity valve, a working platform behind the tank, and a green sprinkler cannon installed. The cannon can be rotated and the water volume can be adjusted ( The spray appears as columns, fog, drizzle). Standard configuration of Isuzu sprinkler truck (green spray truck, water tank truck): forward spray, rear spray, side spray; high side shower; rear working platform with green sprinkler anti-aircraft gun, which can be adjusted into a columnar shape with a range of ≥28m; it can also be adjusted into Mist, range ≥15m. Optional dispensing tray and spraying machine. Advanced facilities such as medicine trays, medicine pumps, anti-corrosion and anti-rust tanks, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. can also be added to meet the needs of different users.

Isuzu sprinkler trucks adopt automatic assembly line tank production processes, which are divided into: blanking, automatic plate welding, head spinning forming, one-time roll forming of the tank body and other domestic advanced production processes. The tank material is mostly produced from high-quality carbon steel plates. For special purposes, 304 stainless steel can also be used according to customer needs. It consists of "pipes, valves, filtering devices, water outlets (forward spray, rear spray, side spray; high side shower; rear working platform with green sprinkler anti-aircraft gun). The engine mainly drives the gearbox, and the power take-off device installed on the gearbox The device drives the sprinkler pump, which generates power to spray the liquid inside the tank through the pipe network.

Isuzu sprinkler truck sprinkler function description:

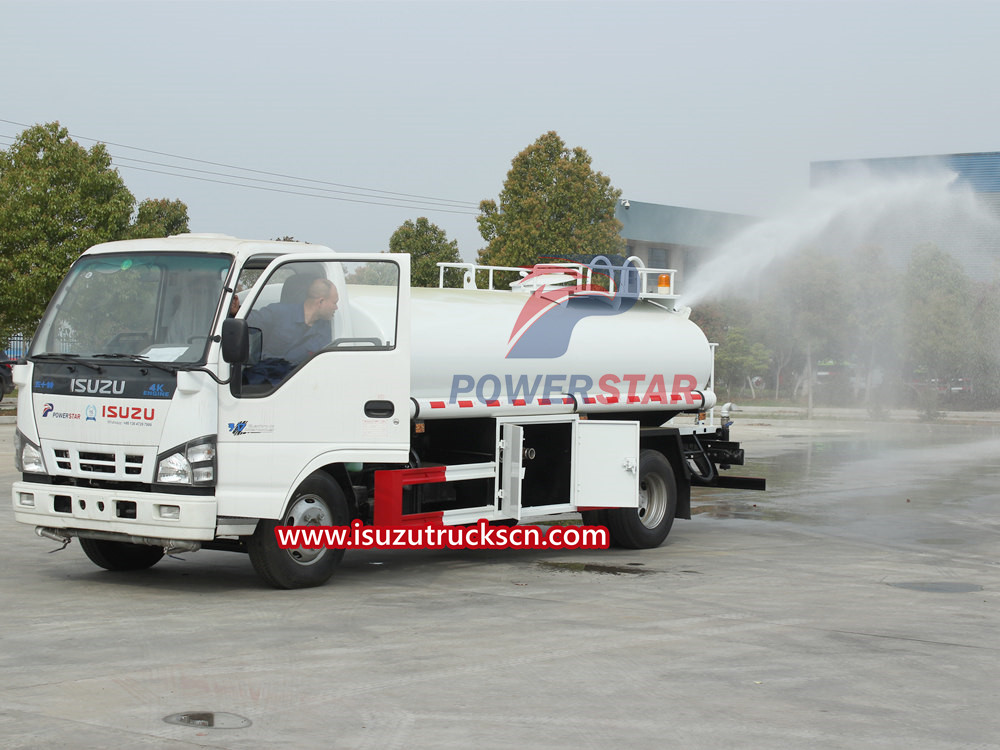

The sprinkler truck is equipped with a duck-shaped nozzle or a round head nozzle in the front, a cylindrical sprinkler nozzle or a shower head nozzle in the back, and a working platform at the rear equipped with a water cannon. Sprinklers are generally used to wash streets, for dust removal and cooling. The spray direction and angle of the sprinkler can be changed by adjusting the nozzle thread. Anti-aircraft water cannons can be used for urban and rural landscaping and emergency firefighting. The shower nozzle can pour down the dust kicked up by the sprinkler in the middle of the road and play a role in cleaning the air.
