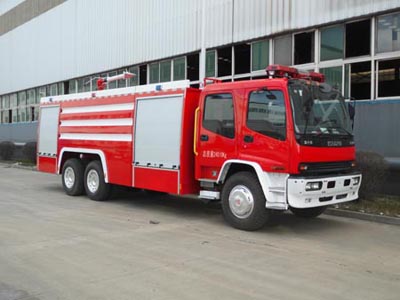

Good Price isuzu Special Truck of Fire Fighting Truck 12m3 ISUZU
isuzu chassis Ready Made Foam Fire Fighting Truck of 12m3
10+2 M3 ISUZU FVZ heavy duty FIRE FIGHTING TRUCK
Ready in made for your urgently order
| This vehicle is reffitted from original ISUZU chassis with compact structure | |||||
| Basic Information | |||||
| Vehicle name | FIRE ENGINE | Chassis: | ISUZU |
||
| e size(L×W×H) (mm) | 10025 ×2500×3600 | Cargo inline size(L×W×H)(mm): | / | ||
| Rating mass(kg) | 12350 | Empty mass(Kg): | 14800 | ||
| Full mass(kg) | 27600 | Emission standard | Euro 2 /3 | ||
| Engine Information | |||||
| Model | 6KH1-TC | Type | 6 Cylinder Diesel engine | ||
| Power/displacement(KW/ML) | 207/9726 | Manufacture | ISUZU | ||
| Chassis Information | |||||
| Wheelbase(mm): | 4600+1350 | Axle load(kg) F/R | 7000/18000 | ||
| Tire | 11.00-20,11.00R20 | Max speed (km/h): | 90 | ||
| Front suspension(mm) | 1500 | Rear | 2445,2420 | ||
| Front track(mm) | 2022,2041 | Rear track(mm) | 1830 | ||
| Approach angel(°) | 16 | Departure angle(°) | 13 | ||
| Steering | Power steering | Brake | Air brake | ||
| Cabin | Straight head ,2 rows , 4 doors, allow 6 people | ||||
| Special function | |||||
| Tank capacity(m³) | Water:12000 Foam 3000L | ||||
| Fire monitor | Model:PS50 Water range:≥60m/1.0Mpa | ||||
| Fire pump | Normal Pressure pump CB10/60 Flow :60L Pressure: 1.0Mpa | ||||
