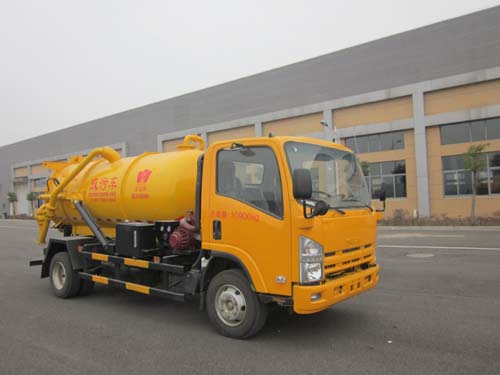

Isuzu 4X2 4cbm 5cbm Vacuum Sewage Suction Tank Truck
isuzu 4x2 4cbm vacuum sewage suction tank truck
| Description | isuzu 4x2 4cbm vacuum sewage suction tank truck | |
| Drive Model | 4X2 | |
| Chassis | NKR77 |
|
| Number of axles | 2 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 5995×2000×2550 |
| Wheel base (mm) | 3360 | |
| Overhang (front/rear) (mm) | 1032/1663 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 19/14 | |
| Weight in KGS | GVW. | 6495kg |
| Curb Weight | 4200kg | |
| Max. driving speed(km/h) | 90 | |
| Engine | Model | 4HK1 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 120HP | |
| engine capacity(ml) | 2999 |
|
| Emission standard | Euro III | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 100 | |
| Tire | 7.00-16 tire , 6 + 1(spare) | |
| Brakes | dual circuit compressed air brake | |
| Tank | ||
| Material | Q235A Carbon steel | |
| Medium Density | 800kg/m³ | |
| Loading Capacity (m³) | 4 | |
| Overall dimensions(mm) | 3200×1100×1100 | |
| Thickness(mm) | 5 | |
| Standard Equipment |
Equipped with vacuum pump rating rotate speed 1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing & cleanout equipment Time for full suction<5min |
|
