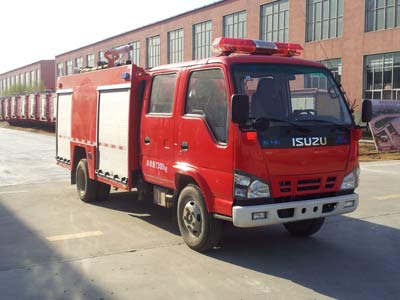

88kw Isuzu escue equipments 2000 liters water tank fire fighting truck
88kw Isuzu escue equipments 2000 liters water tank fire fighting truck
Guaranteed 100% Factory Supply Brand New ISUZU fire truck 2000 l
Vehicle Features:
ISUZU High Quality Chassis, 4X2 Drive, Crew cab, 4 doors, 6 passengers/ single-row cab optional
With best quality fire pump and full fire tools and accessories
Vehicle Main Parameters:
Product |
fire truck |
|
Cab |
Double-row, four doors, rated passengers 6 |
|
Volume |
Water tank 2000-3000Litres; or water 2000L/foam1000L |
|
Chassis |
Brand |
ISUZU |
Chassis model |
NKR77 |
|
Drive type |
4×2 |
|
Tyre Spec. |
7.00-16/7.00R16 |
|
Tyre No. |
6+1(spare) |
|
Transmission |
5 forward gear,1 reverse gear,manual mechanical type |
|
Engine |
Model |
4HK1 |
Horse Power(hp) |
120 |
|
Displacement(cc)/Power(kw) |
2999/88 |
|
Emission |
Euro 4 |
|
Main Parameters |
Overall dimension (L*W*H/mm) |
6185*1980*2760 |
Wheelbase(mm) |
3300 |
|
Axles No. |
2 |
|
GVW(kg) |
6530 |
|
Curb Weight(kg) |
4350 |
|
Approaching/Departure Angle(°) |
19/11 |
|
Front/Rear trace(mm) |
1506/1466 |
|
Front/Rear suspension(mm) |
1032/1768 |
|
Max speed(km/h) |
75 |
|
Front/Rear Axle Load(kg) |
2150/4380 |
|
Fire Pump |
Atmospheric pressure pump |
Model:CB10/20 ,Flow capacity:20L/s,Pressure:1.0MPa |
Medium-low pressure pump |
Type:CB40/10/20:low pressure Flow capacity:40L/s/1.0MPa;medium pressure Flow capacity:20L/S/2.0MPa |
|
Fire Monitor |
Type |
SP40 |
Shot Range |
water range≥50m, foam range ≥45m |
|
