Isuzu bucket truck

As the name suggests, Isuzu aerial work vehicle is a special vehicle that can transport workers and equipment to the site and perform aerial operations. This kind of vehicle has a wide range of uses, such as street lights, gardens, electric power, petrochemicals, communications and other industries. However, there are several ways to make the boom of aerial work vehicles, including folding arm type and hydraulic lifting type. The most popular one on the market is the telescopic arm type, and the hybrid arm type. Finally, the newly developed vehicle-mounted arm type Isuzu man lifter aerial work vehicle.

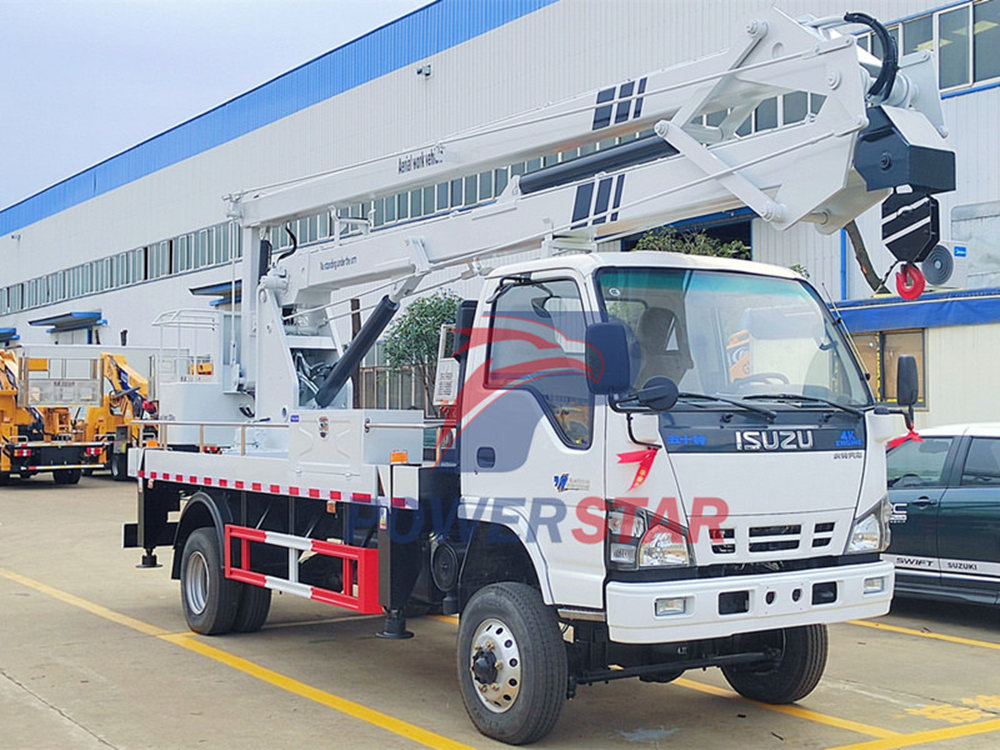

1.Isuzu folding arm type aerial work vehicles are also called curved arm type Isuzu aerial work vehicles. The folding arm type lifting mechanism is made up of folded multi-section box-shaped arms, which can be divided into up-folding type and down-folding type. The folding and unfolding of each section arm is done by The hydraulic cylinders between each section are completed. It can complete operations at a certain height and range, and the fold-down type can complete space operations below the ground level. This type of vehicle is generally for Isuzu light trucks, and the arm length is generally about 13 meters. The arm length for medium Isuzu trucks is generally about 18 to 22 meters, so the range of uses is not very wide.

2.Isuzu Hydraulic lifting aerial work vehicles are also known as scissor-type aerial work vehicles. The vertical lifting lifting mechanism can be divided into hydraulic transmission and mechanical transmission according to the transmission mode. According to its structural form, it can be divided into cross scissor type and sleeve type. The cross scissor type is arranged crosswise and hinged into a scissor-shaped connecting rod frame structure. When the cross angle of the connecting rod is changed, the lifting movement is realized. The change of the cross angle of the connecting rod can be realized by the expansion and contraction of the piston rod of the hydraulic cylinder or the retraction and expansion of the wire rope. The sleeve type includes truss type, box type or cylindrical type. The lifting movement is completed through the expansion and contraction of the multi-section sleeve. The driving method can be hydraulic transmission or wire rope pulley transmission. This kind of vertical lifting mechanism has a limited operating height and a small working range, but the Isuzu working platform is larger and has stable support. It is suitable for multiple people to work at the same time, making high-altitude operations more efficient and safer.

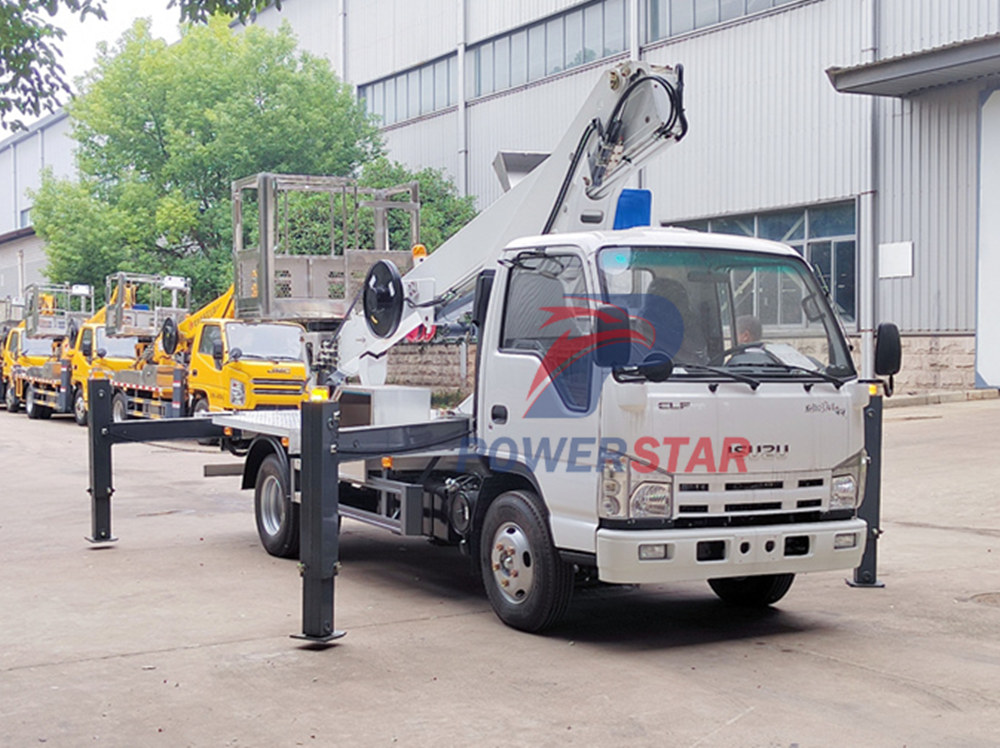

3.The Isuzu telescopic arm type aerial work vehicle is different. The telescopic arm type lifting mechanism is composed of a multi-section set and a telescopic box-shaped arm, including a basic arm and a telescopic arm. The telescopic arm can be one or more sections, each of which The intersections are equipped with hydraulic cylinders. When the hydraulic cylinder is working, each section arm can slide up and down along the guide element driven by the piston rod of the hydraulic cylinder, thereby changing the length of the boom. Isuzu light-truck aerial work vehicles can reach 30 meters, and Isuzu medium-truck aerial work vehicles can reach 40 to 60 meters, so the working range is wider.

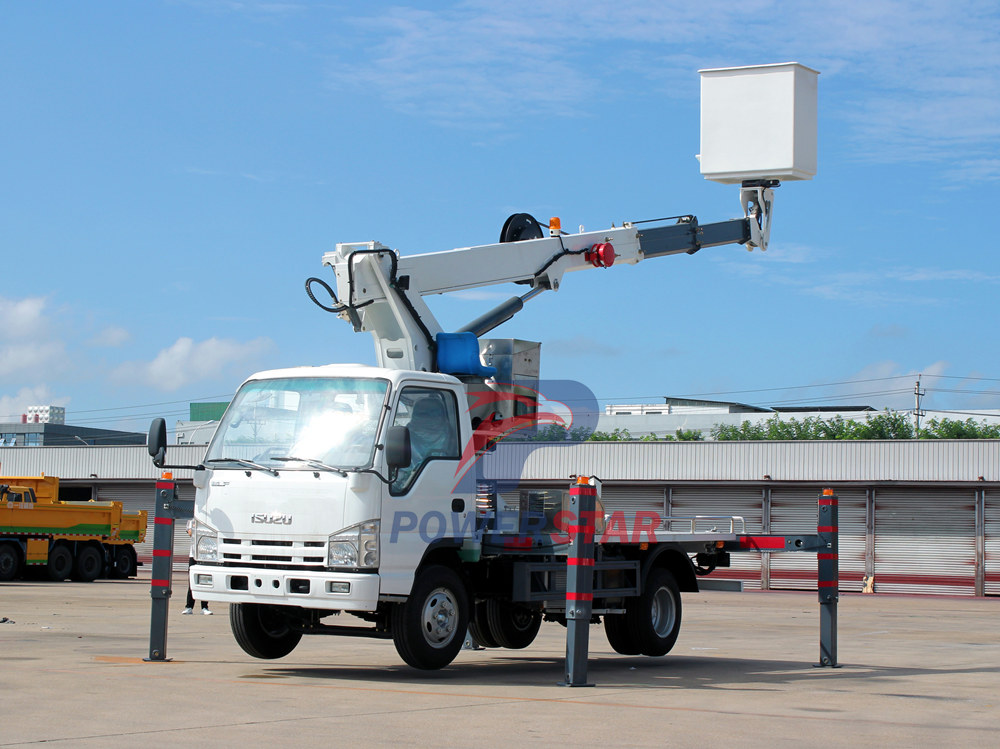

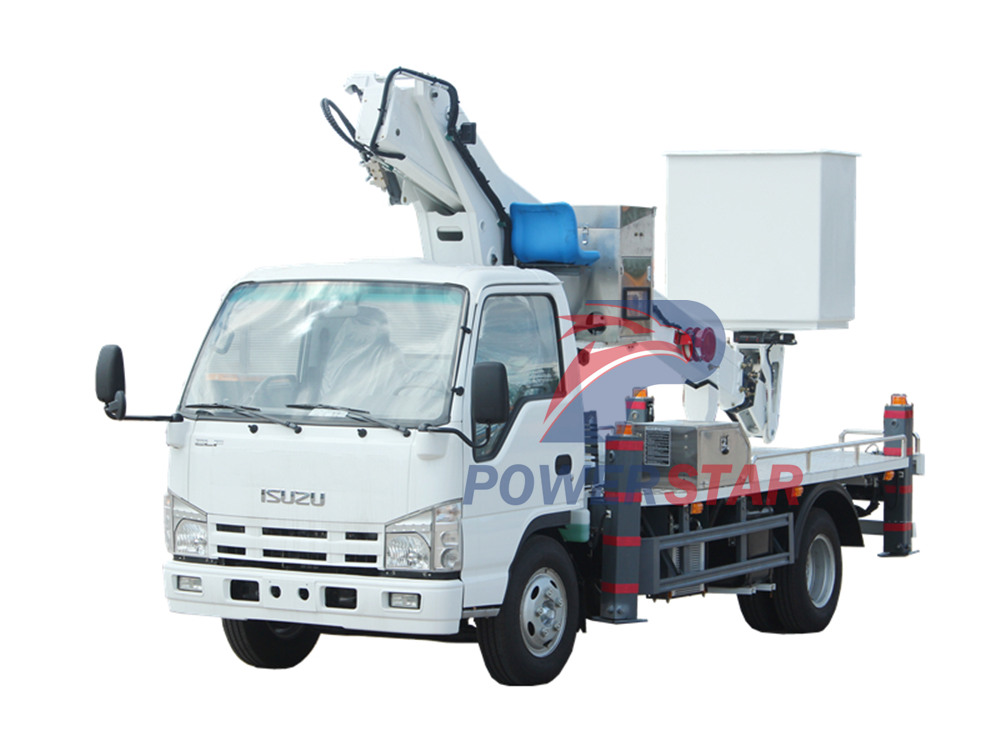

4.The Isuzu hybrid-arm aerial work vehicle is a special type of vehicle. The hybrid-arm lifting mechanism is composed of a folding arm and a telescopic arm. It combines the advantages of both, expands the height and range of the operation, and has a strong Obstacle surmounting ability. Because it is more complicated to make, fewer users choose this model.
