The main uses of Isuzu NPR Refined Fuel Delivery Truck include the transportation and storage of petroleum, such as gasoline, diesel, crude oil, etc. Isuzu fuel delivery truck has a variety of refueling or oil transportation functions according to different uses and usage environments, with functions such as oil suction, oil pumping, and multiple oil filling and dispensing. Isuzu fuel delivery truck is usually equipped with a dedicated hydraulic system, pumping station and metering device, which can quickly unload liquid petroleum products into containers at the destination, and monitor and meter the unloading process.
Isuzu fuel delivery truck (also called fuel tanker truck, oil transport truck, oil truck tanker, petrol fuel tank, oil delivery truck, Mobile Fuel Truck, oil refuelling truck, petrol tanker, diesel dispensing truck) is mainly used o storage and transport oil, diesel, gasoline, kerosene, stainless steel fuel bowser etc.
TECHNICAL SPECIFICATION |
||
Main specification |
Chassis brand |
ISUZU |
Chassis model |
QL1043 |
|
Tank volume |
5,000 litres |
|
Tank Material |
carbon steel . Anti-corrosion metal |
|
Overall Dimensions |
6100*2100*2700 mm |
|
Chassis |
Drive modle |
4x2, left hand drive |
Cabin |
3 persons allowed ,with A/C,Central lock, electric window |
|
Axle (front/rear) |
3 tons / 5.5 tons |
|
Wheel Base |
3360 mm |
|
Steering |
Left hand drive |
|
Tyre size & number |
700R16 Radial tires , (6+1)one spare tire |
|
Transmission |
Manual, 5-speed forward, 1 reverse gears |
|
Engine |
Manufacturer |
ISUZU |
Model |
4KH1 |
|
Engine Type |
Diesel |
|
Horse power |
120HP |
|
Displacement |
2999ml |
|
Emission |
Euro 6 |
|
Fuel Tank |
Material |
Q235B carbon steel 4mm, epoxy paint 3 layer inner surface |
Shape of tank |
Elliptic |
|
Capacity |
5,000 litres |
|
Compartments |
one, with internal waves baffles |
|

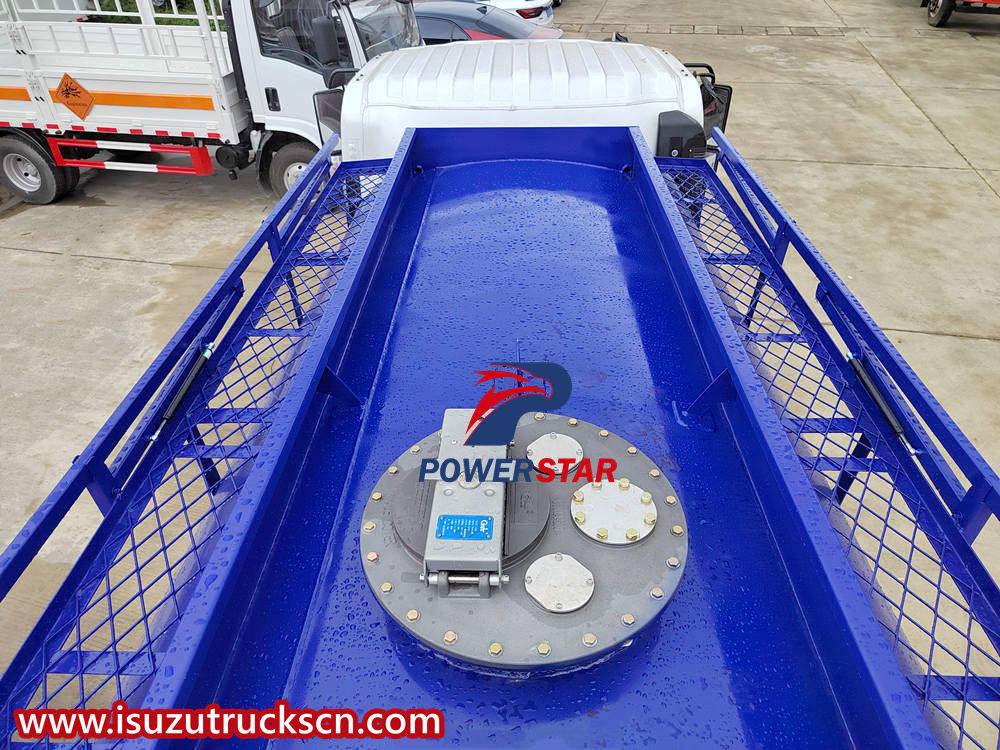

Manhole |
1units, 450mm diameter, European standard |
|
Outlet and inlet |
1 pcs outlet and 1 pcs inlet |
|
Color and Logo |
According to wish |
|
fuel pump |
drive by PTO from truck gear box |
|
equipped with oil pump,European standard manhole, Bottom valve, emergency cut off valve, ball valve, tool box,climbing ladder, fire extinguisher, oil hose 6Mx2, flow meter |
||
Isuzu fuel delivery truck features:
1.Tank material : 4-6mm thick carbon steel with high quality, carbon steel and stainless steel or aluminum alloy can be choose.
2.Tank shape: square-round, oval, round;
3. Pump : can be choose self-priming pump, gear pump or double pump; the pump can help the oil pump in and out or self-flow.
4.Special design: can be designed to an independent sub-warehouse to transport different oil with the same time.
5.15 meters refueling reel (can automatically return to position), the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity, delivery safety and other characteristics in the transportation.
Isuzu oil tanker truck is a reliable and efficient vehicle designed for transporting fuel to various locations. Here are three key points that highlight its features and capabilities:
1. The Isuzu oil tanker truck is equipped with a powerful and fuel-efficient engine.
The Isuzu oil tanker truck is powered by a robust diesel engine that delivers superior performance and optimal fuel efficiency. This ensures smooth and reliable operation, allowing the driver to transport fuel efficiently and effectively without any hiccups. The engine is designed to provide ample power while also minimizing fuel consumption, making it a cost-effective option for businesses in the fuel transportation industry.
2. The Isuzu mobile fuel bowser is built with a durable and reliable chassis.
The Isuzu mobile fuel bowser chassis is constructed using high-quality materials and advanced engineering techniques to ensure maximum strength and longevity. This makes the truck capable of handling heavy loads of fuel without compromising on stability or performance. The chassis also features a high level of maneuverability, allowing the driver to navigate through tight spaces and narrow roads with ease. With its sturdy construction, the Isuzu mobile fuel bowser is built to withstand the rigors of daily operations and deliver fuel safely and efficiently.
3. The Isuzu refueling bowser is equipped with advanced safety features for enhanced driver and cargo protection.
The Isuzu refueling bowser comes with a range of safety technologies, including anti-lock braking systems, traction control, and electronic stability control, to ensure a safe and secure driving experience. These features help prevent accidents and reduce the risk of incidents during fuel delivery operations. Additionally, the Isuzu refueling bowser is designed with a spacious and comfortable cabin that prioritizes driver comfort and ergonomics. This enables the driver to stay alert and focused during long hours on the road, enhancing overall safety and productivity.
In conclusion, the Isuzu NPR Refined Fuel Delivery Truck is a top-of-the-line vehicle that offers exceptional performance, durability, and safety for businesses in the fuel transportation industry. With its powerful engine, robust chassis, and advanced safety features, the Isuzu fuel delivery truck is a reliable and efficient option for transporting fuel to various locations.
