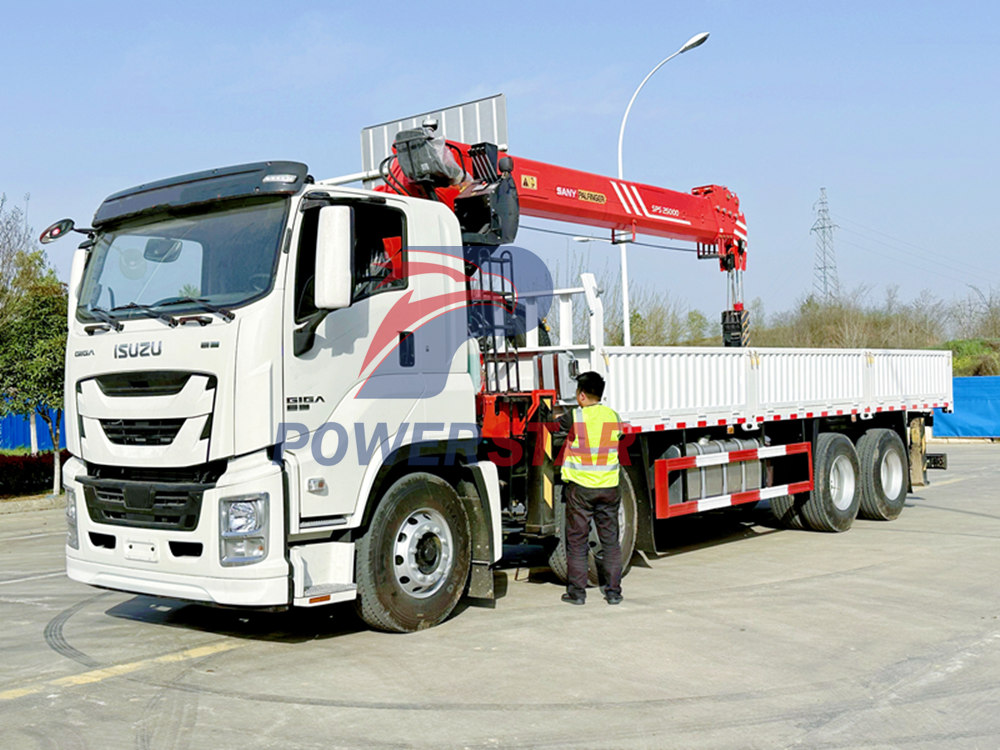

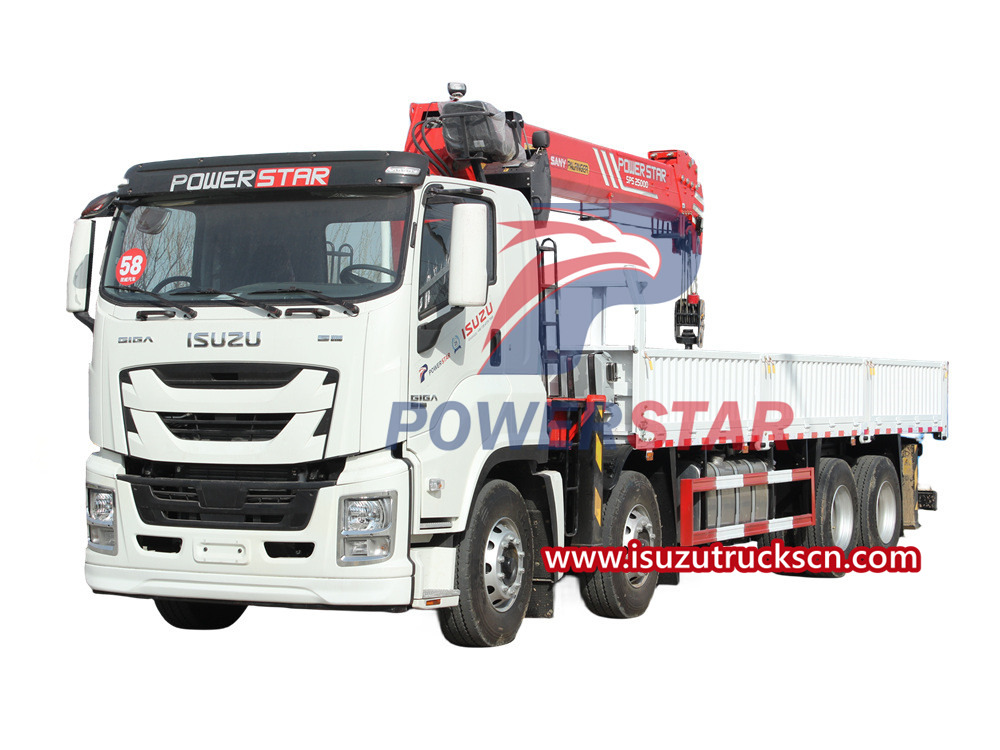

For Isuzu heavy duty truck-mounted cranes, such as the Isuzu GIGA 8x4 truck with 10 tons crane, the speed will be slow when lifting heavy objects. Therefore, the remote throttle is a very important system for the operator, which can Improve work efficiency.There are two types of remote throttles. One is the wireless remote throttle, which relies on wireless communication technology to facilitate operation and greatly ensure the safety of the operator. The other is the mechanical remote throttle, which is connected to the Isuzu truck's throttle system through the throttle cable.This method does not depend on the communication environment. In many areas such as Africa, Southeast Asia and some island countries, the working environment and signal are poor. So we recommend using the second type of mechanical remote control throttle.The operating lever and throttle can be operated at the same time, allowing customers to operate and lift accurately and efficiently.
How to install a mechanical remote throttle on the Isuzu GIGA 8x4 crane truck? Let’s discuss it together today:

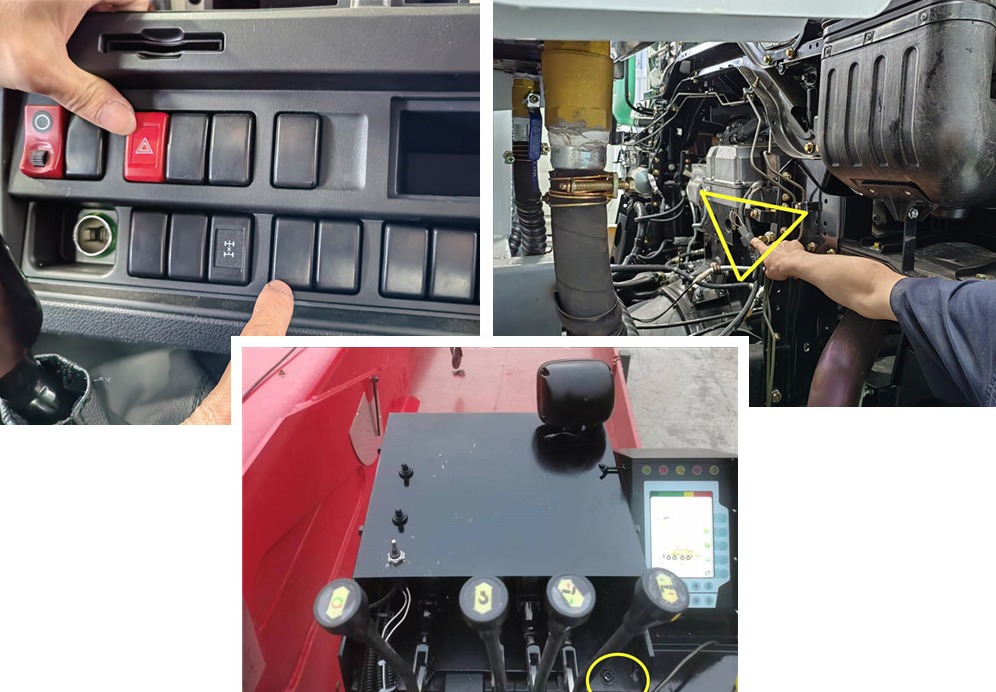

1. First find the three key parts：the activation button inside the cab,the throttle system connection port outside the cab,the throttle cable and the remote throttle button.

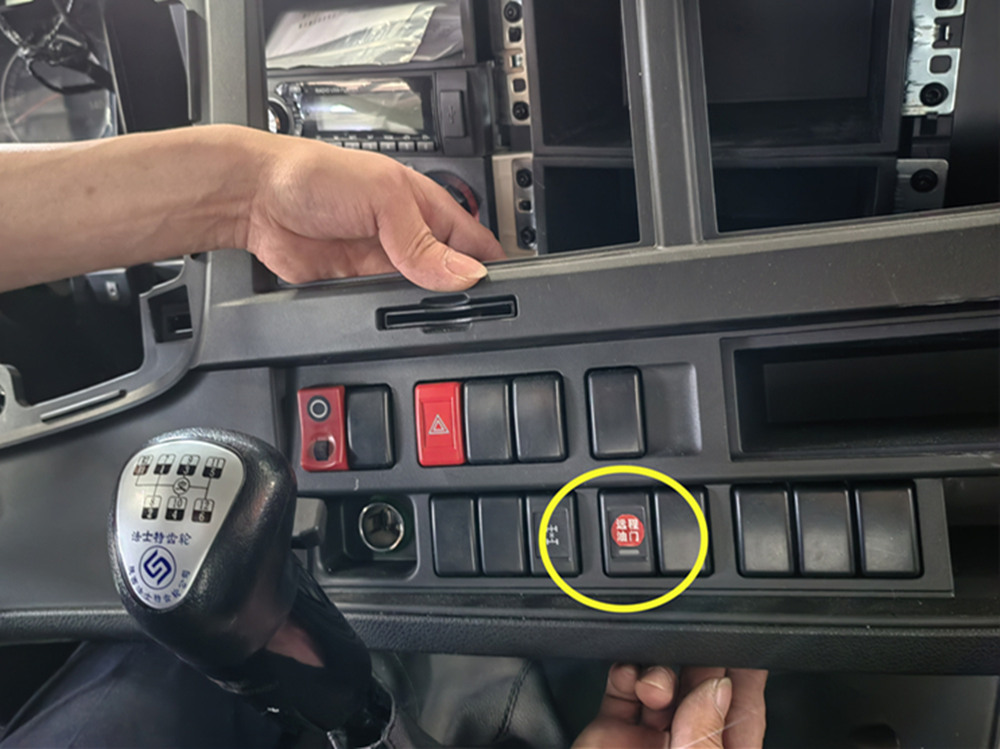

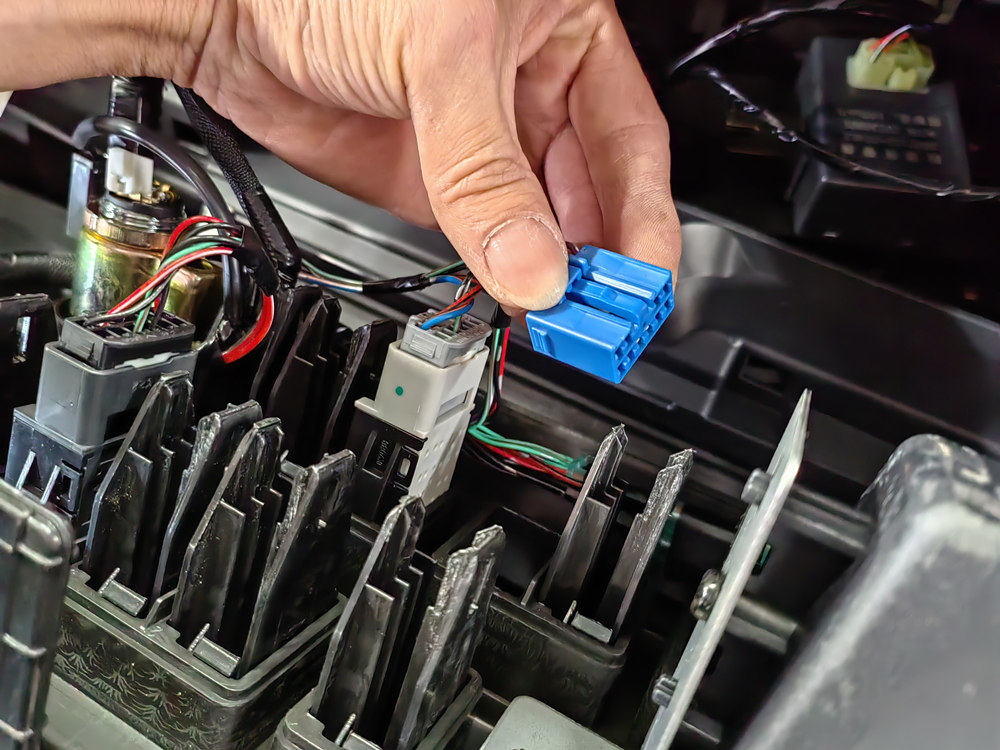

2. Start button in the cab: After turning off the battery, first remove the casing of the cab operating panel, find the button with the blue plug, and remove this button. Put in our specially designed starter button and connect the two wires on the starter button to the blue plug. Finally, restore the operating panel casing.

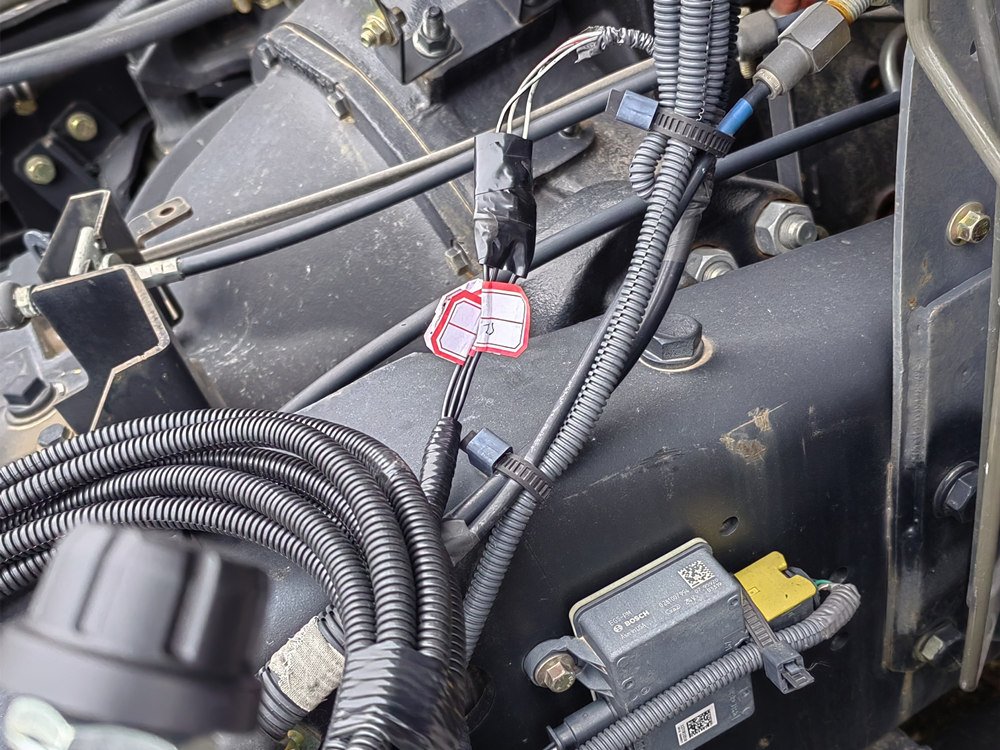

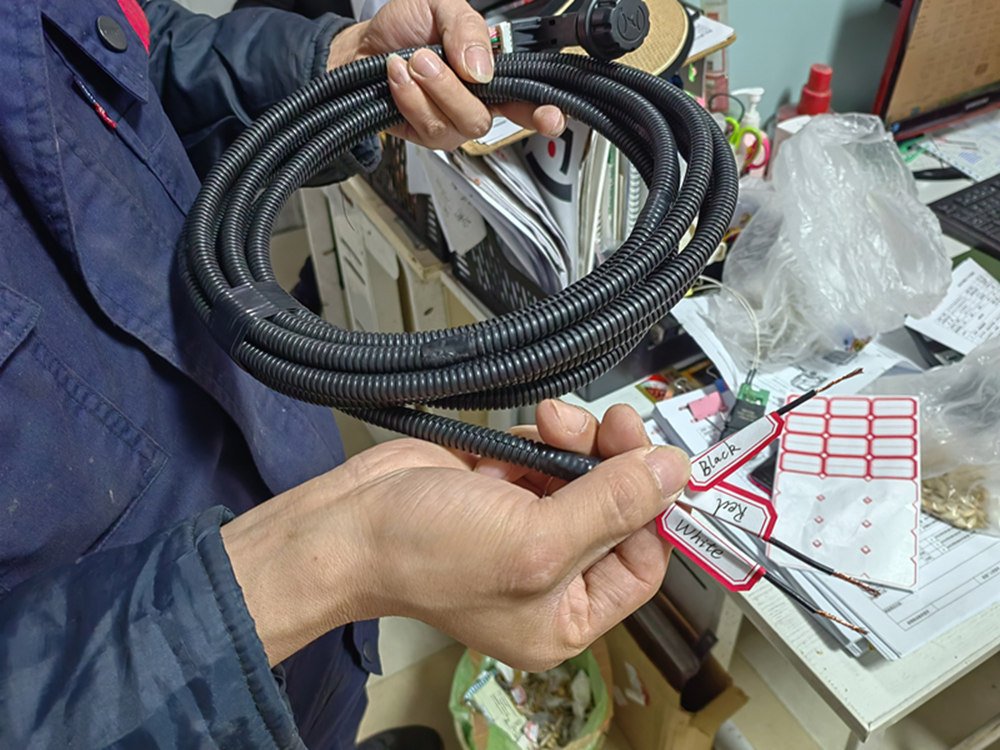

3. Find the throttle system connection port behind the cab. There are three colored lines on the port. We have marked the throttle cable accordingly and can connect directly to the throttle system connection port.
4. After the ports are connected, secure the cable to prevent it from falling off. Finally, install the remote throttle button on the operator's seat.
It should be noted that the corresponding safety operating regulations and technical requirements must be when installing the throttle cable. It is best to have it installed by professional technicians to ensure safety and reliability. The specific installation methods and steps can be adjusted according to the actual situation and crane model.
