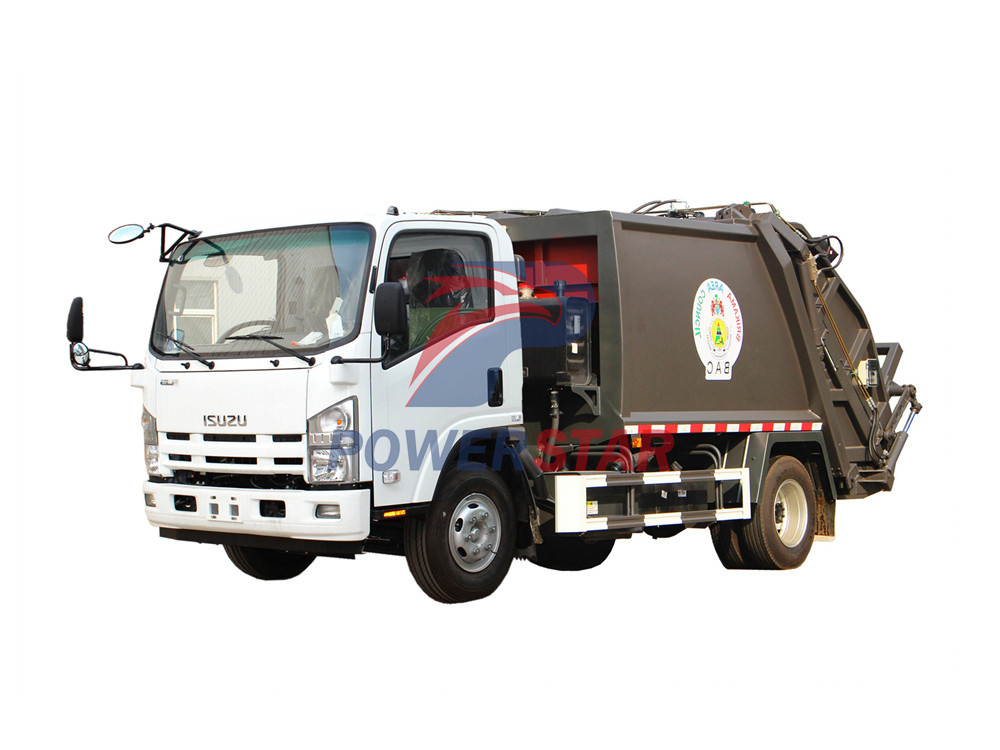

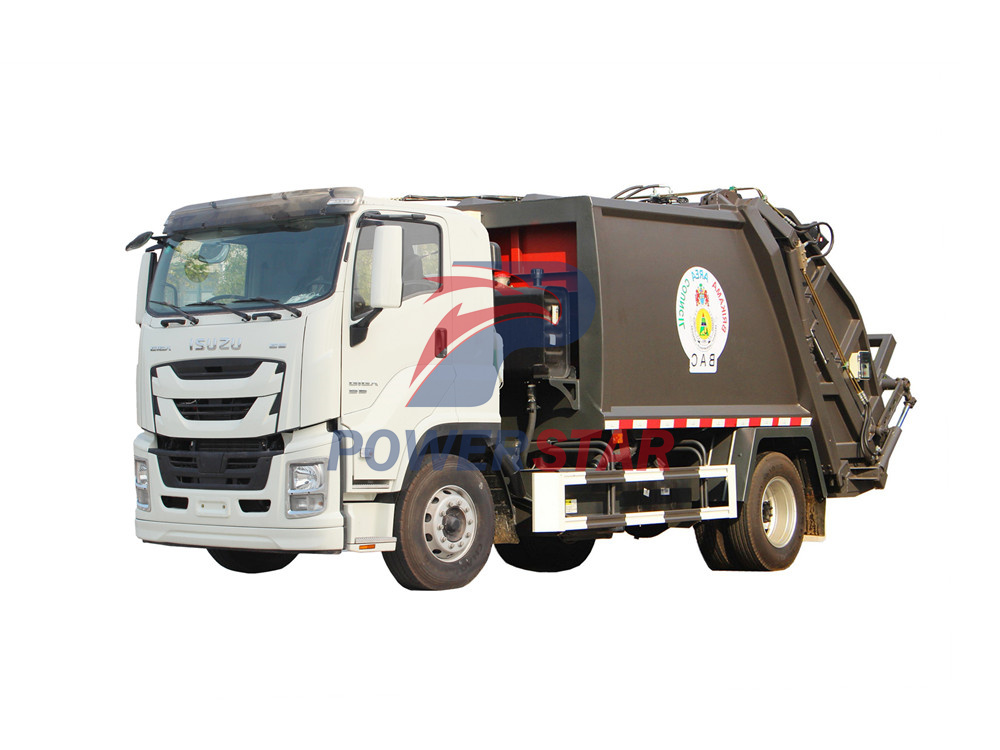

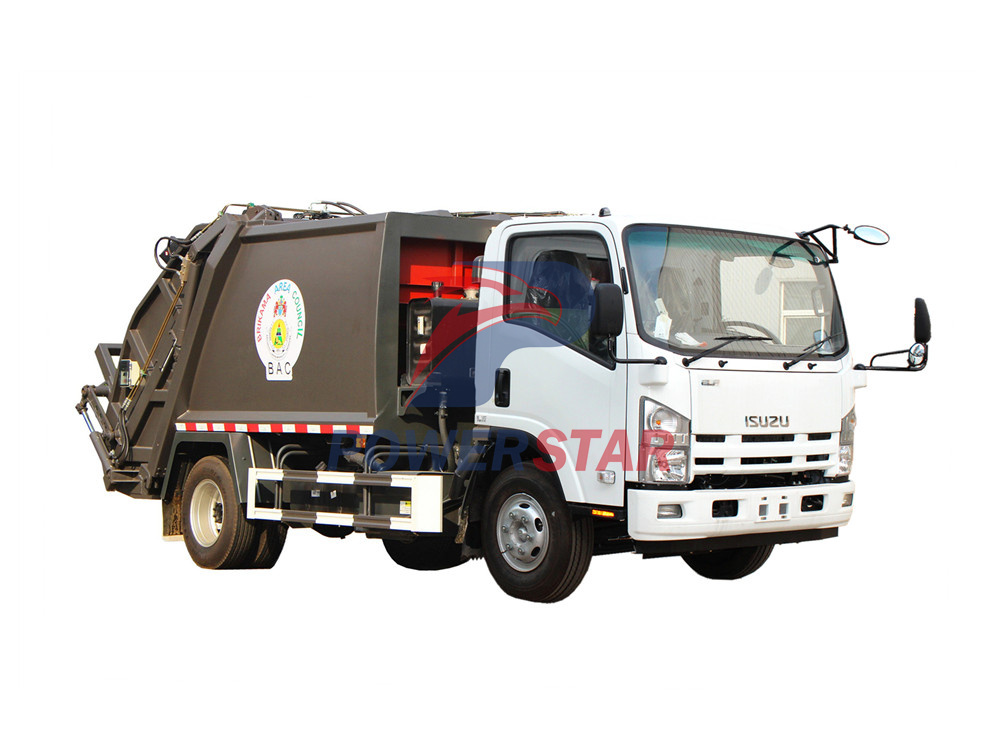

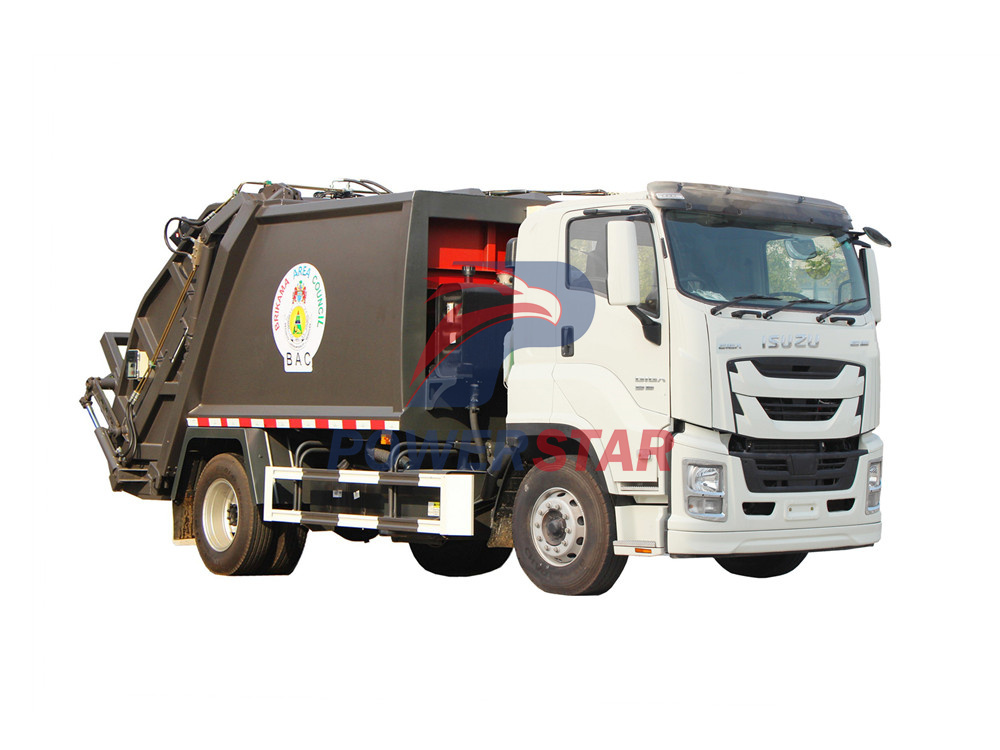

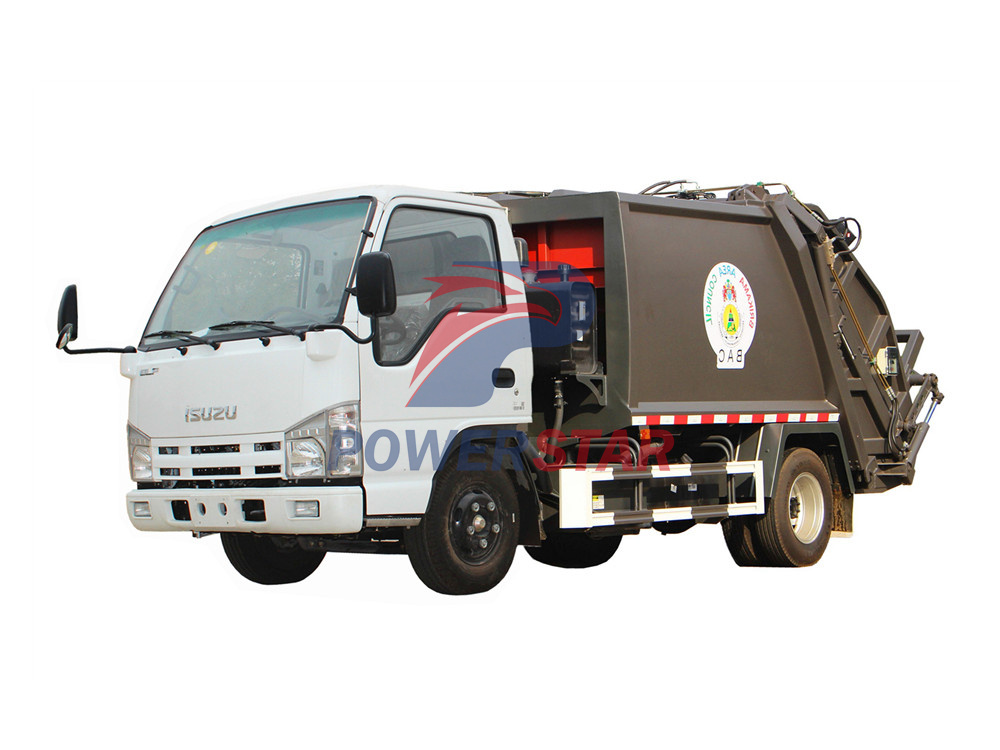

Isuzu garbage compactor truck

The Isuzu garbage compactor truck is a special sanitation vehicle specially used to collect urban residents' domestic garbage and other compressible garbage. The Isuzu garbage compactor truck consists of a sealed garbage bin, a hydraulic system, and an operating system. The whole vehicle is fully sealed. It is self-compressing and self-dumping. All sewage during the compression process enters the sewage tank, which completely solves the problem of secondary pollution during garbage transportation. The key components are imported and have the characteristics of high pressure, It has the advantages of good sealing, convenient operation, safety and labor saving. There are mainly rear-loading compression garbage trucks and side-loading compression garbage trucks. The rear-loading compression garbage trucks can be equipped with rear hanging bucket collection devices, bucket collection devices, swing arm collection devices, and hanging iron bucket collection devices. Users can Choose different collection devices according to different needs.

The dustbin and filler of Isuzu garbage compactor trucks are made of high-quality carbon steel plate welded structures, and the dustbin adopts an arc-shaped cross-section. There is a folding push shovel inside the trash bin. The push shovel is driven by a shovel cylinder and can slide along the guide rails on both sides of the bottom of the trash bin. The push shovel not only functions to unload garbage, but also seals the front end of the trash bin. . There are slide plates and scrapers in the filler, which are driven by slide cylinders and scraper cylinders respectively. The slide plates move in the chutes on both sides of the filler, and the scrapers move around the axis of the slide plates. There is lifting oil and a locking mechanism between the bin and the filler. The lifting cylinder drives the filler to lift and lower, and the locking mechanism locks the filler on the garbage bin. The bucket turning mechanism at the rear of the vehicle realizes the flipping, dumping and return of garbage through an oil cylinder. The hydraulic system of the Isuzu garbage compactor truck adopts a combined control valve group, and the oil pipes are neatly arranged, beautiful and reasonably laid out.

The Isuzu rear-loading garbage compactor truck is based on the compression garbage truck and is equipped with a rear bucket flipping mechanism or a garbage bucket flipping mechanism. It consists of a sealed garbage bin, a hydraulic system and an operating system. The whole vehicle is fully sealed. It compresses and dumps by itself. All the sewage during the compression process enters the sewage compartment, which completely solves the problem of secondary pollution during garbage transportation. It has high pressure, good sealing, easy operation, Safety and other advantages.

When the Isuzu rear-loading garbage compactor truck loads garbage, the lifting mechanism loads the garbage into the rear hopper. The scraper and the sliding plate cooperate to press the garbage in the rear bucket into the compression box. The compression push plate in the box compresses in two directions, and the compression efficiency is high. The entire operation process is controlled by PLC programmable electronics, which can be cycled with one button and is easy to operate.

The installation position of the bucket elevator of the Isuzu rear-loading compression garbage truck is low, and the maximum height of the bucket after the bucket is flipped does not exceed the vehicle height. Therefore, the rear-loading compression garbage truck can be used indoors or in basements with limited operating space. Take advantage of this space.

Features of Isuzu rear-loading compression garbage truck:

1. The key parts of the hydraulic system, such as hydraulic valves, cylinders, and connecting pipelines, have unique structures, reliable performance, simple operation, and convenient maintenance.

2. Advanced electronic control system, using CAN bus intelligent system integrated control, efficient operation of electromechanical and hydraulic integration, and high degree of automation.

3. The push plate valve is equipped with a back pressure valve, which enables it to realize the function of compressing garbage in two directions. During the compression process, the push plate can automatically move to the front of the box, effectively adjusting the garbage holding space, greatly improving loading efficiency, and ensuring the uniformity and tightness of compression.

4. Exquisite streamlined appearance design, the smooth lines of the garbage truck are not only beautiful and elegant, but also have excellent corrosion resistance. The use of special high-strength anti-corrosion steel plates in the upper part significantly increases the service life of the vehicle, allowing it to operate stably in various harsh environments.

5. Humanized operation design. In order to facilitate the driver's operation, the operation control box is cleverly installed in the cab and the rear of the vehicle. The control box in the cab can control pushing and discharging and select the operating mode (such as automatic or manual), while the control box at the rear of the vehicle is responsible for controlling the operation of the pressing and filling mechanism and the barrel turning mechanism. This design allows the driver to easily complete all operations without leaving the seat, greatly improving operating efficiency and convenience.

6. Intelligent engine management: The power output of the engine can be fully automatically controlled through the electrical system to ensure that the engine can provide the required power during the garbage filling cycle and pushing and unloading. Under other working conditions, the engine will automatically enter the overall speed state, effectively reducing power loss and failure rates, reducing power consumption, and improving economical use. This design not only helps extend the service life of the engine, but also significantly reduces operating costs.

7. The optional rear monitoring system facilitates visual loading and unloading operations in the cab.

8. Dual insurance system, the operating system has dual functions of computer control and manual operation, which greatly protects and improves the utilization rate of the vehicle.

9. The specially set emergency brake button can stop the garbage filling mechanism in any state or position to ensure the safety of workers and equipment.

10. There is a turning mechanism suitable for square barrels and drums and a bucket device for collecting bulk garbage. Users can choose different collection mechanisms according to different garbage collection methods.

The Isuzu garbage compactor trucks also have the following features:

1 Compressed garbage trucks can greatly improve the efficiency of garbage removal, reduce the number of transportation times and transportation volume, and reduce transportation costs.

2. Compressed garbage trucks are highly automated and easy to operate, which can reduce labor costs, reduce workers’ labor intensity, and improve work efficiency.

3. Compressed garbage trucks can reduce secondary pollution and protect the environment.

4. Compressed garbage trucks have the advantages of high safety performance, good reliability, simple operation, and convenient maintenance.

The compressed garbage truck is an efficient, environmentally friendly and safe garbage disposal equipment with wide application prospects and market demand.
