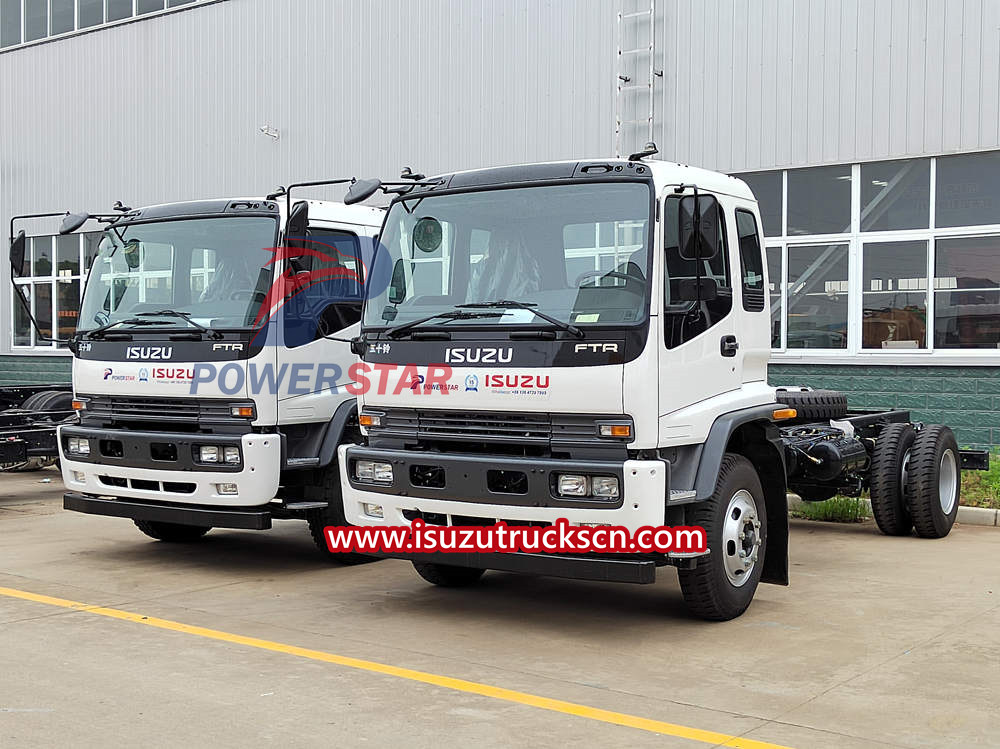

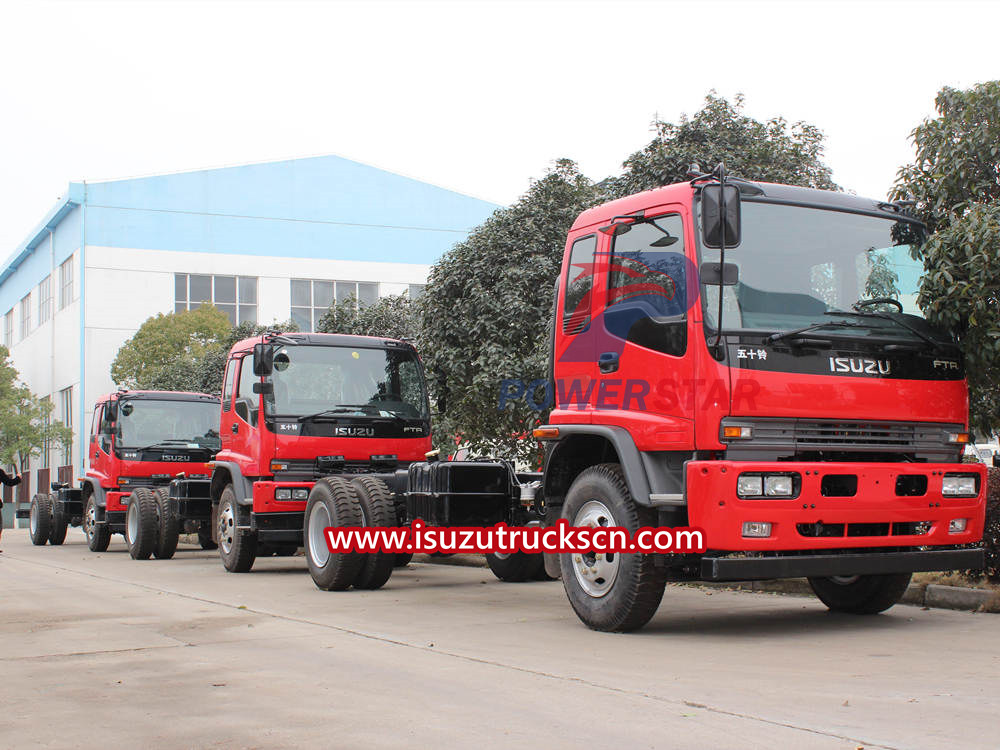

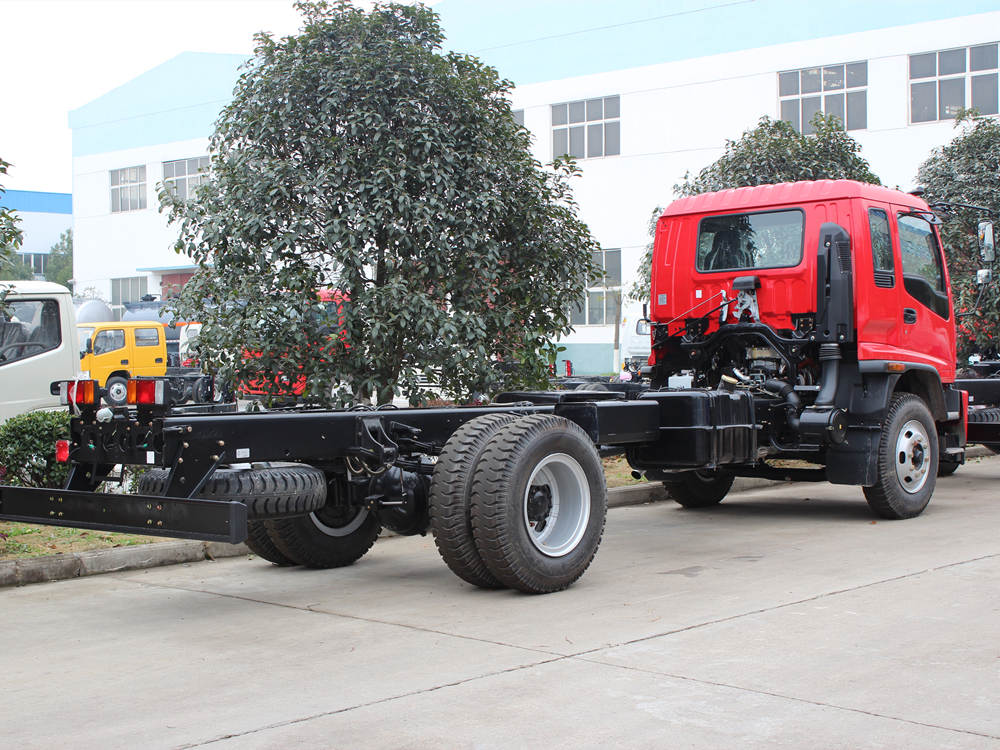

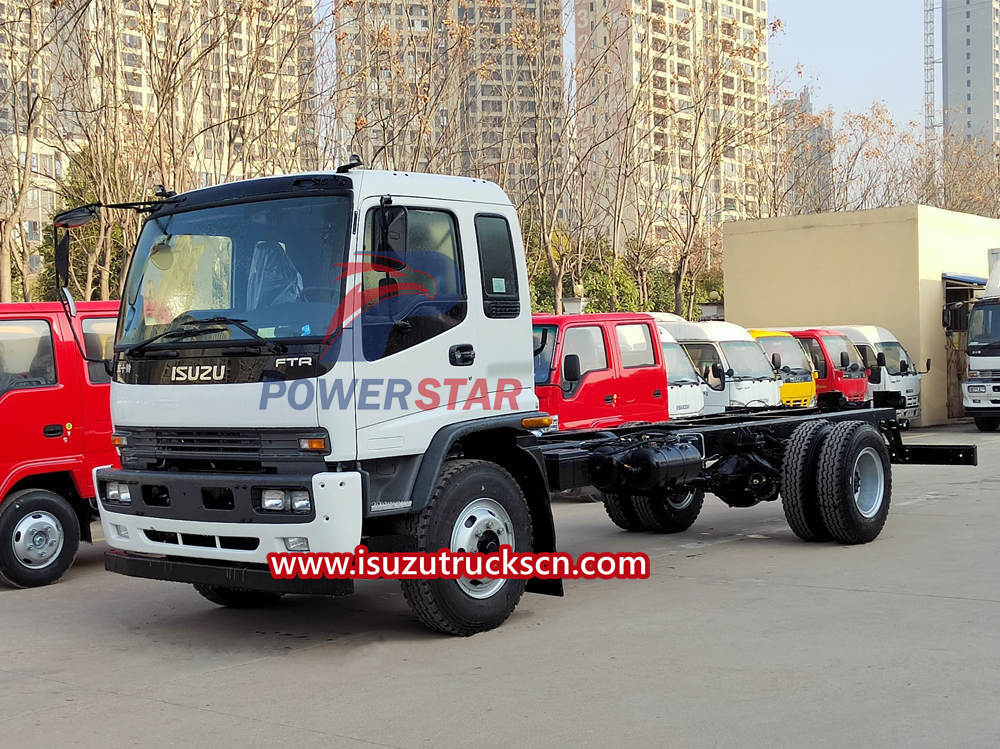

The Isuzu FTR chassis is a commercial vehicle chassis designed for medium-sized trucks. It has excellent stability and load capacity and is widely used in various industries. The Isuzu FTR chassis utilizes advanced engineering and high-quality materials to ensure its durability and efficient performance. This article will introduce the technical features, advantages and application fields of the Isuzu FTR chassis.
1. Excellent controllability and stability.
Isuzu FTR Chassis uses high-strength steel and undergoes precise welding processes to ensure the chassis's strength and durability. It can effectively improve the stability and controllability of the vehicle. In addition, Isuzu FTR Chassis also adopts advanced suspension and braking systems to make the vehicle more stable and safer during driving.
2. Excellent power system.
Isuzu FTR Chassis is equipped with a high-performance engine that can provide strong power output. At the same time, the chassis is also equipped with advanced transmission and transmission systems, allowing the vehicle to have better dynamic performance when starting, accelerating and climbing hills. Therefore, whether it is long-distance transportation or urban distribution, Isuzu FTR Chassis can meet the needs of various working conditions.
3. Has excellent carrying capacity and transportation efficiency.
Isuzu FTR Chassis adopts a rigid body design and a high-strength frame structure, which can withstand a large load capacity. At the same time, the chassis is also equipped with a large cargo box space and convenient loading and unloading equipment, making the transportation of goods more efficient and convenient.
4. Security.
Isuzu FTR Chassis adopts advanced safety technologies and equipment, such as active braking system, lane departure warning system, anti-lock braking system, etc. These safety technologies can effectively improve the safety of vehicles during driving and reduce the occurrence of accidents.
5. Be widely used.
Due to the excellent performance and reliability of Isuzu FTR Chassis, FTR chassis is widely used for long-distance transportation and short-distance distribution of various types of goods. Whether it is a large logistics company or a small merchant, Isuzu FTR Chassis can provide them with reliable transportation solutions.
All in all, the Isuzu FTR Chassis is a commercial vehicle chassis with excellent performance and high reliability. Its advanced technology and excellent performance make it popular in the commercial transportation field. Whether it's challenging long-distance transportation or busy urban distribution, the Isuzu FTR chassis is capable of it.
Vehicle Model |
QL5180XXYGTFRY |
|
Vehicle Dimensions and Parameters |
Overall Dimension |
7570×2490x2810mm |
Wheelbase |
4500mm |
|
Front/ Rear Wheel Distance |
1960/1855mm |
|
Front/Rear Suspension |
1335/1735mm |
|
Weights and Capacities |
Curb Weight |
5250 (kg) |
GVW |
18000kg |
|
Axel Loads |
6500/11500 kg |
|
Engine |
Model |
4HK1-TC50 |
Power |
151Kw |
|
Displacement |
5193ml |
|
Exhaust Gas Treatment Technology |
DPF |
|
Cab |
Number of Seats |
3 |
Chassis |
Drive Type |
4x2 |
Tires |
7(Including Spare Tire) |
|
Fuel Tank |
Capacity |
200L |
Configurations |
Power Steering System |
|
Air Conditioner |
||
Retro-reflective Marking |
||
ABS |
||
Free Maintenance Battery |
