Isuzu aerial work truck, also known as Isuzu lifting platform truck or Isuzu aerial platform truck, is a special vehicle used for aerial work. Isuzu aerial work truck is mainly used for aerial work in construction, maintenance, cleaning and other projects. Isuzu aerial work truck is equipped with telescopic boom and platform, which enables workers to easily reach high altitudes without the need to use dangerous ladders or scaffolding to perform various tasks such as repairing building facades, installing billboards or cleaning windows.
Isuzu aerial work truck also called man lift truck, aerial platform truck, telescopic boom aerial work truck, high altitude operation truck, telescoping hydraulic lift truck, truck mounted man lift, lifting platform truck, overhead working truck.
Specification |
Chassis brand |
ISUZU ELF |
|
Chassis model |
QL1110ANKAY |
||
Overall dimension(L*W*H) |
6800x2350x3400mm |
||
Chassis |
Drive modle |
4*2 left hand drive |
|
Wheel Base |
3815 mm |
||
Tyre size & number |
235/75R17.5, with one spare tyre |
||
Fuel/Engine type: |
Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail |
||
Engine model |
4HK1 |
||
Engine horse power |
190HP (139KW) |
||
Engine displacement |
5.193L |
||
Emission |
Euro 6 |
||
Transmission |
Isuzu MLD, 6 speed forward, 1 reverse |
||
Working condition |
Maximum operating height |
29m |
|
Rotation |
360° |
||

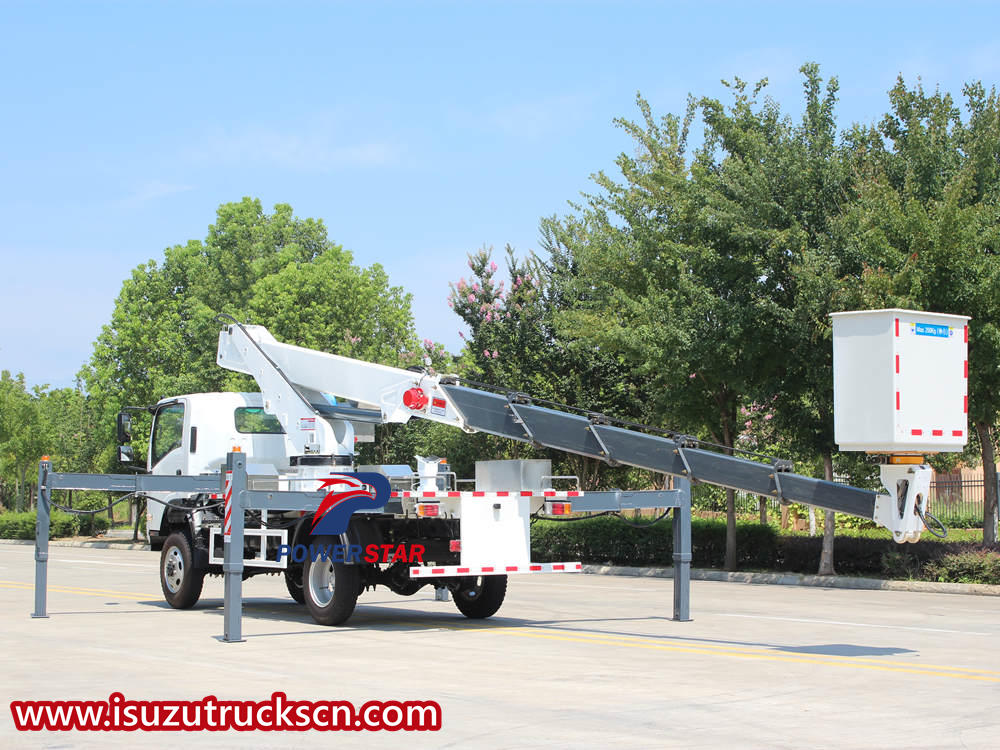

Boom Type |
5Sections telescopic boom |
||
Outrigger type |
Outrigger type |
Front V Rear H type. Controlled independently |
|
Outrigger span |
Vertical |
4000mm |
|
horizontal |
4350mm |
||
Basket |
Rated loading weight |
250kgs |
|
L*W*H |
1400x700x1100mm |
||

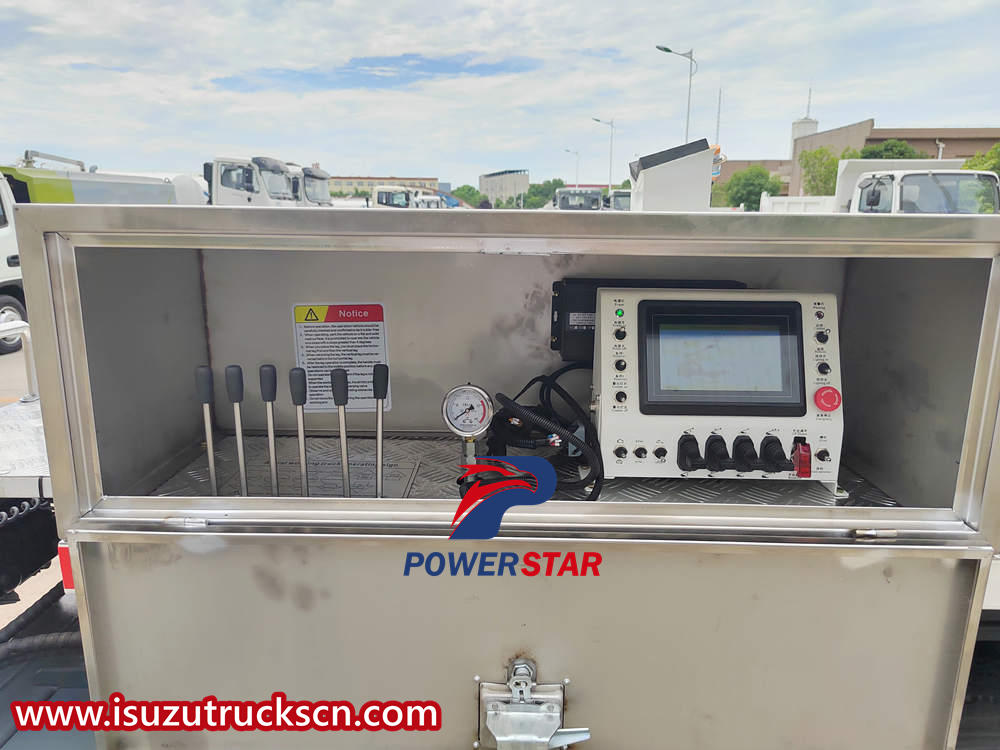

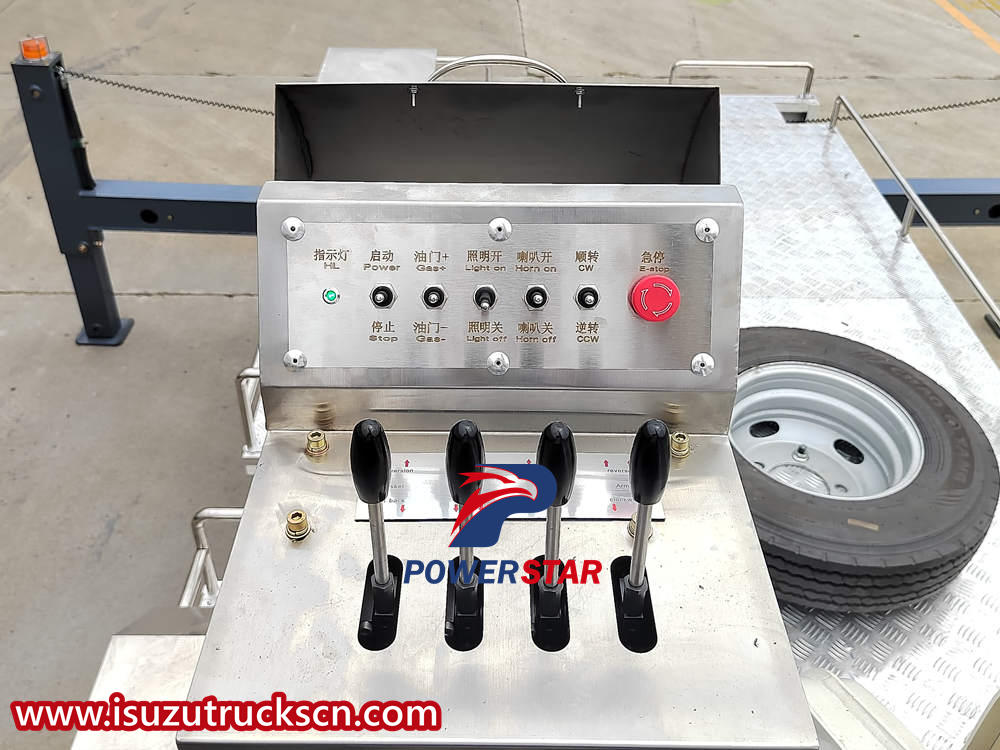

Operation system |
Operation |
4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever. |
|
Control system |
Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation |
||
Leveling system |
Hydraulic automatic leveling |
||
Security configuration |
Automatic interlocking device for up and down |
For locking up and down the truck to prevent the risk of misoperation. |
|
Basket |
360 degree rotation |
||
Horizontal function |
Real time display |
||
Real time communication |
There is wireless intercom between the platform and the vehicle |
||
Emergency electric emergency pump |
When the engine and main pump failure, the operator can be sent back to the ground. |
The Isuzu 29 meter aerial work truck is a versatile and efficient vehicle that can be used for a variety of tasks requiring elevated access. Whether you are working on construction projects, maintenance of tall structures, or tree trimming, the Isuzu 29 meter aerial work truck can help you get the job done safely and efficiently. Here are three key steps on how to use this vehicle effectively:
1.Pre-operation inspection:
Before using the Isuzu aerial platform truck , it is important to conduct a thorough pre-operation inspection to ensure that the vehicle is in proper working condition. Inspect the truck for any signs of damage or wear and tear, including checking the hydraulic system, outriggers, and controls. Make sure that all safety features, such as emergency stop buttons and fall protection devices, are functioning properly. It is also important to check the condition of the boom, including looking for any signs of rust, corrosion, or hydraulic leaks. Finally, ensure that all necessary safety equipment, such as harnesses and hard hats, are on board and in good condition.
2.Operating the Isuzu high altitude operation truck:
Once the pre-operation inspection is complete anIsuzu high altitude operation truck is deemed safe to use, it is important to operate the vehicle carefully and according to the manufacturer's guidelines. Before extending the boom, ensure that the truck is parked on a stable and level surface and that the outriggers are properly deployed. Use the controls in the cab to extend and position the boom as needed, taking care to avoid any obstacles or overhead hazards. Make sure that the platform is securely attached to the end of the boom and that all occupants are wearing appropriate safety gear. When working at height, always maintain three points of contact with the platform and never overload the platform with excessive weight. It is also important to be aware of the truck's weight limits and operational capabilities when using the Isuzu high altitude operation truck.
3.Post-operation maintenance:
After completing the task at hand, it is important to perform post-operation maintenance on the Isuzu lifting platform truck to ensure that it remains in good working condition for future use. Lower the boom to its stowed position and retract the outriggers before driving the truck back to the storage or parking area. Conduct a visual inspection of the vehicle to check for any signs of damage or wear and tear that may have occurred during operation. It is also important to clean the truck and remove any debris or obstructions from the platform and boom.
In conclusion, the Isuzu 29 meter aerial work truck is a valuable tool for tasks requiring elevated access, and by following these key steps for pre-operation inspection, operation, and post-operation maintenance, you can ensure safe and efficient use of this vehicle. Proper training and adherence to safety guidelines are essential to using the Isuzu 29 meter aerial work truck effectively and achieving successful results in your work.
