Isuzu water truck

Isuzu Water tank truck is a mechanical vehicle specially used for dust suppression, road watering, greening watering and other operations. Isuzu Water tank truck can effectively solve the dust pollution problem in urban roads, construction sites, landscaping and other places, making important contributions to environmental protection and urban construction.

Isuzu Water tank truck can also be equipped with special sprayers to achieve front fush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as Isuzu watering truck.

Introduction of Isuzu Water tank truck：

Isuzu water tank truck (also called water spraying truck, mobile water truck, watering truck, water bowser, water truck tanker, water carrying truck, water tank for truck, water distribution truck) is used to transport and supply water, whatever industrial or agriculture water. widely used in construction engineering, farm irigation, draught relief, etc.With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called aspotable water tanker, drinking water tanker, stainless steel water tanker.

1. Suction≥ 7m Sprinkler width≥ 14m Range≥ 28m

2. With front spout, back spill and side spout function

3. With the working platform at the back, wich can be installed green high-pressure water spray gun. (The spray gun shape can be adjustable: Heavy rain, moderate rain, drizzling rain or haze.

4. Provide the best high-power sprinkle pumps quality of the national, And with fire coupling, self-flow add self- priming function.

Operating system: Isuzu water spraying truck The engine drives the gearbox. The power take-off installed on the gearbox drives the sprinkler pump. The sprinkler pump generates power to spray the liquid inside the tank through the pipe network. Isuzu water spraying truck can be also equipped with pesticide spraying machine, to be used to spray pesticide in agricultural pest control field.

1. Water absorption work

(1) The Isuzu sprinkler truck should be as close as possible to the operating point and park.

(2) Open the side door of the walking platform box, take out the water-absorbing hose, and swing it backward without bending.

(3). Pump the water-absorbing hose into the water as deep as possible, ensuring that the end of the pipe is always less than 300mm away from the liquid level during operation.

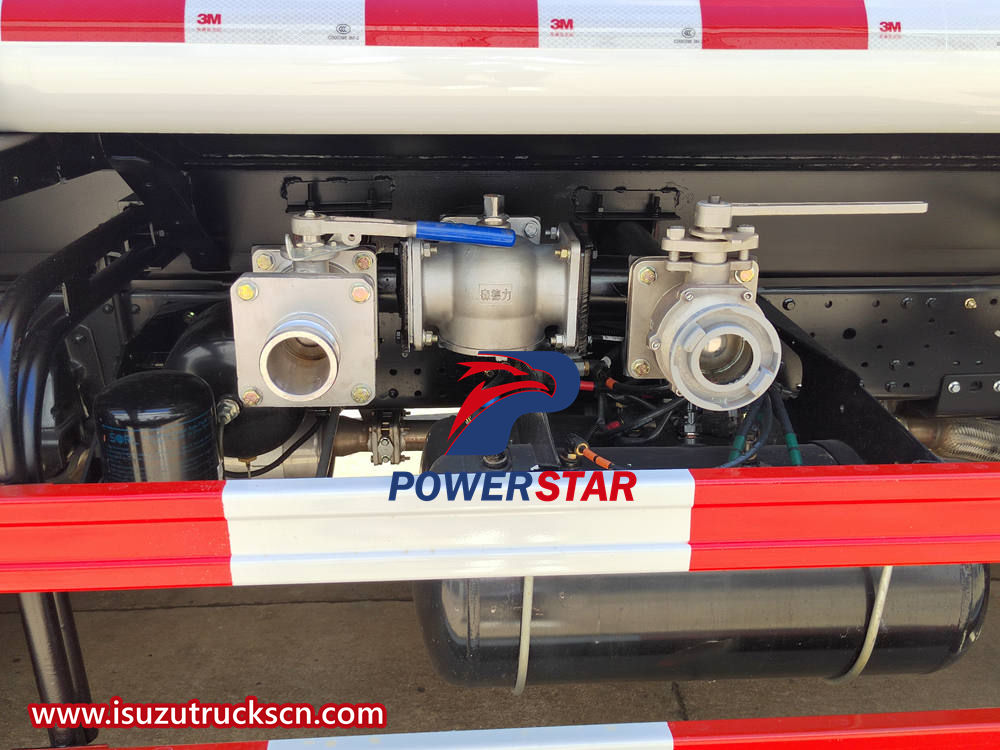

(4). Push the handle of the four-way valve until it is perpendicular to the ground.

(5). Put the transmission into neutral, then start the engine, disengage the clutch, pull the power take-off switch backward to put the power take-off into gear, and the pump starts running.

(6) The operator can pass the observation mirror on the upper part of the rear head. When the liquid level reaches the middle of the observation mirror, the driver should be notified, and colleagues should quickly pull the water suction hose away from the water or close the four-way valve.

(7) After putting away the hose, put it back into the walking box and close the side door.

(8) Drive the Isuzu sprinkler truck away from the water pumping site

2.Spraying operation

(1) Pull the rear handle of the four-way valve parallel to the ground, open the ball valve you want to spray (front spray, rear spray, side spray, shower), then start the engine, put the transmission into gear, and turn the power take-off Pull the switch back to put it into gear and take power, then disengage the clutch, the pump starts to run, and starts sprinkling water.

(2) After the water in the tank is sprinkled, the driver should promptly push the power take-off control handle forward to disengage the gear and stop the sprinkler pump.

After the operation is completed, it is also necessary to do a good job related to the Isuzu sprinkler truck, such as drainage, anti-freeze, etc. When the sprinkler truck is not used for a short period of time, the water in the water tank needs to be drained for unloading and rust prevention. When the temperature is below 0°C, the accumulated water in the water purification tank, pipeline system and water pump should be drained after daily operations to avoid freezing of mechanical parts. In addition, when parking the Isuzu sprinkler truck, choose a safe place that does not hinder traffic. When not in use for a long time, use square wood or other rigid objects to fix it to ensure the stability and safety of the vehicle.
