Isuzu fire truck

Isuzu fire truck is an important tool for fire extinguishing and rescue, and its control panel is the core component for realizing the functions of Isuzu fire truck. The control panel of the Isuzu fire truck consists of multiple control buttons, switches and indicator lights. Through various control devices on the operation panel, firefighters can control the vehicle's lights, sounds, water pumps, foam spray and other functions. This article will introduce the control panel of Isuzu fire truck.

1. Engine control panel

The engine control panel is the heart of the Isuzu fire truck and is responsible for providing power for vehicle operation. The panel mainly has the following function keys:

Start button: used to start the engine.

Stop button: used to shut down the engine.

Throttle control: used to adjust the engine speed.

Brake Control: Used to control the vehicle's braking.

Temperature display: Real-time display of engine water temperature.

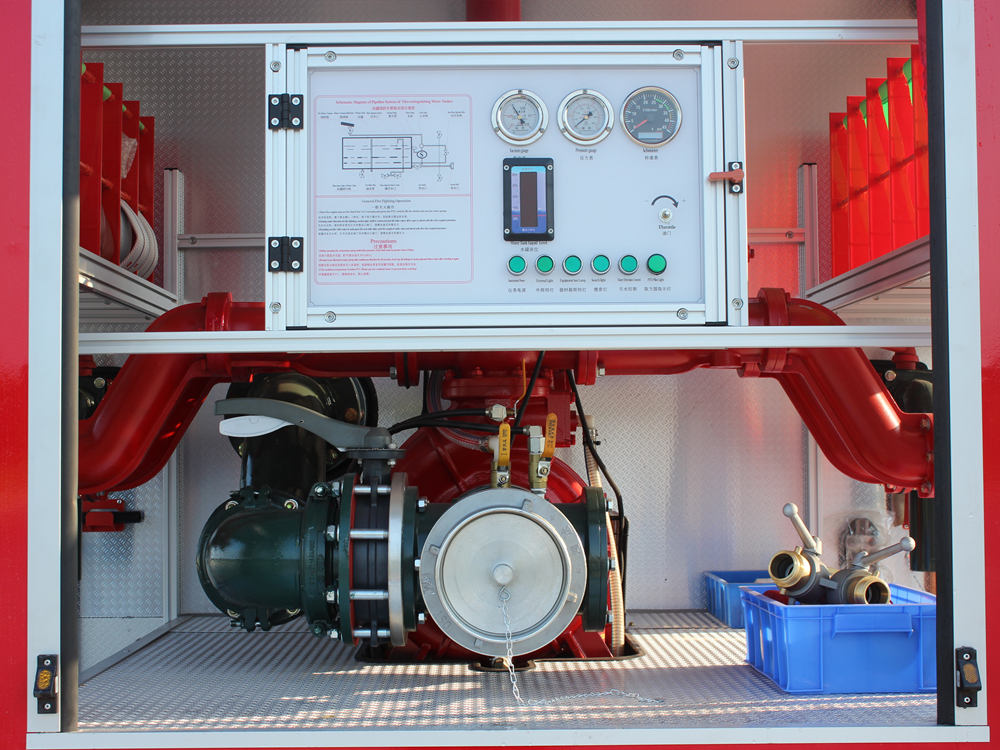

2. Fire pump control panel

The fire pump is the main equipment of Isuzu fire engine and is used to provide high-pressure water source. The panel mainly has the following function keys:

Start/Stop button: Controls the fire pump on and off.

Water pressure display: Real-time display of the water pressure output by the fire pump.

Flow display: Real-time display of the water output of the fire pump.

Direction adjustment: adjust the spray direction of the fire water gun.

3. Water tank water level monitoring panel

The water tank water level monitoring panel is used to monitor the water level of the fire truck water tank in real time to ensure sufficient water source. The panel mainly has the following function keys:

Water level display: Real-time display of the water level in the water tank.

Water level alarm: When the water level is too low or too high, the alarm light will light up.

4. Fire water gun control panel

The fire water nozzle control panel is used to control the spray mode and water volume of the fire water nozzle. The panel mainly has the following function keys:

Switch control: control the opening and closing of the water gun.

Mode adjustment: Adjust the spray mode of the water gun (column or mist).

Water volume adjustment: adjust the water output of the water gun.

5. Emergency braking system control panel

The emergency braking system control panel is used to quickly brake the fire truck in emergency situations. The panel mainly has the following function keys:

Emergency brake button: In an emergency, press this button and the vehicle will brake immediately.

Release button: When the vehicle has stopped safely, press this button and the vehicle will release the emergency braking state.

Indicator light: The indicator light illuminates when the emergency braking system is activated or disengaged.

Audible warning: When the emergency braking system is activated, the audible warning will sound an alarm to remind surrounding pedestrians or vehicles to ensure safety.

6. Communication equipment control panel The communication equipment control panel is used to ensure smooth communication between firefighters and other personnel.

The panel mainly has the following function keys:

1. Walkie-talkie channel selection switch

2. Walkie-talkie volume adjustment knob

3. Walkie-talkie microphone

4. One-way call and two-way call switch

5. Emergency call button In an emergency, press the emergency call button to automatically switch the intercom to the emergency channel and send a distress signal to the command center. At this time, all walkie-talkies will receive the signal to ensure that the information is transmitted correctly.
