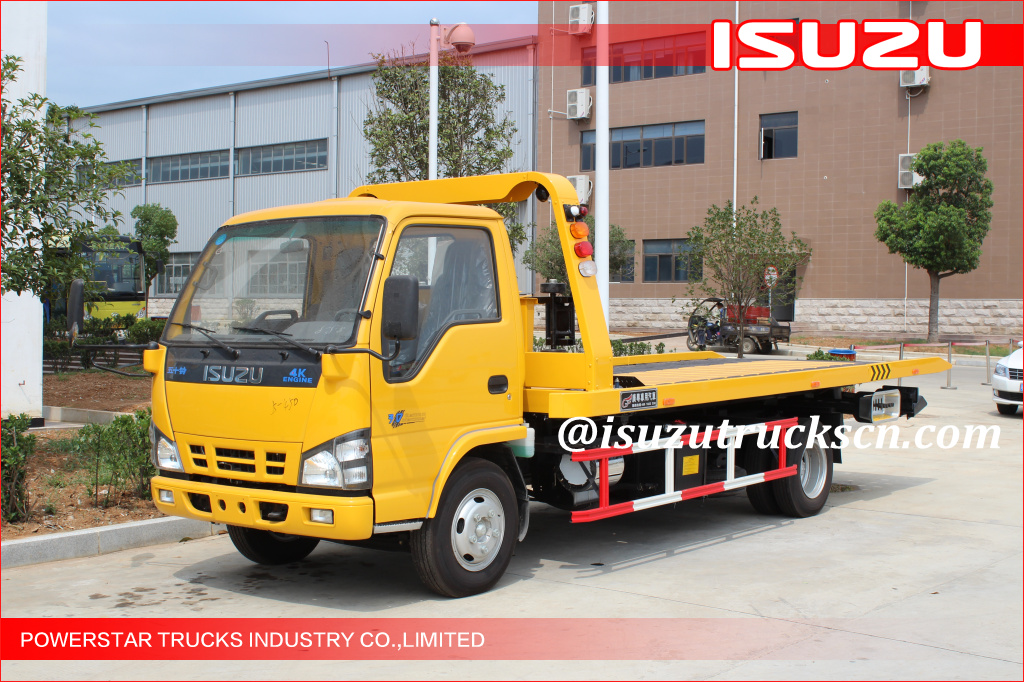

88KW NKR77 ISUZU 600P 120HP 4X2 Road Wrecker Towing Truck
88KW NKR77 ISUZU 600P 120HP 4X2 Road Wrecker Towing Truck TOW TRUCK
| ISUZU 600P Road Wrecker | |||
| Overall dimension | Overall dimension | Length(mm) | 7240 |
| Width(mm) | 2300 | ||
| Height(mm) | 2270 | ||
| Wheel base(mm) | 3815 | ||
| Mass parameter | Max. Gross weight(kg) | 7100 | |
| Curb weight(kg) | 4700 | ||
| Chassis | Model | NKR77 |
|
| NKR77 |
|||
| Engine | Type | ISUZU 4KH1-TCG40 | |
| output(kW) | 88KW | ||
| Tyre | Tyre | 7.50-15,7.00-16 | |
| Refitting system | Flat board system | Length(mm)×Width(mm) | 5400×2300 |
| Operating stroke(mm) | 2680 | ||
| Min. angle of slope(0) | 7.6 | ||
| Rated loading weight(kg) | 3000 | ||
| Rated winch traction weight(kg) | 3000 | ||
| Length of steel wire rope(m) | 21 | ||
| Lifting system | Max. length of extended boom(mm) | 1300 | |
| Rated lifting weight(kg) | 2270 | ||
| Max. extended lifting weight(kg) | 1250 | ||
| Rated traction weight(kg) | 7100 | ||
