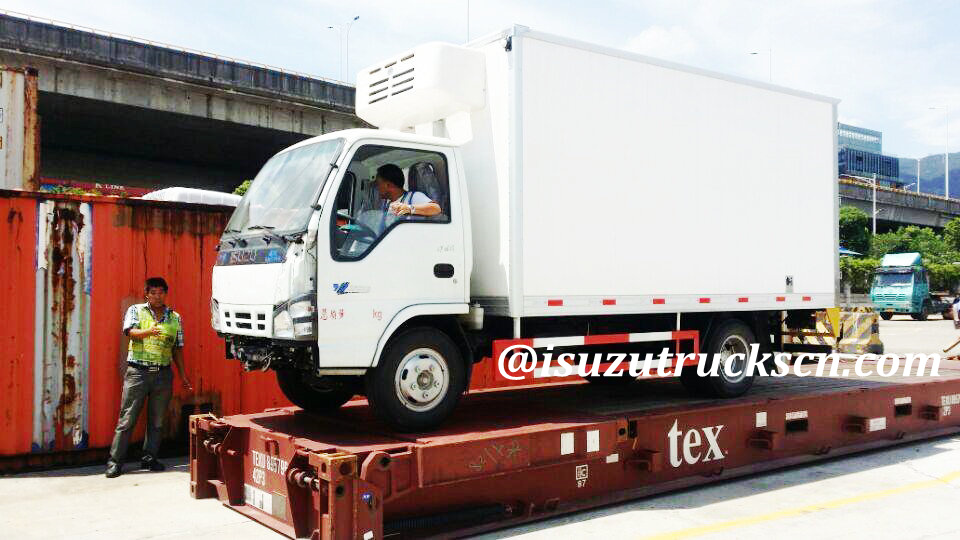

Japanese Isuzu Food/Ice cream Refrigerated Van Truck delivery to Rwanda
Rwanda Isuzu food Refrigerated Vehicle, Africa 5 ton Isuzu seafood Refrigerator truck, Isuzu Brand fish cooling Trucks, Isuzu van trucks for sale
1:Refrigerated van truck body:
Truck body of our reefer truck makes full use of advanced and environmental protection material , includes polyurethane boards structure , fiber glass reinforce plast sheet , color coated sheet , aluminium*magnesium alloy plate used in inner and outer plates.The refrigerator have USA brand optional , eg Thermoking , Carrier , Domestic brand optional , Korea Brand optional . its temperature can be adjusted automatically .
| Products Technical Specification | ||
Product Name |
Refrigerator Truck |
|
Brand-Series |
NKR 600P |
|
Chassis Model |
NKR77 |
|
Emission Standard |
Euro 3 |
|
Fuel type |
Diesel |
|
Cabin |
Single row,With A/C |
|
Whole vehicle main dimensions (mm) |
Overall dimensions (L×W×H) |
5995*1930*2915 |
Cargo body dimensions |
4050*1700*1600 |
|
Wheel base |
3360 |
|
Front overhang |
1015 |
|
Rear overhang |
1525 |
|
Min. ground clearance |
450 |
|
Weight data (kg) |
G.V.W |
7300 |
Curb weight (chassis) |
2900 |
|
Max payload |
3000-5000 |
|
Whole vehicle main performance |
Max. speed (km/h) |
100 |
Max. slope of climb (%) |
30 |
|
Engine |
Model |
4KH1-TC |
Engine power |
96kw / 130hp |
|
Displacement (L) |
2.999 |
|
Number of cylinders |
4 |
|
Max torque (N.m/rpm) |
280/ |
|
Intake type |
Turbocharged and intercooled |
|
Transmission |
Number of gears |
5 forward gears & 1 reverse |
Rear axle |
Type |
4.8tons |
Suspension |
Front |
8- Leaf spring |
Rear |
6+5-leaf spring |
|
Steering Wheel |
left/right hand drive |
LHD |
Brake system |
Service brake |
oil braking |
Electric device |
Rated voltage |
24V |
Tyres & Quantity |
7.00-16 & 6+1 |
|
Cargo body Description |
||
Cargo body dimensions (mm) |
4050*170*1600 |
|
Cargo body material |
FRP inside & outside of the van, polyurethane as the insulation |
|
Cargo body thickness |
80 mm Optional 100mm |
|
Back Door |
hinged door |
|
Side door |
Optional |
|
Refrigeration systems |
Equipped with DT-150, South korean Hanya Brand |
|
Temperature Range |
Normal temperature,refrigeration temperature reached -18°C |
|
Others |
Stainless Steel door frame,Stainless steel corrugated floor, Mark lamp at the four (4) corners f the body, Room lamp will be provided inside the cabin. |
|
