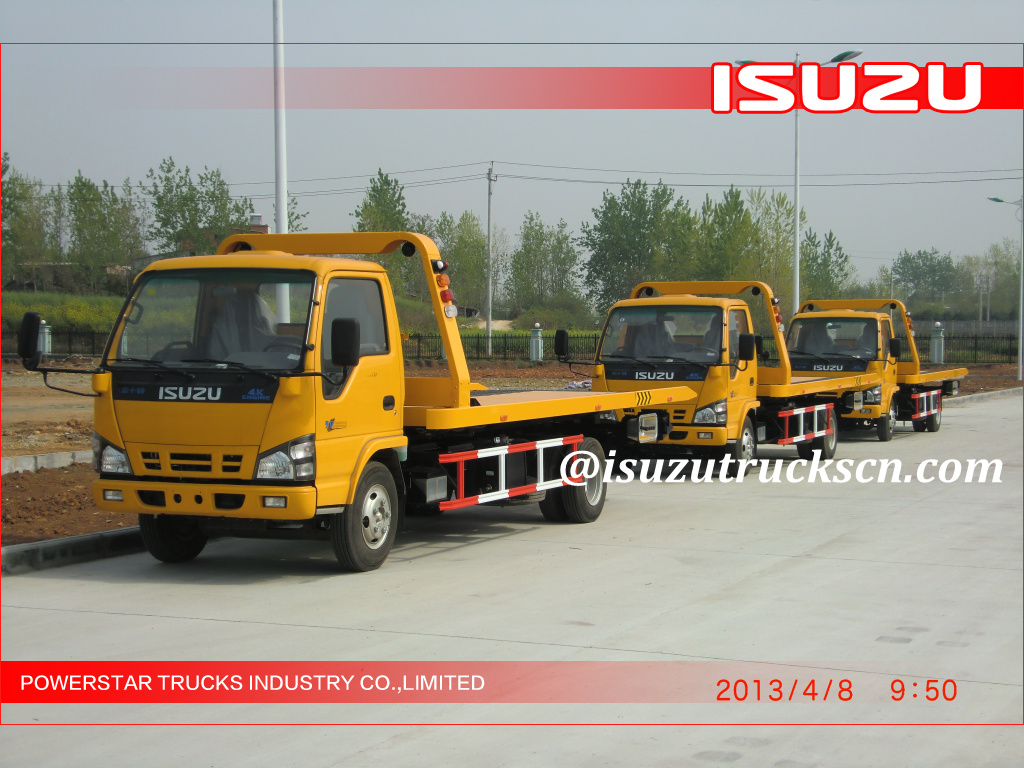

5Ton Towing Tonnage Isuzu 600P Road Platform Wrecker
ISUZU 4X2 Road Platform Wrecker
| Description | ISUZU 4X2 Road Platform Wrecker | ||
| Drive Model | 4X2 | ||
| Chassis | QL1070 | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 7250*2300*2400 | |
| Wheel base (mm) | 3815 | ||
| Overhang (front/rear) (mm) | 1015/2420 | ||
| Wheel track (front/rear) (mm) | 1504/1425 | ||
| Approach/Departure angle(°) | 24/12 | ||
| Weight in KGS | GVW. | 7300 | |
| Curb Weight | 4600 | ||
| Max. driving speed(km/h) | 100 | ||
| Allowable passengers in cab | 2 | ||
| Engine | Model | 4KH1-TC | |
| Type | 4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 130 | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards & 1 reverse | ||
| Fuel tank (L) | 120L | ||
| Tire | 7.50R15.6pieces+1 spare tire | ||
| Operation control system | Electrically hydraulic control | ||
| UPPER |
| Platform Organ | Length(mm)×Width(mm) | 5400x2300 | |
| Operating stroke(mm) | 2680 | ||
| Min. angle of slope(°) | 8 | ||
| Rated loading weight(kg) | 3000 | ||
| Rated winch traction weight(kg) | 3500 | ||
| Length of steel wire rope(m) | 21 | ||
| Ground clearance of cage floor) | 470 | ||
| Hoisting Organ | Max. length of extended boom(mm) | 1300 | |
| Rated lifting weight(kg) | 2500 | ||
| Max. extended lifting weight(kg) | 1250 | ||
| Rated traction weight(kg) | 7100 | ||
| Elevation of boom (upper/ lower)(°) | 9~-10 | ||
| Optional Equipment | Hydraulic clamp Electric motor saw Searchlight |
||
