How to customize Isuzu truck

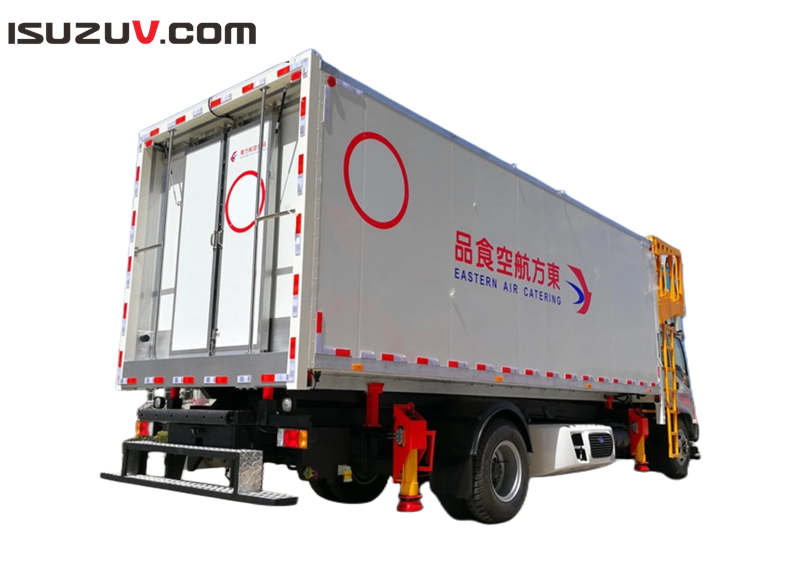

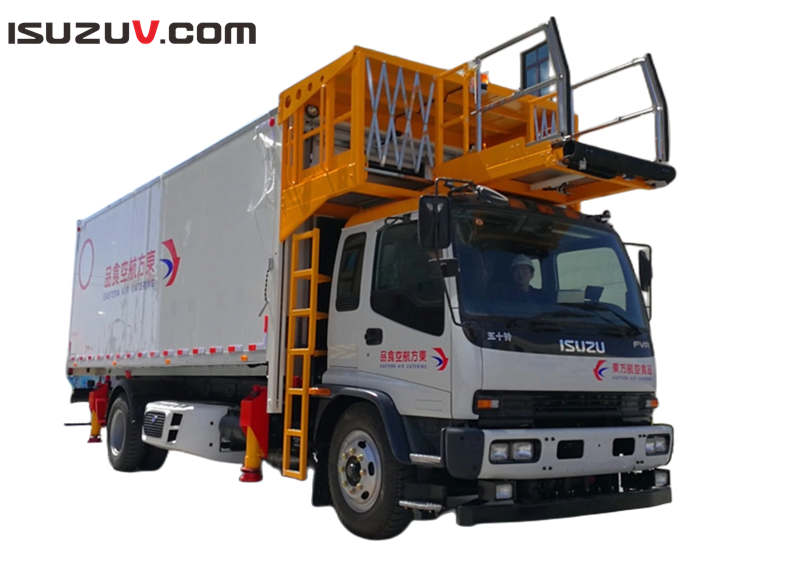

The Isuzu FVR aircraft catering truck is a reliable and efficient vehicle used for catering to the needs of airline passengers. Equipped with a powerful engine and sturdy chassis, this Isuzu FVR aircraft catering truck is designed to handle heavy loads of food and beverages. It is equipped with a hydraulically operated lifting mechanism that enables it to reach aircraft doors at various heights.

The Isuzu FVR aircraft catering truck also features a spacious cabin that can easily accommodate catering personnel and equipment. The truck's electrical and mechanical systems are specifically designed to meet the demands of the airport environment.

 The Isuzu FVR aircraft catering truck is a popular choice among airlines and catering companies due to its durability, ease of maintenance, and flexibility. Its excellent maneuverability and handling capabilities allow it to navigate easily within restricted airport premises. Moreover, its fuel-efficient engine and low emission levels make it an eco-friendly option. The Isuzu FVR aircraft catering truck has undergone rigorous safety and quality tests to ensure optimal performance and reliability. It is also considered a cost-effective alternative to other catering vehicles due to its competitive pricing. The Isuzu FVR aircraft catering truck is widely used in airports across the world and has become synonymous with high quality and efficient catering services.

1    Model    PT6000
2    Truck Dimensions    Overall Length    9,460mm
          Overall Width    2,500mm
          Overall Height    3,800mm
3    Truck Cab & Chassis    Brand    ISUZU
          Model    QL1180XQFRY
          Drive Type    4X2
          Chassis Curb Weight    7,300kg
          Max. GVW    18,000kg
          Wheel Base    5,550mm
          Max. Speed    90km/h
          Driver Cabin Capacity    1 driver + 2 passengers
          Engine    •    Model: ISUZU 6HK1-TCL
•    Type: 6-cyilinder, water cooling, turbo charged and intercooled
•    Displacement: 7790ml
•    Rated Power and rotate speed: 177kw/2400rpm
•    Maximum torque speed: 706NM/1450rpm
•    Emission standard: Chinese V
          Transmission    •    Model: ISUZU MLD-6Q
•    Type: manual transmission with 6 forward and 1 reverse gears
          Air Conditioning
(driver cabin)    Cooling capacity 5.7kw
          Steering    Hydraulic power steering
          Tire    •    Type: 295/80R22.5 16PR, 11.00R20 16PR
•    Number: 6
          Fuel Tank    150L
4    Vanbody    Kitchen Dock Height    1450±50mm onwards
          Payload    4,000kg
          Vanbody Dimensions    •    Overall external Length: 7,500mm
•    Overall external Width: 2,500mm
•    Overall external Height: 2,400mm
          Doors    •    Type: Front and rear Insulated sliding Doors
•    Dimensions: length 1,900mm, width 1,100mm
          Walls & Roof    •    Rigid press injected CFC polyurethane foam sandwich panels (80 -100 mm). One piece panels are full-width/full-height & full- length panels manufactured under high pressure in a special autoclave with metal plates inserted in between

•    Internal and external faces are covered with white smooth board

          Floor    •    The floor thickness is approx. 108mm
•    Has an impact resistance of up to 7kg/cm2
•    The floor material isnon slip aluminum plate, machine welded to enhance consistency and reliability.
5    Platform    Type    Working platform and 4-way operation platform
          Dimensions    •    Working platform (L×W): 1,400mm×2,380mm
•    4-way operation platform (L×W): 1,100mm×1,100mm
          Payload    •    Working platform: 1,000kg
•    4-way operation platform: 400kg
          4-way side shift    800mm
          4-way max. extension    600mm
          Min. Servicing Height    2,800±50mm
          Max. Servicing Height    6,100±50mm
          Safety Handrails    900mm high extendable tubular steel protective handrails mounted at platform sides, handrails extend to leading edge of platform
          Others    •    Platform operation is powered by advance systems allowing piston, auxiliary & hand pump to drive the platform
•    25mm Non-slip aluminum alloy profiles floor surface
•    Non-marking rubber bumper mounted at leading edge of platform
•    Control panel for vanbody and platform is fitted into the internal of vanbody and waterproof

•    Fixed canopy

6    Refrigeration System (vanbody)         •    Model: CARRIER 850U
•    System is equipped with cable and socket to connect the external electric supply
7    Hydraulic System    Max. Work Pressure    14Mpa
          Hydraulic Oil Tank    125L
          Gear Pump    •    Rated power: 23Mpa

•    Displacement: 45ml/r

•    Brand: CASAPPA
          Manual Emergency Pump    •    Rated power: 22Mpa
•    Displacement: 45ml per time
•    Brand: Hipo
          Electric Emergency Pump    •    Rated power: 13Mpa
•    Displacement: 4.3L/min
•    Max. Duration: 2min
          Cylinder    Twin telescopic chrome plated lift cylinders.
          Functions    •    All hydraulic operations are easy accessible at ground level including vanbody up/down, stabilizers up/down, platform left/right, platform in/out, etc.
•    Internal emergency power allows retraction of all hydraulic cylinders without acceleration of the truck engine.
•    In the event of failure of the hydraulic systems, all functions can be controlled via the manual emergency pump.
•    Velocity fuses mounted at each cylinder to halt rapid descent of hoi
