Isuzu FVZ fire truck is a powerful and efficient firefighting machine that is designed to provide reliable and quick response during rescue operations. This advanced fire truck is equipped with a range of cutting-edge technologies and features that make it a perfect choice for a variety of firefighting needs.
The Isuzu FVZ fire truck is powered by a
turbocharged intercooled 6HK1-TCS diesel engine that delivers a maximum
power output of 295 hp and torque of 883 Nm. This engine is paired with a
9-speed manual or automatic transmission that provides exceptional
acceleration and handling.
Isuzu GIGA 10 wheeler fire fighting truck with 6UZ1 engine
One of the most notable features of this fire truck is its advanced water pump system that can reach up to 3,600 liters per minute. This powerful water pump can support multiple hose lines and nozzles, enabling firefighters to tackle fires quickly and effectively.
In addition, this fire truck is designed with a spacious and ergonomic cabin that provides maximum comfort and safety for firefighters. The cabin is equipped with a range of advanced features, including air-conditioning, power steering, and a state-of-the-art communication system.
Finally, the Isuzu FVZ fire truck is built with high-quality materials and construction techniques that make it extremely durable and reliable. Its chassis and body are designed to withstand heavy usage and harsh weather conditions, making it an ideal choice for fire departments in all types of environments.

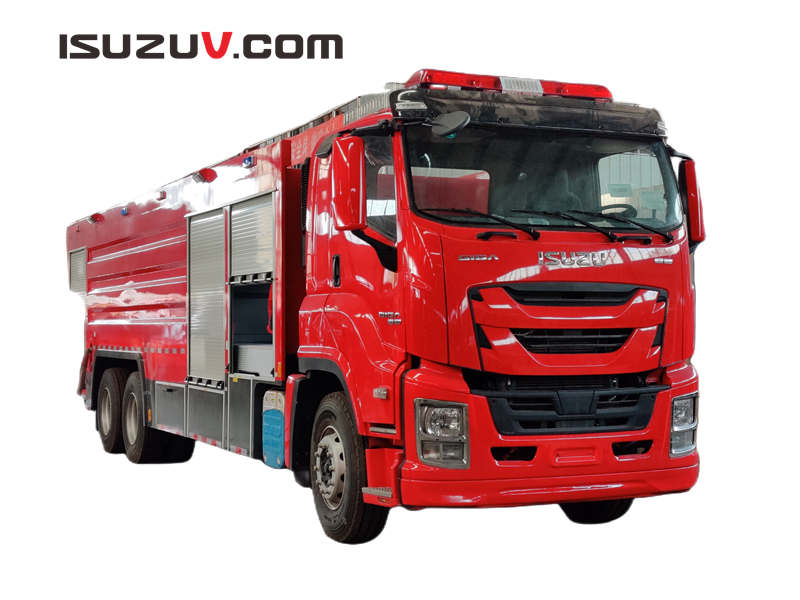

New 6x4 ISUZU Fire Truck 12,000L Specification
Name Water Tank Fire Truck
Model PT1200PM
Painting Fire red (RAL 3000)
(Customer LOGO welcome)
Chassis Brand ISUZU
Chassis Model ISUZU GIGA
Engine power 308KW (420HP)
6X4 Drive, Double Cabin
Outline dimension 9860×2500×3480 mm
Total weight 25000 kg
Number of Seats 3+3 (inc. driver)
Fire-extinguishing Agents Water (L) 12,000L
Foam (L) Without
Chemical (L) Without
Fire pump Model XIONGZHEN CB10/60
Pressure (Mpa) 1.0
Rate (L/s) 60
Fire Monitor Model PS50
Rate (L/s) 50
Throw Range(m) Water ≥ 75
Fire Equipment Factory standard Special equipment for optional

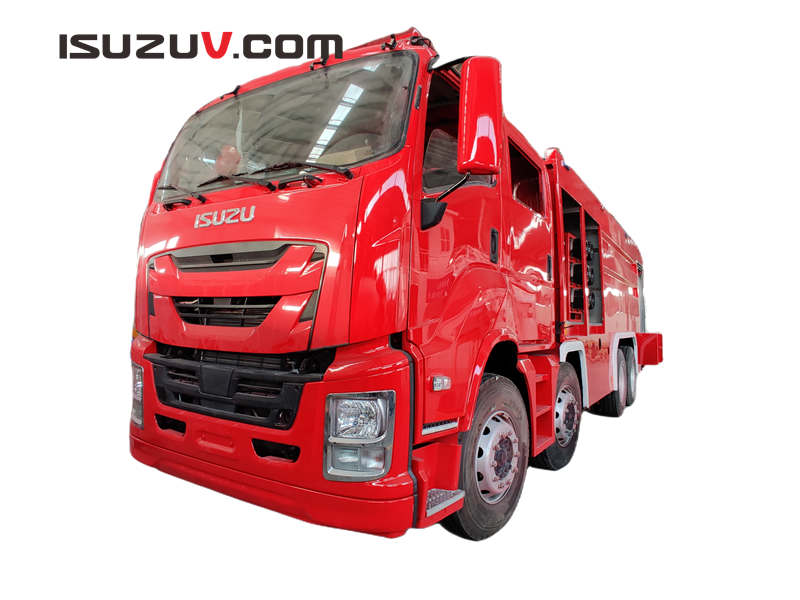

Isuzu 12 wheeler fire fighting truck with 10,000 liters foam tanker
Notes:
1. The quotations valid within 20days
2. Payment Terms: 30% TT deposit for production by T/T, Balance paid by T/T before shipment.
3. Transport: Suitable for transportation by sea
4. Delivery time: 60 days after received deposit
5. Training: Free train in Powerstar factory if customers need.
6. Necessary certificate available: FORM E, CO, LPSR, ECTN, FERI, etc
01, Truck chassis:
Model Parameters others
Chassis ISUZU GIGA Fire application
GVW 25000kg
Engine Model 6WG1-TCG52 ISUZU
Engine Power 420 HP
Wheelbase 4565+1370 mm
Driving Type 6x4/ 10 wheels Left hand
Transmission FAST 12-shift Manual
Emission Standard 15681 ml Euro 5
Passenger No 3+3
Cabin 4 doors, double row of seats A/C
02, Water Tank:
Capacity 12.000L
Material Stainless steel SS304, Thickness min=4mm
Design Tank is designed that the center of gravity as low as possible.
Structure All metal welding structure, the overall corrosion resistance, have Shock absorption measures
Equipped 1 suction hole at the rear of pump room
1 overflow valve device
1 drain outlet with ball valve
1 ? INCH, 2 ? INCH & 4 INCH inlets at both sides, structure: ball valve with inside bend upturning pipeline
03, Foam Tank:
Capacity NIL
Material Stainless steel SS304, Thickness min=4mm
Design Tank is designed that the center of gravity as low as possible.
Structure All metal welding structure, the overall corrosion resistance, have Shock absorption measures
Foam mixing system Model: PH64
Mixing ration: 3%~6%
Mixer type: Manual
04, Fire pump:
Model CB10/60
Type Centrifugal pump
Rated flow 60L/S @1.0Mpa
Outlet pressure ≧1.3 Mpa
Max pumping height 7 m
Max vacuum ≧85 kpa
Priming device Vacuum pump
Priming time ≧ 45s
Operation pump PTO on / off from inside the drivers’ cabin, all other operation will be done from the rear of the pump, from rear side of the vehicle;
05, Fire monitor:
Model PS50
Type Manual
Rated flow 50L/S
Angle § ELEVATION 80 DEGREES
§ DEPRESSION 10 DEGREE
Range ≧ 75m
Rotation angle ≧360
06, Bodywork & Pipeline
The overall layout
Body is made of approved steel tube construction, Flooring made of chequered aluminium;
LED lighting in equipment compartment;
Each compartment closed by light aluminum roller shutter.
According to human body engineering principle design all kinds of equipment frames
The aluminum alloy shutters are installed at both sides of the body and theback of the pump compartment, the ladders are installed on the back of the body at the right side.
Technical requirement All welding panels and skeleton steels are through strict process of anti-rust,
anti-corrosion and phosphating pickling. After completing welding of the tank, the tank will be clear up and removed possible defects such as empty solder. And then it will be
through 24-hour hydrostatic test to assure no leakage.
Suction piping 1 DN125 suction hole at the rear of the pump room with filter screen and
pneumatic Butterfly valve switch
Injection pipeline 2 DN65 injection holes on both sides,1 DN80 injection hole inside pump room.
Fire control system Marks on all operation buttons, with pipeline layout and operation/maintenance illustration. Dashboard lays upper left in the pump room with RPM/Vacuum/water/Pressure/liquid level indicator and lighting/valves control switches
Electrical system Pump room LED lighting, Side flashing light, long red warning light on the cabin, Rear rotation fire lighting.
07, DOCUMENTATION
Manuals: Operation manual in English
Service and Maintenance manual in English
Spare part catalogue in English

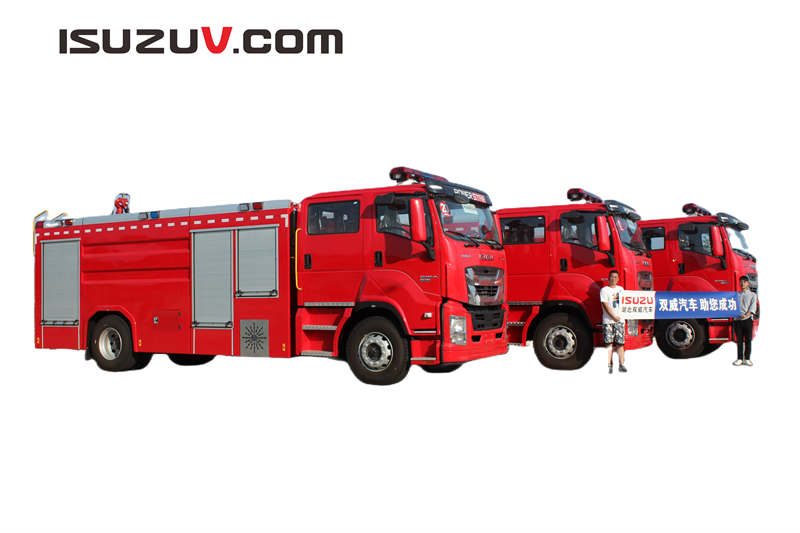

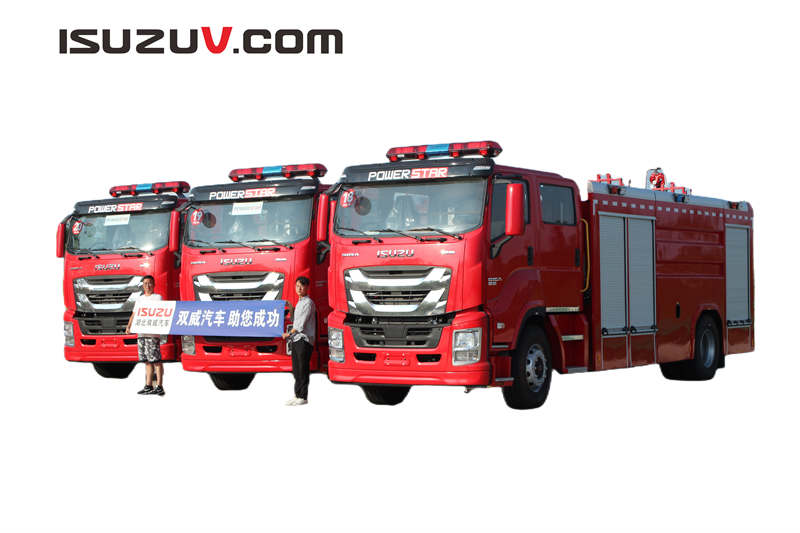

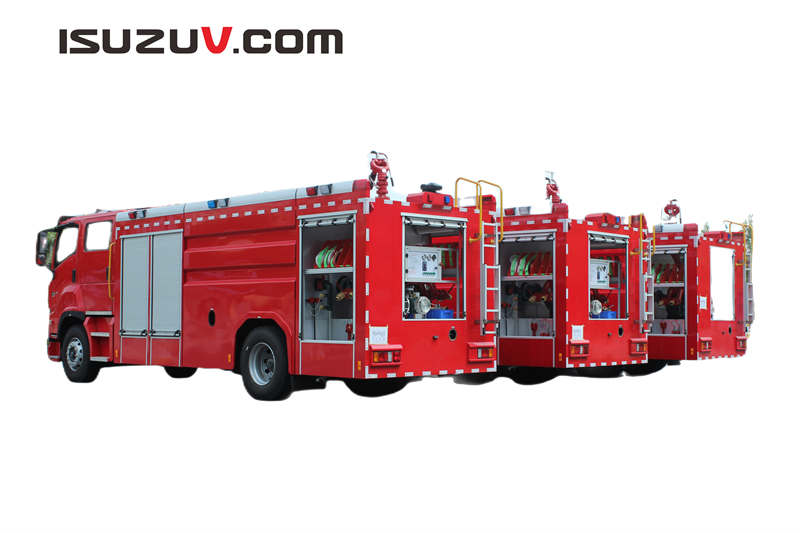

Batch quantity isuzu giga fire fighting truck for Philippine customer.
Original Onboard Fire Equipment
NO. NAME MODEL QTY PICTURE
1 Water Foam combined Cannon
Mounted on truck topside. 1 set
2 DC switch water gun QZG3.5/7.5-65 2 pc
3 Air-foam fire gun QP4/0.7Z-65
(water fire truck without) 1 pc
4 Water suction pipe DN125mmx4m 2 pc
5 Fire-hose DN65mm fire hose (20m) 6 pc
6 Fire-hose DN80mm fire hose (20m)
4 pc
7 Water filter FLF DN125mm 1 pc
8 Two-way distributor PFT80/65X2 1 pc
9 Siamese PFT125/65X2 1 pc
10 Hose adapter KJ65/80 1 pc
11 Hose blanket FP470 4 pc
12 Hose bridge DN60mm, wooden type 2 pc
13 Hose hanger 4 pc
14 Ground hydrant spanner QT-DS, DN400mm 1 pc
15 Underground hydrant spanner QT-DX, DN860mm 1 pc
16 Suction pipe spanner FS125 2 pc
17 Dry powder fire extinguisher MFZ type, 3 KG 1 pc
18 Fire scissors GP5208 2 pc
19 Fire axe DN810mm 1 pc
20 Fire Iron collar DN1060mm
1 pc
21 Fire blanket 1.5m*1.5m 4 pc
22 Medical First Aid Kit Containing necessary medicine 4 sets
23 handheld wireless Radio Equipment 10w, 20 KM working range 2 sets
24 Full fire suit With 5 sets of fire boots, helmets and gloves
4 sets
Optional equipment: Winch, HONDA Generator, SCBA, Lifting lights.
