How to customize Isuzu truck

The Isuzu 600P double cabin fire truck is a highly durable and efficient vehicle that is designed to offer exceptional firefighting capabilities. There are several key features of isuzu 600P fire fighting truck that set this vehicle apart from other fire trucks on the market.

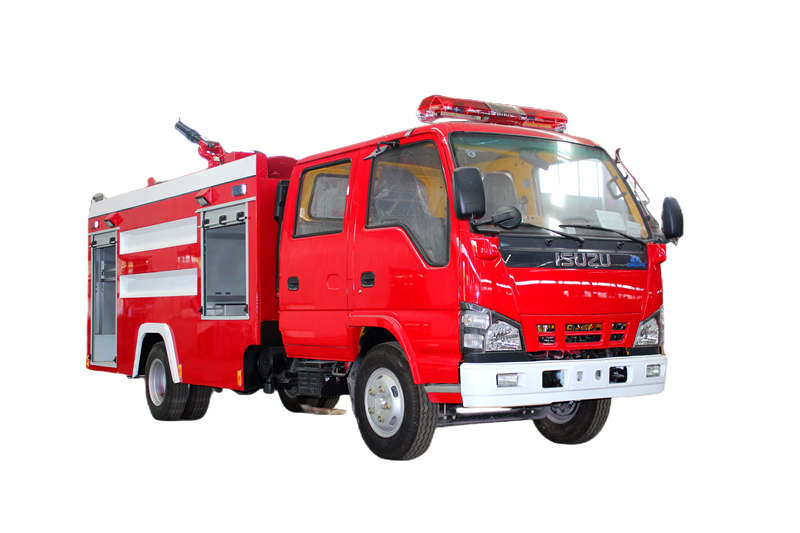

Isuzu 600P fire truck with 4HK1 130 hp engine .



One of the most notable features of the Isuzu 600P double cabin fire truck is its powerful engine. The truck is equipped with an Isuzu 4HK1-TC 205 horsepower engine that delivers excellent performance and reliability. This engine is designed to provide sufficient power and torque to the vehicle, making it highly capable of responding to emergencies quickly.

Another important feature of the Isuzu 600P double cabin fire truck is its large water tank. The vehicle comes equipped with a 2,000-3,000 liter water tank, which allows firefighters to respond to fires and other emergencies with ease. This water tank can also be used to refill other firefighting equipment and tools.

In addition to its powerful engine and large water tank, the Isuzu 600P double cabin fire truck is also designed to be highly durable and robust. The vehicle is made from high-quality materials and features a sturdy chassis that can withstand extreme conditions and rough terrain. This makes it a reliable choice for firefighting operations in rural or difficult-to-reach areas.

Overall, the Isuzu 600P double cabin fire truck is a highly capable and reliable vehicle that offers exceptional firefighting capabilities. Its powerful engine, large water tank, and robust build make it an excellent choice for fire departments and emergency responders around the world.

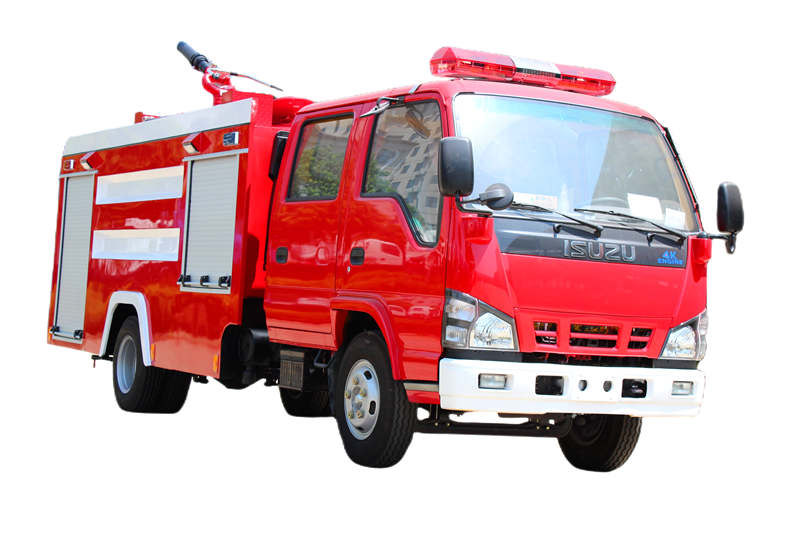

Isuzu 600p double cabin water fire truck   , Isuzu 600p double cabin water fire fighting truck

1. Cabin

  Check periodically whether the alarm lamp, electrical equipment, switches and fuse are in good state or not.

  If necessary, please make the maintenance and replacement in time.



2. Tank

While the tank being full of extinguisher permanently, the extinguisher is corrosive for the tank. The tank should be checked periodically. Once it has been rusty, it is necessary to take some effective measures, preventing the rusty expanding. The common method is to clean the rusty point, after drying completely, brush it with epoxy resin paint. Also check the valves and pipeline periodically.

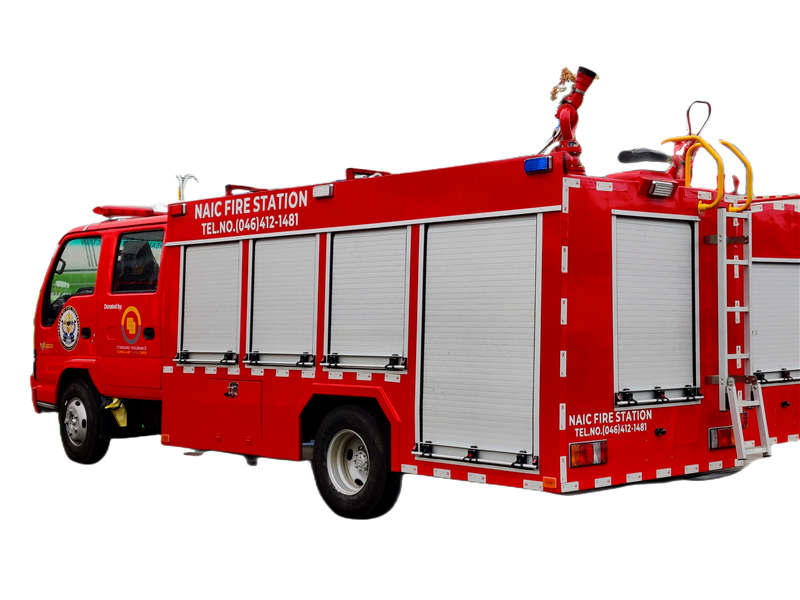

rear view of Isuzu 600p fire fighting truck

3. Hose box

Check periodically whether there is sleeper in the hose box, whether the roller door  is flexible or damage,  whether the oil of the chute of the door is lacking, whether the equipment are clean, dry and in good condition, whether the rubber rings of all joints are normal, whether the equipment are fixed firmly.



4. Pump room

Check periodically whether the equipment in pump room are in good condition. If there are standing water and oil stain, it must be cleaned. Check whether the standing water and oil stain are results from system leakage, if it is, make the maintenance in time.



 5. PTO, Transmission shaft

   Check the oil level and quality, change or add if necessary. Check the sound running state of PTO to find out whether it is blocked or spontaneous out-of-gear, if it is, check and repair in time. Check the sound of pump drive shaft. Check if all fasteners are tight or not.

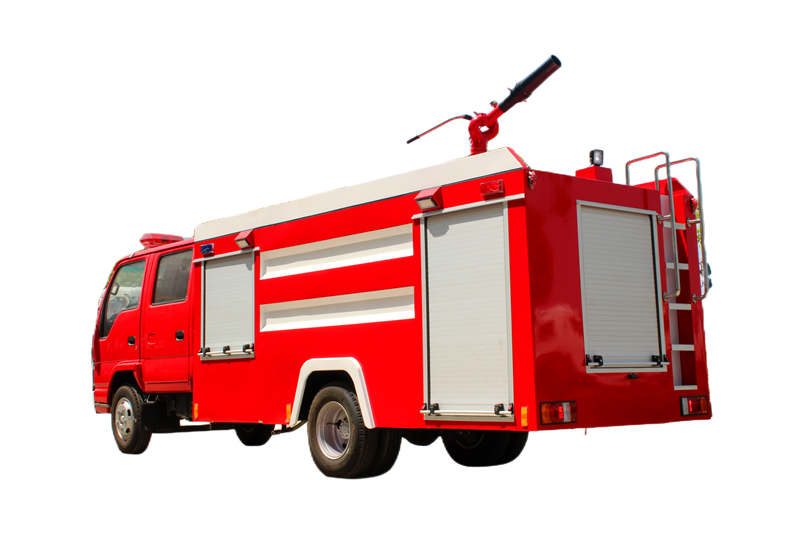

Side view of isuzu 600P water fire fighting truck

6. Fire pump

a．While working, add lubricant to each running part every 3-6 hours.

b．Add lubricant to the screw thread of inlet and outlet, cover the cap.



7. Monitor and its pipeline

  Check all fasteners, joints, turning parts after using. Add lubricant to turning part periodically



8. Middle pressure reels and gun

   Check whether the reel pipe, joints, valves and reel roller are in good condition, check air tightness of all joints.

Add lubricant to turning part periodically

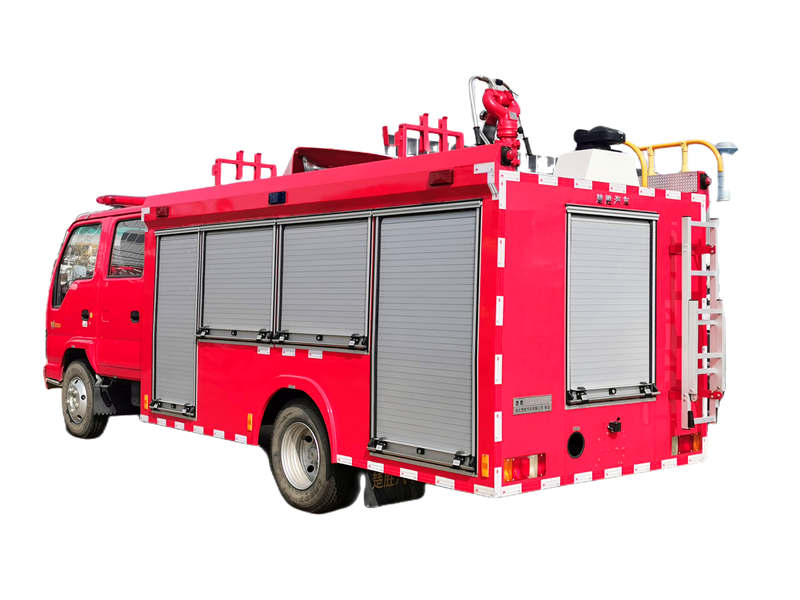

Isuzu 600P water fire fighting truck with double cabin

9. Additional electrical system, instrument

  Check periodically whether the alarm lamp , siren system, hose box light, pump room light , solenoid valve , fluid level gauge and other instruments, check the fuse.
