book is the instruction about operation and maintenance for refitting parts, we are premium isuzu fire fighting trucks manufacturer in china, more than 25 years on producing isuzu NPR NQR fire fighting trucks.

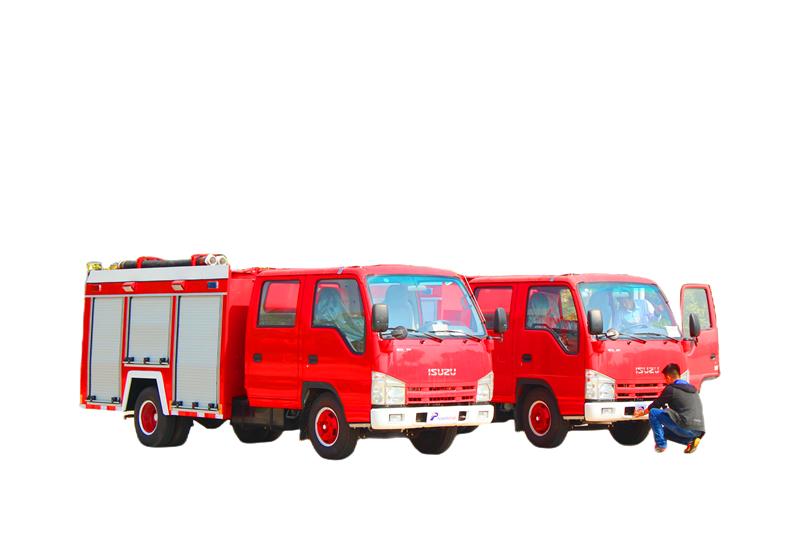

(Isuzu NPR fire fighting trucks in factory ).
This vehicle is used for extinguishing class A or B foam. It is ideal for government fire brigade and large-scale enterprise.
This vehicle is composed of crew room, hose box, tank, pump room, dry powder system, fire pump, PTO, inlet and outlet pipeline and fire monitor, etc.
The ISUZU NPR fire truck is one of the best fire trucks available in the market. It is a versatile truck built on a rugged platform that is designed to handle rough and tough terrain. The NPR fire truck has a sturdy construction with advanced features that make it a reliable firefighting machine. It is equipped with a powerful and efficient diesel engine that generates high horsepower and torque. The truck has a spacious cabin that provides ample space for the firefighters and their equipment. The firefighting equipment on the truck includes a water pump, hose reel, and firefighting tools. The ladder on the truck is designed to reach heights of up to 25 meters, making it ideal for fighting fires in tall buildings. The truck's large water tank and foam tank provide enough water and foam to extinguish fires effectively. The ISUZU NPR fire truck is a reliable and efficient firefighting machine that is designed to meet the demanding needs of firefighters.

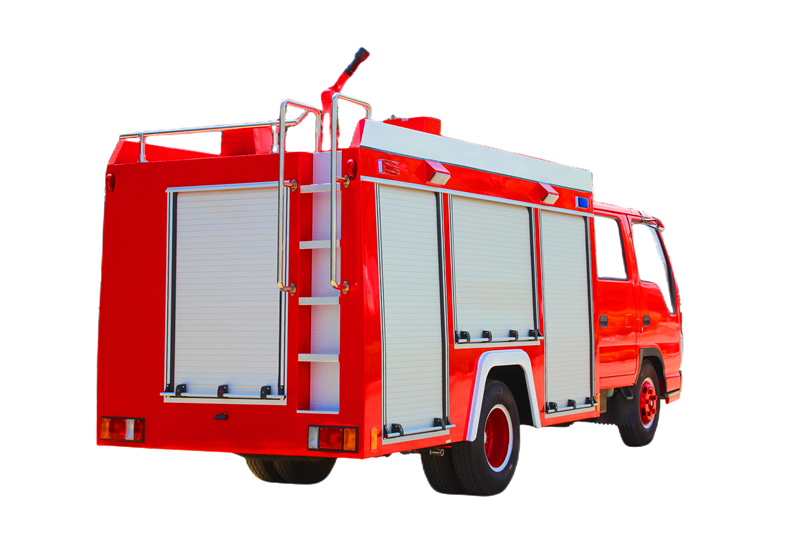

Main structure
1. Cab room
2. Tank
3. Hose box
4. Pump room
5. Pump and pipeline
6. Fire monitor
7. Additional drive system
8. Additional Control system
9. Additional cooling system
10. Additional electrical system
11. Additional gauge system
12. Equipment
13. Control board system
14. Dry Powder system

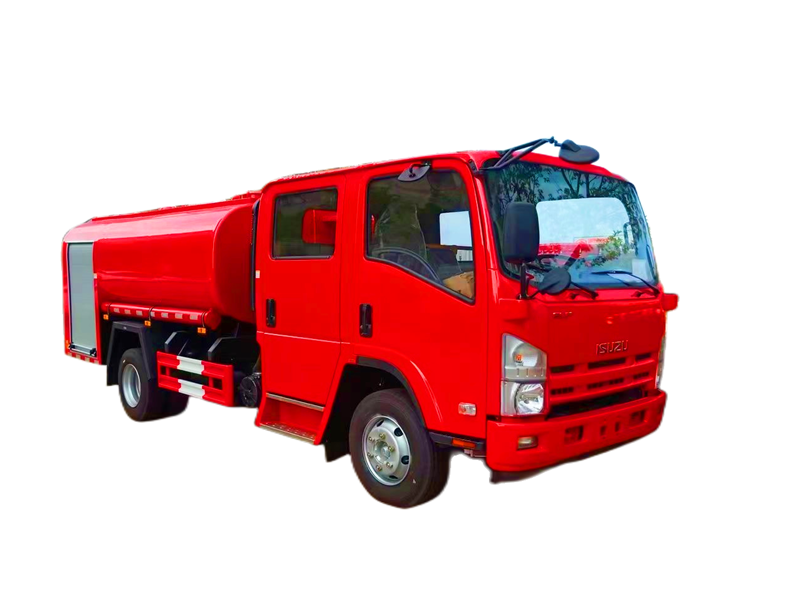

Isuzu NPR double cabin fire fighting truck for delivering.
1. Cab room
Cab
room allows 2+3 crews most. It is double rows 4 doors all-metal structure.
Inside it, there are PTO’s and other additional control switch; also there is
multi functional electronic siren below the instrument desk. There is one
pillow style alarm lamp on the top of the crew room.

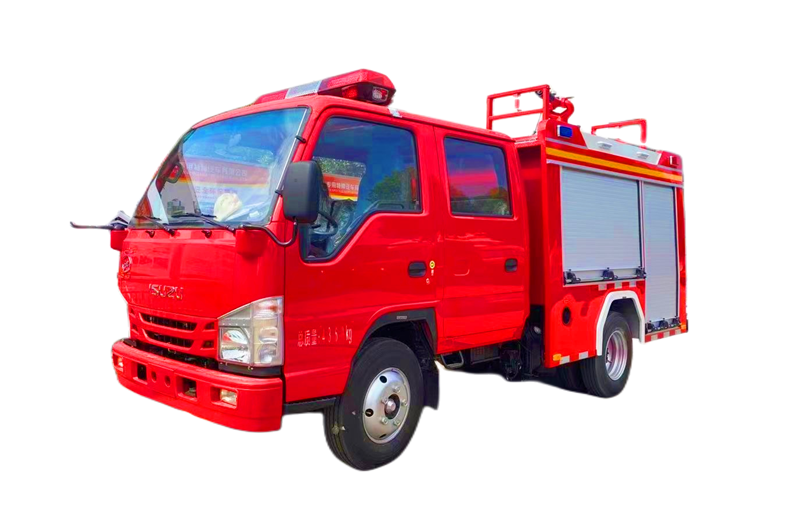

Isuzu 100P fire fighting truck for exporting.
2. Tank
All the tanks are parallelepiped. They are all stainless steel and connected with the vehicle frame in secondary beam type:
1. On the top of the tank, there are two manholes, overflow hole and safety guard.
3.Tool room
The tool room is half enveloping structure, easy for equipment to put or get.
The sliding door there is made up with qualified aluminum alloy materials; there are special lightings for each tool room. Equipment shown as follow:
4. Pump room
The pump room is located at the rear part of the vehicle and it is all-mental structure.
In the pump room, there is the fire pump system, and the operation system & control board, help checking the working condition monitoring and fire pump operation.
At the front part of the water tank in the pump room, there is one large injection hole for water injection from the external water source.
There
are special lightings in the pump room for the night work. And the rear
Headlight controller also is in the pump room.
5. Pump and pipeline
The fire pump of this vehicle is middle-positioned. It is made of aluminum alloy materials, corrosion-resistant and easy for maintenance.
The vacuum gauge, pressure gauge and the additional cooling system have been equipped with the fire pump pipeline system, for monitoring the fire pump working situation and cooling the PTO.
6. Fire monitor
Model: PS20
Location: Top of tank
Angle of rotation: 360°
Angle of elevation:≤80°
Angle of depression: ≥—10°
Throw: Water throw≥50m
Foam throw≥45m
7.Additional drive system
Additional drive system is composed of PTO, pump transmission shaft and brackets.
The PTO is sandwich and full-power output type, gear driving, water cooling, Manual（pneumatic） control. It is fitted between the clutch and transmission, getting power from engine and passing it to the fire pump through its pump transmission shaft.
8. Additional Control system
Additional Control system is composed of PTO control rod, fire pump valve control rod, electrical control, button, hand throttle control rod, etc.
