The main function of Isuzu boom crane truck is to lift and transport cargo. It is a common and important mechanical equipment used to transport and lift heavy objects on construction sites. The Isuzu boom crane truck can be quickly set up on site and can perform efficient lifting operations. Isuzu boom crane truck can provide a large amount of lifting capacity and working range to meet various lifting needs. Among them, Isuzu boom crane truck has many unique advantages, making it the preferred equipment in many engineering projects. The advantages of Isuzu boom crane truck will be introduced below.

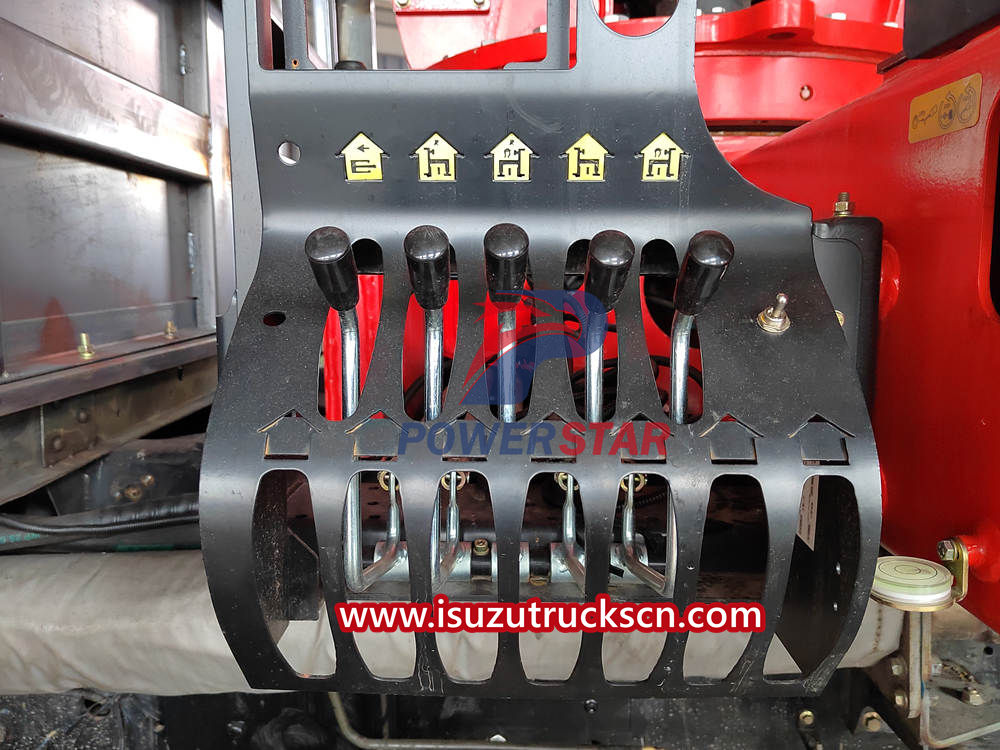

The operation and control of Isuzu telescopic crane truck is a crucial part of the entire lifting task. Among them, the Isuzu telescopic crane truck has four operating valves, which are used to control the telescopic arm, rotating boom, luffing boom angle, and retracting and retracting the wire rope. The precise control of these operating valves can effectively realize various lifting actions and ensure the safety and efficiency of lifting tasks.

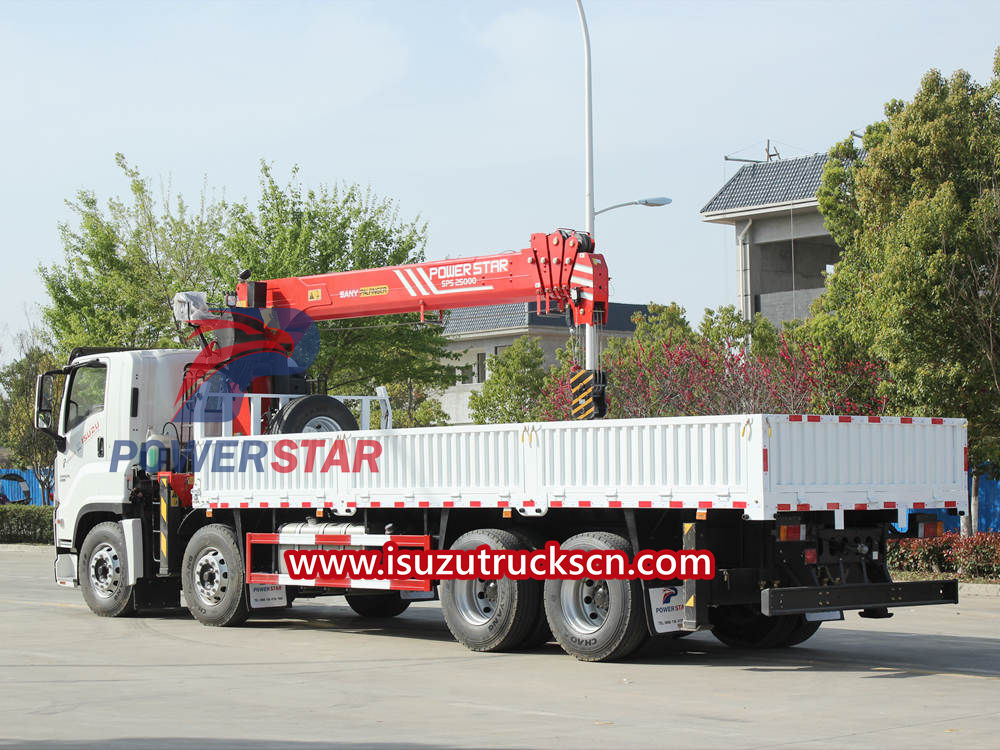

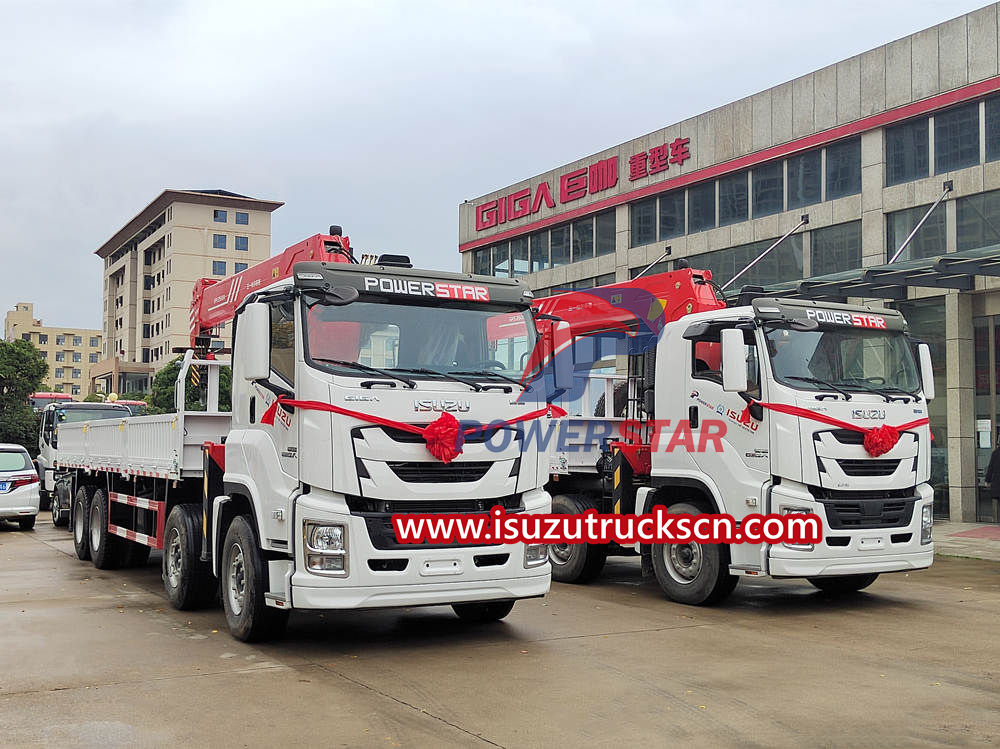

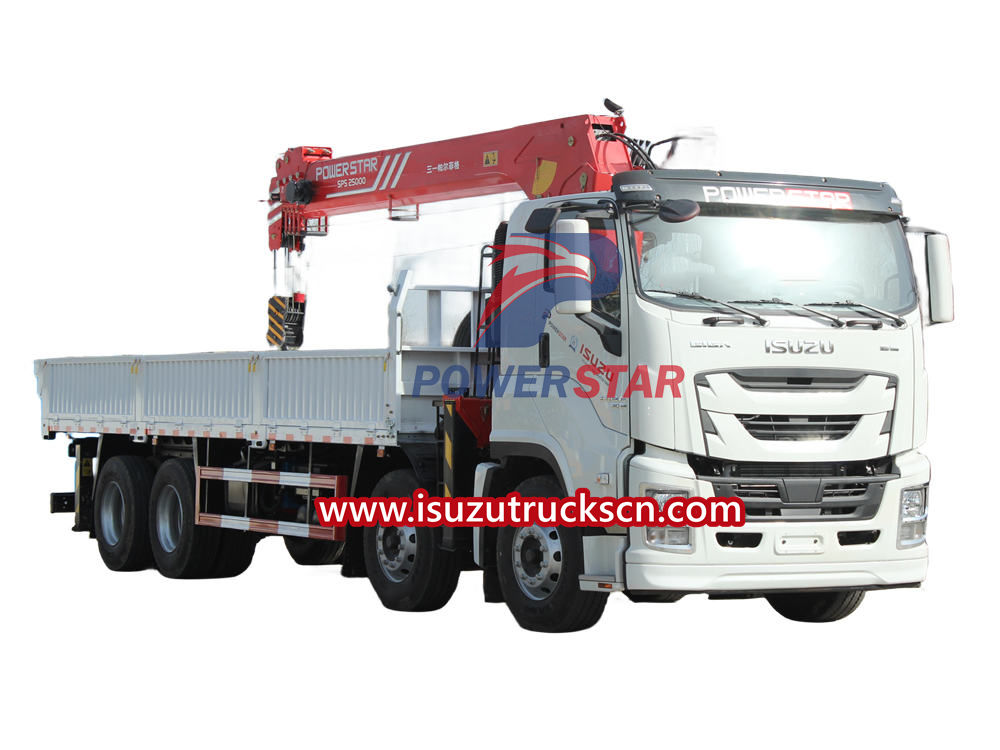

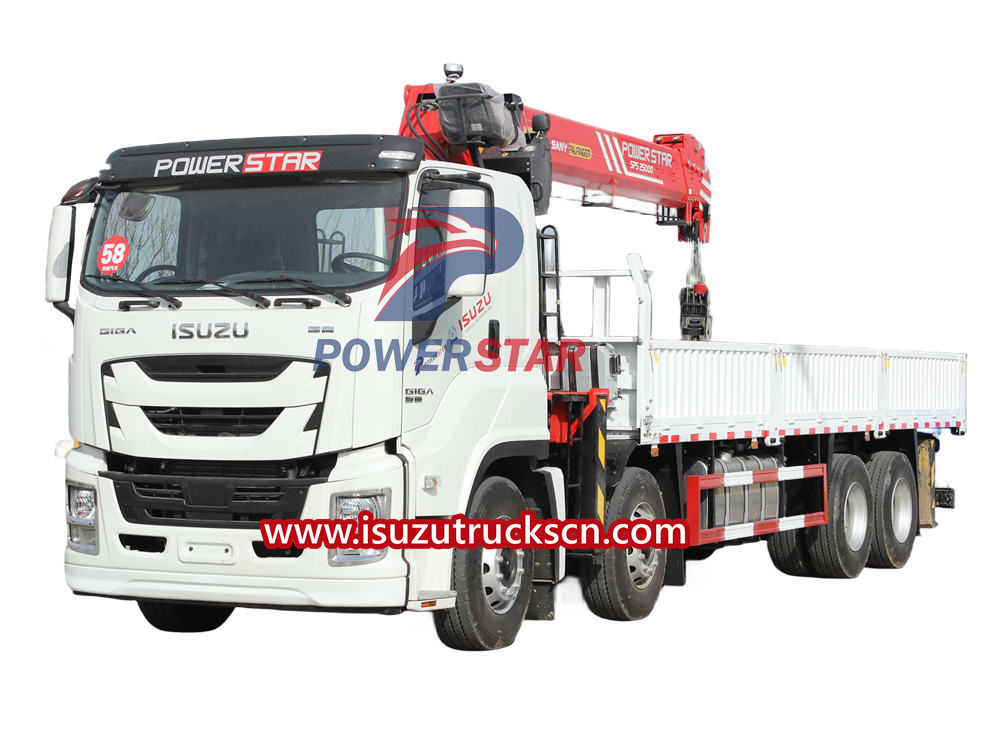

ISUZU GIGA 8x4 truck with SPS25000 10ton Telescopic boom crane Specification |
||
Chassis |
||
Chassis model number |
ISUZU GIGA chassis(QL1320W6VDHY) |
|
Cabin |
Brand: ISUZU |
|
|
ISUZU GIGA cab, 8x4 left hand drive |
|
|
3 seats, with air conditioner, USB connector radio |
|

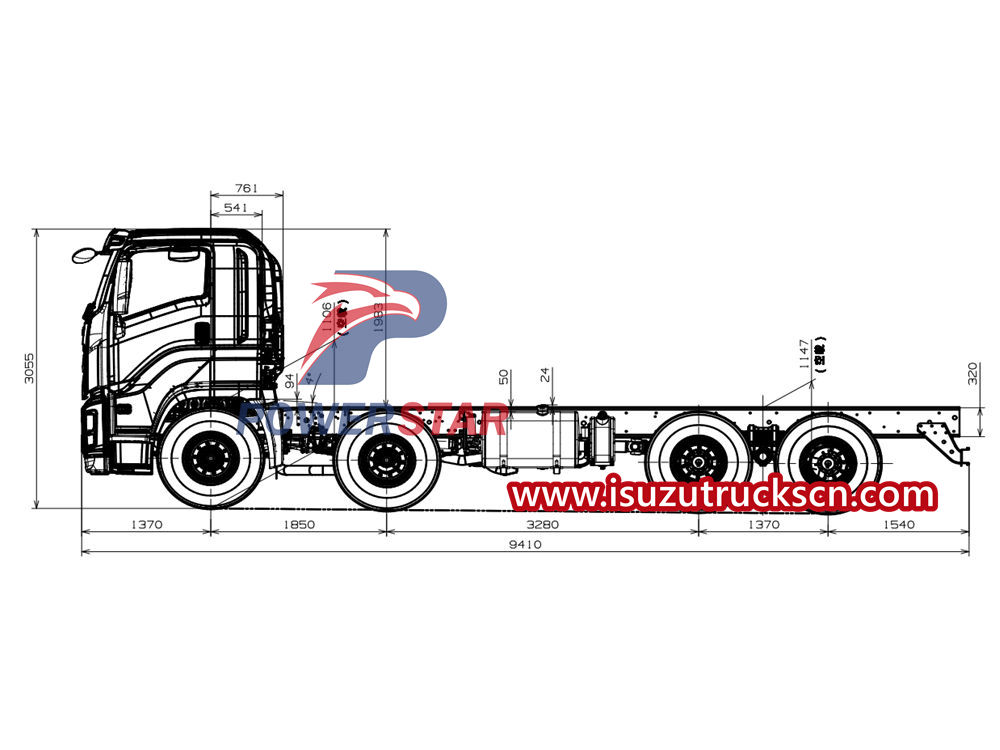

Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm: 12600x2550x4000mm |
|
|
Wheel base: 1850+4575+1370 (mm) |
|
|
Overhang (front/rear): 1370/2485(mm) |
|
|
Approach angle: 17° |
|
|
Departure angle: 19° |
|
Weight in KGS |
Curb Weight:19800 kg |
|
Max. driving speed(km/h) |
100 |
|
Engine |
Brand |
ISUZU |
|
Model |
6WG1 , EURO 6 |
|
Emission |
15.681L |
|
Horse Power(HP) |
205HP |
Gearbox |
Fast 12 gears, 12 Forwards gear & 2 reverse gear |
|
Tire |
295/80R22.5, 12 pcs+1 spare tire |
|
Axle |
Front axles 9-18t, rear axle13-26t |
|
Upper body |
||
Crane Type |
Telescopic boom crane |
|
Max. Lifting Capacity |
10 ton |
|
Max. Lifting Height: |
16.3 Meters |
|
Max. Oil Flow of Hydraulic System |
72 L/min |
|
Max. Working range |
14.3 meters |
|
Material |
High performance carbon steel |
|
Body type |
All steel body with drop sides |
|
Rotation Angle |
360° All Rotation |
|
Color and Logo |
According to wish |

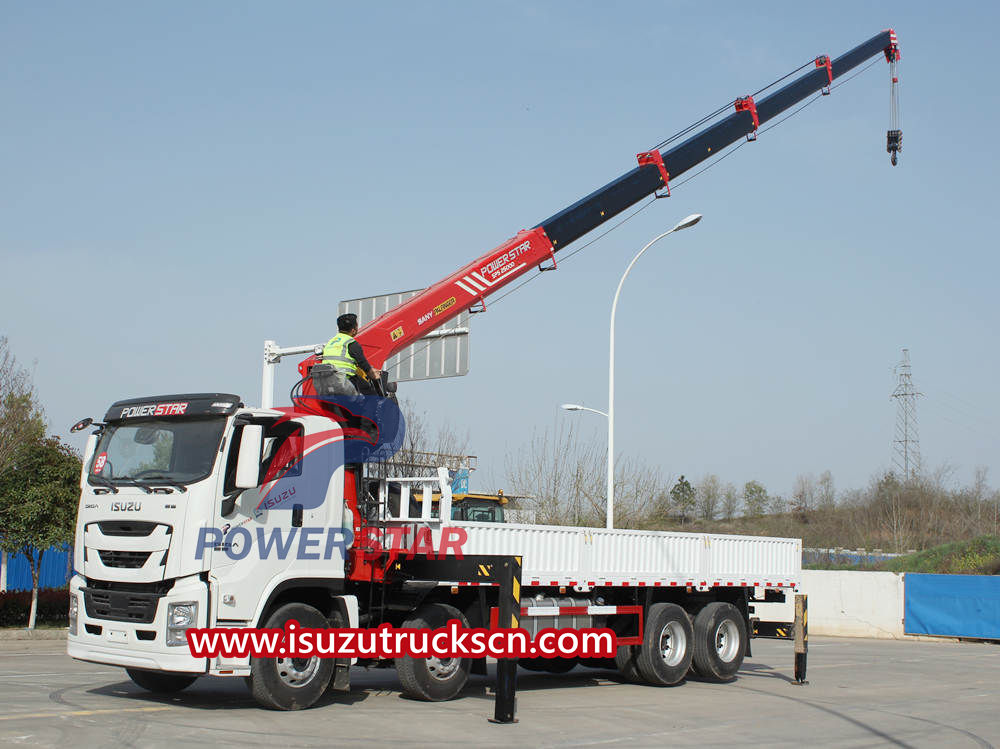

1. Telescopic arm. By operating the operating valve of the telescopic arm, the telescopic action of the boom can be realized, thereby changing the height and distance of the hoisted objects. During the hoisting process, the control of the telescopic arm can flexibly adjust the hoisting distance according to the specific requirements of the hoisted objects and the construction site conditions, ensuring a safe and accurate hoisting process.
2. Rotate the boom. By operating the operating valve of the rotating boom, the 360-degree rotation of the boom can be achieved, thereby adjusting the direction and position of the hoisted object. The precise control of the rotating boom can make the hoisting process more flexible and efficient, adapting to the needs of different hoisting scenarios.

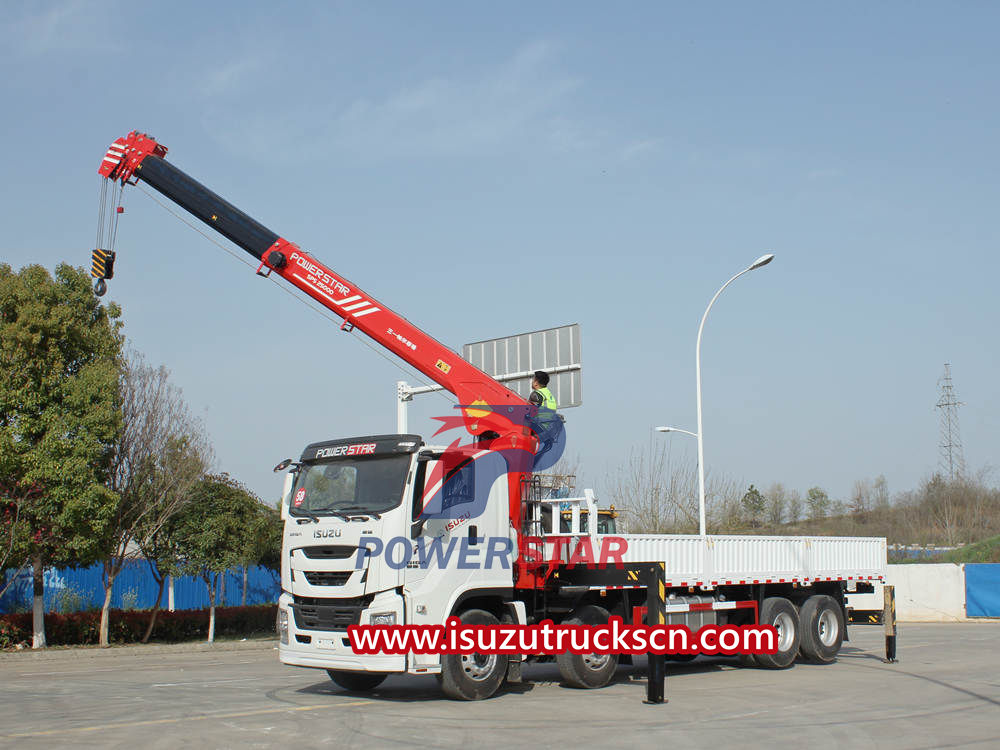

3. Luffing boom. By operating the operating valve of the luffing arm angle, the angle of the boom can be adjusted to control the luffing range of the spreader. The precise control of the luffing arm angle can ensure the stability and safety of the hoisting process and ensure the smooth lifting and lowering of hoisted objects.
4. Retract and release the wire rope. By operating the operating valve that retracts and releases the wire rope, the lifting and lowering movements of the hoisted objects can be realized and the height and position of the hoisted objects can be controlled. Precise control of the retraction and retraction of the wire rope can ensure the smooth progress of the hoisting process and avoid accidents.
In general, the four operating valves of the Isuzu boom crane truck respectively control the telescopic arm, rotating boom, luffing arm angle, and retracting and retracting the wire rope. Through the precise operation of these operating valves, various lifting actions can be achieved. Ensure the safe and efficient performance of lifting tasks.
Features and advantages of Isuzu boom crane truck
1. Isuzu telescopic crane truck is flexible and efficient.
The Isuzu telescopic crane truck can move freely in narrow construction site spaces and can achieve accurate lifting of heavy objects by rotating the boom and adjusting the length of the sling. This flexibility allows the Isuzu telescopic crane truck to be used in a variety of different types of engineering projects and complete lifting tasks quickly and efficiently. In addition, Isuzu telescopic crane truck are usually equipped with intelligent control systems and safety protection devices to ensure the safety of operators and the stable operation of equipment, thereby improving work efficiency.
2. Isuzu hydraulic crane truck has strong load-bearing capacity.
Isuzu hydraulic crane truck are usually made of high-strength steel and wear-resistant materials, which can withstand high-intensity lifting of heavy objects. This strong load-bearing capacity allows the straight-arm truck crane to be used for lifting heavy equipment and large components, such as lifting large building materials, heavy machinery and equipment, etc. In large-scale engineering projects, Isuzu hydraulic crane truck is usually one of the indispensable pieces of equipment that can accomplish various complex lifting tasks.
3. Isuzu boom crane truck has good stability and accuracy.
Isuzu boom crane truck are usually equipped with hydraulic systems and balancing systems to ensure smooth operation of the boom and precise control of the lifting process. This stability and precision allow the straight-arm truck crane to remain stable in a variety of different working environments and enable precise lifting position and angle control. In projects that require high-precision lifting, the Isuzu boom crane truck can provide reliable support to ensure that the lifting process goes smoothly.
4. Isuzu telescopic crane truck has the characteristics of easy maintenance and repair.
Each component of the Isuzu telescopic crane truck can be quickly disassembled and replaced to facilitate equipment maintenance and repair. In addition, Isuzu telescopic crane trucks are usually equipped with automatic fault diagnosis systems and remote monitoring equipment, which can monitor equipment operating status and fault information in real time, and find and solve problems in time. This easy maintenance and repair feature can reduce the operating cost of the equipment, extend the service life of the equipment, and ensure the safe and stable operation of the equipment.
To sum up, Isuzu boom crane truck has unique advantages such as flexibility and efficiency, strong load-bearing capacity, good stability and accuracy, and easy maintenance and repair, making it an irreplaceable and important equipment in many engineering projects.
