The Advantage of 2024 year Isuzu knuckle crane truck
The Advantage of 2024 year Isuzu knuckle crane truck
March 04, 2024
Isuzu knuckle crane truck is a common mechanical equipment for loading and unloading cargo. Its main function is to provide stable lifting support during the handling process, effectively improving loading and unloading efficiency and operation safety. Isuzu knuckle crane truck can hoist and transport items, which makes it widely used in municipal construction, coal mining engineering, landscaping and other fields. Among truck-mounted cranes, theIsuzu knuckle crane truck is a common lifting method and has many advantages. In this article, we will focus on the advantages of Isuzu knuckle crane truck.
1. As a form of truck-mounted crane, Isuzu knuckle crane truck is flexible and changeable.
The boom design of the Isuzu knuckle crane truck can be flexibly extended and folded, and can be adjusted according to specific operation needs, improving the adaptability and flexibility of hoisting. Compared with fixed-arm cranes, Isuzu knuckle crane truck have higher operating efficiency in small spaces and are more suitable for handling operations in small environments such as urban construction sites. In addition, the Isuzu knuckle crane truck can effectively change the lifting position and angle, improving the accuracy and efficiency of the operation. Therefore, the Isuzu knuckle crane truck, as a form of truck-mounted crane, has obvious advantages in practical applications.

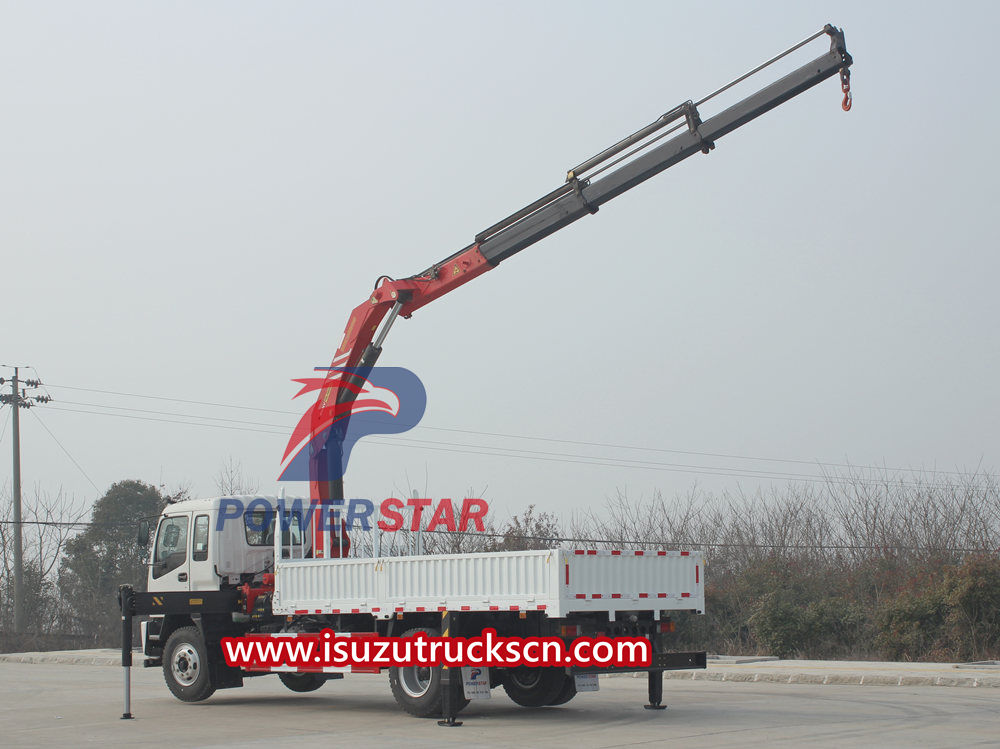

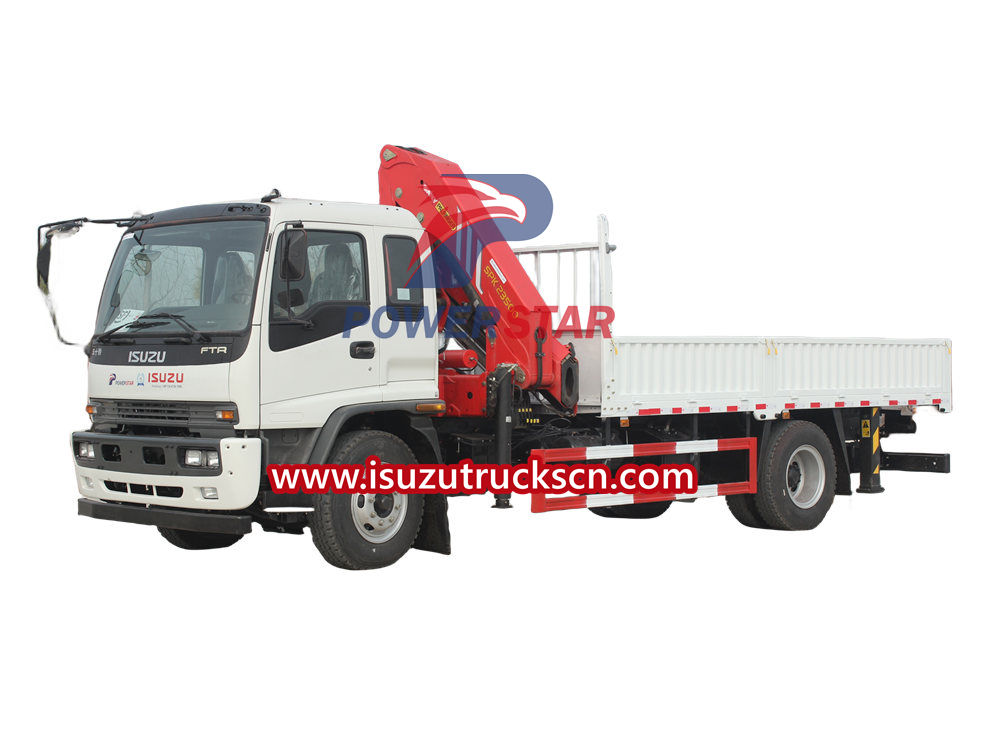

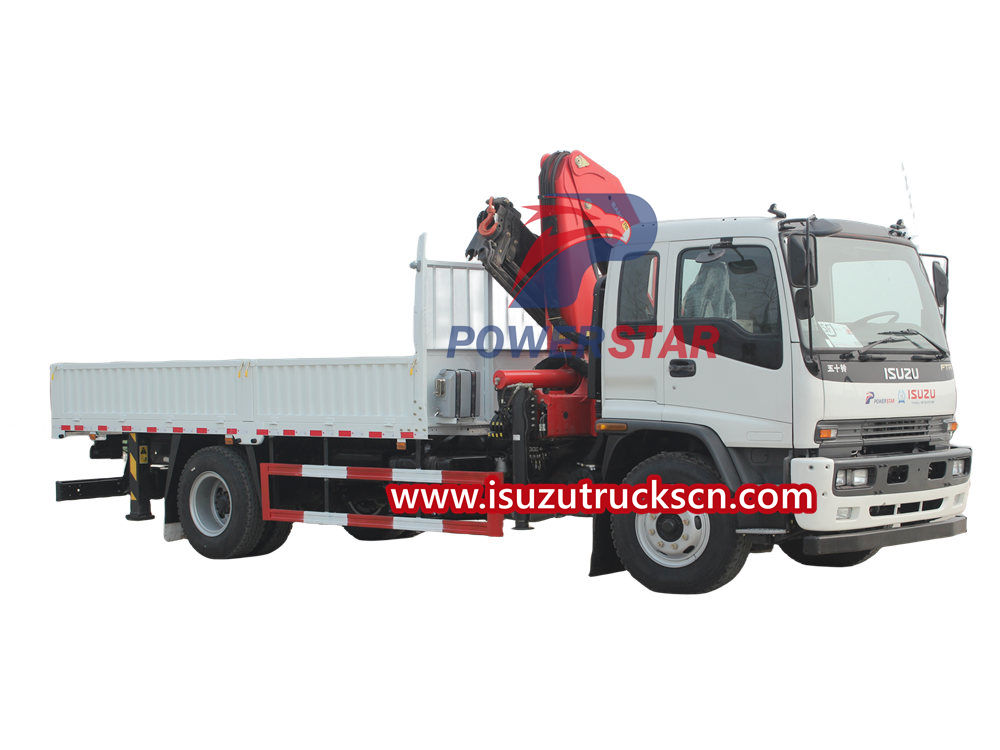

Isuzu FTR truck with SPK23500 10ton folding boom crane Specification
Chassis
Chassis model number
ISUZU FTR chassis(QL1160VNFRY)
Cabin
Brand: ISUZU
FTR single cabin, 4x2 left hand drive
3 seats, with air conditioner, USB connector radio
Vehicle Main Dimensions
Overall dimensions (L x W x H) mm: 8900x2400x3500mm
Wheel base: 5000 (mm)
Overhang (front/rear): 1335/2065(mm)
Approach angle: 15°
Departure angle: 12°
Weight in KGS
Curb Weight:8200 kg
Max. driving speed(km/h)
90
Engine
Brand
ISUZU
Model
4HK1 , EURO 5
Emission
5.193L
Type
4-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
205HP
Gearbox
ISUZU MLD, 6 Forwards gear & 1 reverse gear
Tire
1000R20, 6 pcs+1 spare tire
Axle
Front axles 6.3t, rear axle13t
Upper body
Crane Type
knuckle boom crane
Max. Lifting Capacity
10 ton
Max. Lifting Height:
16.1 Meters
Max. Oil Flow of Hydraulic System
72 L/min
Max. working range
14.3 meters
Material
High performance carbon steel
Body type
All steel body with drop sides
Rotation Angle
360° All Rotation
Color and Logo
According to wish
2. Isuzu knuckle boom crane has high safety.
The knuckle boom crane of Isuzu knuckle boom crane usually considers multiple safety protection devices in the design, such as overload protection, emergency stop device, limit switch, etc., which effectively reduces safety risks during the operation. In addition, the telescopic arm design of the Isuzu knuckle boom crane makes the hoisting process more stable, reduces the possibility of cargo swinging during the hoisting process, and further improves the safety of the operation. Therefore, Isuzu knuckle boom crane has excellent safety performance in truck-mounted cranes and has been widely recognized and applied.
3. Isuzu hydraulic crane truck has high operating efficiency.
Since the boom design of the knuckle arm crane is relatively flexible, it can be expanded, contracted and adjusted as needed, thus improving the efficiency and speed of the operation. In many emergency situations, Isuzu hydraulic crane truck can quickly adjust the lifting position and height, quickly complete the operation task, and reduce operation time and cost. In addition, Isuzu hydraulic crane truck can also implement a variety of hoisting methods during operations, such as rotational hoisting, translational hoisting, etc., which improves the diversity and adaptability of operations. Therefore, Isuzu hydraulic crane truck has obvious advantages in improving operating efficiency.
4. Isuzu knuckle crane truck has strong adaptability.
Isuzu knuckle crane truck can be flexibly adjusted according to specific operating environments and needs, so it is suitable for various types of lifting operations. In the fields of construction, port loading and unloading, automobile transportation, etc., Isuzu knuckle crane truck can play an important role and improve the efficiency and quality of operations. In addition, the Isuzu knuckle crane truck can be repaired and upgraded according to actual needs, extending the service life of the equipment and reducing maintenance costs. Therefore, Isuzu knuckle crane truck has advantages in adapting to different operating environments and needs, and is one of the important forms of truck-mounted crane.
To sum up, Isuzu knuckle boom crane has the advantages of flexibility, safety and stability, high efficiency and economy, and strong adaptability, and is widely used and welcomed.
