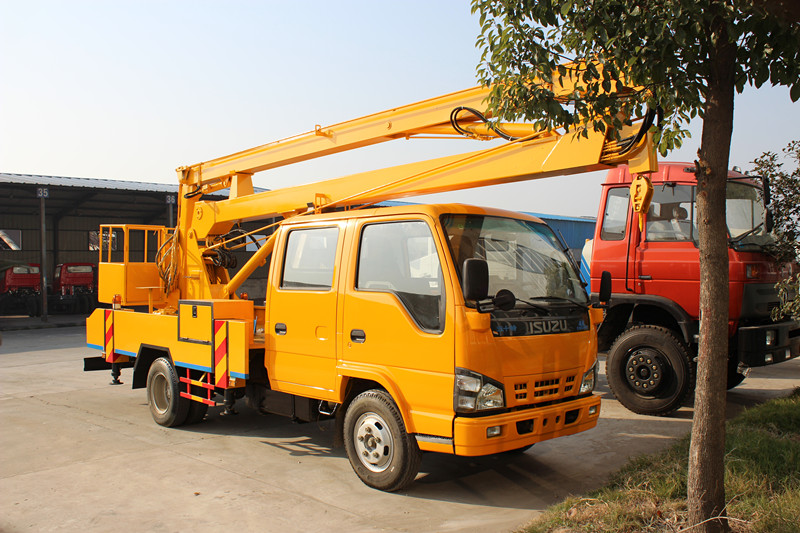

QL1070A5HWY ISUZU 16Meters high operation aerial platform truck
Similar Key Words: iSUZU Aerial working platform (truck mounted), cargo truck mounted aerial platform, truck mounted aerial lift, aerial platform truck, hydraulic aerial truck, hydraulic lifting platform truck, telescopic platform truck.
| Aerial Platform Truck ISUZU (14-18M) | ||
| General | Vehicle Brand | POWERSTAR |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7650 x 1980 x 3100 mm | |
| GVW / Kerb Weight | 6,810 kg / 5,855 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1CN5HS | |
| Power | 120Ps (88KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 or 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 14-16 M | |
| Outriggers | 4pcs, H-type; Hydraulically extend and retract | |
| Slewing | 360° continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at base and operator’s cage. | ||
| Optional | Insulated cage; Cargo box; Hoist hook with cables can be equipped for the function of a crane. | |
