Introduction to the functions of Isuzu road rescue vehicle
Introduction to the functions of Isuzu road rescue vehicle
March 29, 2024

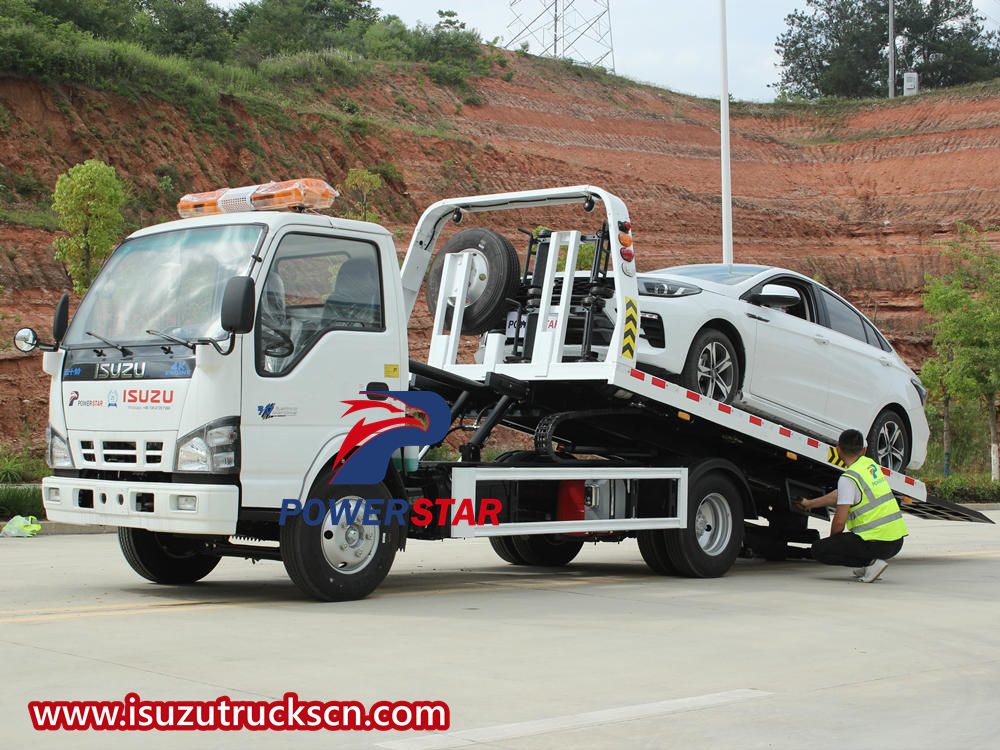

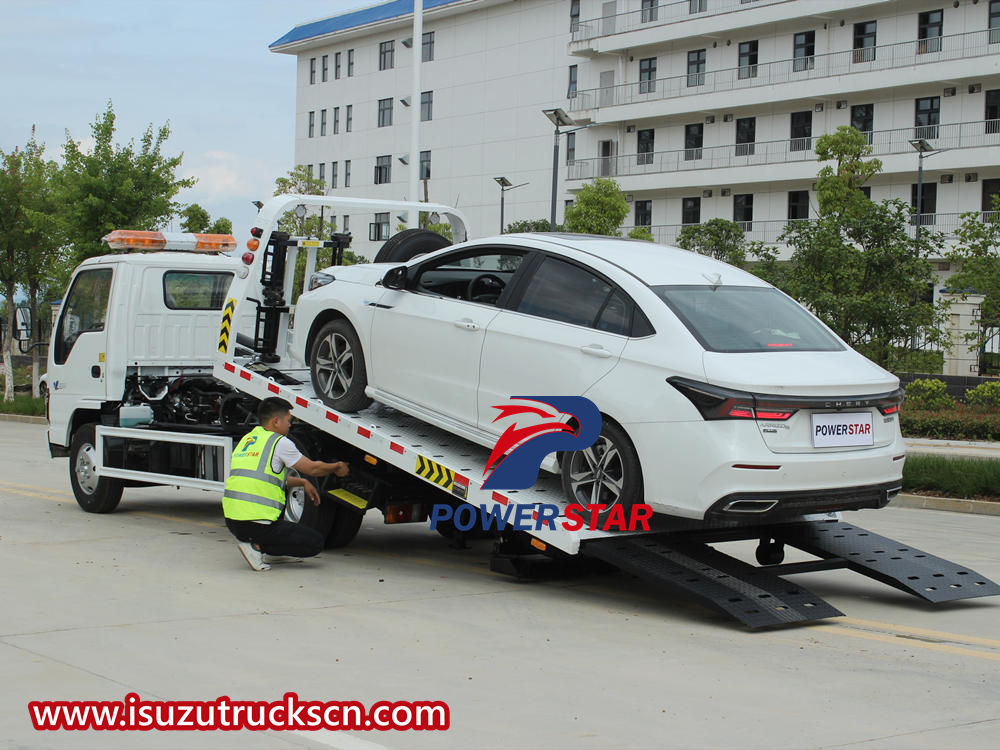

The full name of Isuzu road rescue vehicle is a road tow truck, also known as a trailer,Isuzu wrecker truck. It has multiple functions such as lifting, pulling, and lifting. Purpose description of Isuzu road rescue vehicle: it is mainly used to transfer road fault vehicles, urban illegal vehicles and rescue. When the car is driving on the road, vehicle faults and traffic accidents are inevitable, especially on the highway. The task of the obstacle removal Isuzu road rescue vehicle is to drag the faulty vehicle or accident vehicle away from the scene in time to ensure the smoothness of the road.
Isuzu flatbed wrecker carrier, etc. wreckers are mainly divided according to categories: tow-and-hook connected type, tow-and-hook separate type, one-to-one type, flat-bed one-to-two type, multi-function tow truck, and hydraulic automatic clamping type.

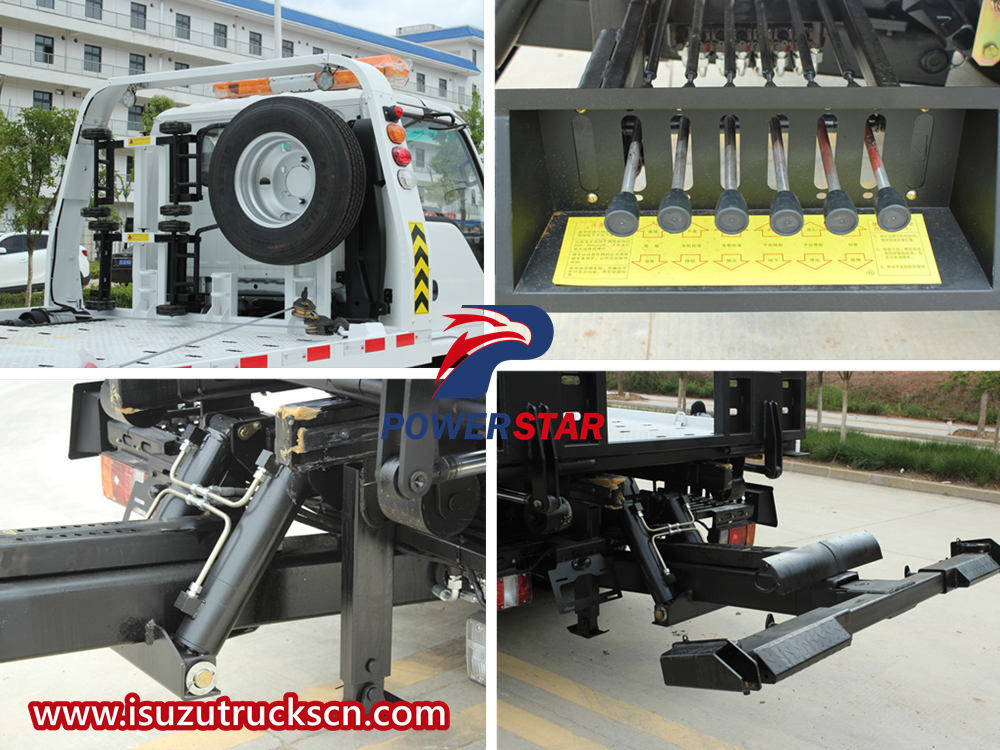

The whole vehicle is composed of loading platform assembly, 3p2a folding stamping flat plate, subframe assembly, trailing arm assembly, operating mechanism assemblies on both sides, hydraulic system and electrical system; Equipped with 40kN winch, 25m steel wire rope, steel hook, high-frequency hydraulic oil cylinder, oil filter, drag fork, drag fork square cylinder, auxiliary wheel, long row of 24V electronic yellow alarm lights, combined lamps (rear lighting spotlight, rear tail lamp, side marker lamp, position lamp), strap, spare tire rack and tool box.

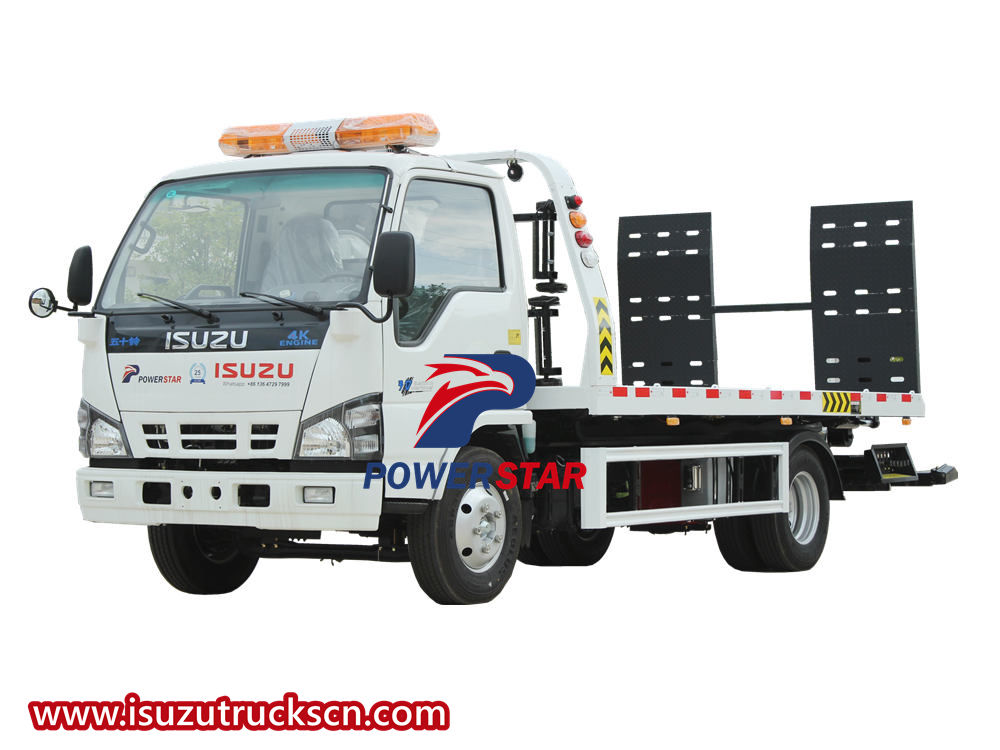

Specification of ISUZU 3tons Platform wrecker truck
Chassis
Brand
ISUZU
Curb weight(kg)
2950
Wheelbase(mm)
3360
Dimension(mm)
6800×2200×2230
Approach/departure angle(°)
16/14
Front /rear overhang(mm)
1015/2150
Wheel truck(front /rear)(mm)
1385/1425
Max driving speed(km/h)
90(km/h)
Tire
Quantity
6
Specification
700R16
Cab
2 Passenger Allowed
Engine
Brand
ISUZU 4KH1
Fuel type
diesel
Displacement(ml)
2800
Power(kw)
96
Horsepower(hp)
130
Cylinder number
4
Maximum torque
290N.m
Emission standard
EURO 5
Upper
Material
Q235A carbon steel
Lifting weight(kg)
1340
Winch
4 tons
Steel Rope Length
25m
Tool box quantity
1
Logo
according to the customer's design
(1) More than 15 years professional manufacturer experience.
(2) Be designed according to your requirements
(3) Small order can be accepted
(4) We accept 100% inspection, welcome to our factory at any time
(5) 12 month quality guarantee term
Isuzu flatbed wrecker carrier has the following features:
1:Versatility
In addition to towing rescue, the Isuzu wrecker can also perform many tasks such as vehicle lifting, building emergency exits, and leveraging vehicles. Equipped with a variety of professional equipment and tools, Isuzu wrecker can cope with various complex situations and provide multi-faceted rescue services.
2:Quick response
Isuzu wreckers are usually equipped with GPS positioning systems and wireless communication equipment, capable of receiving and responding to rescue requests in real time. Once receiving a rescue mission, Isuzu wrecker will immediately set off to the scene to minimize rescue time and ensure smooth roads and traffic safety.
3:Professional equipment
Isuzu road rescue vehicles are usually equipped with professional equipment such as cranes, winches, and tow hooks, and can handle various rescue tasks quickly and effectively. The crane can be used to lift, move or secure the vehicle; the winch can be used to tow and tow the vehicle; the tow hook can be used to connect the rescue vehicle and the towed vehicle to achieve towing.
4:safety
The drivers and staff of Isuzu road rescue vehicles are usually specially trained and have rich rescue experience and skills. They will take appropriate safety measures according to the specific situation to ensure the safety and smooth progress of the rescue scene. At the same time, the tow truck is also equipped with safety facilities such as warning lights and warning signs to remind passing vehicles and pedestrians to pay attention to safety.
Troubleshooting of Isuzu flatbed wrecker carrier: 1. Fault image: the telescopic speed of the boom of the obstacle removal vehicle is slow and weak; Fault cause:1)hydraulic power system fault
2)Failure of control valve and overflow valve of telescopic mechanism; Troubleshooting:1)check and adjust2)disassemble, clean, adjust or replace damaged components;
2.Fault image: telescopic vibration of crane boom of wrecker truck; Fault cause:1)the problem of boom slider2) the telescopic oil cylinder is abnormal; Troubleshooting: check and handle;
3.Fault image: the extension length of each jib of the wrecker towing truck cannot be compensated; Fault causes:1)solenoid valve fault; 2)circuit fault; Troubleshooting: 1)clean the oil filter and replace the electromagnet; 2)check the external circuit fault;
4.Fault image: the boom of the flat bed wrecker truck retracts automatically; Fault causes:1)telescopic oil cylinder fault; 2)balance valve fault; Troubleshooting: check and adjust the telescopic oil cylinder and replace the damaged components;
5. Fault image: the lifting mechanism of the obstacle removal vehicle does not act or acts slowly; Fault causes: 1)vehicle control valve fault; 2)hydraulic motor fault ; 3)balance valve fault ; 4) lifting brake fault;
Troubleshooting: 1)inspection and treatment; 2) inspection and treatment ;3)adjustment and replacement of spring;4)adjustment and replacement of spring;
