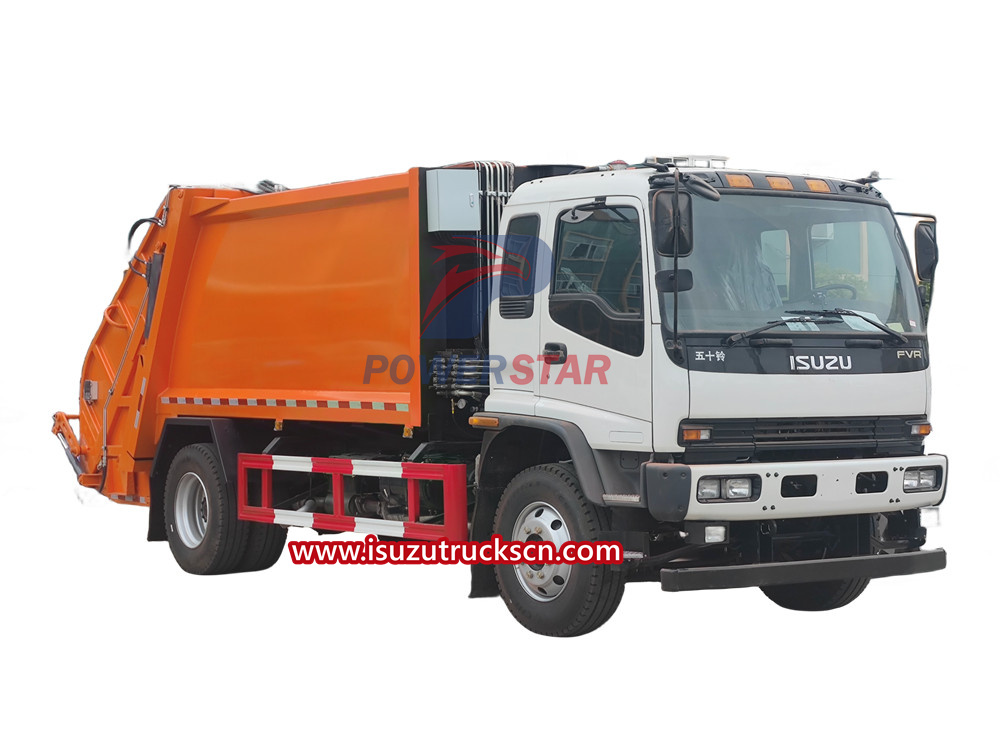

Isuzu compressed garbage truck consists of a sealed garbage compartment, hydraulic system and operating system. The whole vehicle is fully sealed. It is self-compressing, self-dumping, and all sewage during the compression process enters the sewage tank, which completely solves the problem of secondary pollution during garbage transportation. The key parts are made of high-quality components, which have the characteristics of high pressure and sealing. It has the advantages of good performance, easy operation and safety.

According to the location of the garbage loading mechanism, Isuzu garbage trucks can be divided into front-loading, side-loading and rear-loading types; according to the state of garbage loading, garbage trucks can be divided into compression and non-compression types. The rear-mounted compressed garbage truck is also called a compression garbage truck. It is a new type of sanitation vehicle that collects, transfers and transports garbage to avoid secondary pollution. Use the after-loading device to connect with the trash can or garbage bucket, and combine them together to form a mobile garbage transfer station to achieve multiple uses in one vehicle, pollution-free garbage, and collection and transportation. It effectively prevents pollution caused by the scattering and flying of garbage during collection and transportation, improves labor efficiency and reduces labor intensity. It is a new ideal sanitation special vehicle.

Isuzu compressed garbage trucks rely on mechanical, electrical and hydraulic combined automatic control systems, PLC control systems and manual operating systems. Through the special devices of the carriage, the filler and the push plate, the working process of garbage pouring, crushing or flattening, powerful filling, squeezing and compacting the garbage into the carriage, and garbage pushing is realized. The garbage collection method of compressed garbage trucks is simple and efficient; it has a high compression ratio and a large loading capacity; the operation of compressed garbage trucks is automated; it has good power and environmental protection; most of the upper and lower parts of compressed garbage trucks are made of stamped parts, which are light in weight. , the vehicle has high utilization efficiency; it has automatic repeated compression and peristaltic compression functions; the compressed garbage truck is superior to other types of garbage compression station equipment in terms of garbage compaction, garbage collection, unloading and loading, and the land area of the garbage station.

The working principle of the loading mechanism of the Isuzu compressed garbage truck: under the action of the hydraulic system, through the reversal of the electronically controlled pneumatic multi-way reversing valve, the lifting and lowering of the skateboard and the rotation of the scraper are realized, and various movements of the skateboard and scraper are controlled. , the garbage poured into the filling bucket of the loading box is swept by the filling mechanism, compacted and pressed into the carriage; when the garbage load pressed onto the push plate reaches the predetermined pressure, due to the back pressure in the push plate cylinder, the hydraulic system will The push plate automatically moves toward the front of the carriage so that the garbage is evenly compressed. The lifting cylinder uses a single-acting balance valve to control the lifting of the stuffer, and the pusher cylinder uses a one-way throttle valve for flow control.

The Isuzu rear-loading compression garbage truck integrates automatic loading and compression, sealed transportation and self-unloading. It overcomes the small capacity, poor compressibility and tendency of swing-arm, side-loading and other types of garbage trucks to cause drifting, spilling, scattering, etc. It has the disadvantages of leaking secondary pollution and has a high degree of automation, which improves the garbage carrying capacity and reduces transportation costs. It is an ideal tool for collecting and transporting urban domestic garbage and is the development trend of garbage trucks.
